2011 Doosan DNM-400A
Sold

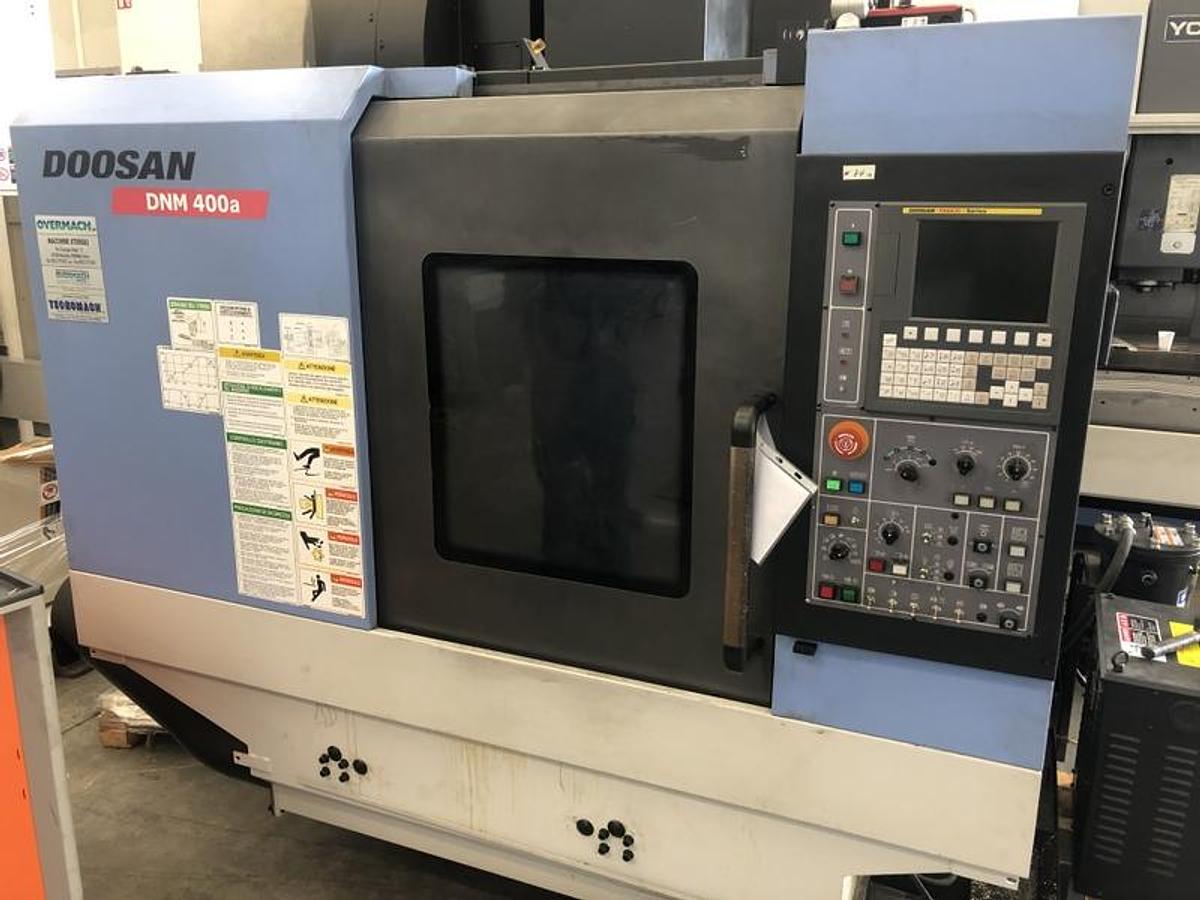

2011 Doosan DNM-400A
Location:Calerno, Italy
Specifications
| Manufacturer | Doosan |
| Model | DNM-400A |
| Year | 2011 |
| Condition | Used |
| Documents | https://f.machineryhost.com/1560776dcef4fa9a50a14b6859eb1dd4/DOOSAN%20DNM-400A.pdf |

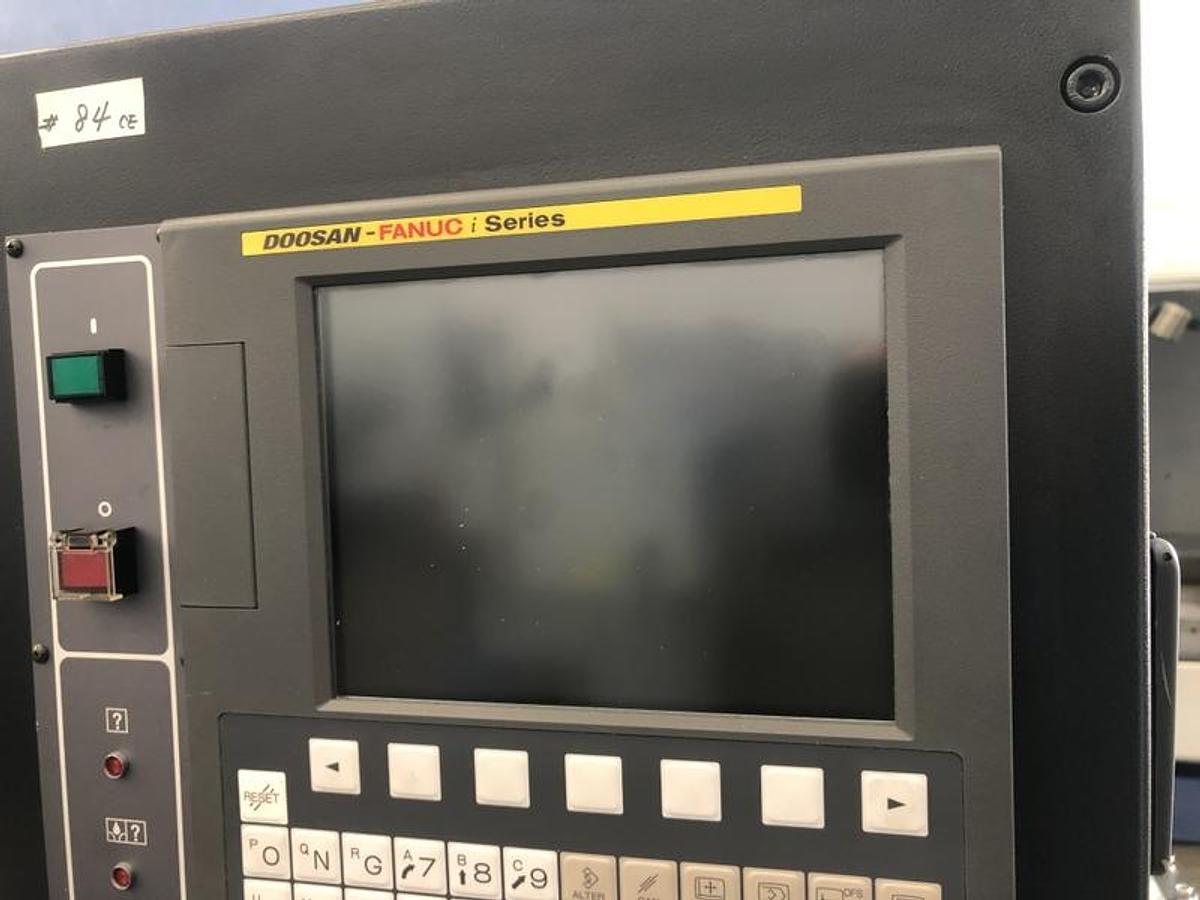

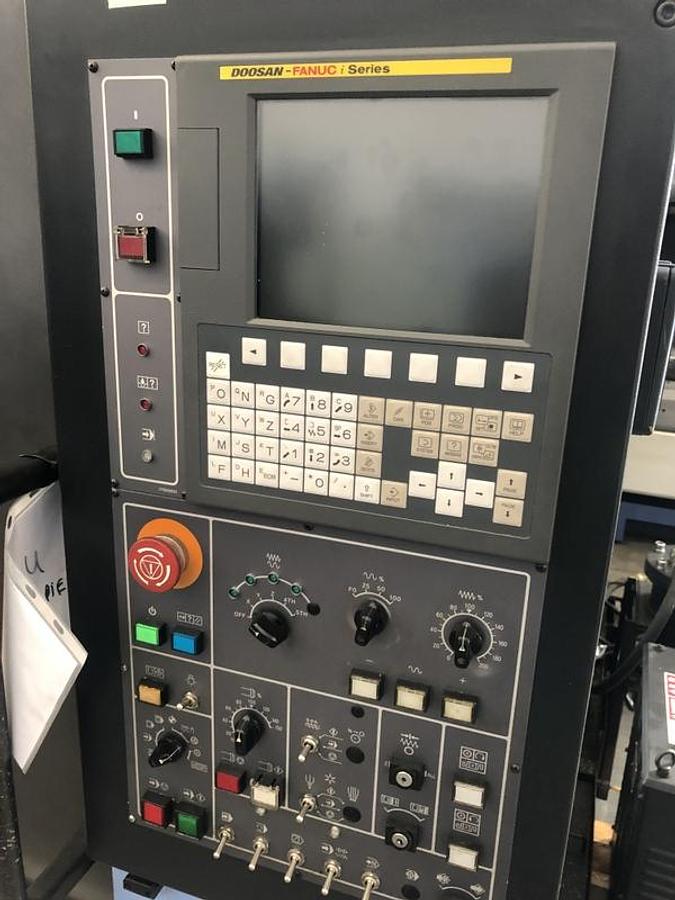

| CNC control | FANUC i-Series |
| Cone size | ISO 40 |
| Spindle speed | 8,000 rpm |
| Spindle motor power (cont / 30 min) | 7.5 / 11 kW |
| X axis | 635 |
| Y axis | 435 |
| Z axis | 510 |
| Table dimensions | 790 x 435 |
| Loading capacity of the table | 400 Kg |
| Working feeds x / y / z axes | 30,000 mm / min |
| Feeds in machining x / y / z axes | 15,000 mm / min |
| Tool cone | DIN 69871-A40 |
| Tool shank | DIN 69872-A40 |
| Tool magazine capacity | 20 |
| Maximum tool diameter | 80 mm |
| Maximum tool length | 300 mm |
| Maximum tool weight | 8 Kg |
