2005 First MCV-1000
Sold

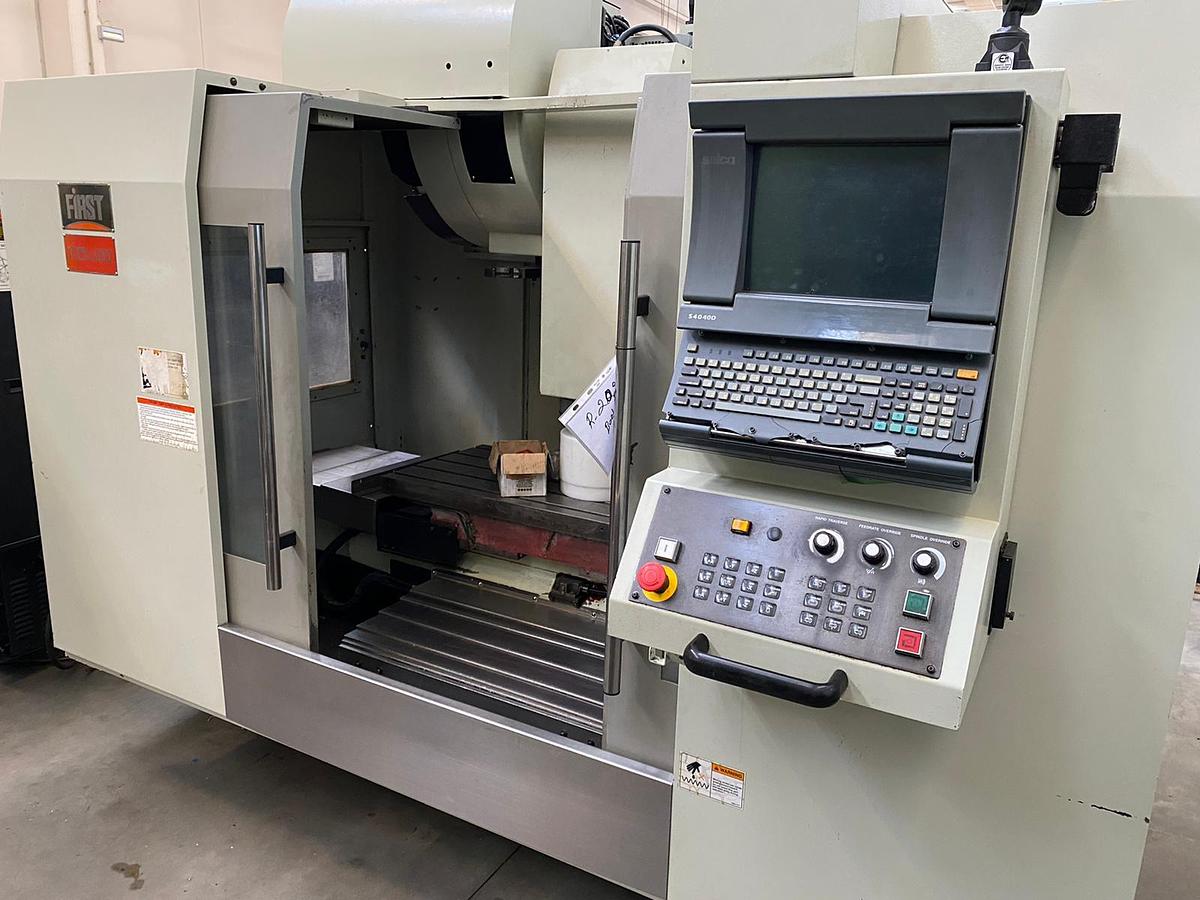

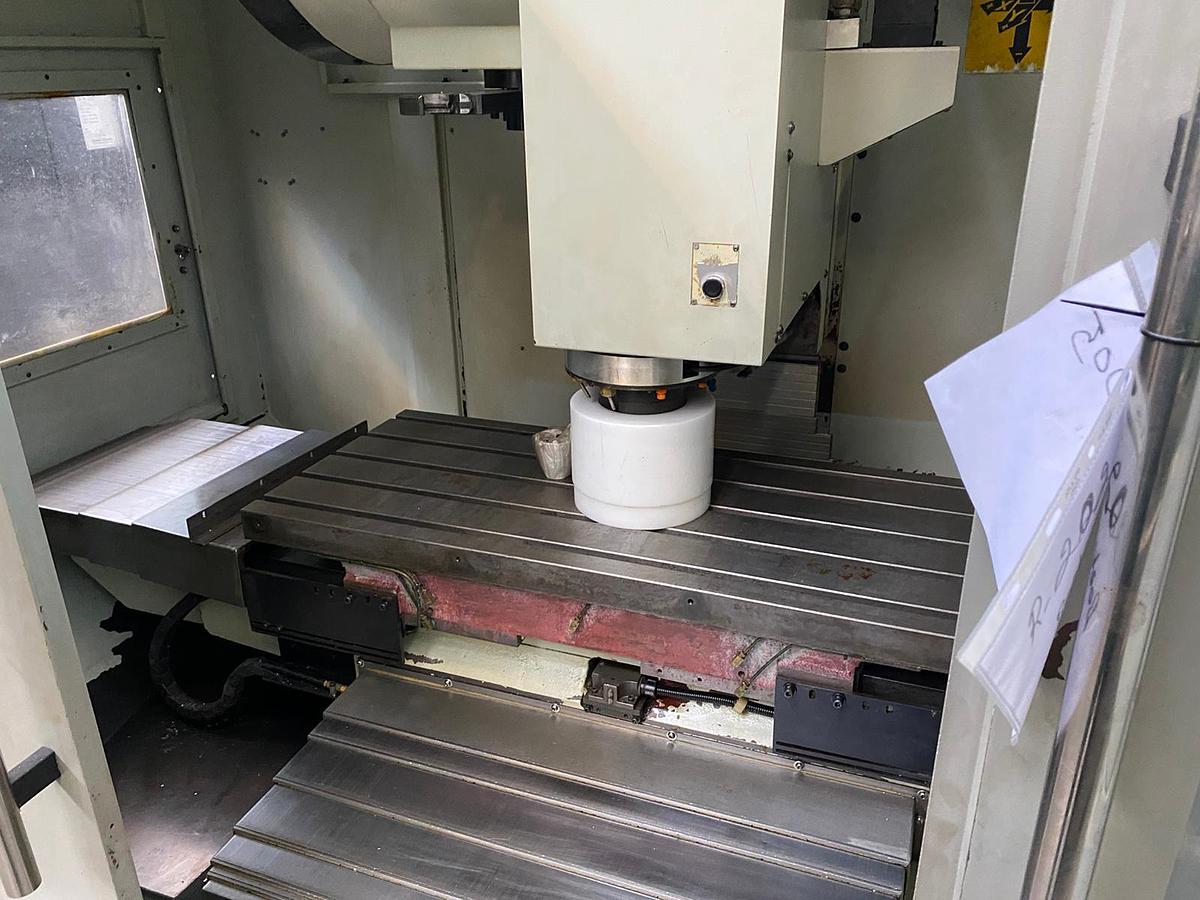

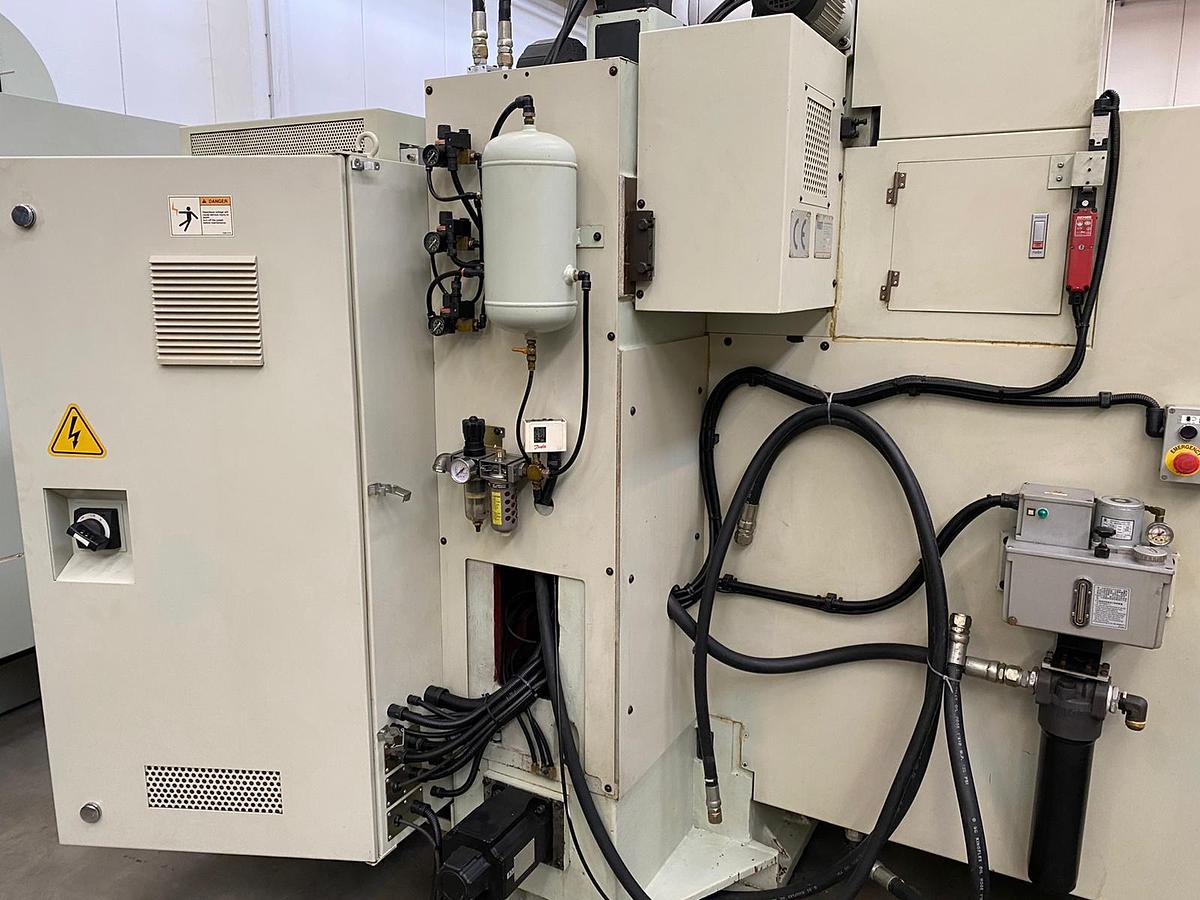

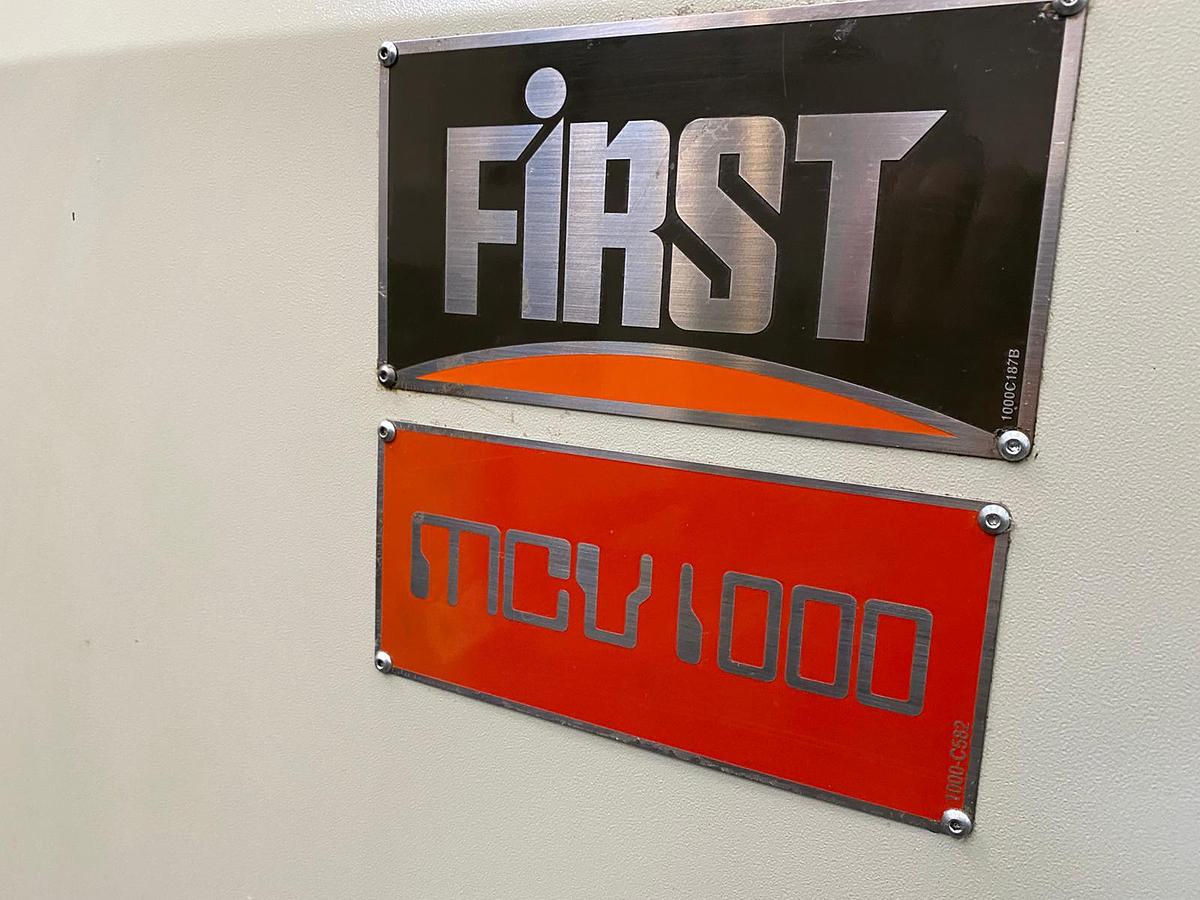

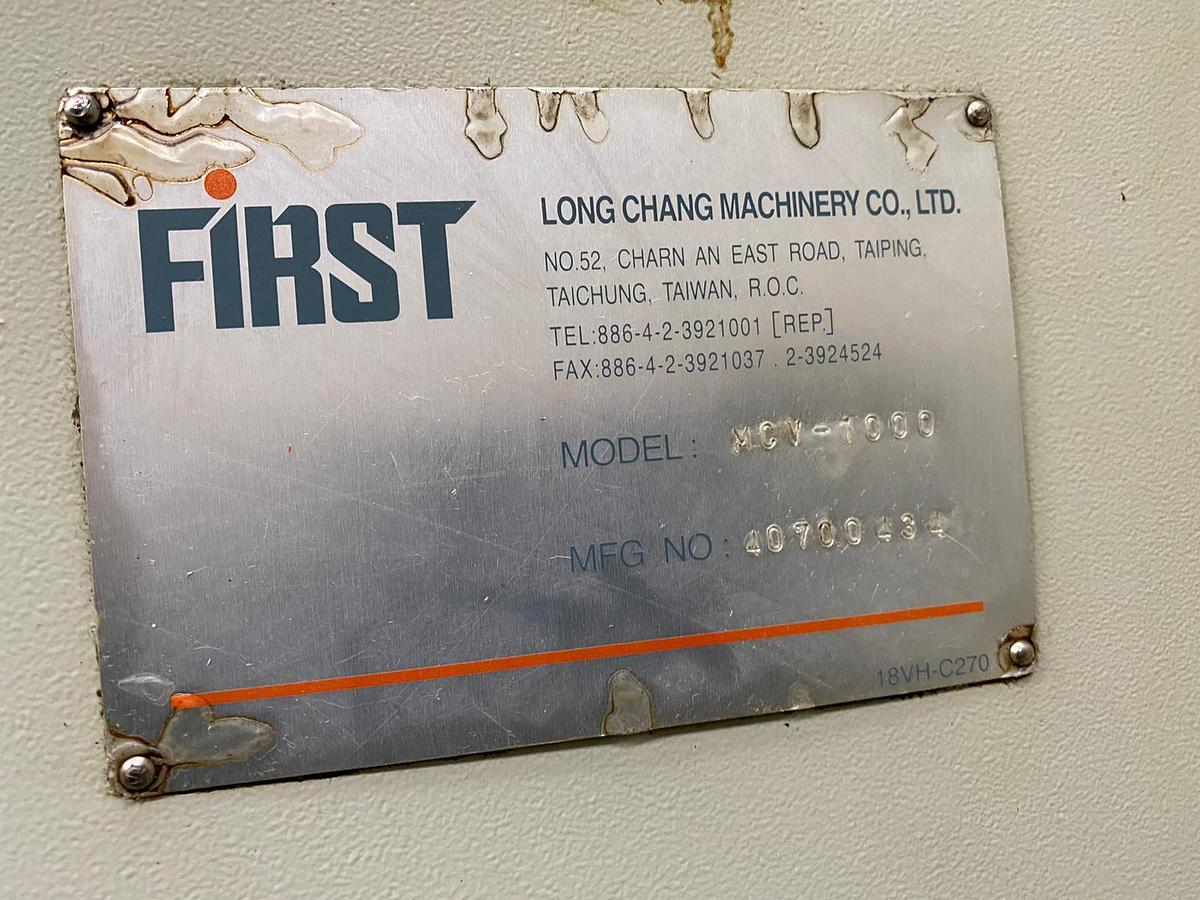

2005 First MCV-1000
Location:Calerno, Italy
Specifications
| Manufacturer | First |
| Model | MCV-1000 |
| Year | 2005 |
| Condition | Used |
| Documents | https://f.machineryhost.com/f208e9c2be5f90aeaf91203f84eeb9cb/c3b545_025c358ab8054424ab4c7c7717bd6ad3.pdf |

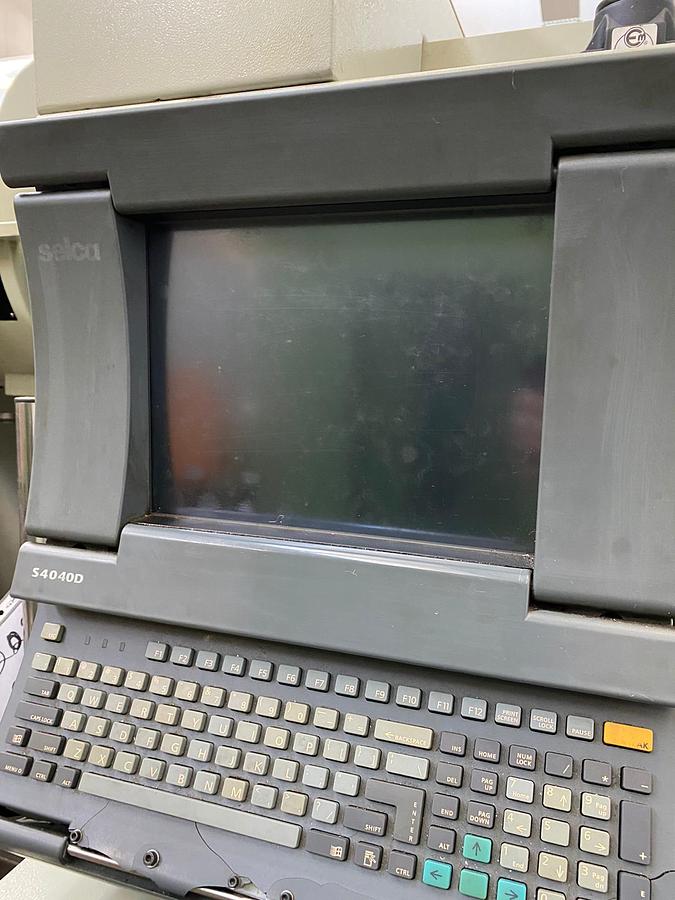

| CNC control | SELCA S4040D |
| Machine weight | 5 Ton |
| Cone size | ISO 40 |
| Spindle speed | 8,000 rpm |
| Spindle motor power (cont / 30 min) | 11/15 kW |
| X axis | 1,020 mm |
| Y axis | 510 mm |
| Axis z | 510 mm |
| Table dimensions | 1,150x 500 mm |
| Loading capacity of the table | 800 Kg |
| Rapid feeds x / y axes | 20,000 mm / min |
| Fast forward z axis | 18,000 mm / min |
| Tool cone | DIN 69871-A40 |
| Tool magazine capacity | No. of stations 24 |
| Tool diameter | Ø 75 mm |
| Maximum tool length | 300 mm |
| Maximum tool weight | 6.5 Kg |
