2006 Awea BM-1300
Sold

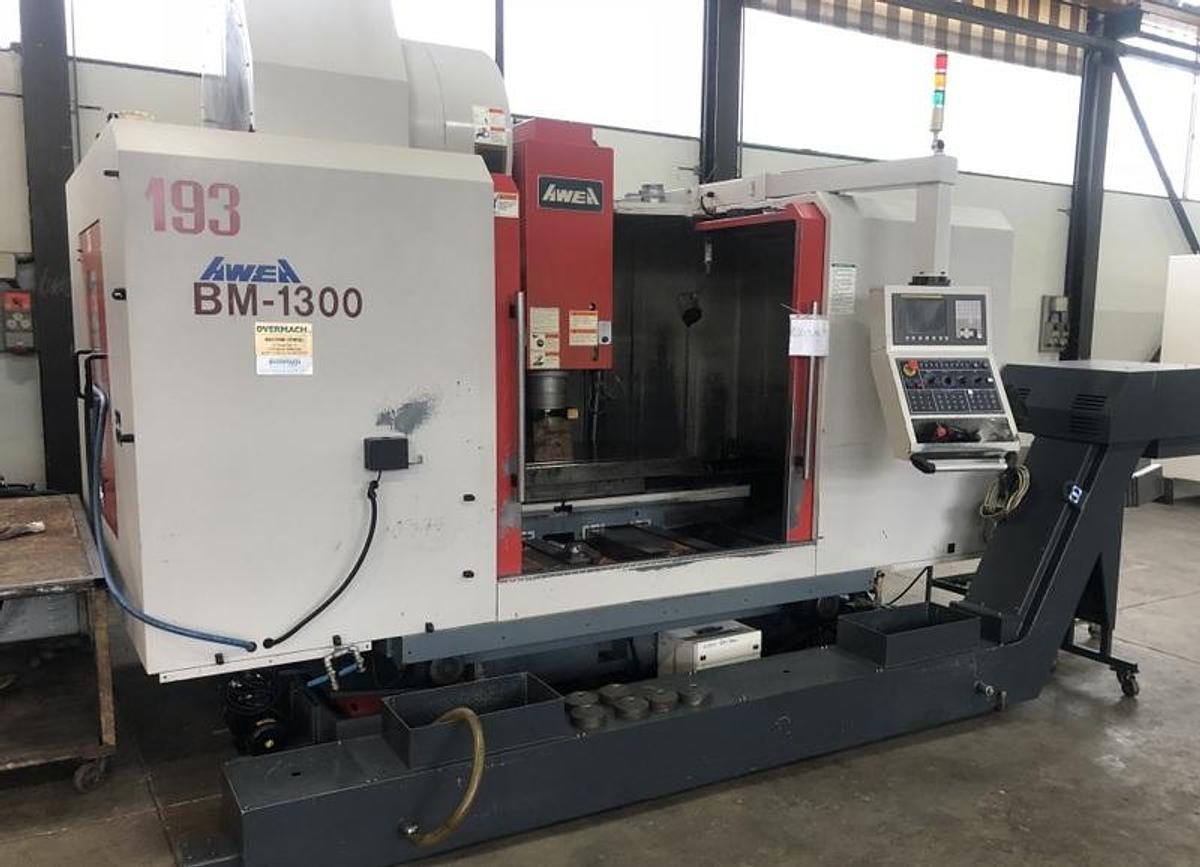

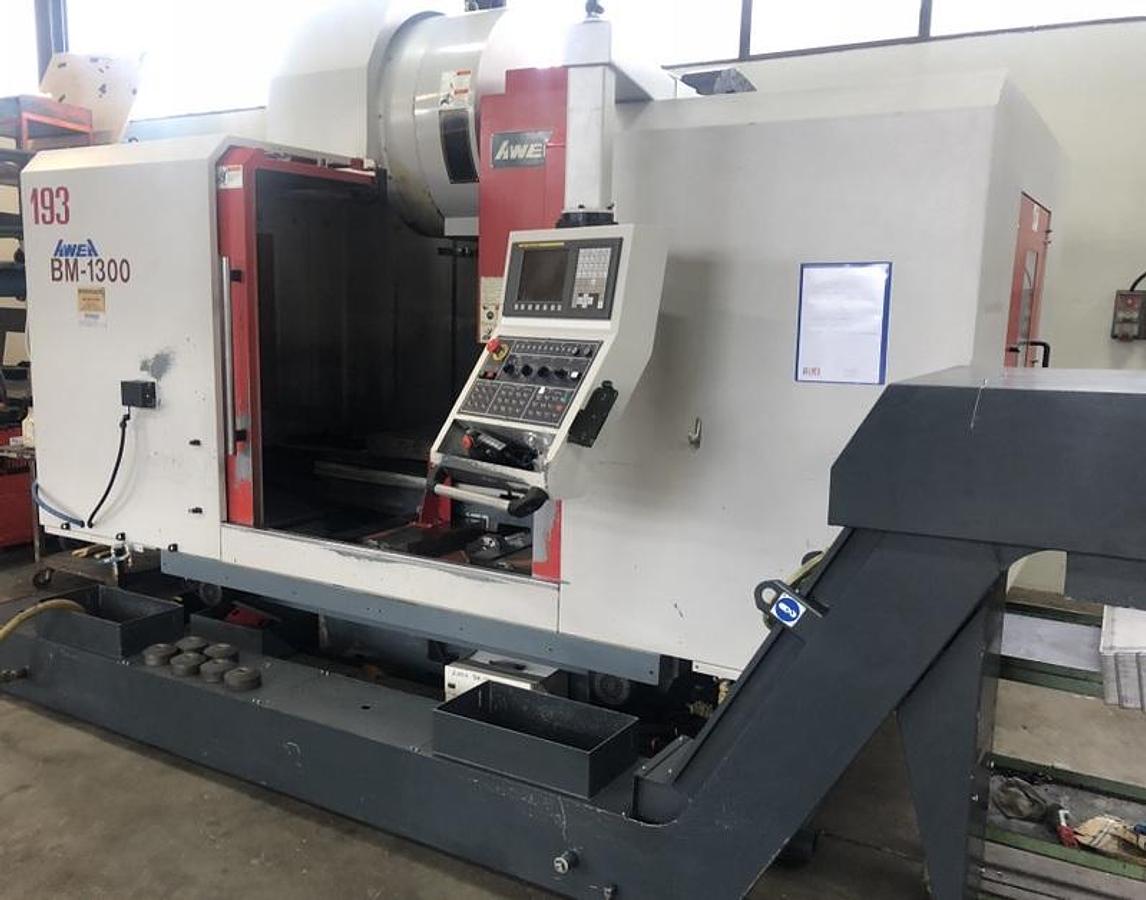

2006 Awea BM-1300
Location:Calerno, Italy
Specifications
| Manufacturer | Awea |
| Model | BM-1300 |
| Year | 2006 |
| Condition | Used |
| Documents | https://f.machineryhost.com/c13748191c9ada5fa09f3d31d8406727/Awea%20BM-1300.pdf |
| Machine weight | 11 Ton |
| Cone size | ISO 50 |

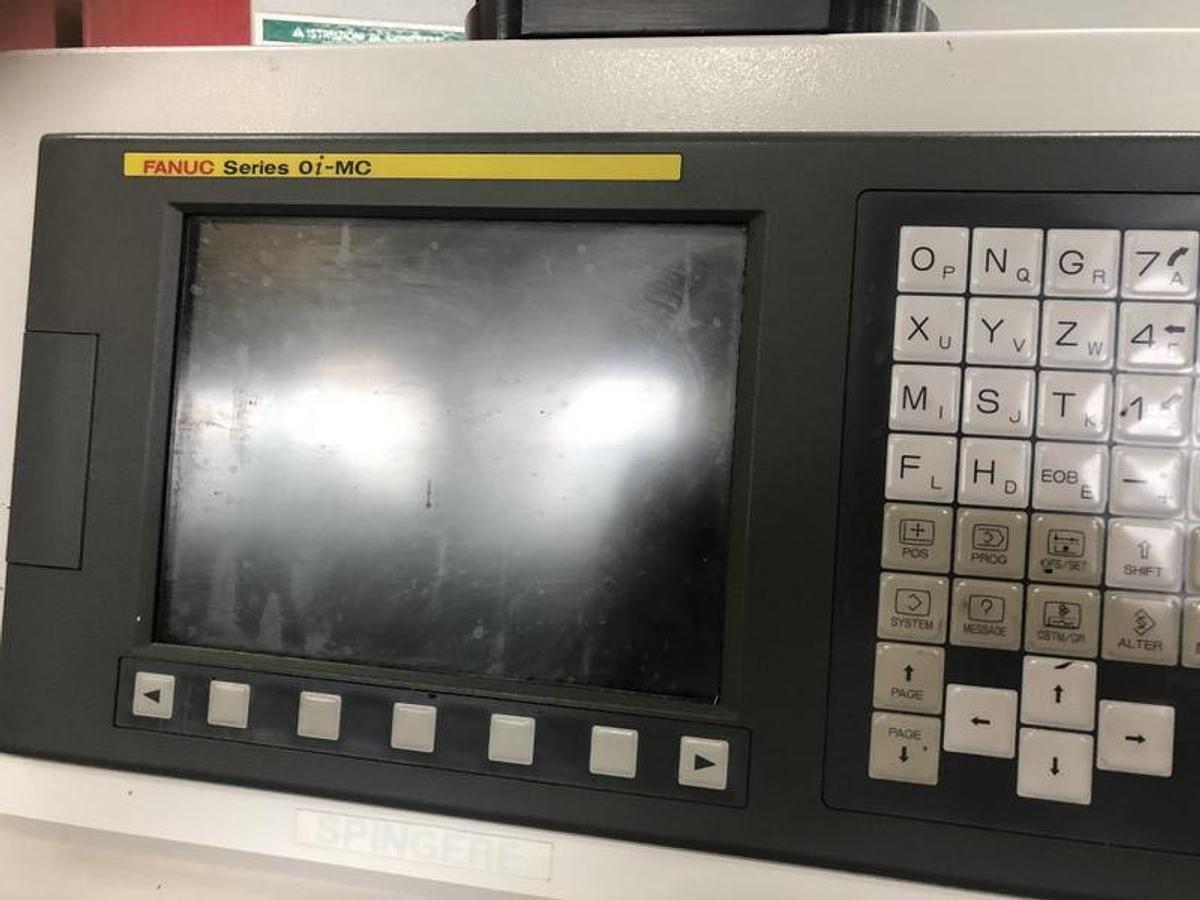

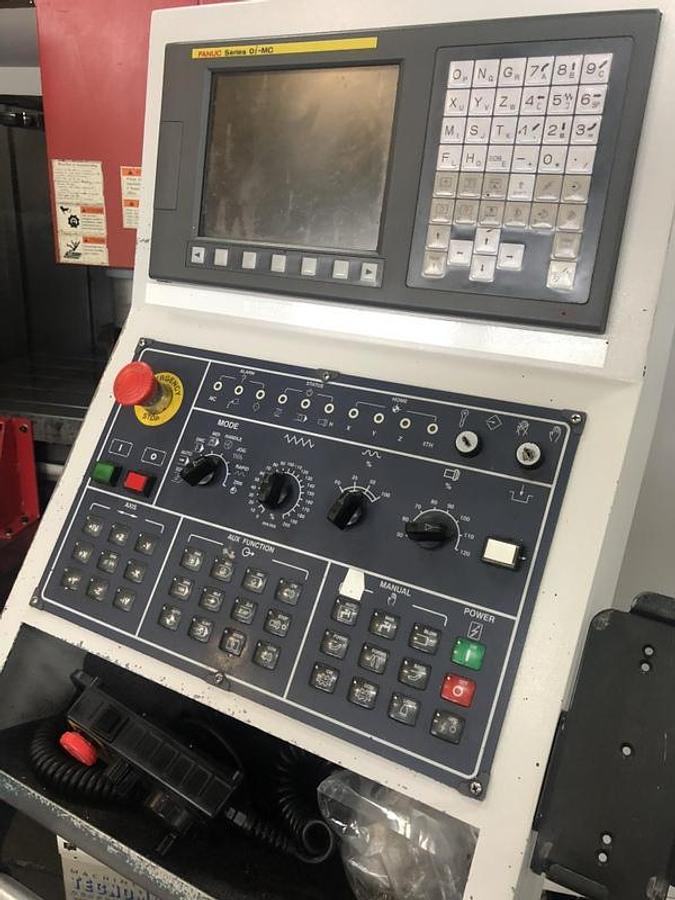

| CNC control | FANUC 0i-MC |
| Spindle speed | 20-6.000 RPM |
| Speed ranges with automatic transmission | 2 steps |
| X axis | 1.300 mm |
| Axis z | 700 mm |
| Rapid feeds x / y axes | 15,000 mm / min |
| Fast forward z axis | 12,000 mm / min |
| Working progress x / y / z axes | 8,000 mm / min |
| Y axis | 800 mm |
| Tang | DIN 69872 -A50 |
| Tool cone | DIN 69871-A50 |
| Spindle cone size | ISO-50 |
| Table dimensions | 1.800 x 800 mm |
| Loading capacity of the table | 1.200 Kg |
| Max tool diameter (with full adjacent stations) | Ø 127/215 mm |
| Z Axis | 700 mm |
| Rapid feeds X / Y axis | 15.000 mm / min |
| Rapid feeds Z axis | 12.000 mm / min |
| Working feedrate for X / Y / Z Axis | 8.000 mm / min |
| Tool type | DIN 69871-A50 |
| Pull stud type | DIN 69872-A50 |
| ATC Capacity | 24 positions |
| Max tool diameter | Ø 127/215 mm |
| Maximum tool weight | 15 Kg |
| Maximum tool length | 350 mm |

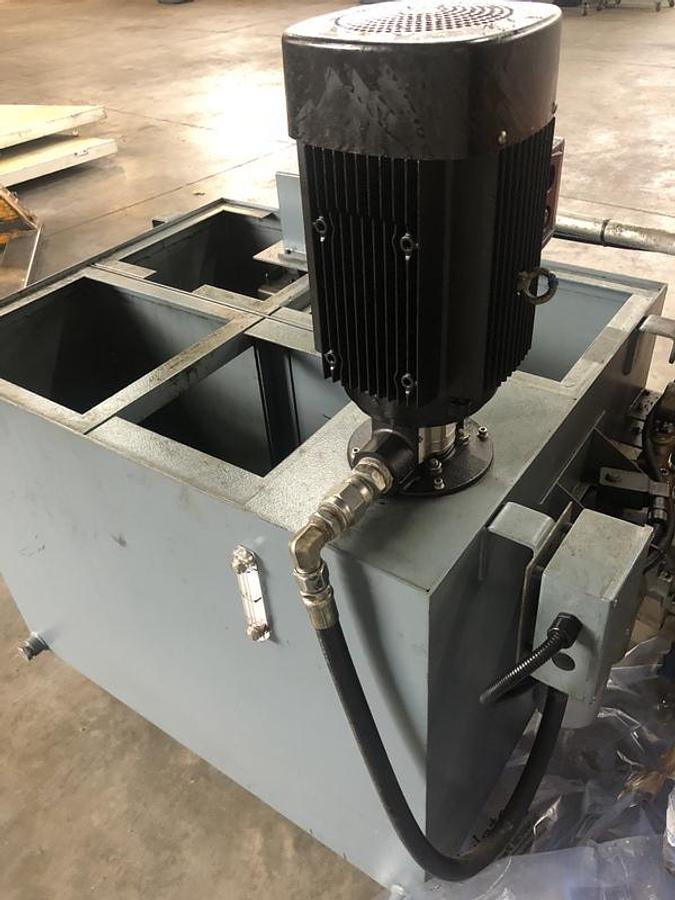

| Accessories and others | Coolant tank, chip-conveyor, external high pressure pump, manuals and EC CE Declaration |
