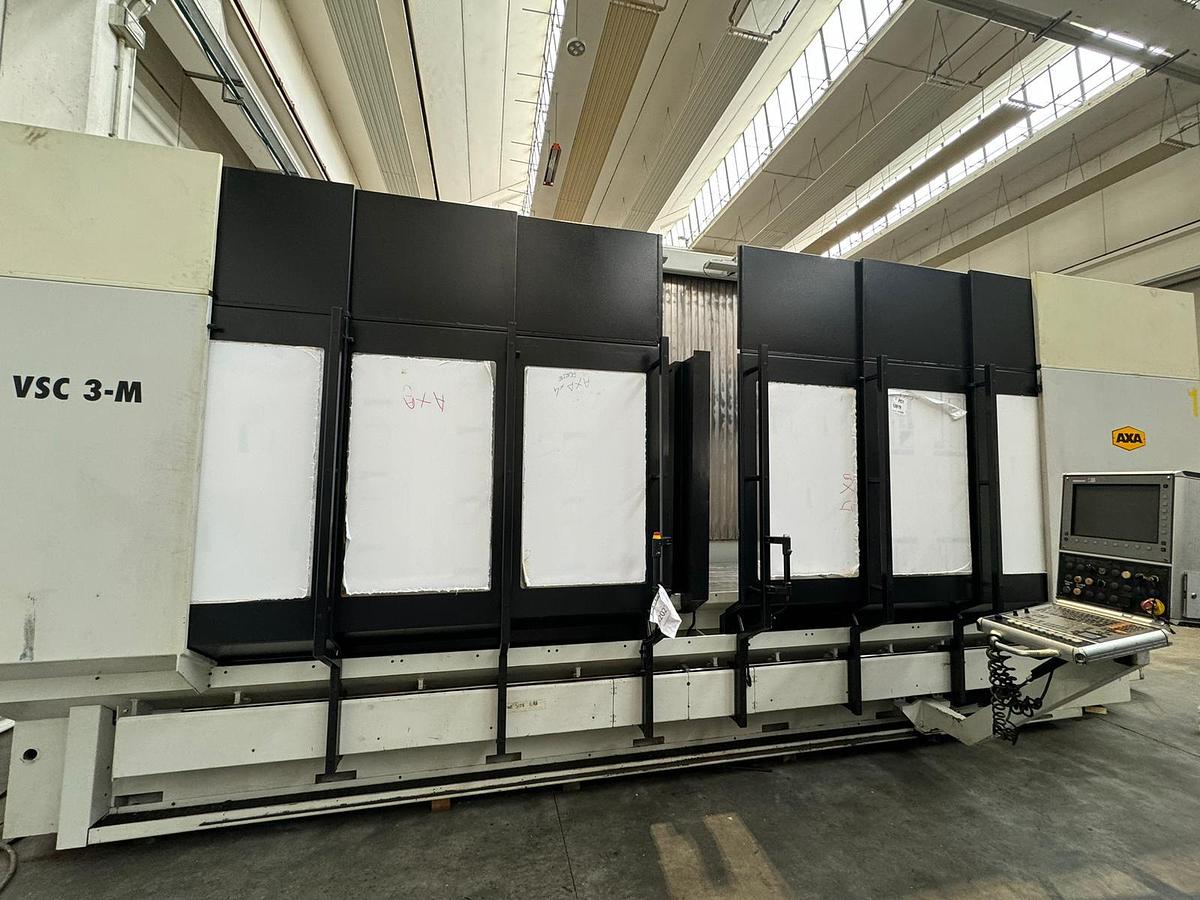

2004 AXA VSC 3-4000M
2004 AXA VSC 3-4000M
Location:Calerno, Italy
or
Call 00971-50-1515369
Description
Machine refurbished in the following parts:

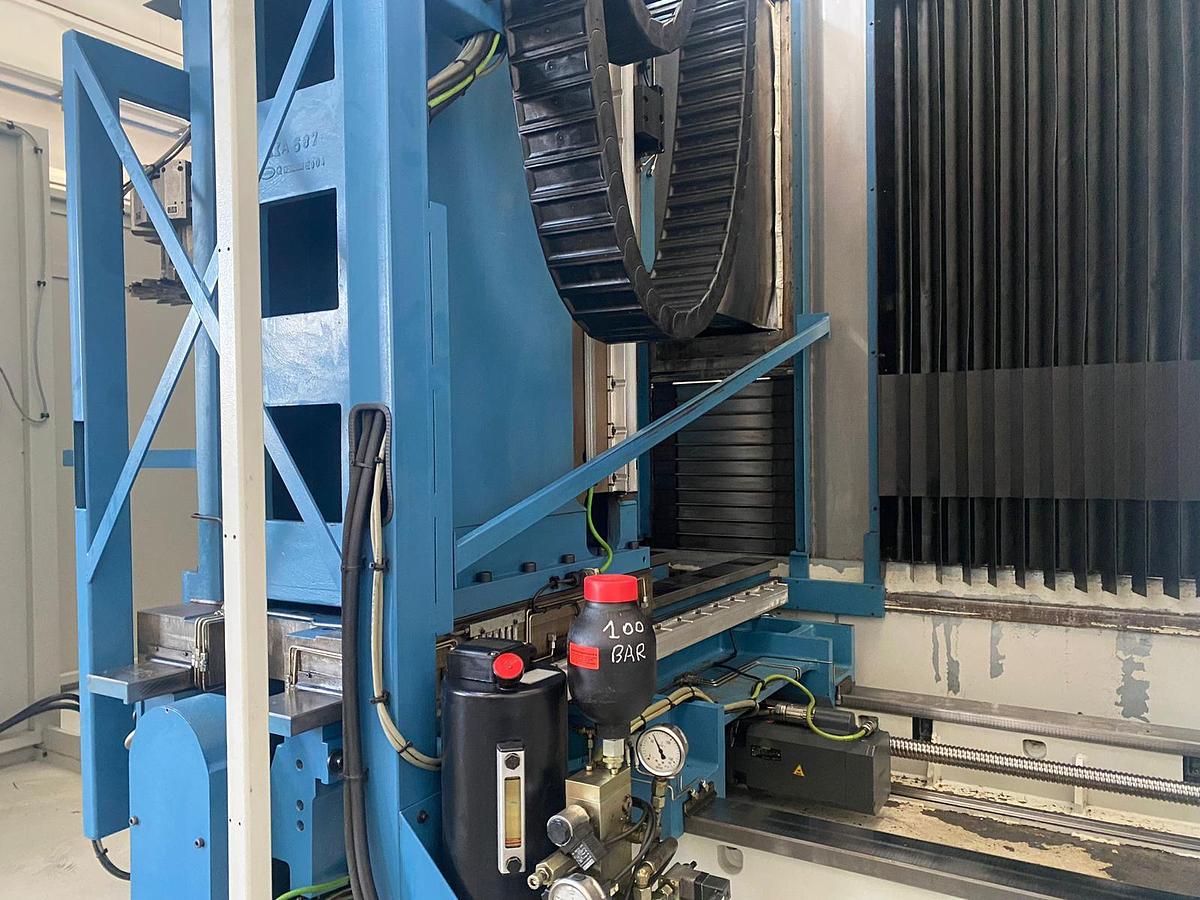

- Overhauled X and Y axis ballscrews + new bearings
- Spindle refurbished with new bearings and belt
- New Z axis ball screw replaced
- Replaced Z axis motor
Specifications
| Manufacturer | AXA |
| Model | VSC 3-4000M |
| Year | 2004 |
| Condition | Used |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/8d5ef7abf98584aa9adfb541fe798d33/AXA%20VSC%203-M4000.pdf |

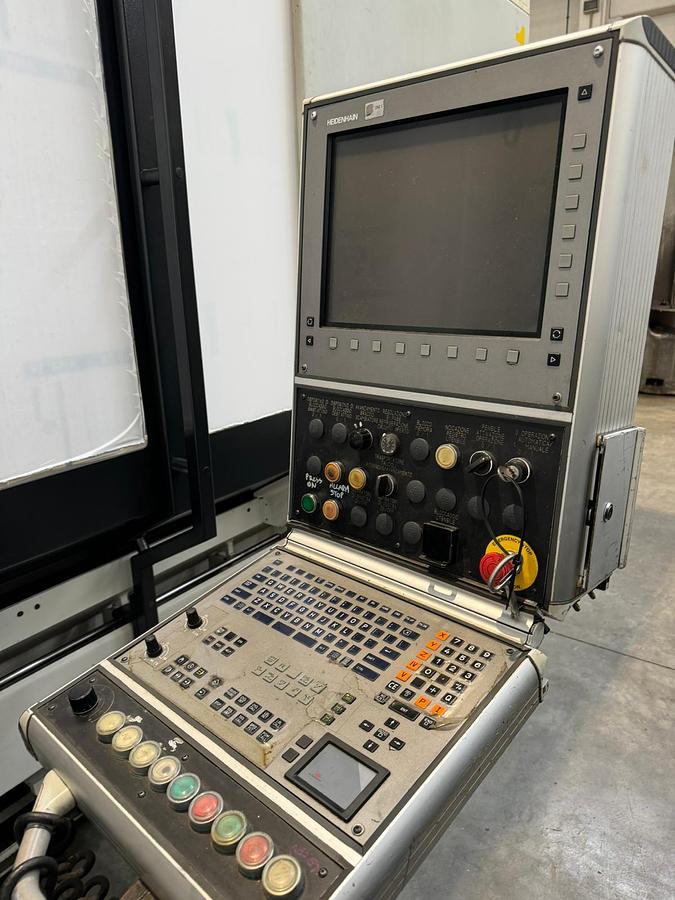

| CNC Control | HEIDENHAIN iTNC 530 |
| Spindle tool size | ISO 40 |
| Spindle motor power (cont/30 min) | 20/30 kW |
| X axis | 4.000 mm |
| Y axis | 1.020 mm |
| Z axis | 950 mm |

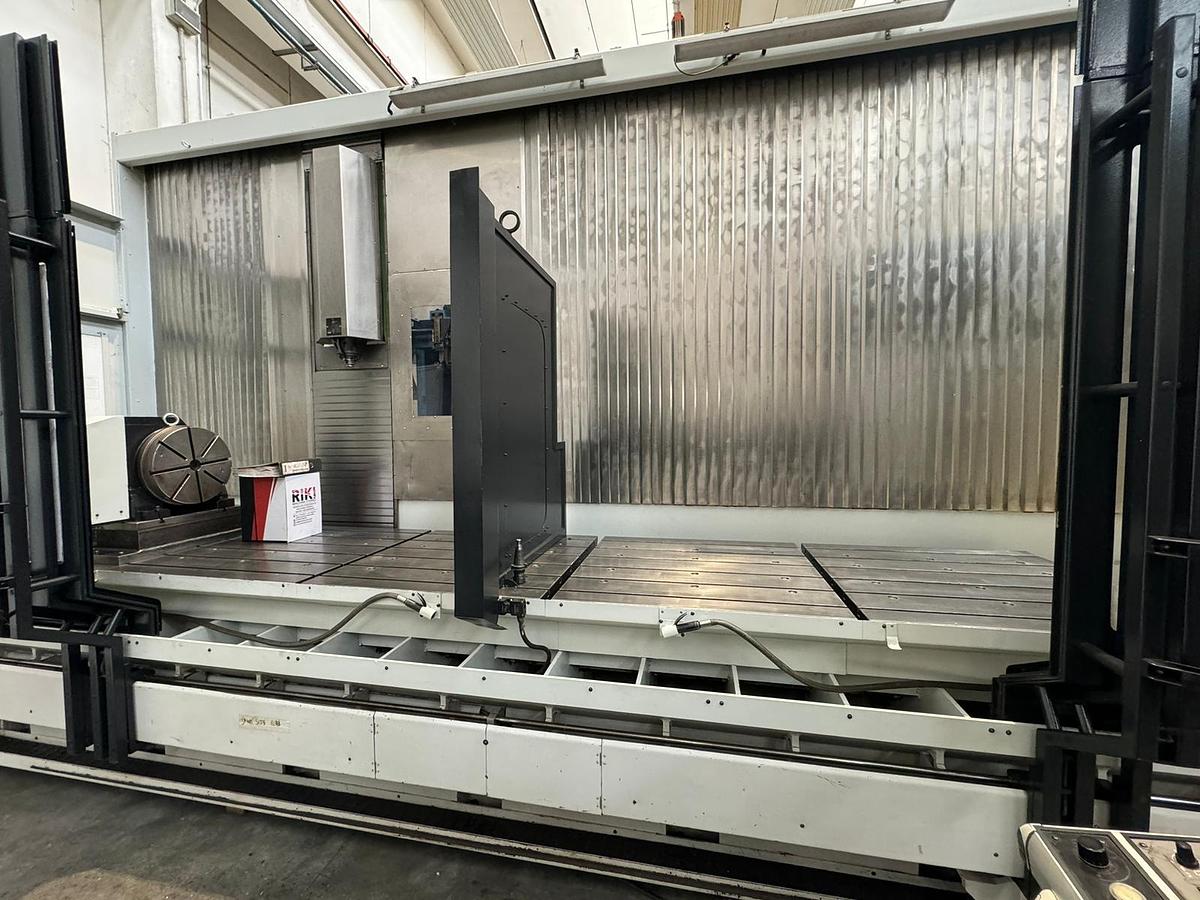

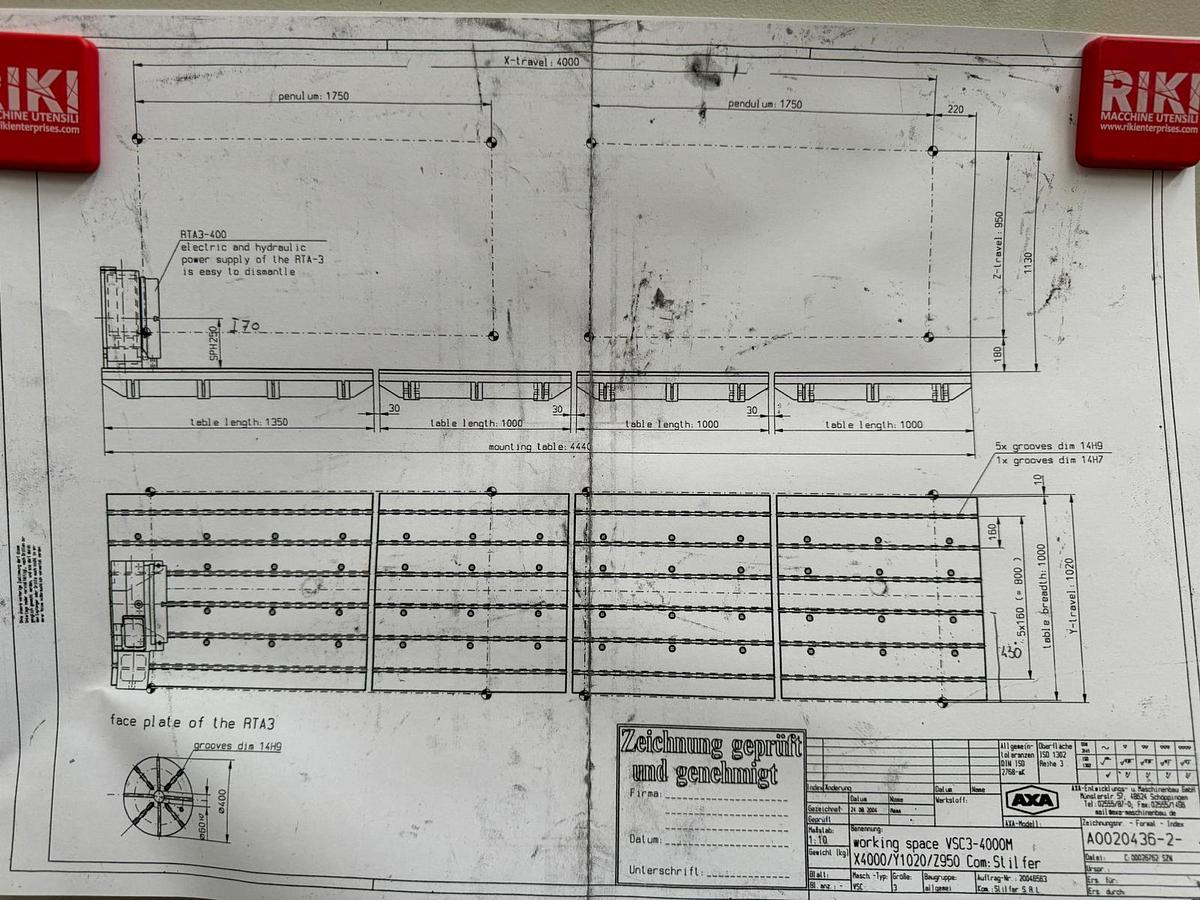

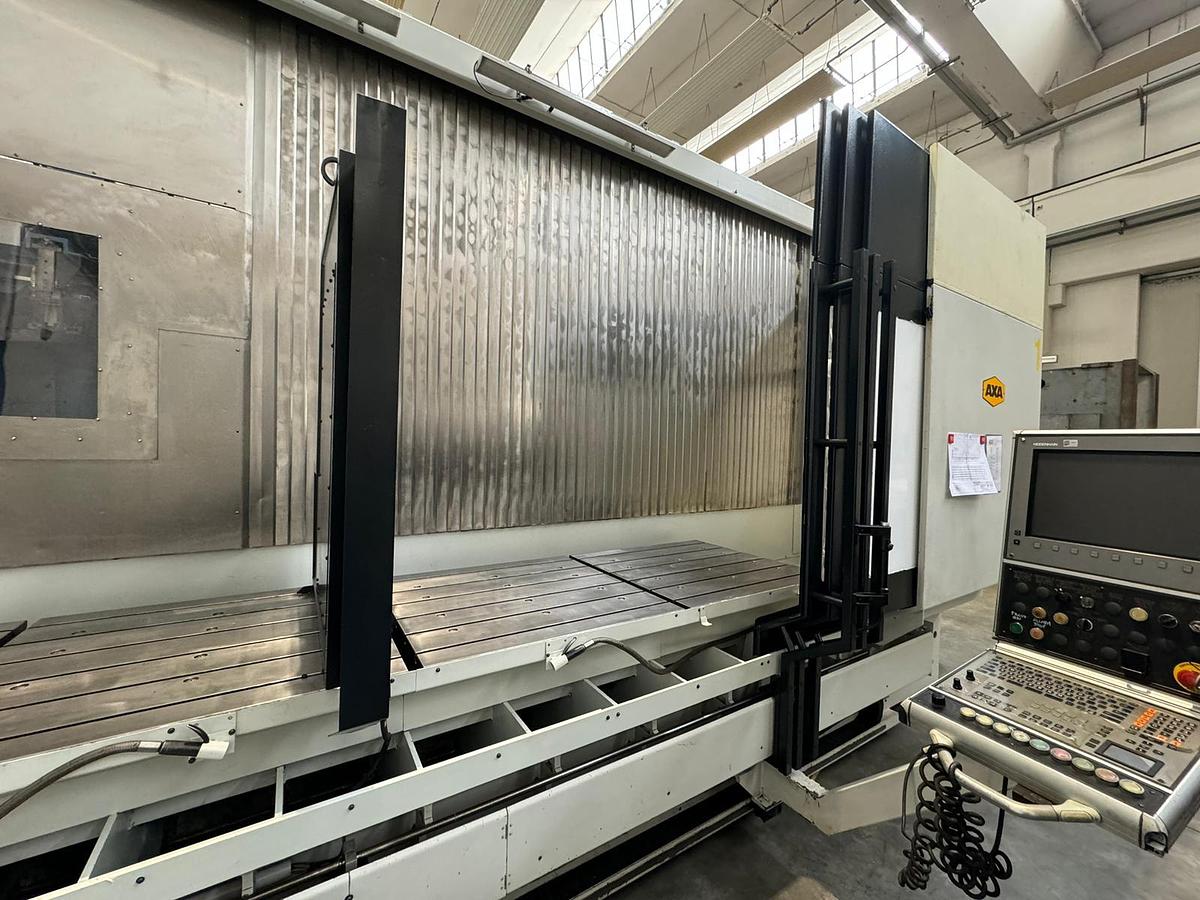

| Table dimensions | 4.400 X 1.000 mm |
| Max load allowed on table | 4.800 Kg (1.200 Kg every 1.000 mm Length) |
| X / Y / Z axis rapid feedrates | 25.000 / 25.000 / 20.000 mm/min |
| X / Y / Z axis working feedrates in linear interpolation (max) | 9.999 mm/min |
| Tool type | DIN 69871-A40 |
| Tool pull stud type | DIN 69872-A40 |
| Max tool diameter | Ø85 / Ø135 mm |
| Max tool lenght | 400 mm |
| Max tool weight | 8 Kg |

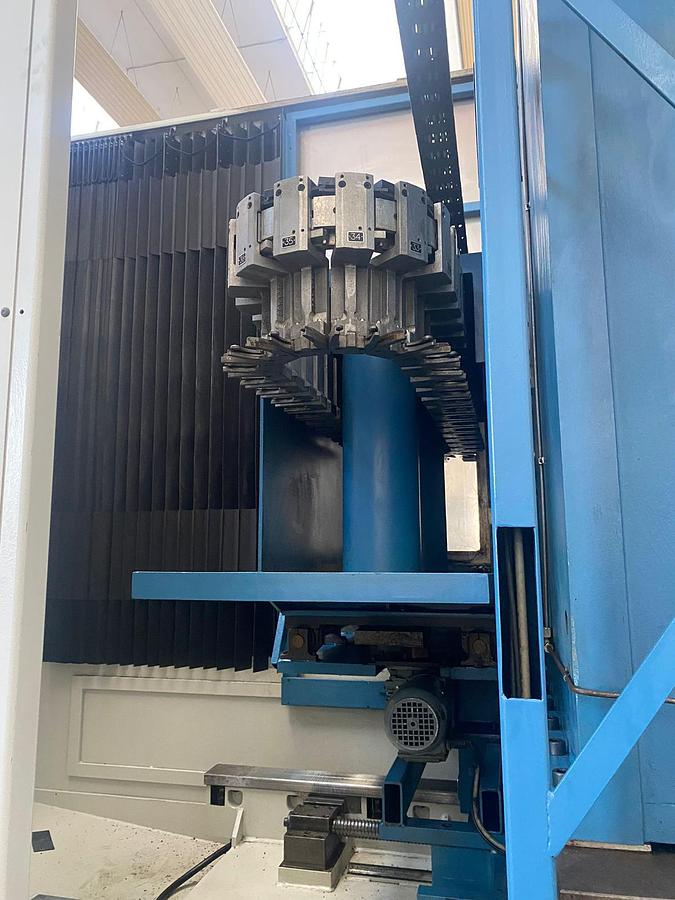

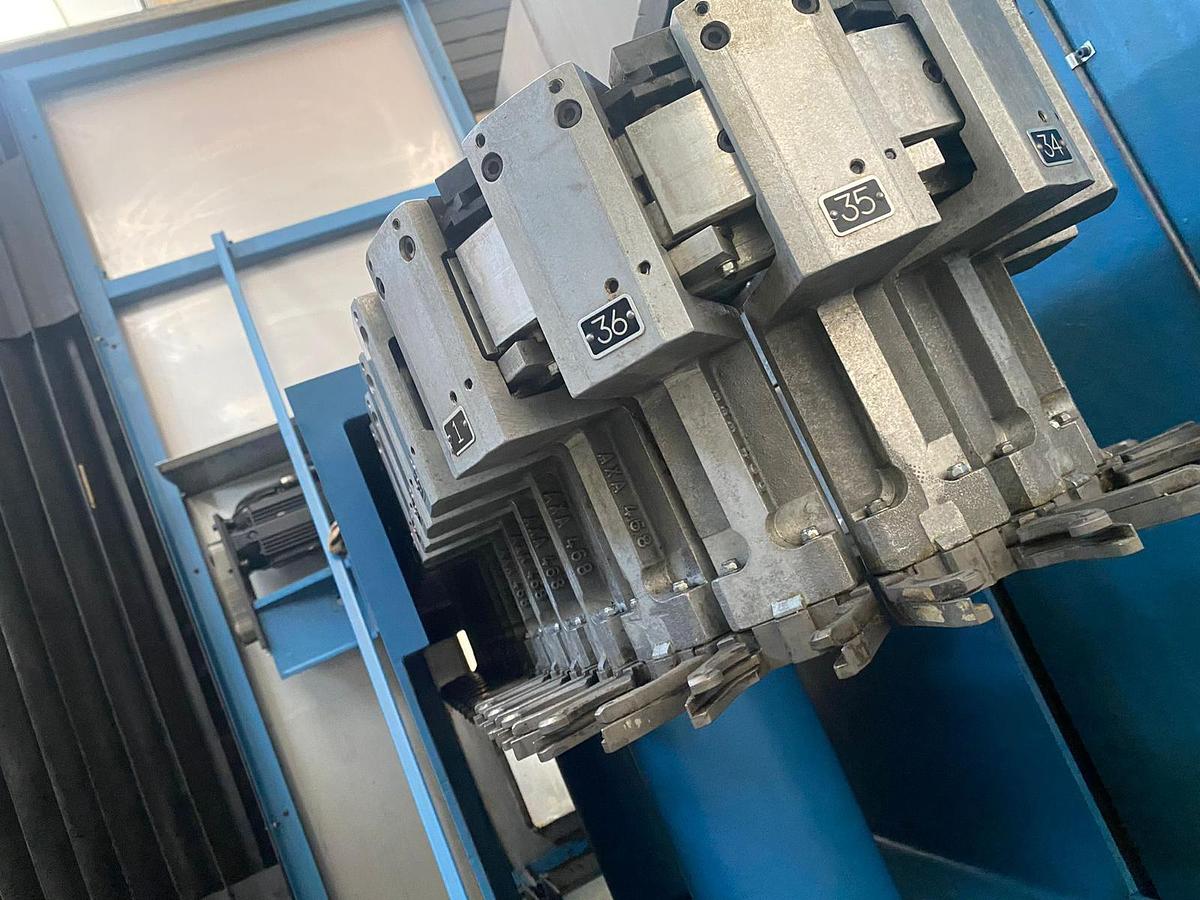

| ATC capicity | 36 positions |

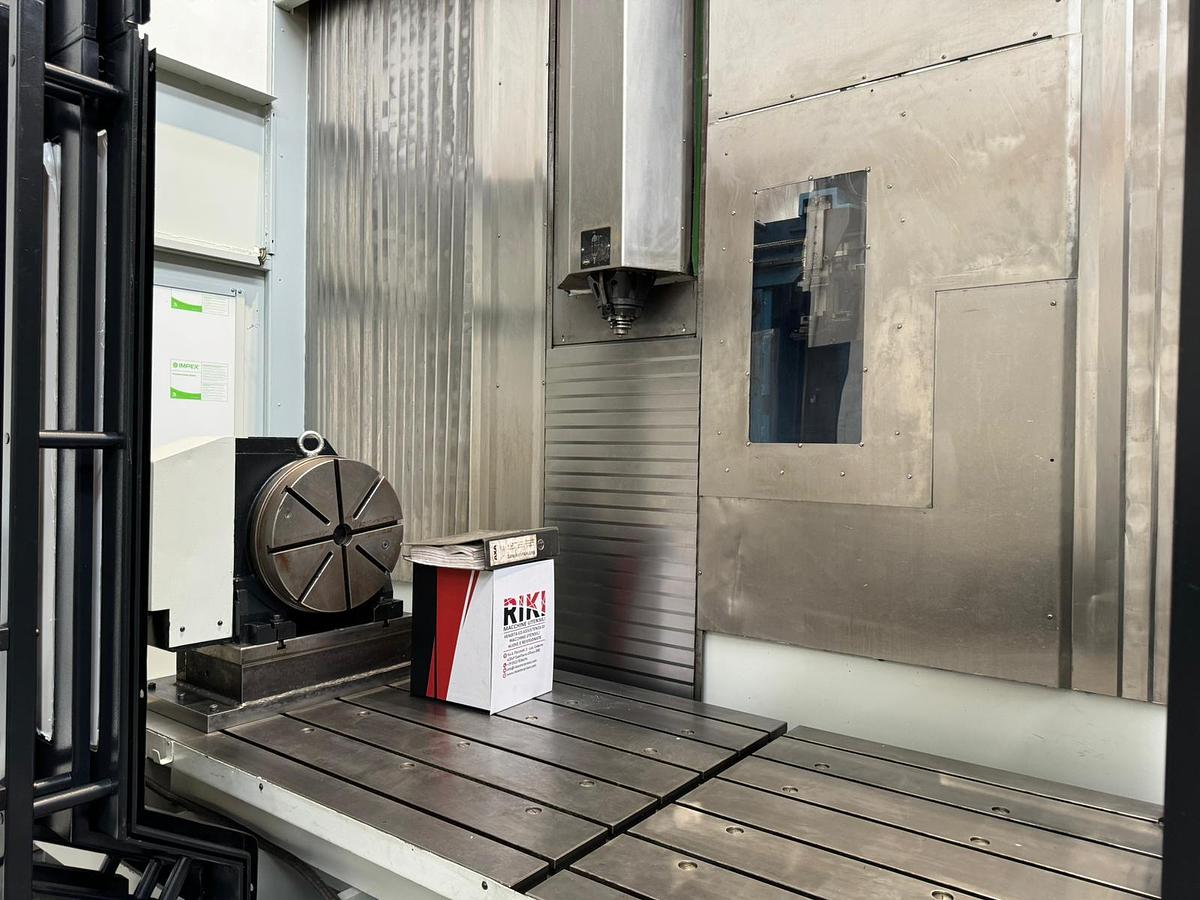

| Accessories | 4th Axis with Rotary Table - Chips conveyor - Coolant tank with high pressure pump - Transformer - Heidenhain Linear Scales on 3 Axis - Manuals - Electric diagrams - CE/EU Declaration |
| Spindle speed | 6.000 RPM |
