2005 Doosan Daewoo PUMA 400MB
Sold

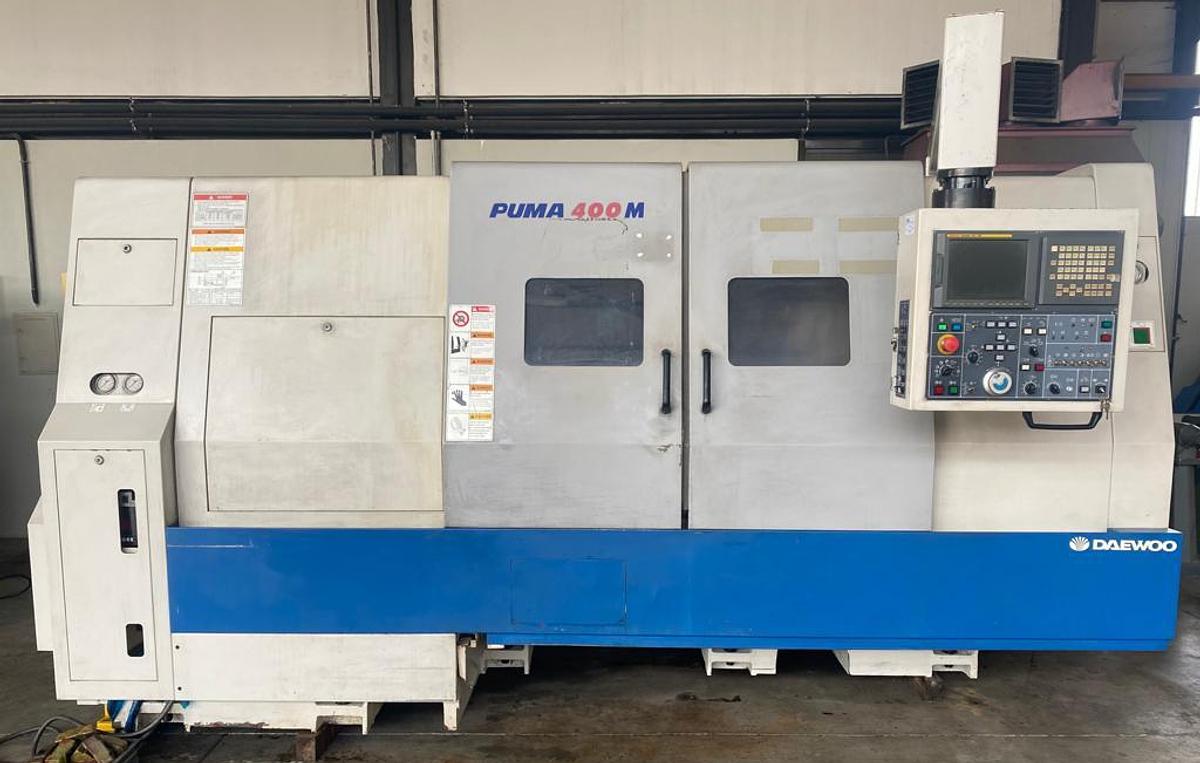

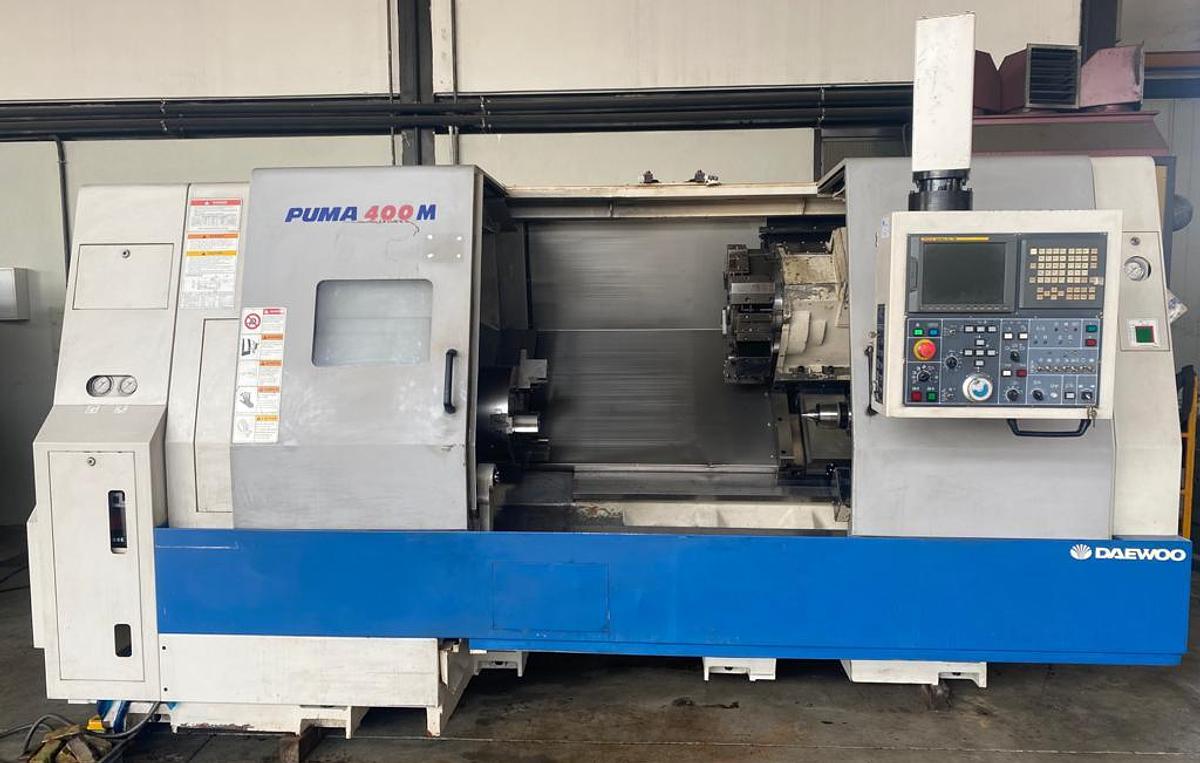

2005 Doosan Daewoo PUMA 400MB
Location:Calerno, Italy
Specifications
| Manufacturer | Doosan Daewoo |
| Model | PUMA 400MB |
| Year | 2005 |
| Condition | Used |
| Documents | https://f.machineryhost.com/5b7f5d1545cf0079922f8f96cde66c6e/Doosan%20Daewoo%20PUMA%20400MB.pdf |
| Turning / boring tool dimensions | 25x25 mm / Ø 50 mm |
| X axis feedrate | 14.000 mm/min |
| Z axis feedrates | 20.000 mm/min |

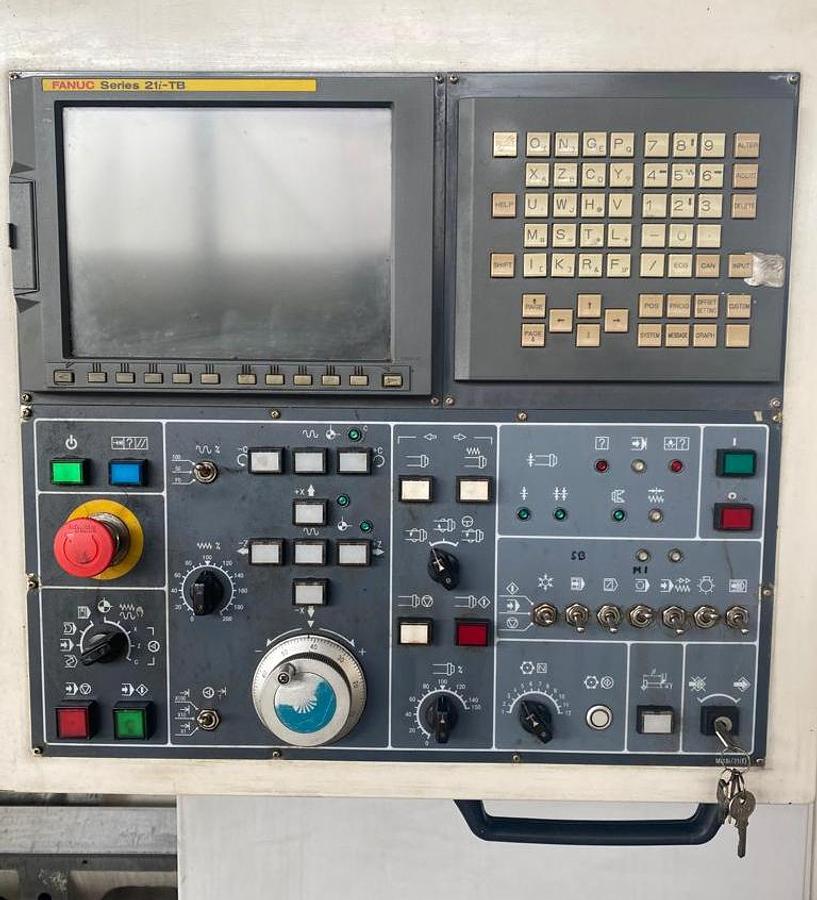

| CNC Control | FANUC 21i-TB |
| Max swing over the bench | Ø 770 mm |
| Max swing over the carriage | Ø 590 mm |
| Max turning diameter | Ø 560 mm |
| Max turning length | 1.014 mm |
| Bar diameter capacity through the spindle | Ø 117,5 mm |
| X axis travel | 357 mm |
| Z axis travel | 1.105 mm |
| C axis minimum controlled angle | 0,001° |

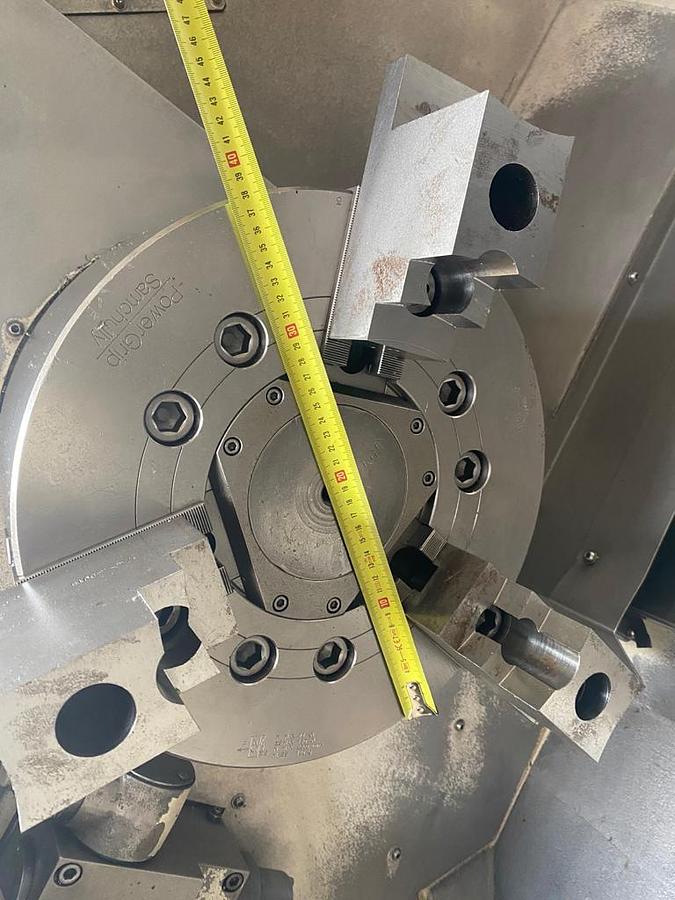

| Spindle chuck diameter | Ø 380 mm |
| Spindle speed | 2.000 RPM |
| Spindle nose size | ASA A2-11 |
| Spindle motor power (cont/30 min) | 30/37 kW |

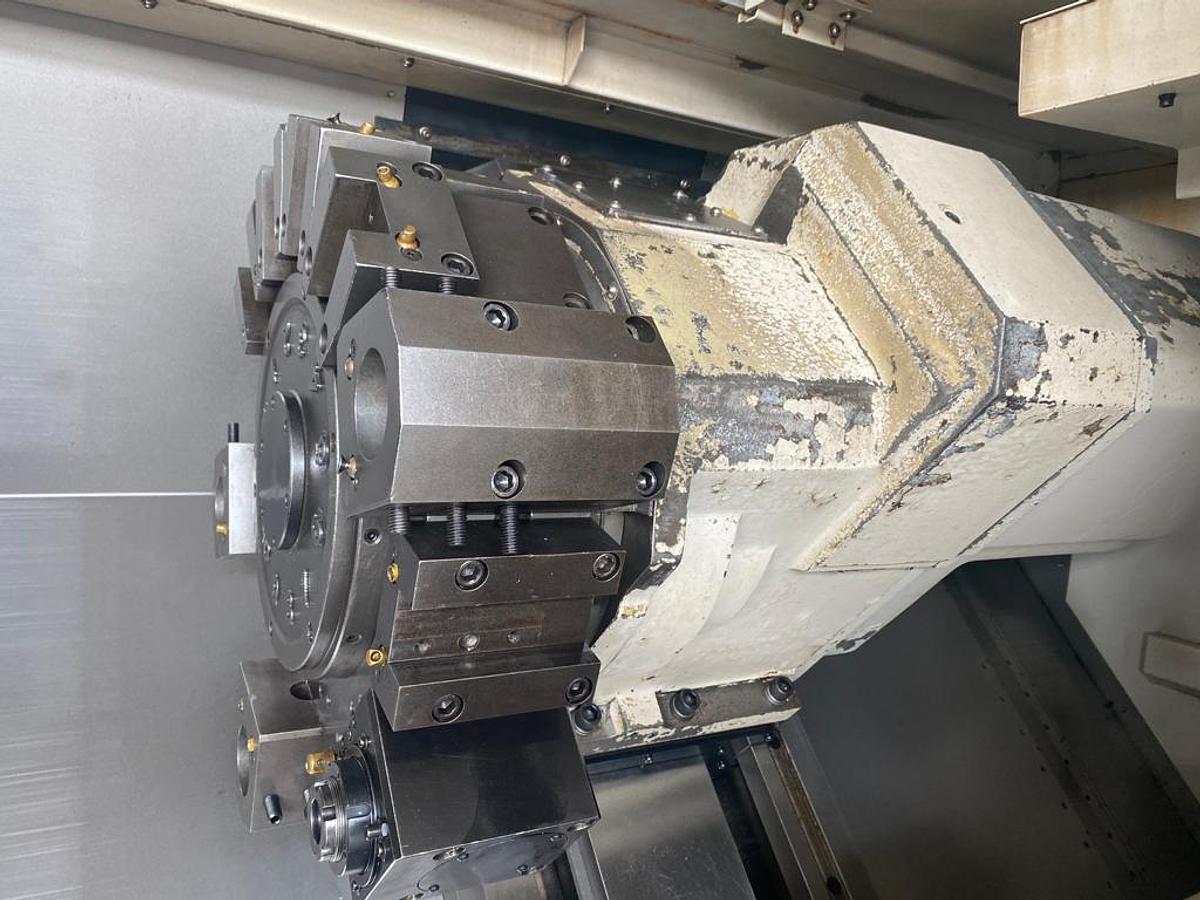

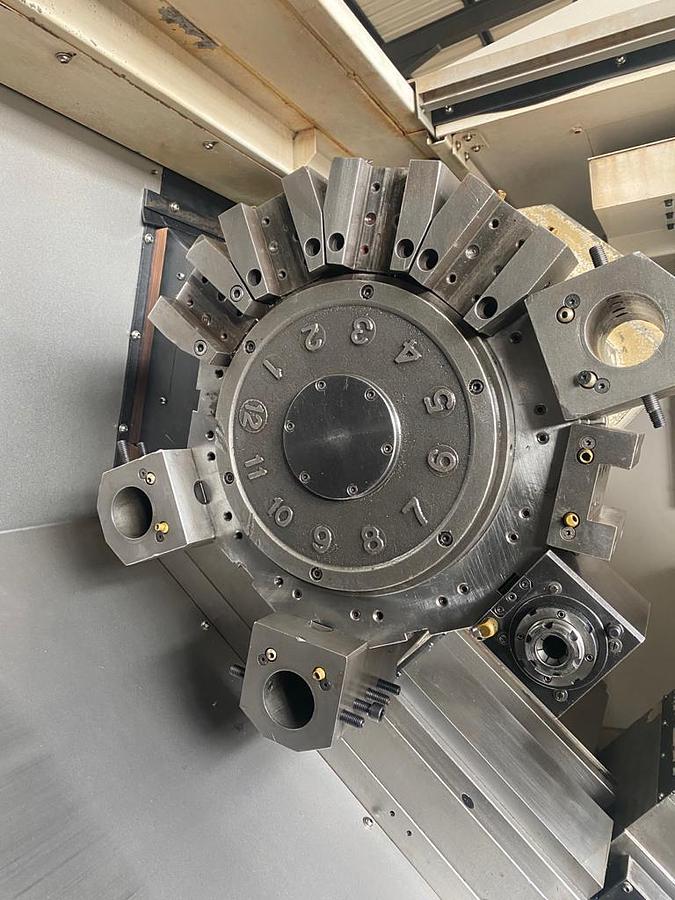

| Turret positions | 12 live-tools positions |
| Live-tools speed | 3.000 RPM |
| Live-tools motor power (cont/30 min) | 5.5 kW |
| C axis feedrate | 200 RPM |

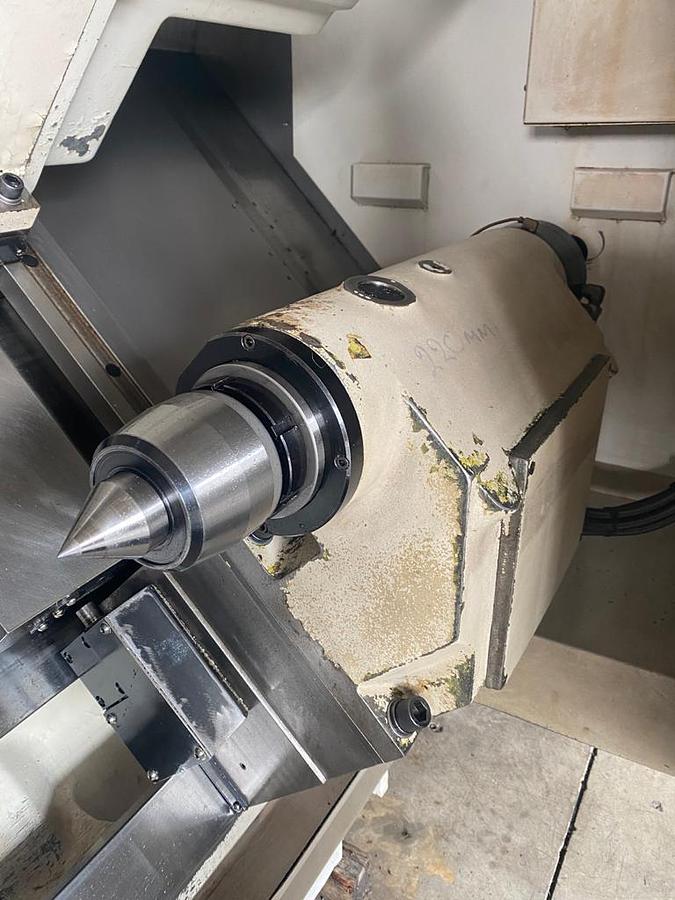

| Tailstock quill diameter | 120 mm |
| Tailstock taper size | MT-5 |
| Tailstock quill travel | 120 mm |

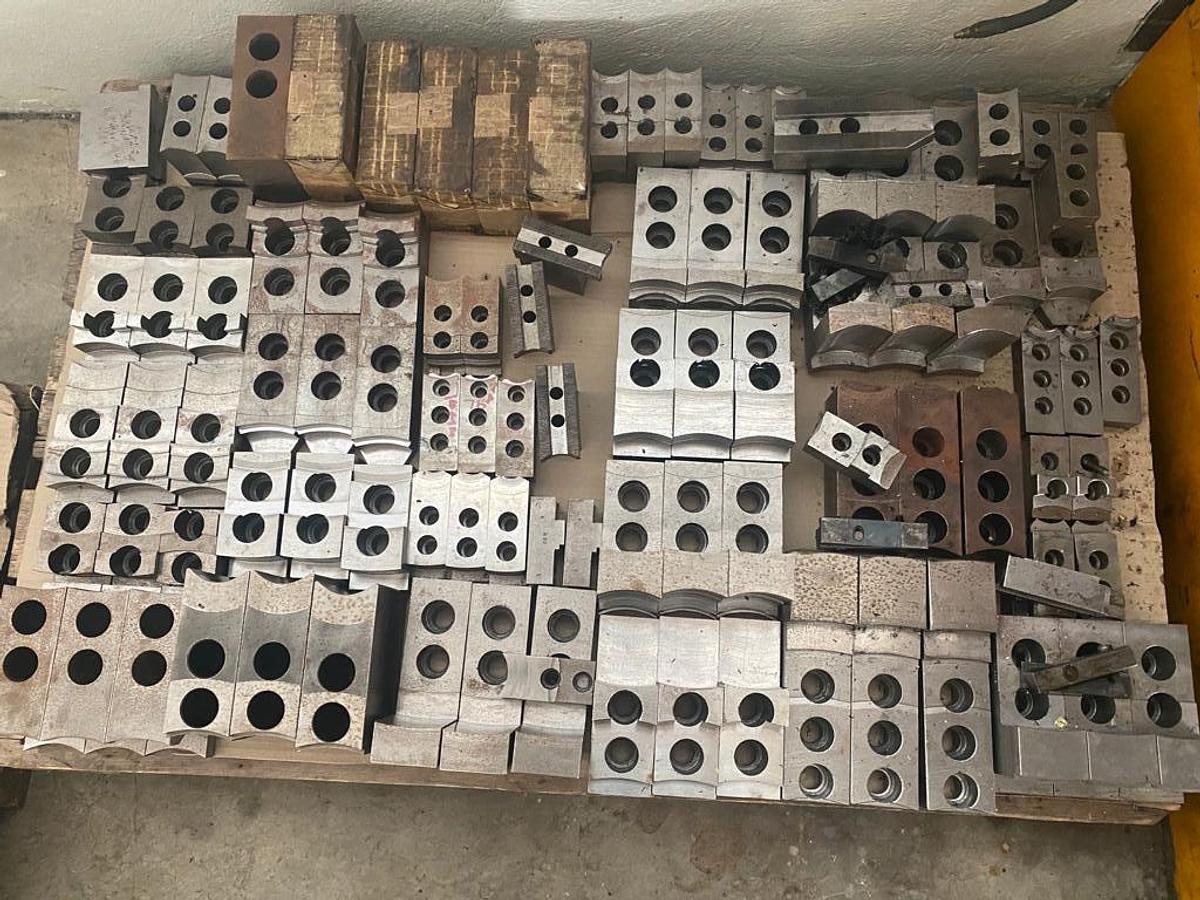

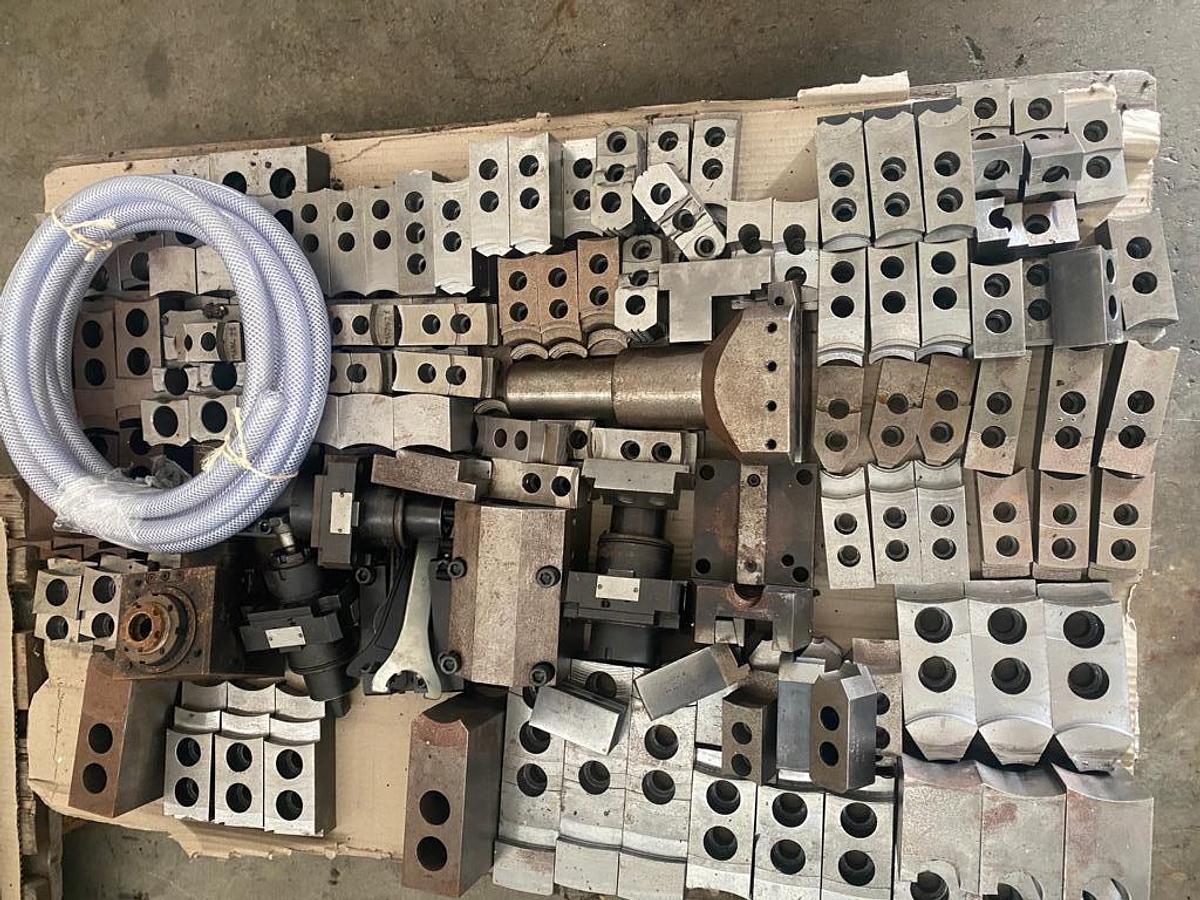

| Accessories | Automatic tailstock (by M code or switch), coolant tank with pump and chip-conveyor, Nr.5 - Live-tools (3 radials and 2 axials), various fix tool-holders and chuck's jaws sets, manuals, electrical diagrams and CE/EU Declaration |
