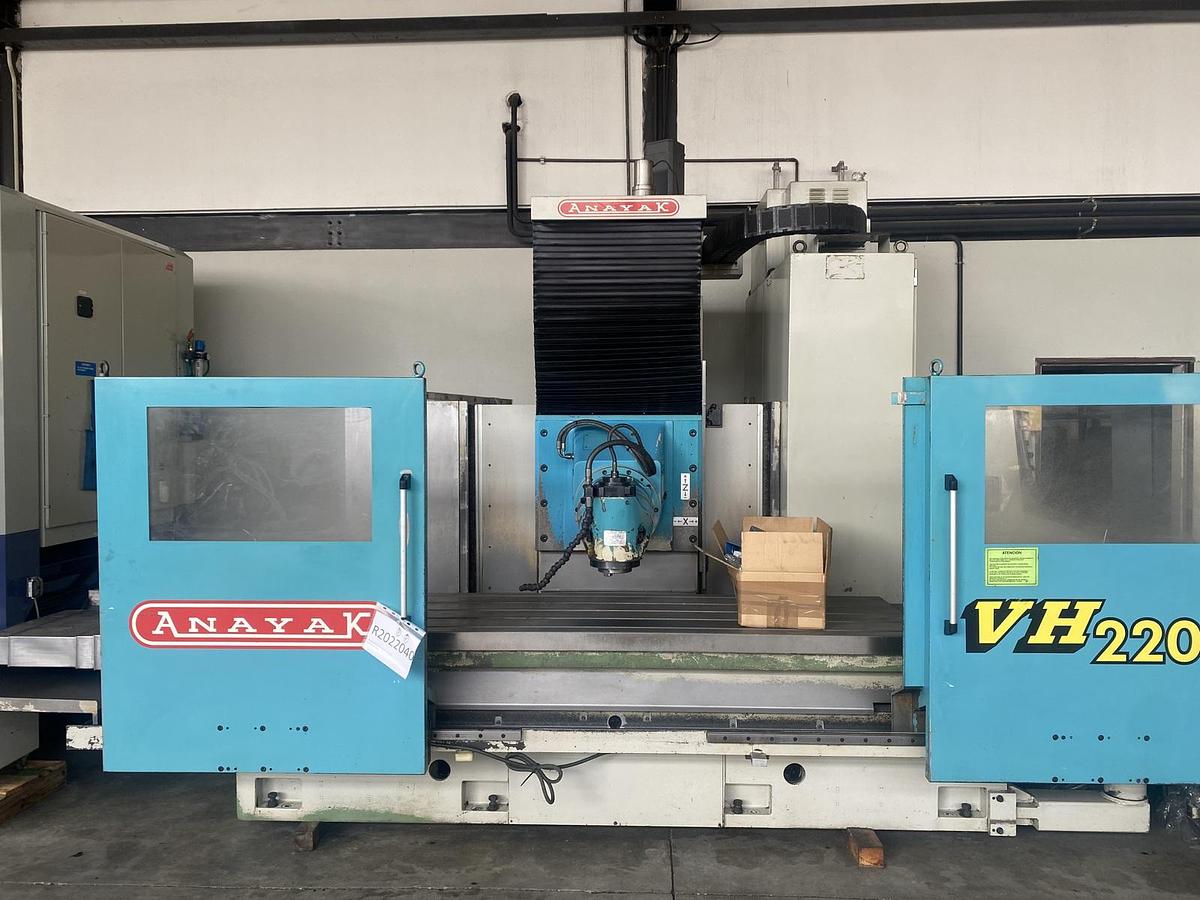

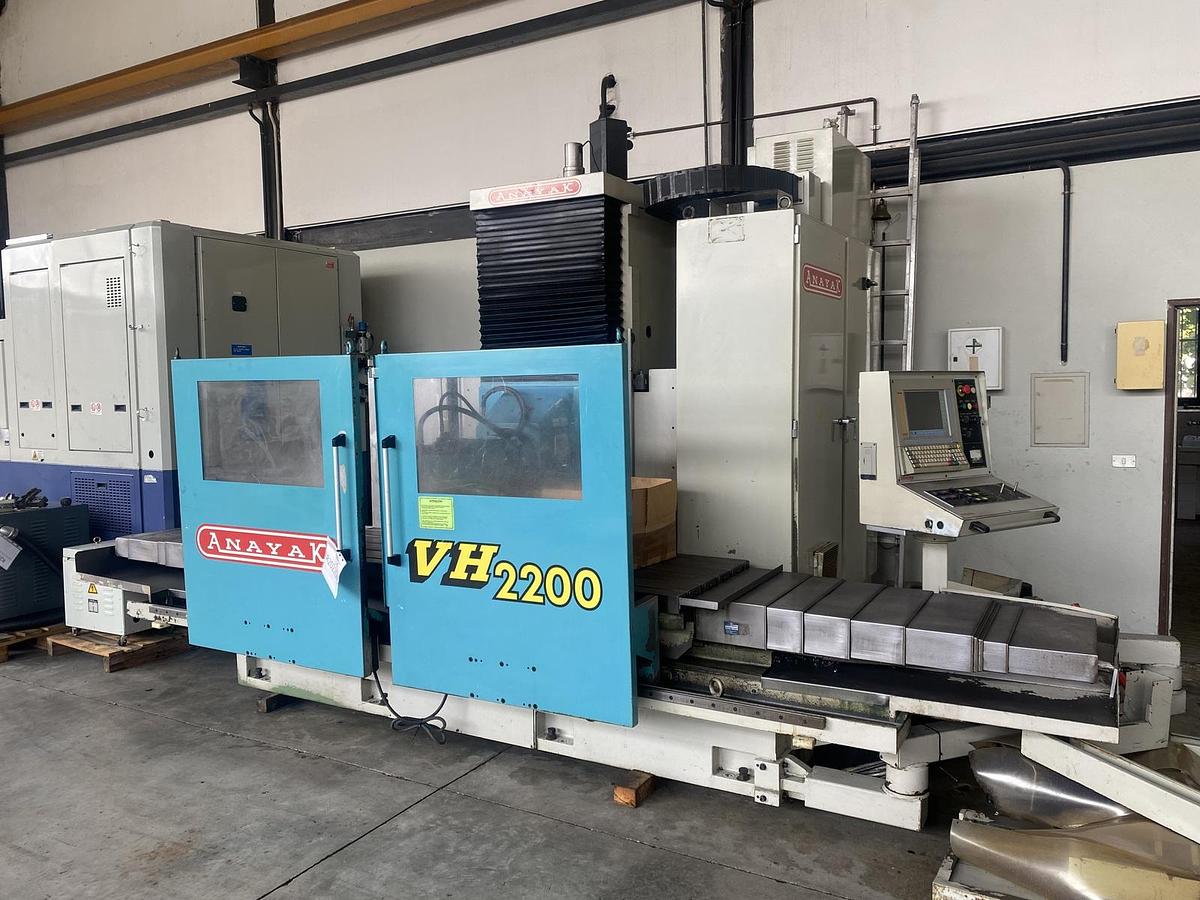

2002 ANAYAK VH-2200

2002 ANAYAK VH-2200

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerANAYAK
ModelVH-2200
Year2002
ConditionUsed
Stock NumberR2024192
Documentshttps://f.machineryhost.com/70847e96cac8aa23d140da81b607a3b3/ANAYAK%20VH-2200.pdf

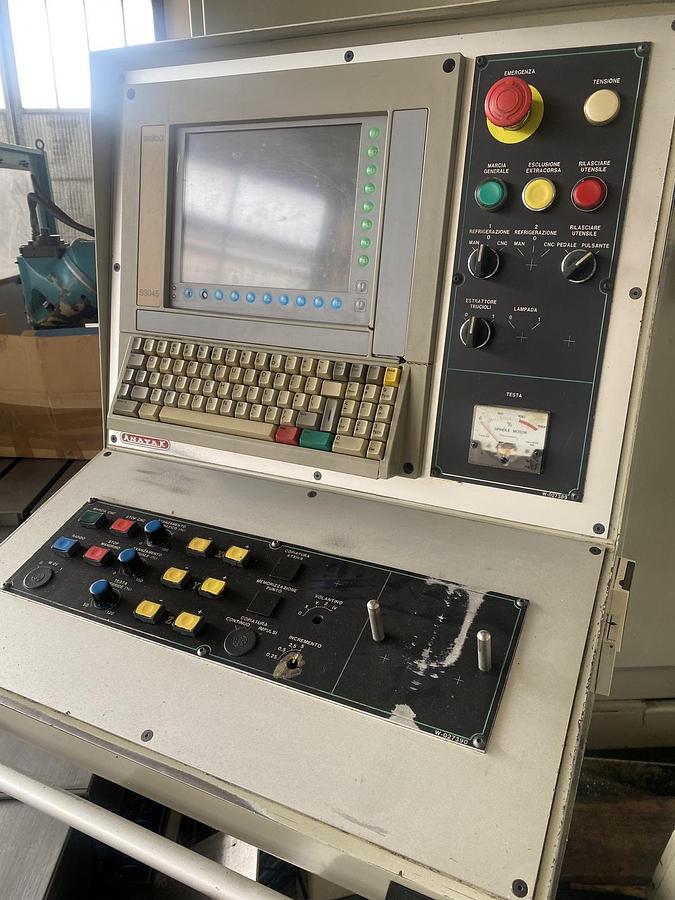

CNC ControlSELCA S3045
Spindle tool sizeISO-50
Spindle speed3.000 RPM
Spindle motor power (cont/30 min)22/33 kW
X axis2.000 mm
Y axis920 mm
Z axis900 mm
Table dimensions2.200 x 750 mm
Max load allowed on table3.000 Kg
X / Y / Z axis rapid feedrates15.000 mm/min
X / Y / Z axis working feedrates in linear interpolation (max)3.000 mm/min
Tool typeDIN 69871-A50
Tool pull stud typeDIN 69872-A50

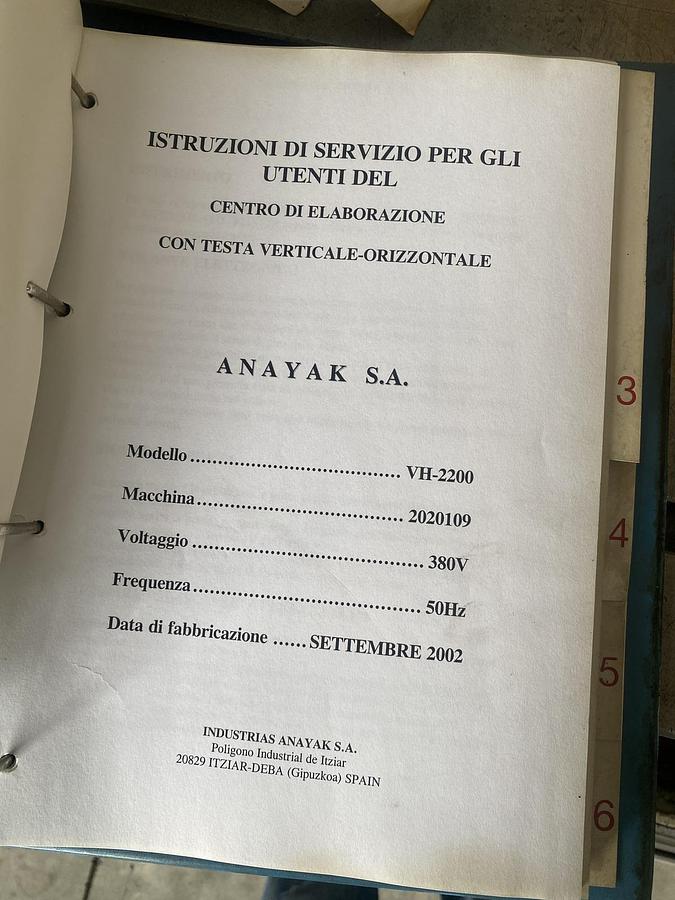

AccessoriesElectrical Panel, Coolant tank with pump, Manuals, Electrical Diagrams and CE Declaration
