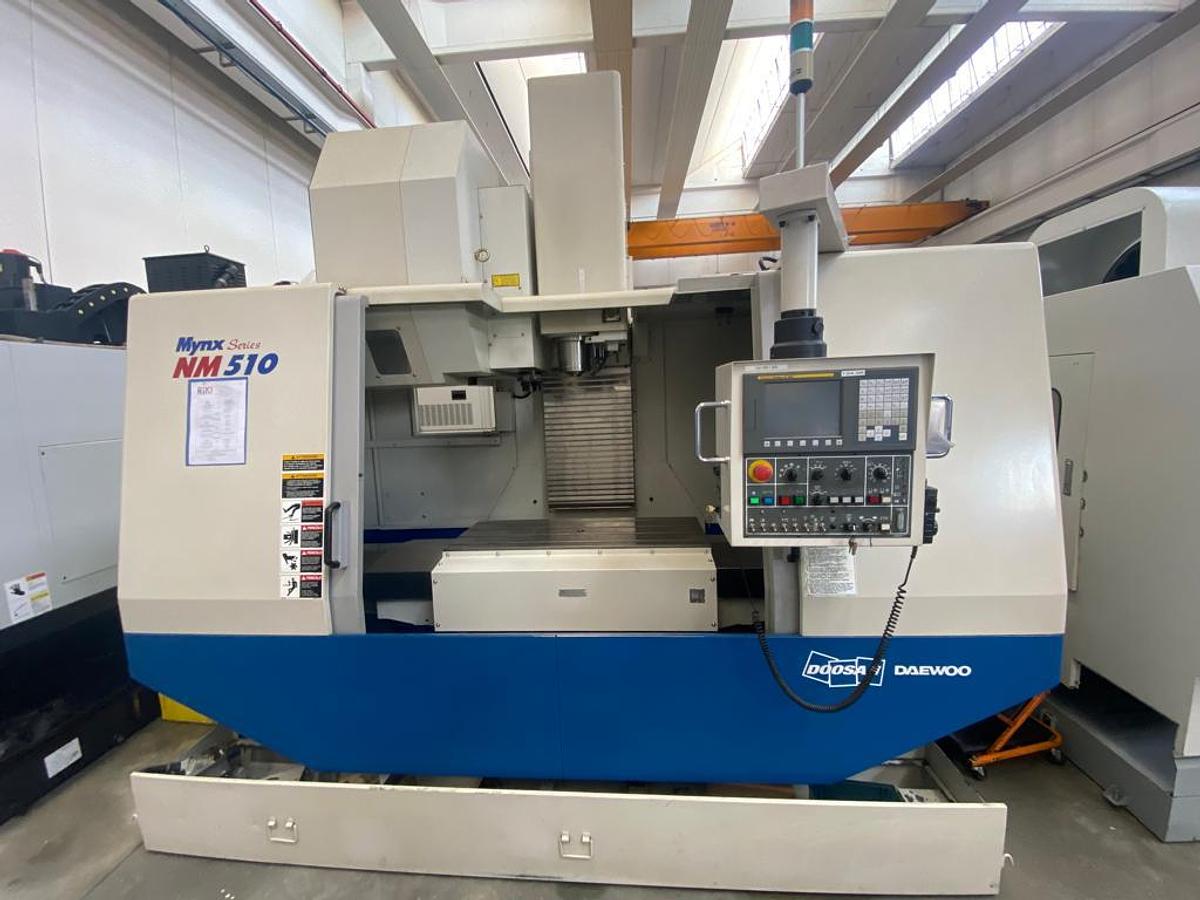

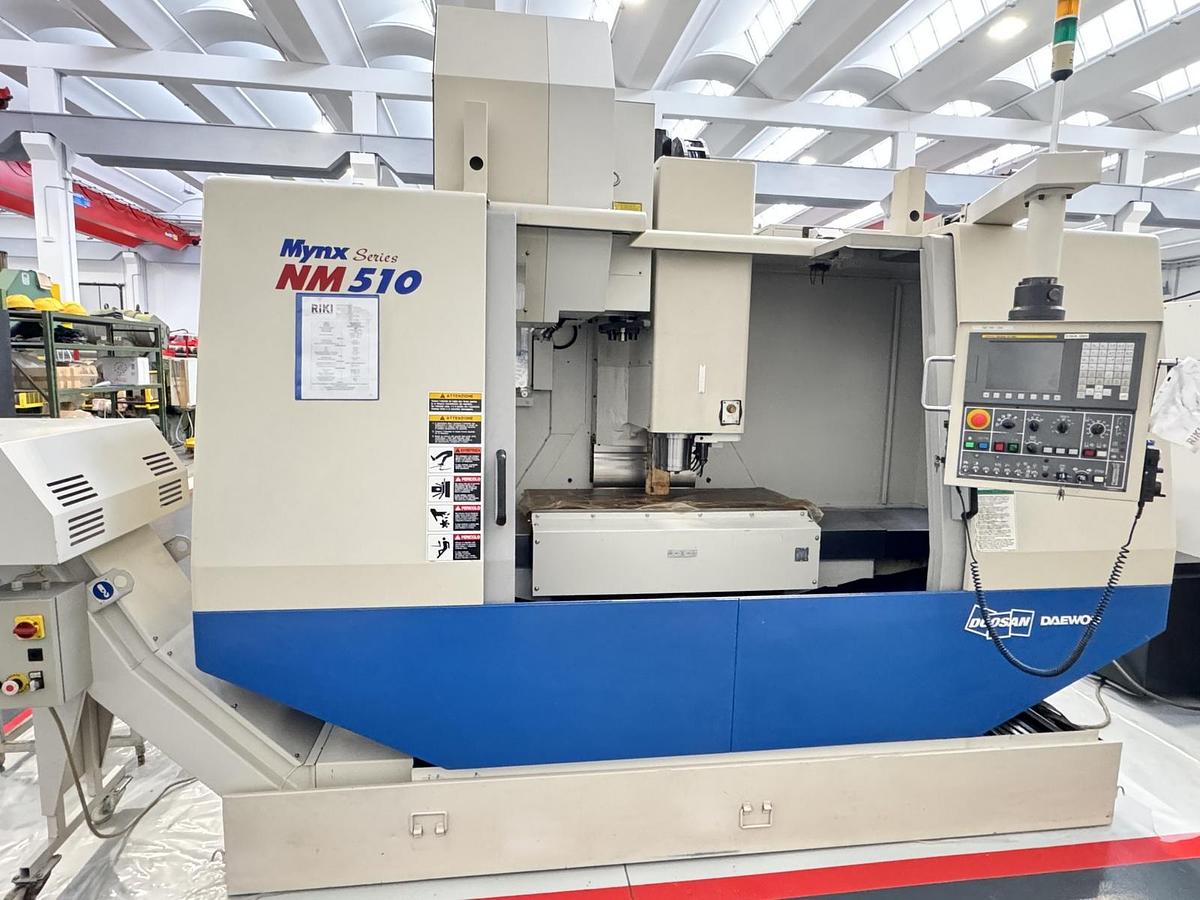

2006 Doosan Daewoo MYNX NM-510
2006 Doosan Daewoo MYNX NM-510
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | Doosan Daewoo |
| Model | MYNX NM-510 |
| Year | 2006 |
| Condition | Used |
| Documents | https://f.machineryhost.com/4e58aa4466836af16c3eaf6f683fbae1/Doosan%20Daewoo%20MYNX%20NM-510.pdf |

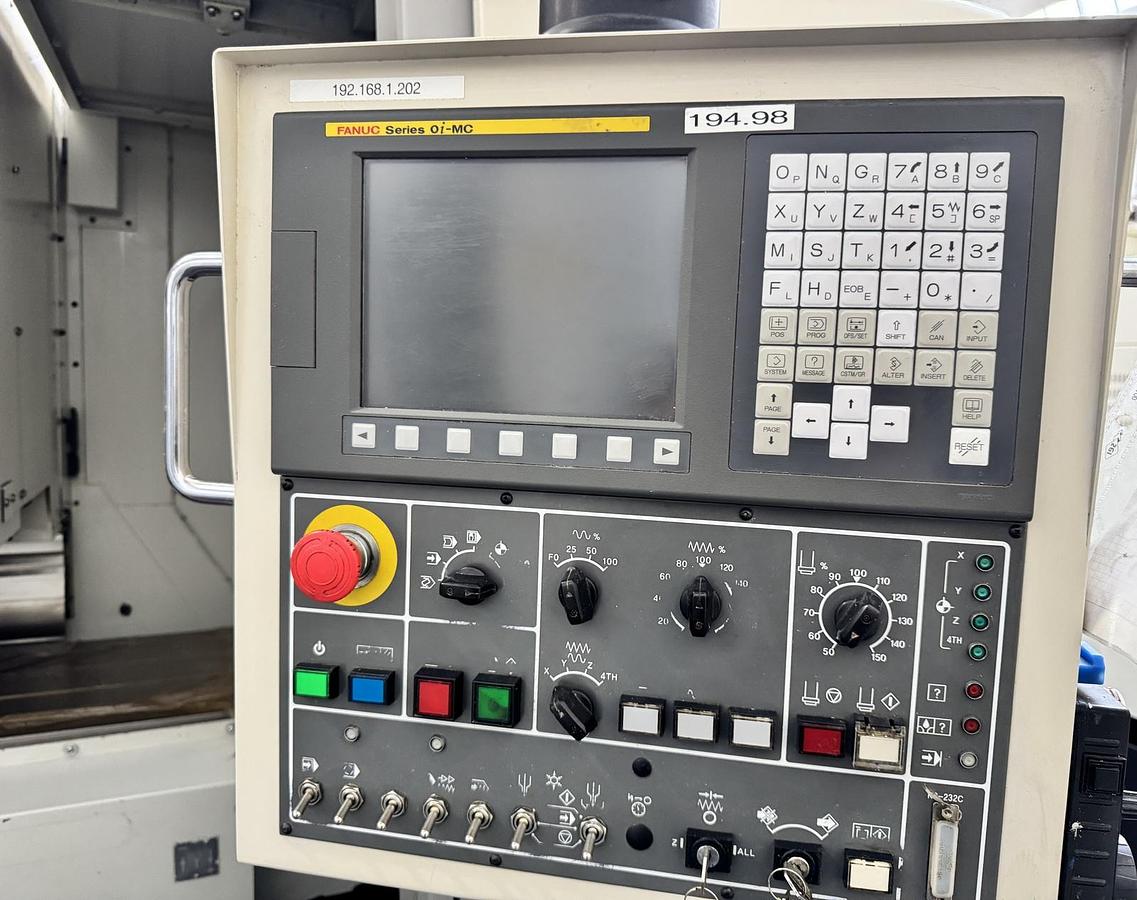

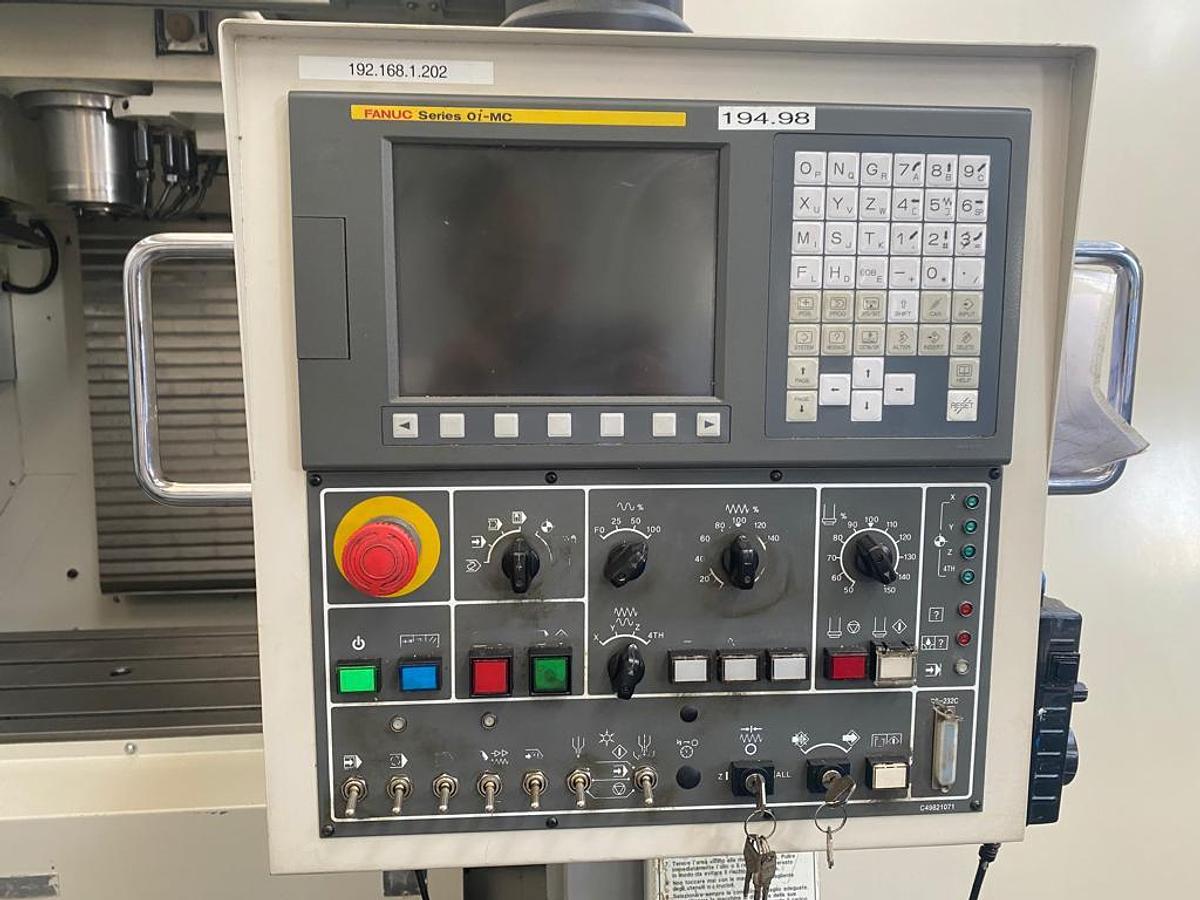

| CNC Control | FANUC Series 0i-MC |

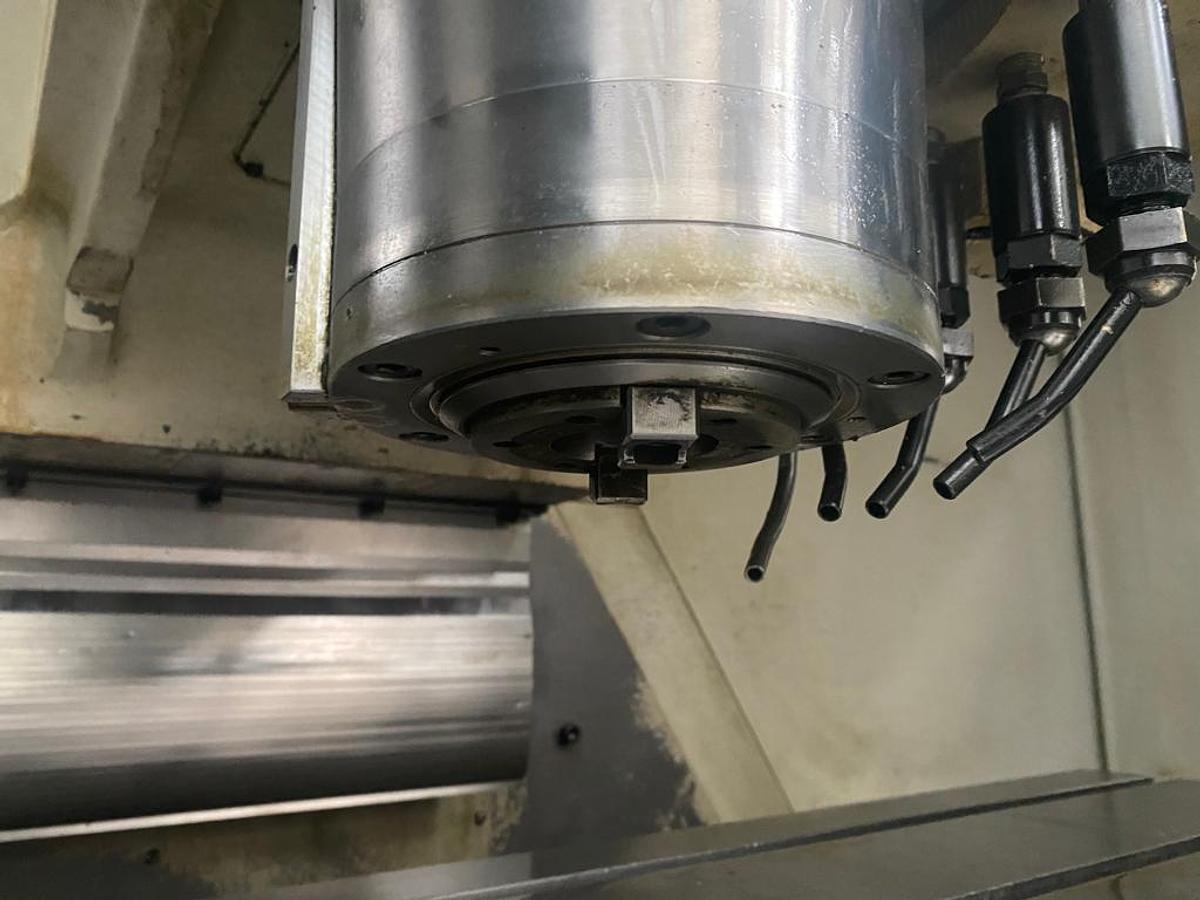

| Spindle tool size | ISO-40 |
| Spindle speed | 12.000 Rpm |
| Spindle motor power (cont/30 min) | 15/18,5 kW |
| X axis | 1.020 mm |
| Y axis | 510 mm |
| Z axis | 625 mm |
| Distanza between spindle nose - table surface | 150 - 775 mm |
| Distance between spindle center - column | 557 mm |

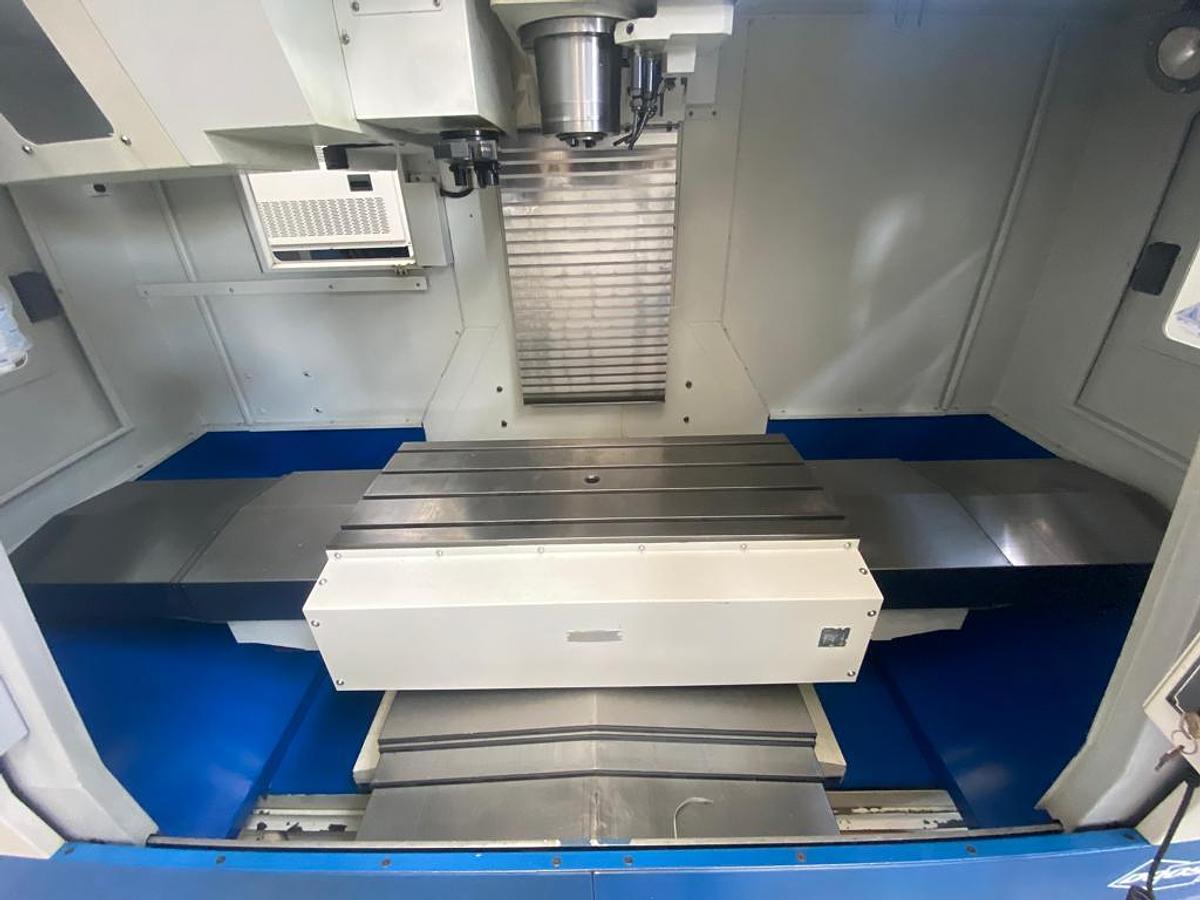

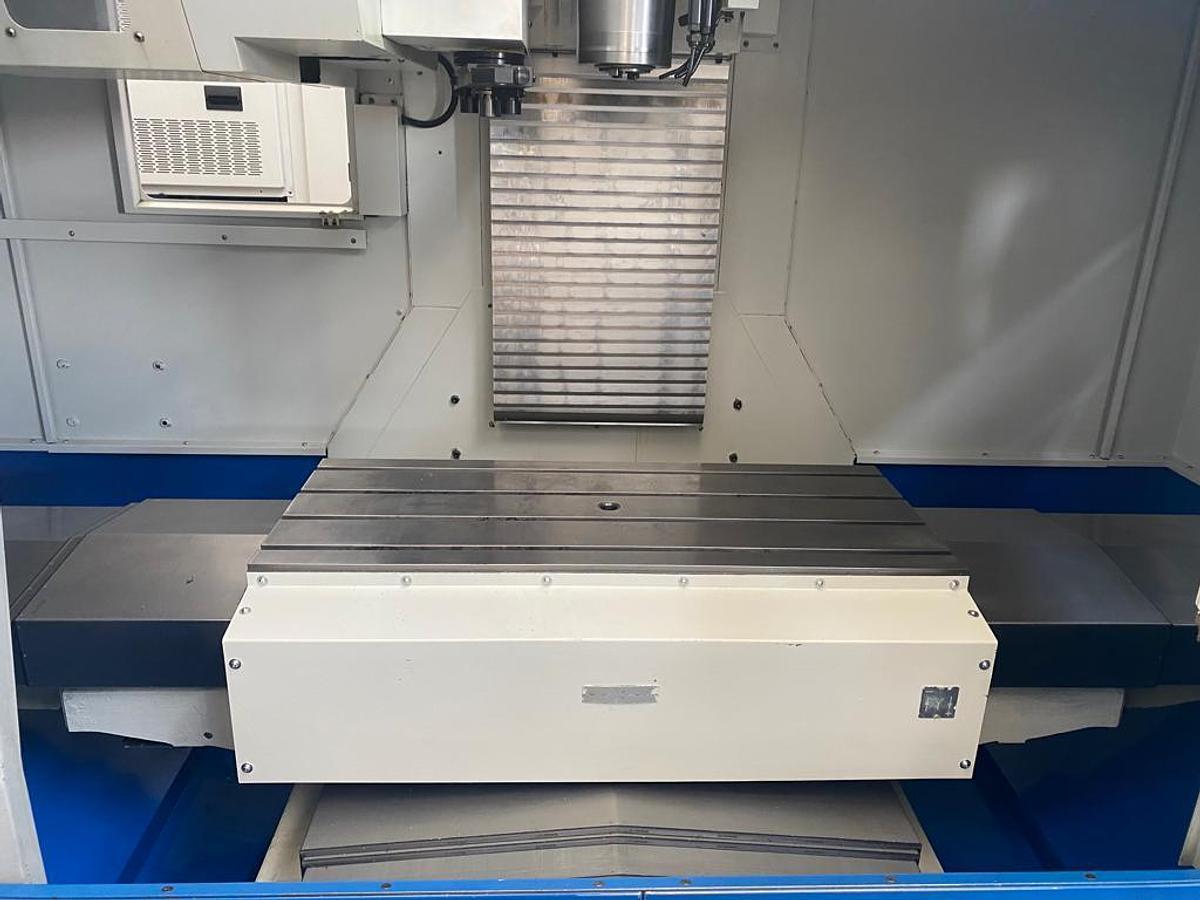

| Table dimensions | 1.200 x 500 mm |
| Max load allowed on table | 800 Kg |
| X / Y / Z axis rapid feedrates | 36.000 / 36.000 / 32.000 mm/min |
| X / Y / Z axis working feedrates in linear interpolation (max) | 8.000 mm/min |

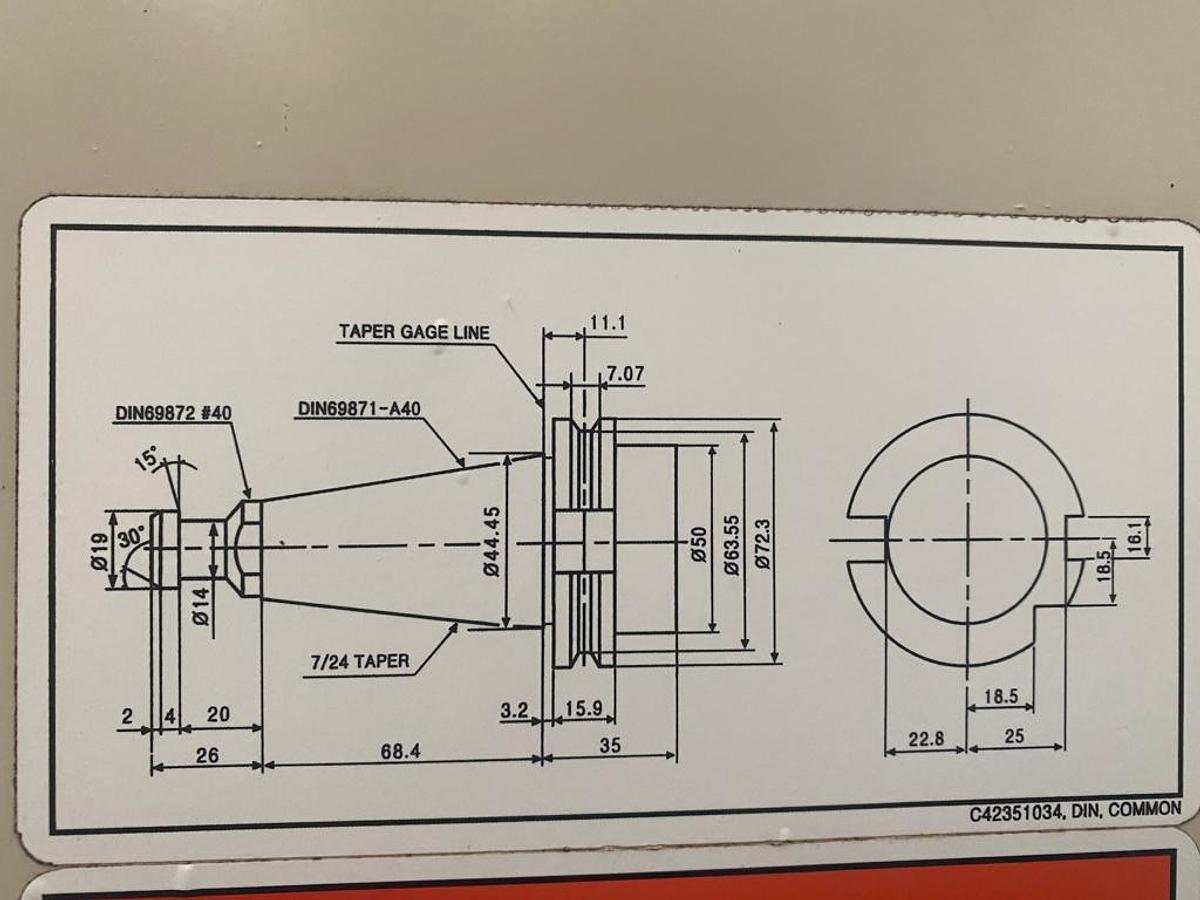

| Tool type | DIN 69871-A40 |
| Tool pull stud type | DIN 69872-A40 |
| ATC capicity | 30 Stations |
| Max tool diameter | Ø90 / Ø150 mm |
| Max tool lenght | 300 mm |
| Max tool weight | 8 Kg |

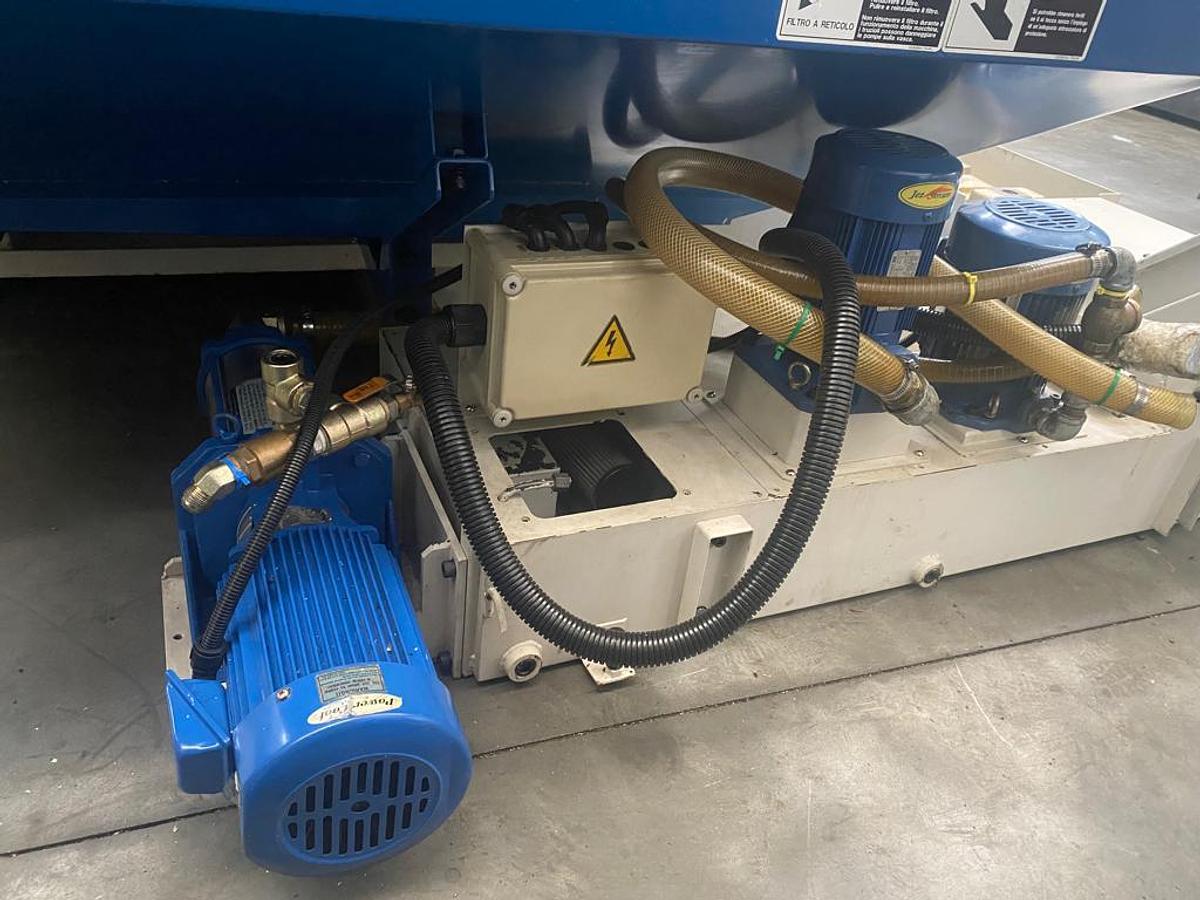

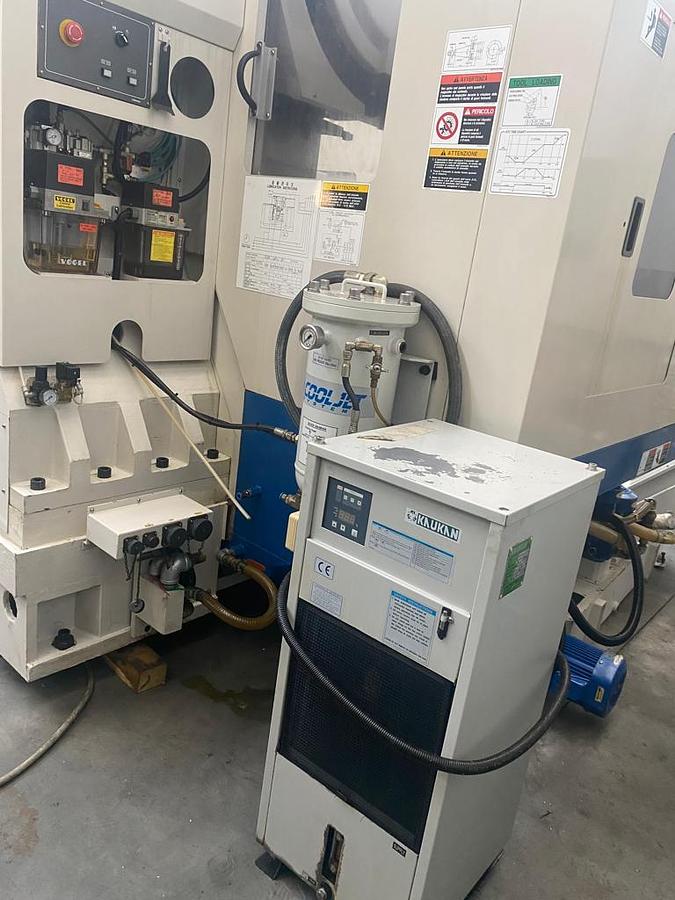

| Accessories | Chip conveyor - Coolant tank with pumps - High pressure pump (15 bar) for coolant through spindle - Chiller for spindle head - Transformer - Manuals - Electrical diagrams - EC CE Decleration |
