KAFO BMC-3122

KAFO BMC-3122

Location:Calerno, Italy

or
Call 00971-50-1515369

Description

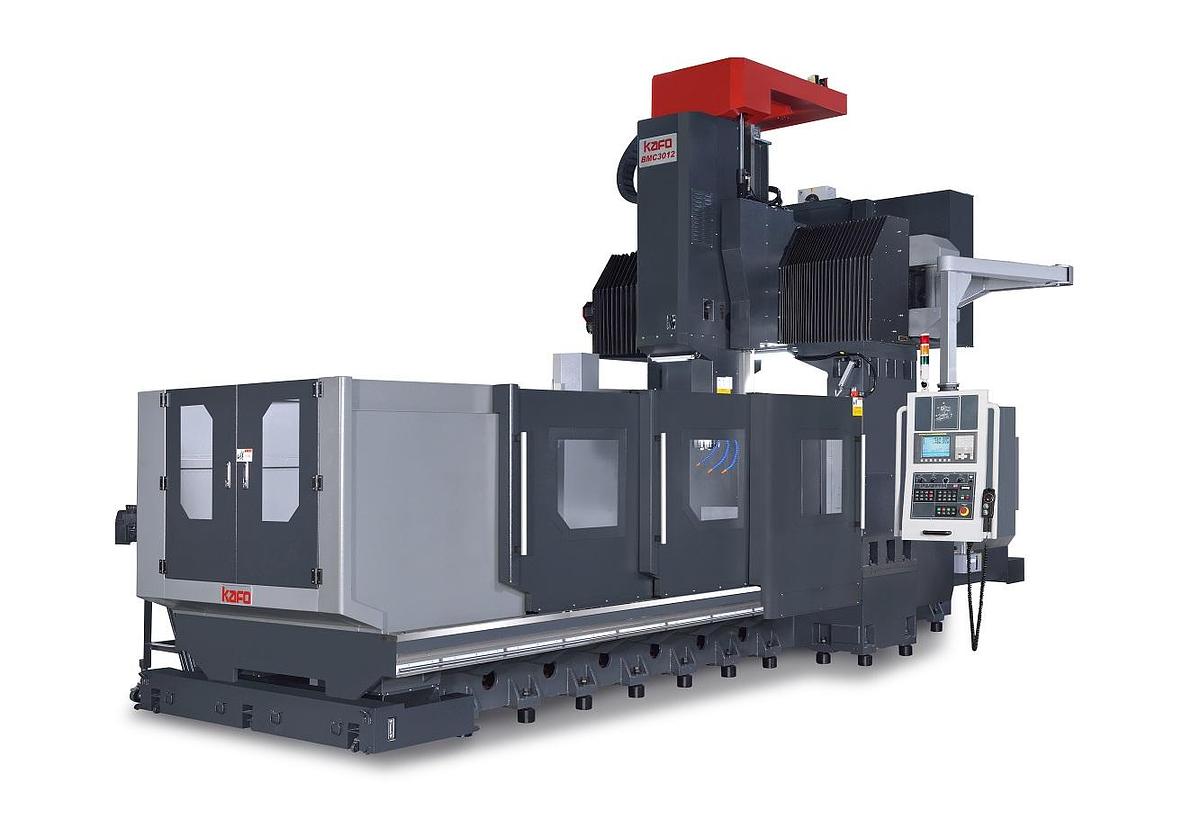

Double collumn machining center
Show All

Specifications

ManufacturerKAFO
ModelBMC-3122
ConditionNew
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/64a8f127845f2f5ccf863e380120a558/Centri%20di%20lavoro%20a%20portale%20KAFO.pdf
CNC ControlFANUC 0i-MF PLUS
Spindle tool sizeISO-50
Spindle speed6.000 RPM
Spindle motor power (cont/30 min)22/26 kW
Spindle steps2 steps
X axis3.100 mm
Y axis2.200 mm
Z axis900 mm
Table dimensions3.000 x 2.100 mm
Max load allowed on table14 Ton
X / Y / Z axis rapid feedrates20 / 20 / 15 m/min
Tool typeBT-50 / DIN-50
ATC capicityStandard 30 (opt. 40/60)
AccessoriesCoolant tank and chip-conveyor, high pressure pump for CTS (20 bar), Manuals, Electrical Diagrams e EC CE Declaration
