2001 Sigma ZENIT 6

2001 Sigma ZENIT 6

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerSigma
ModelZENIT 6
Year2001
ConditionUsed
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/98887599079c44980d439ed84afb98da/Sigma%20ZENIT%206.pdf

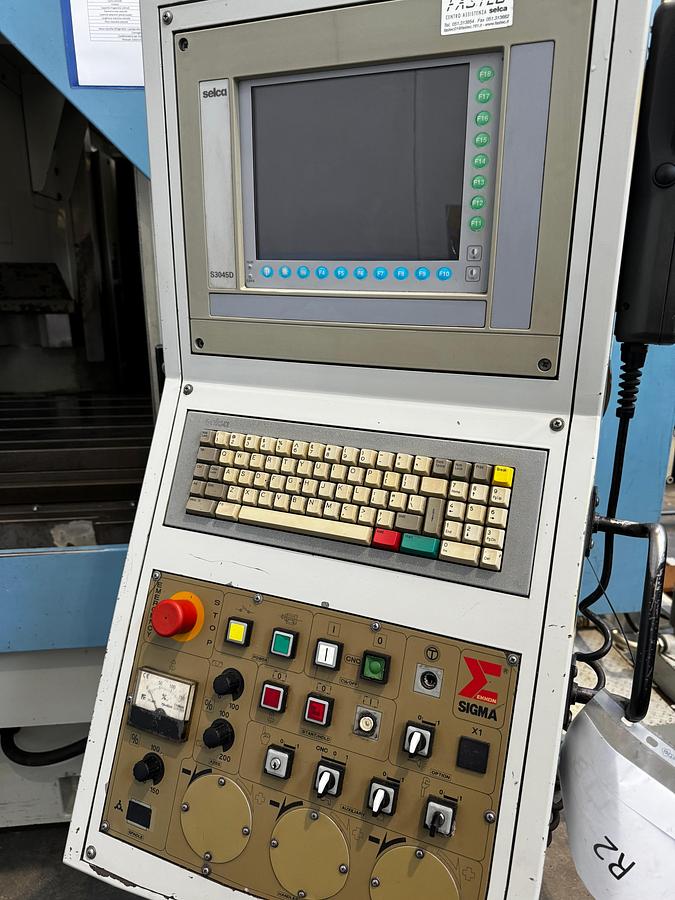

CNC ControlSELCA S3045D

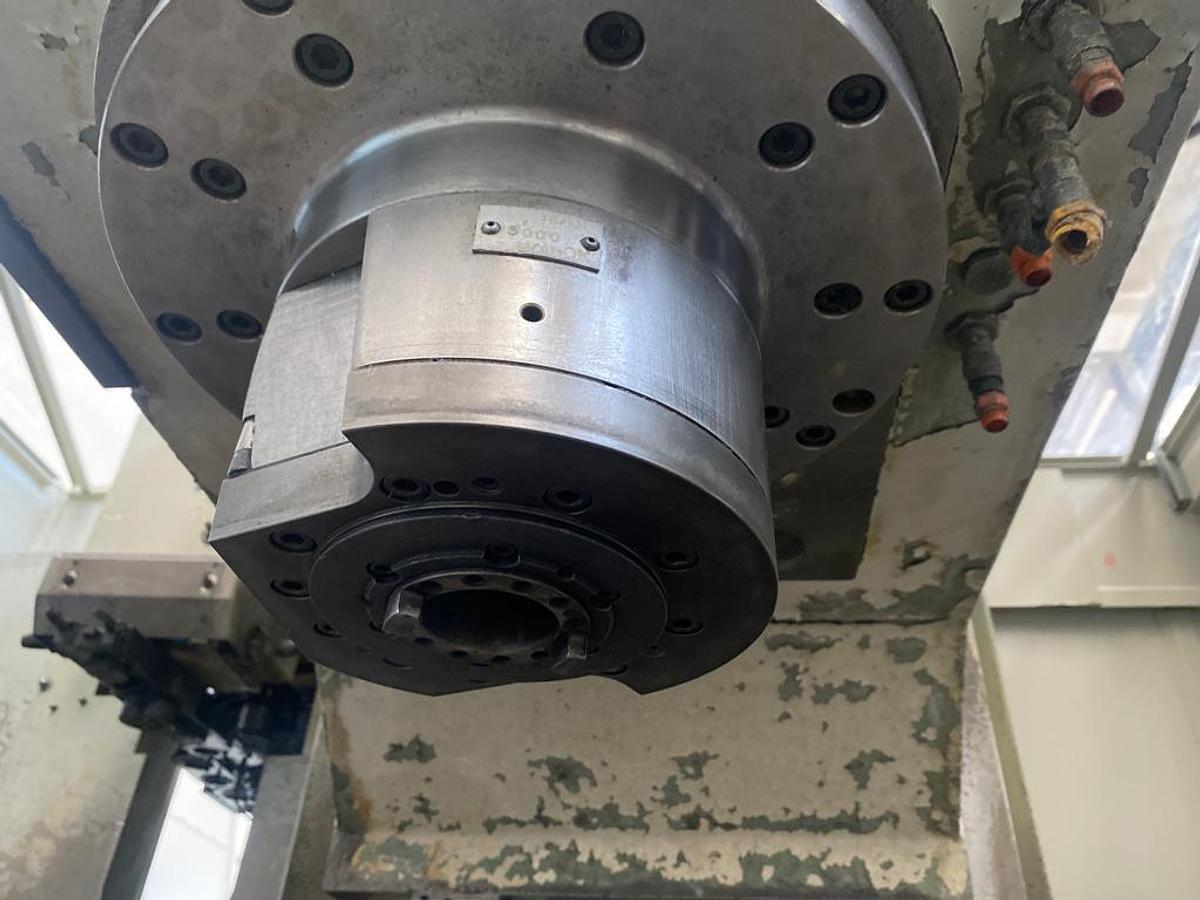

Spindle tool sizeISO 40
Spindle motor power (cont/30 min)15/18,5 kW
X axis1.600 mm
Y axis600 mm
Z axis685 mm
Distance between spindle nose - table surface150 - 835 mm

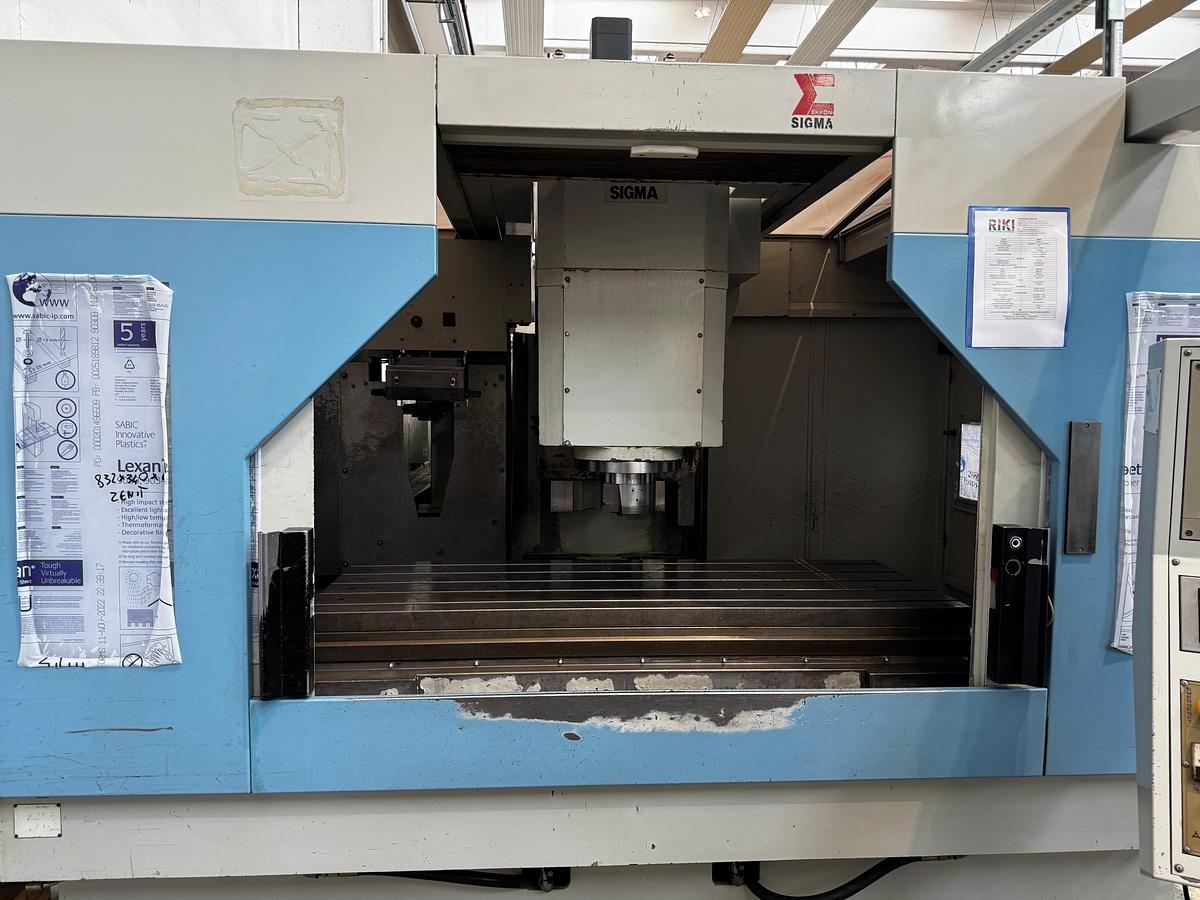

Table dimensions1.700 x 650 mm
Max load allowed on table2.000 Kg
Rapid feed axes X/Y24.000 mm/min
Rapid feed axis Z15.000 mm/min

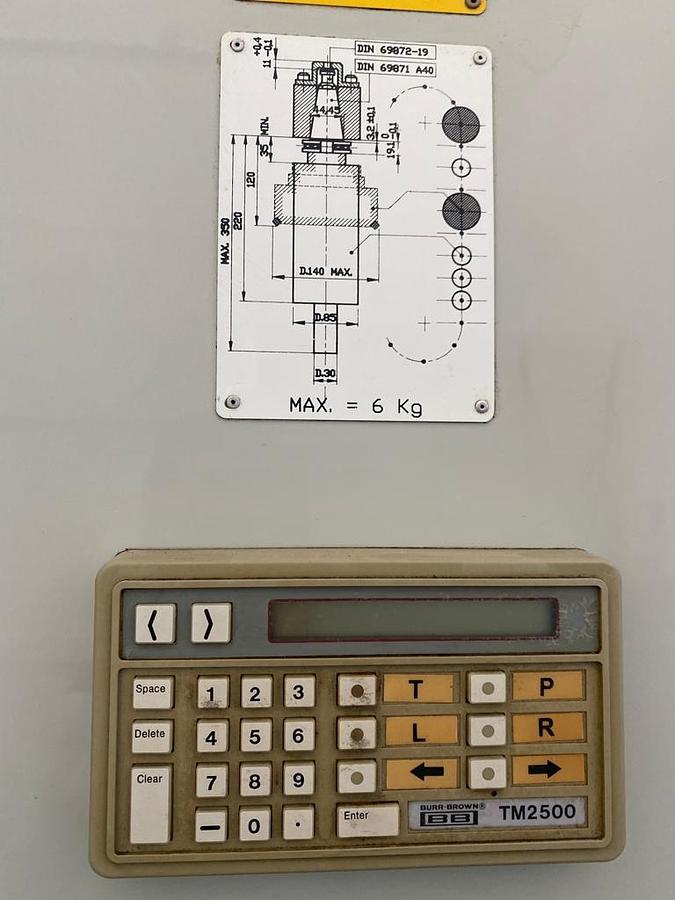

Tool typeDIN 69871-A40
Tool pull stud typeDIN 69872-A40

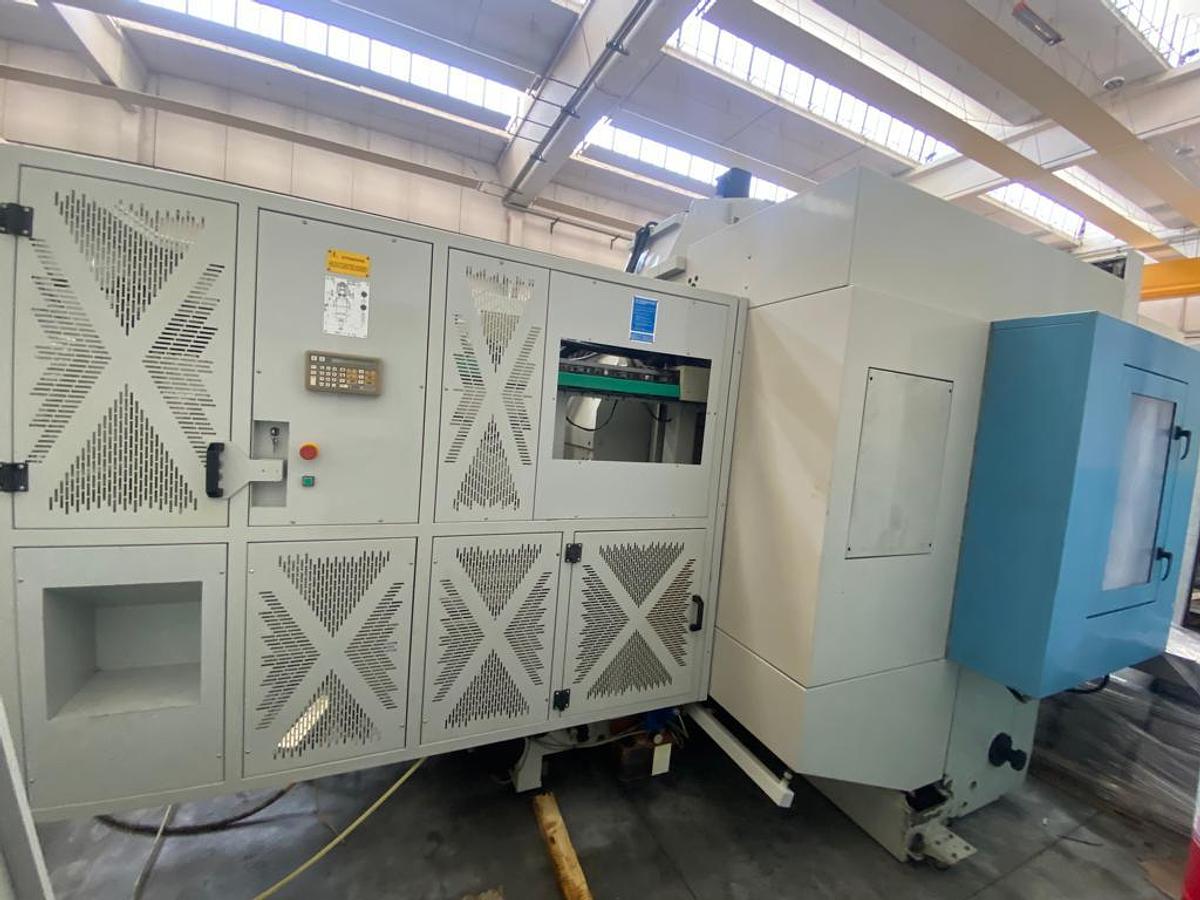

ATC capicity50 Stations
Max tool diameterØ85 / Ø140 mm
Max tool lenght350 mm
Max tool weight6 Kg

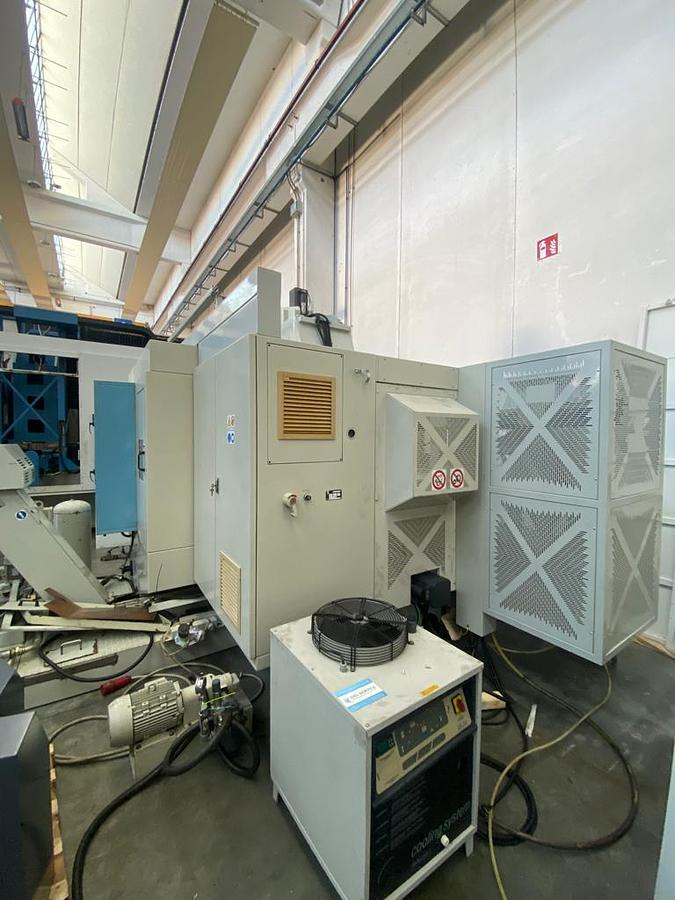

AccessoriesChip conveyor - Coolant tank with high pressure pump for CTS - Chiller for spindle head - Transformer - Manuals - Electrical diagrams - EC CE Decleration
Spindle speed12.000 Rpm
