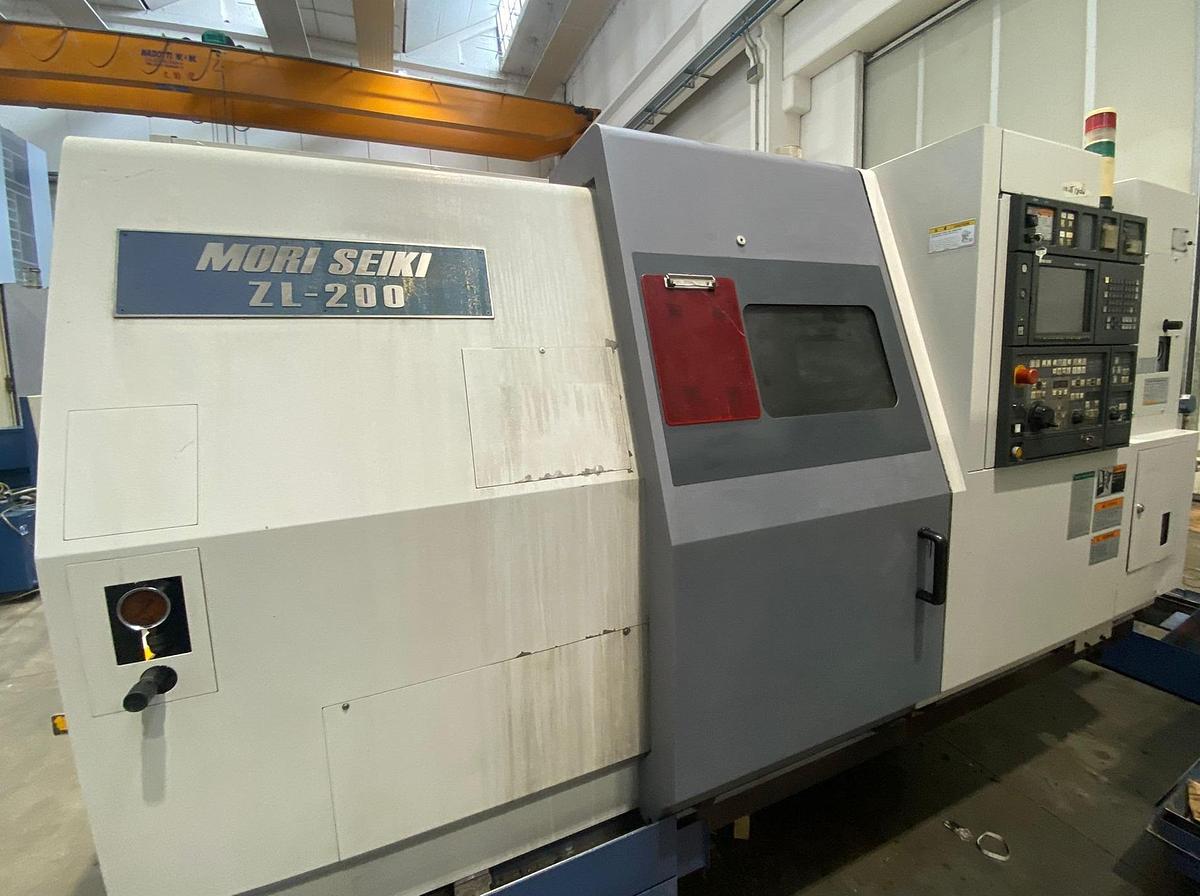

2001 Mori Seiki ZL-200/SMC
2001 Mori Seiki ZL-200/SMC
Location:Calerno, Italy
or
Call 00971-50-1515369
Description
Max turning diameter: N.1: Ø 390 mm / N.2: Ø 294 mm
X axis travel: N.1: 235 mm / N.2: 175 mm
Z axis travel: N.1: 520 mm / N.2: 490 mm
Specifications
| Manufacturer | Mori Seiki |
| Model | ZL-200/SMC |
| Year | 2001 |
| Condition | Used |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/bba8d373e1acc915a84f8038ba3b092b/Mori%20Seiki%20ZL-200%20SMC.pdf |

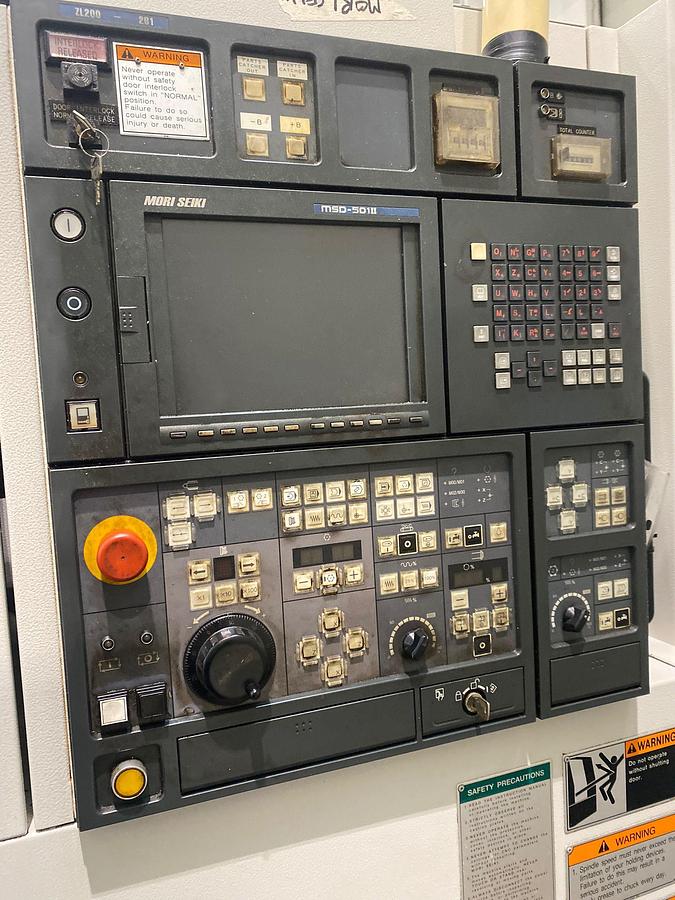

| CNC control | Mori Seiki MSD-501 II |
| Max swing diameter over bed | Ø 680 mm |
| Max swing over the carriage | Ø 510 mm |
| Distance between centers | 752 mm |
| Max turning length | 520 mm |
| Draw bar diameter main spindle, sub-spindle | Ø 65 mm / Ø 51 mm |
| B axis travel | 505 mm |
| Main spindle speed | 40-4.000 RPM |
| Main spindle nose size | JIS A2-6 |
| Main spindle chuck diameter | Ø 210 mm |
| C axis minimum controlled angle | 0.001° |
| Spindle motor power (cont / 30 min) | 7.5/11 kW |
| Sub-spindle speed | 40-4.000 RPM |
| Sub-spindle nose | JIS A2-5 |
| Sub-spindle chuck diameter | Ø 160 mm |
| C2 axis minimum controlled angle | 0.001° |
| Sub-spindle motor power (cont / 30 min) | 7.5/5.5 kW |

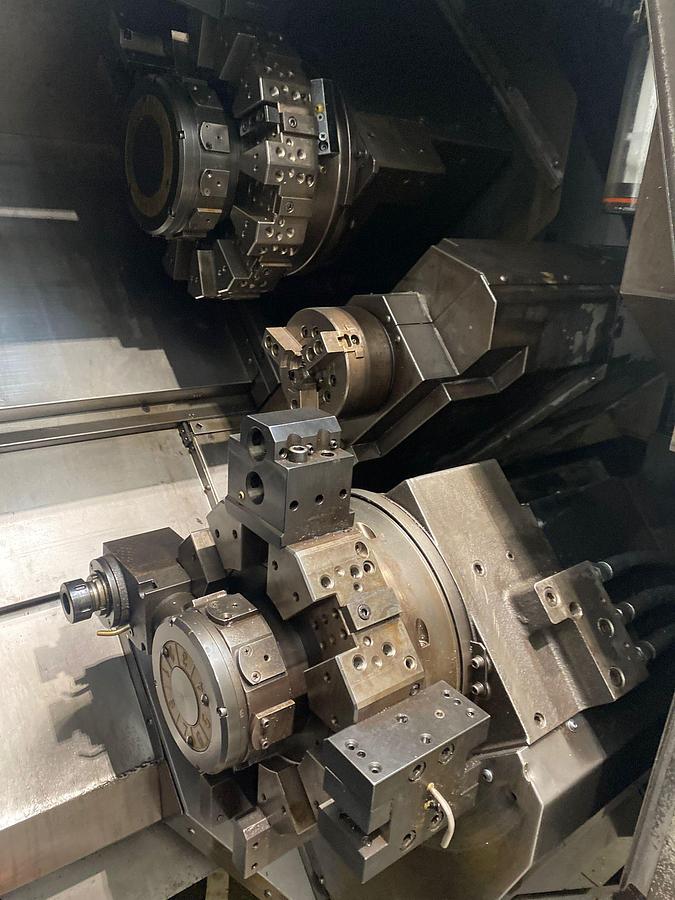

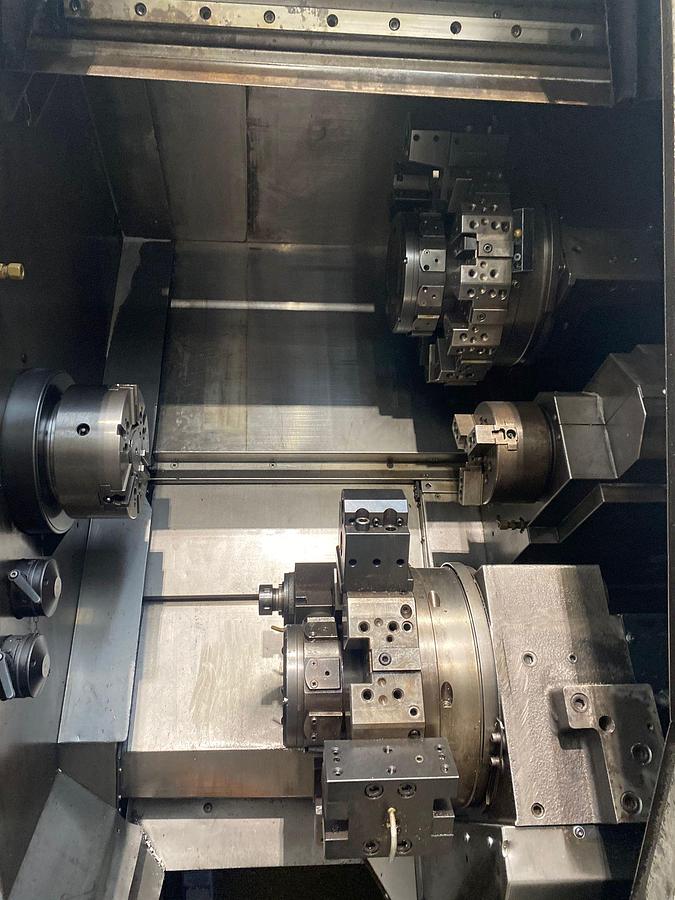

| Turret 1 positions | 12 positions with livetools |
| Live-tools speed turret 1 | 4.000 RPM |
| Turning / boring tool dimensions turret 1 | 25x25 / Ø 32 mm |
| Turret 2 positions | 8 positions with livetools |
| Live-tools speed turret 2 | 3.000 RPM |
| Turning / boring tool dimensions turret 2 | 25x25 / Ø 32 mm |
| Rapid feedrates X / Z / B | 18.000 / 24.000 / 24.000 mm/min |
| Manual feedrates X / Z / B | 0 - 1.260 mm/min |

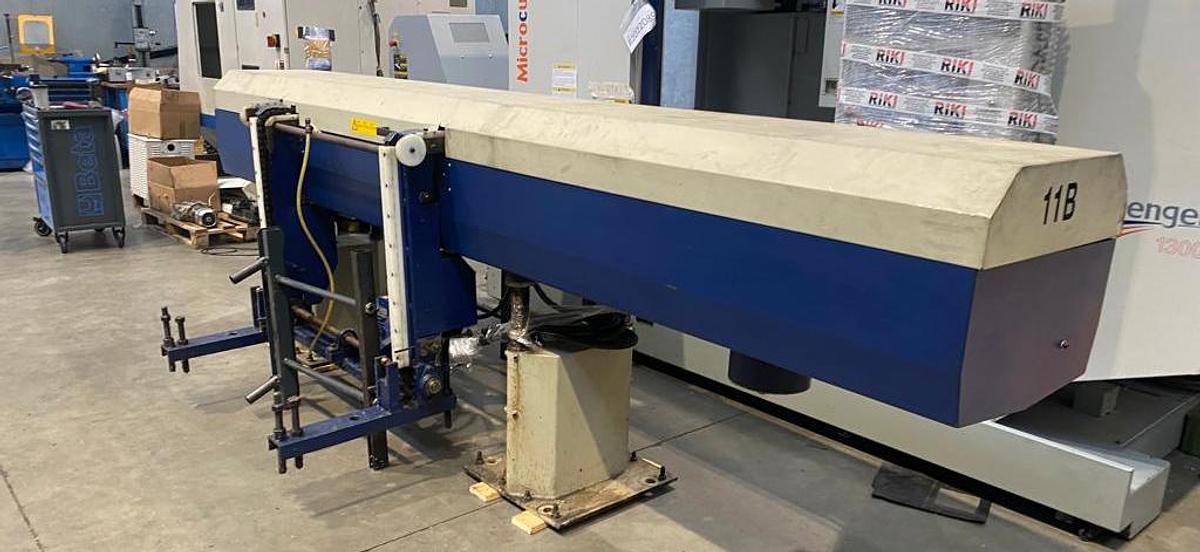

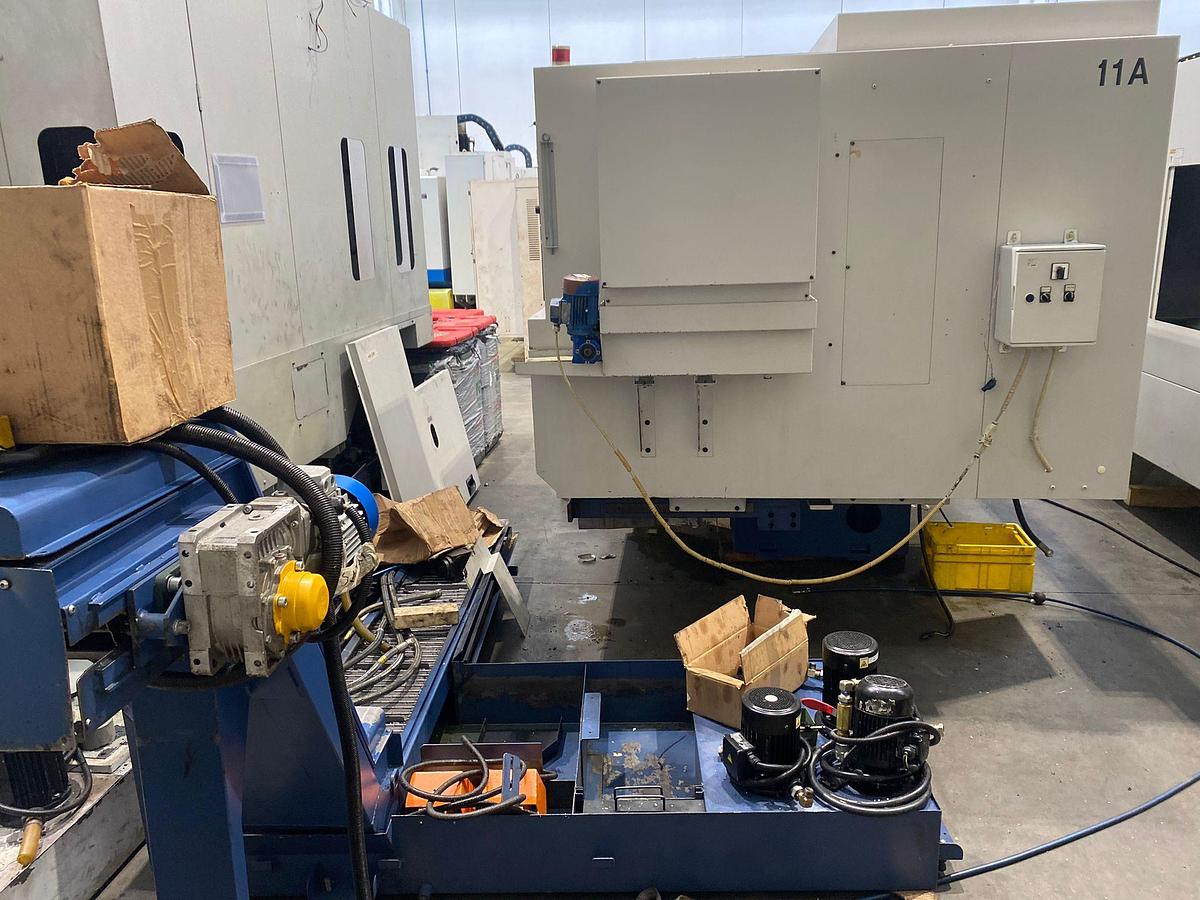

| Accessories & Others | Bar feeder make LNS mod. Hydrobar Sprint, Various fix tool holder and 4 live tools, chip-conveyor, coolant tank and pumps, electrical transformer, automatic piece unloading hand + conveyor on side, manuals, electrical diagrams and CE Declaration |
