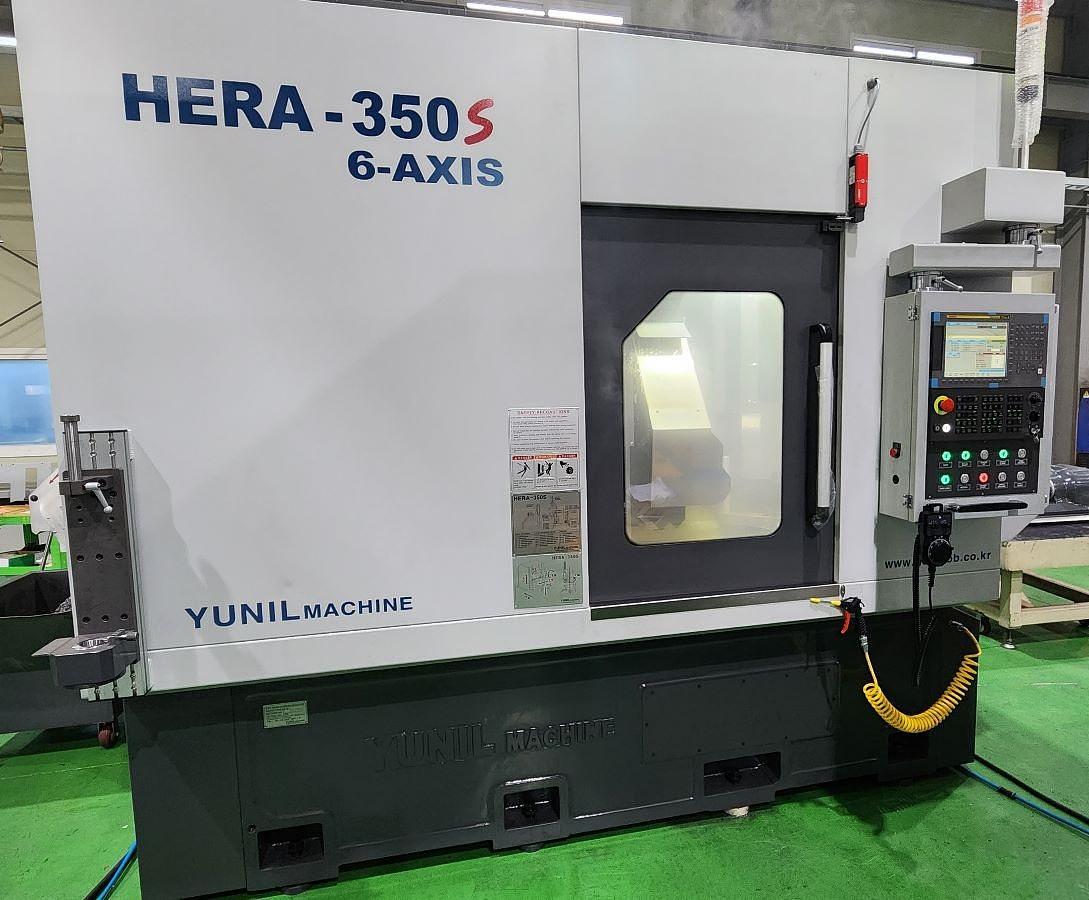

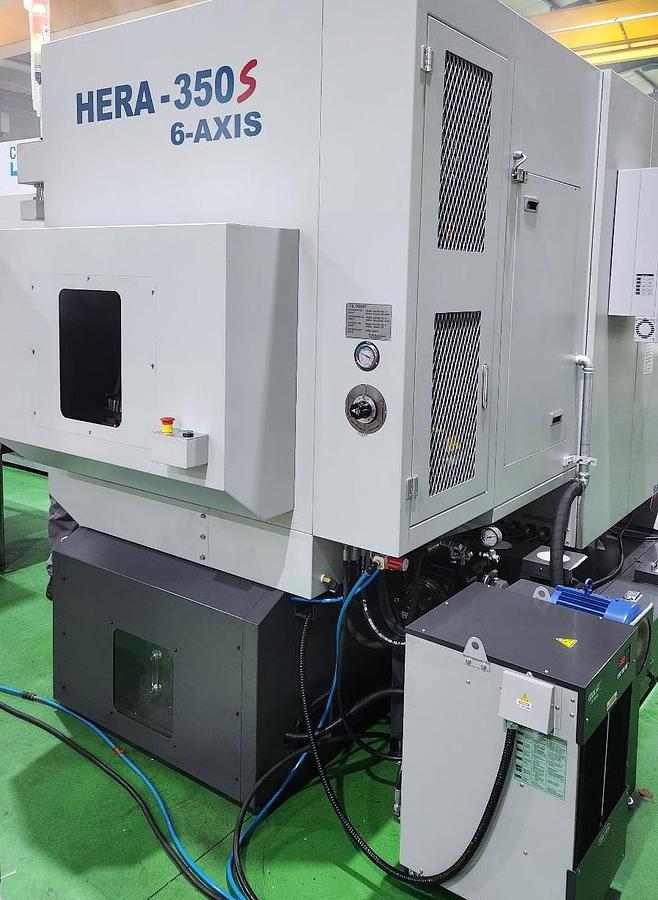

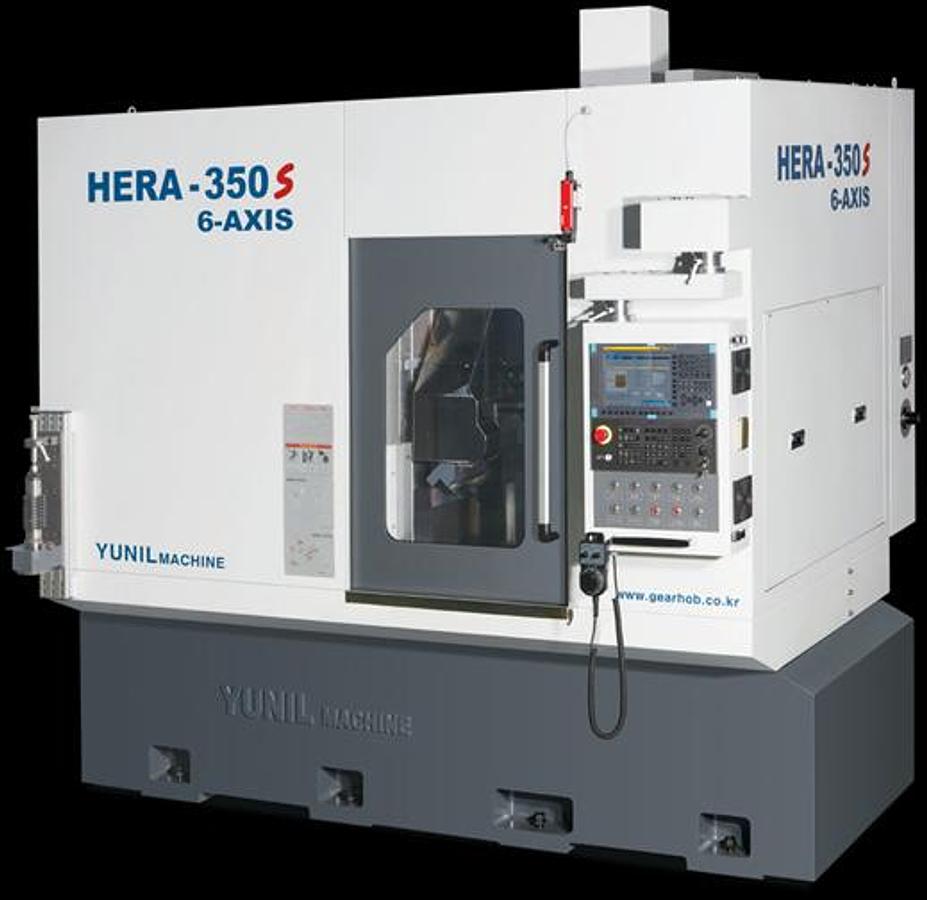

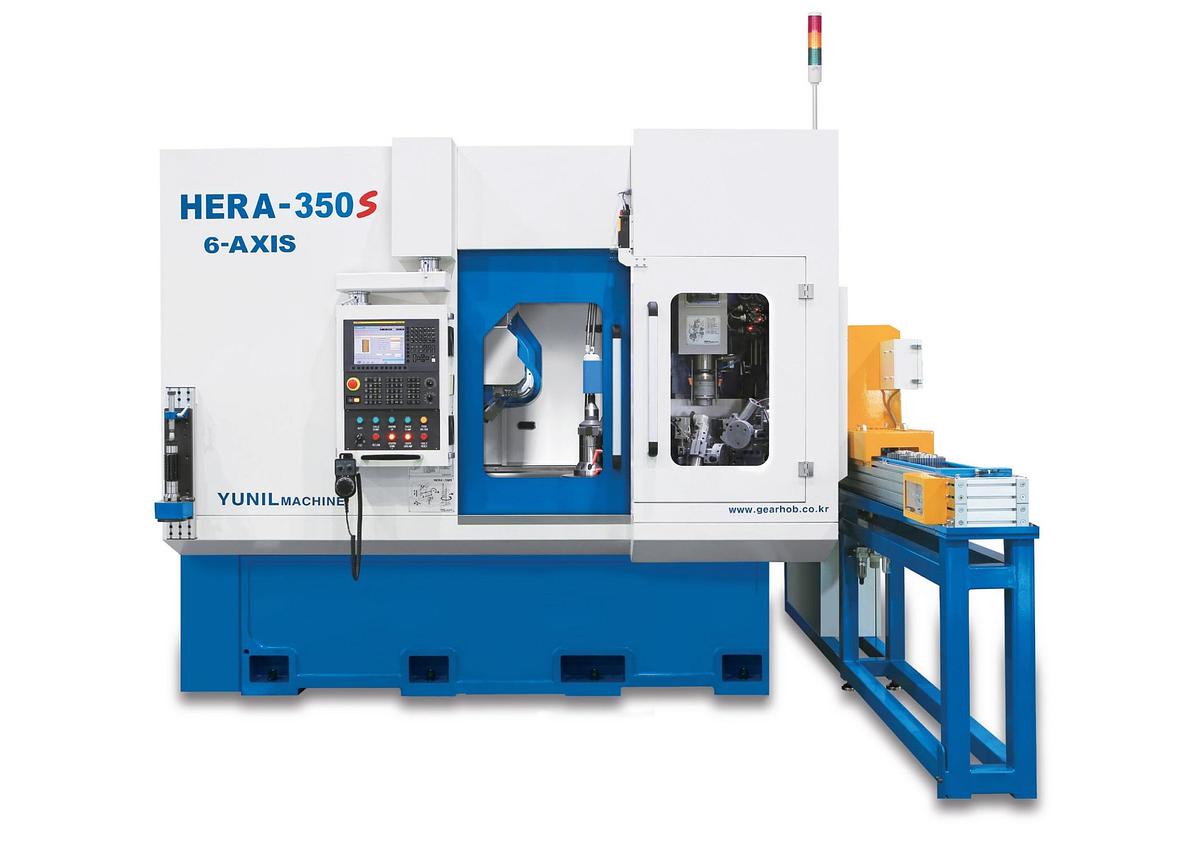

YG-TECH HERA-350S
Featured
YG-TECH HERA-350S
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | YG-TECH |
| Model | HERA-350S |
| Condition | New |
| Stock Number | R2024145 |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/6f7ce2ec31c9166d5cedfabb31ef81eb/HERA%20200S-350S%20Brochure.pdf |
| CNC Control | FANUC 0i-MF PLUS / Siemens 828D |
| Max diameter of the workpiece (manual) | Ø 350 mm |
| Max diameter of the workpiece (auto) | Ø 280 mm |
| Max height of the workpiece | 650 mm |
| Max module pitch | Module 6 |
| X axis radial travel | 280 (35-315) mm |
| A axis maximum inclination Hob cutter | +/- 45° |
| B axis Hob cutter spindle speed | 1.200 RPM |

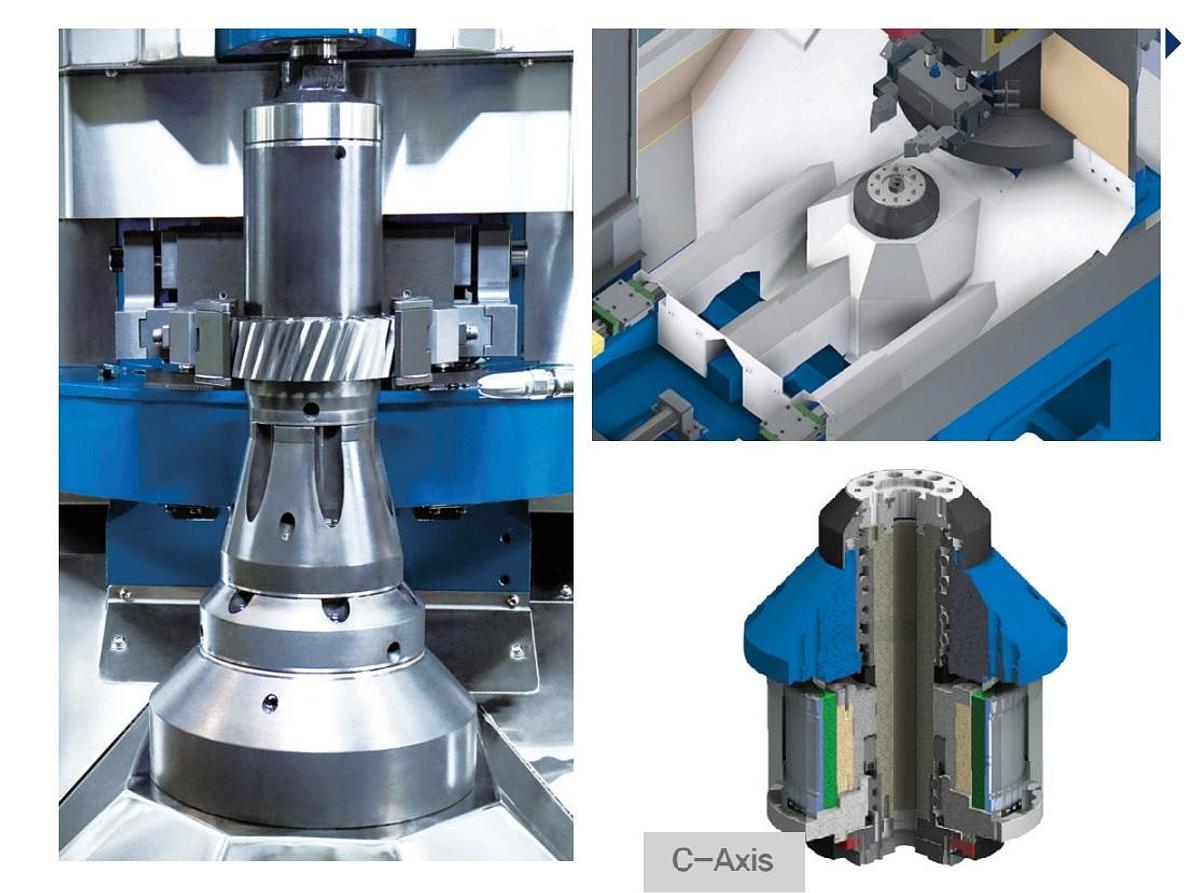

| C axis rotary table speed | 500 RPM |
| Z axis working axial range (vertical) | 320 (150-470) mm |
| Tailstock travel | 350 (340-690) mm |
| Tailstock pressure | 1.300 Kg |
| Table diameter | Ø 300 mm |
| Table hole diameter | Ø 50 mm |
| Max weight allowed on table | 500 Kg |
| Rotary table torque | 1.090 Nm |
| Tool type | NT - 40 |
| Hob cutter dimensions | Ø 160 x 200 mm |
| Y axis tangential travel (shifting) | 180 mm |
| Hob cutter spindle torque | Max torque 286,4 Nm |
| Control systems for Table and Hob cutter | Inline FANUC Encoders |
| A and Z axis feedrates | 10.000 mm/min |
| Y axis feedrate | 6.000 mm/min |
| Dimensions machine only | 3.685 x 2.540 x altezza 2.730 mm |
| Machine's net weight | Kg 9.800 |
| Installed power | 35 kVA / 480V (3 fases) 60Hz |

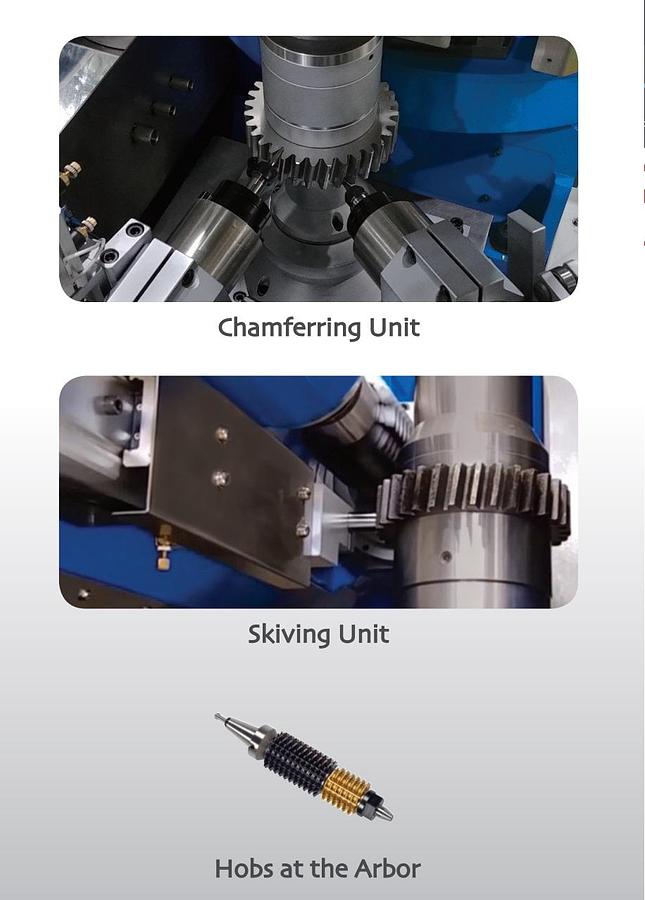

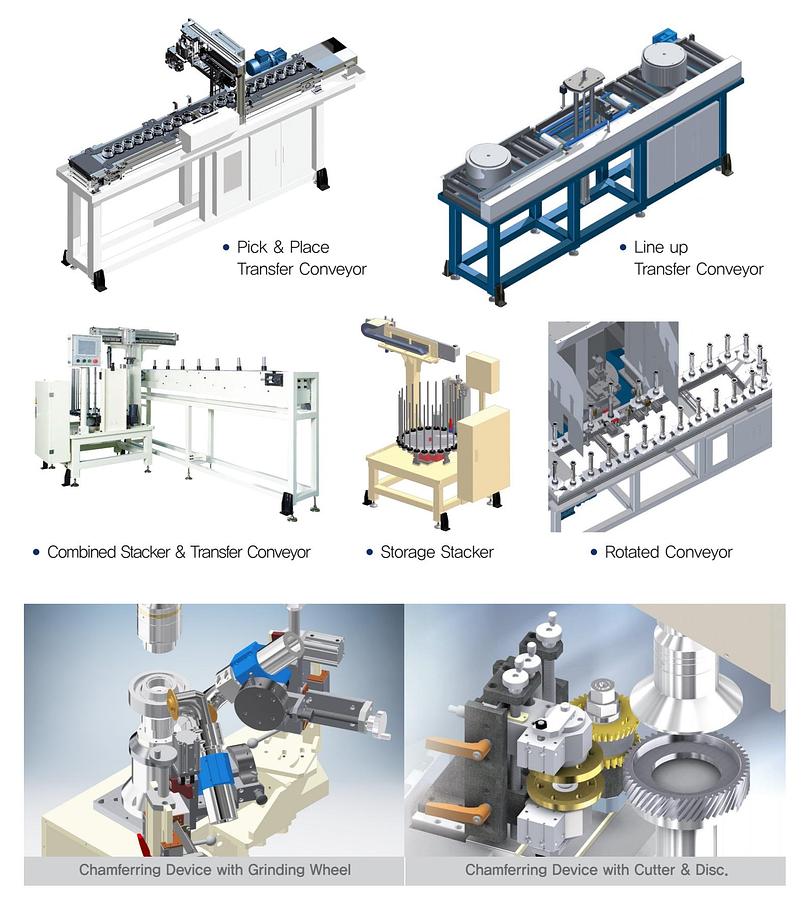

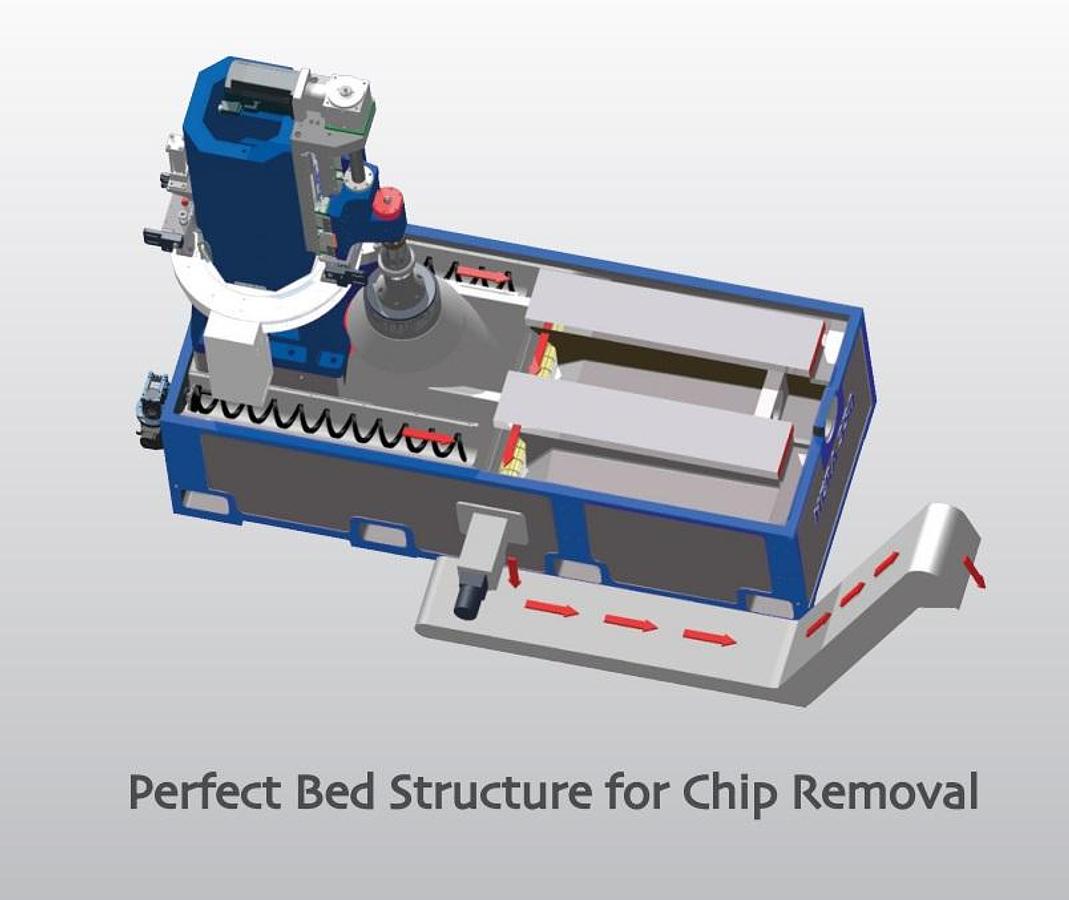

| Accesories and others | Coolant tank, magnetic chip-conveyor scraping type, chiller for torque motor of rotary table, hydraulic cylinder for table workpiece holding, Hob cutter presetting, disk type deburring attachment, automation system with 2 stations + 2 hands set for workpiece clamping |
