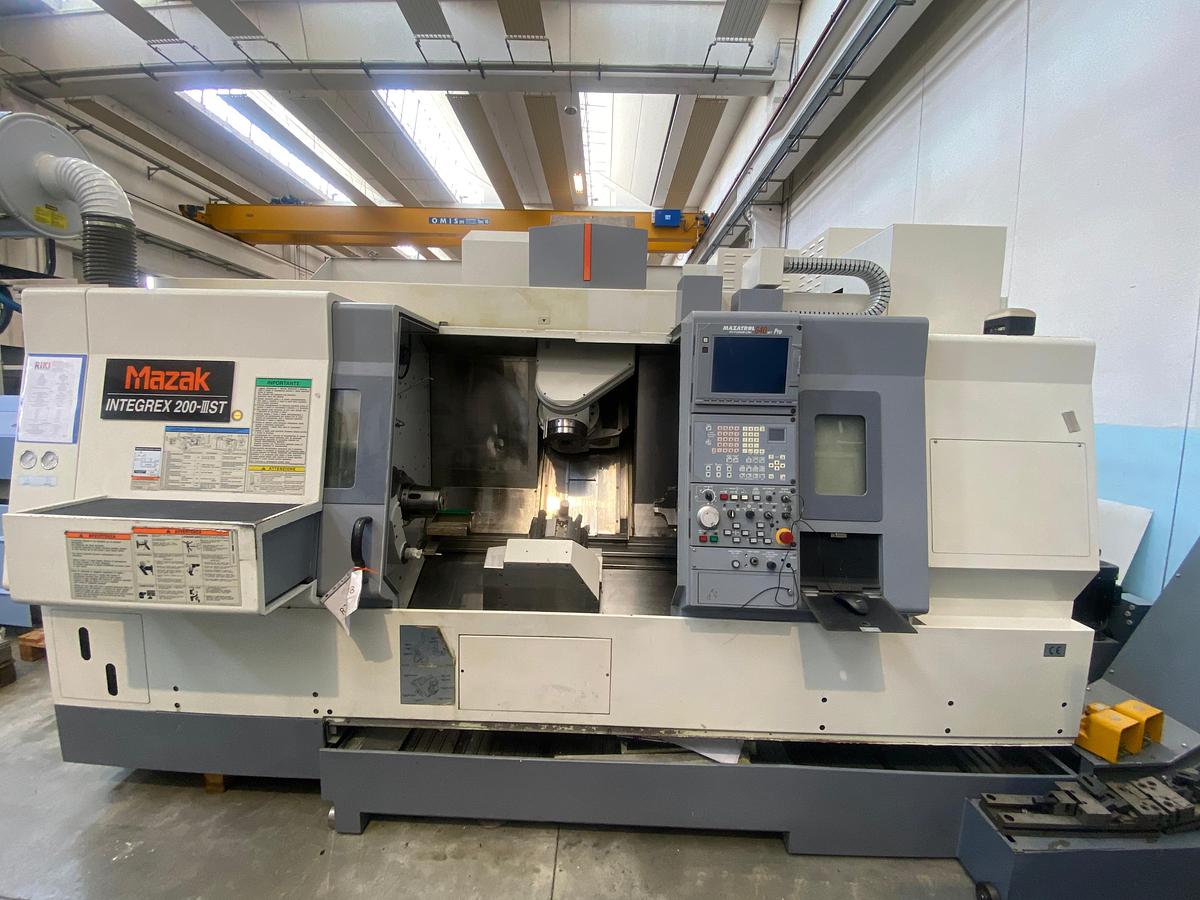

2004 Mazak INTEGREX 200-3ST
Sold
2004 Mazak INTEGREX 200-3ST
Location:Calerno, Italy
Specifications
| Manufacturer | Mazak |
| Model | INTEGREX 200-3ST |
| Year | 2004 |
| Condition | Used |
| Stock Number | R2025054 |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/893fab68773cb246b5a0a264a735a10d/Mazak%20Integrex%20200III-ST.pdf |

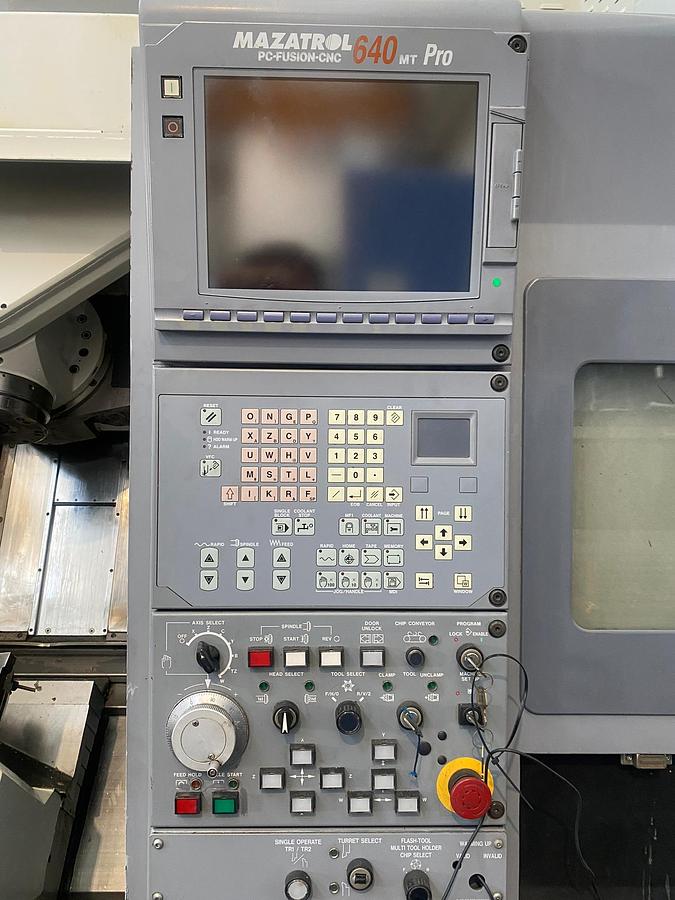

| CNC Control | MAZATROL FUSION 640MT PRO |
| Max swing diameter on bench | Ø 660 mm |
| Max swing over carriage upper turret / lower turret | Ø 660 mm / Ø 500 mm |
| Max turning diameter on upper turret / lower turret | Ø 660 mm / Ø 260 mm |
| Max turning length | 1.016 MM |
| Bar diameter capacity on main spindle / sub-spindle | Ø 65 mm / Ø 65 mm |
| Max piece load capacity on main spindle / sub-spindle | 300 Kg / 300 Kg |
| X1 Axis Travel | 580 mm |
| X2 Axis Travel | 150 mm |
| Z1 Axis Travel | 1.045 mm |
| Z2 Axis Travel | 990 mm |
| Y axis travel | 160 mm |
| W Axis Travel | 1.050 mm |
| C Axis (Main Spindle Rotation / Sub-Spindle) | ±360° / ± 360° |
| Main spindle Collet Chuck type | BELLEGRANDI MSCTN70-A6” |
| Main spindle speed | 35 – 5.000 Rpm |
| Main spindle nose | ASA A2-6 |
| Main spindle motor power (cont./30 min.) | 15/22 kW |
| Main spindle C Axis angular positioning of spindle with hydraulic axis locking system | 0.001° |

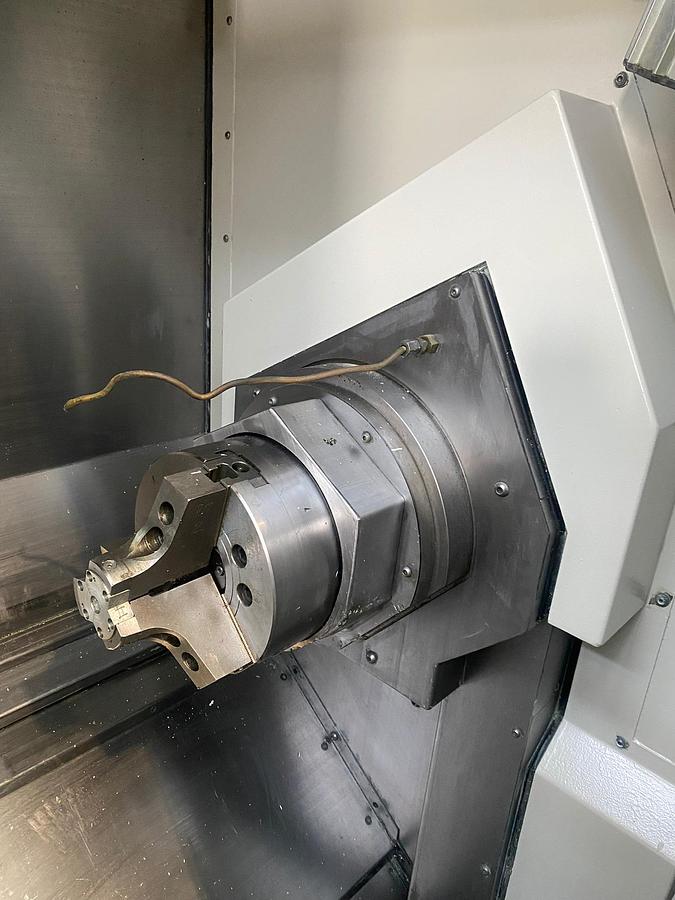

| Sub-spindle chuck diameter | Ø 210 mm |
| Sub-spindle speed range | 35 - 5.000 Rpm |
| Sub-spindle nose | ASA A2-6 |
| Sub-spindle motor power (cont/30 min) | 11/18,5 kW |
| Sub-spindle C Axis angular positioning of sub-spindle with hydraulic axis locking system | 0.001° |

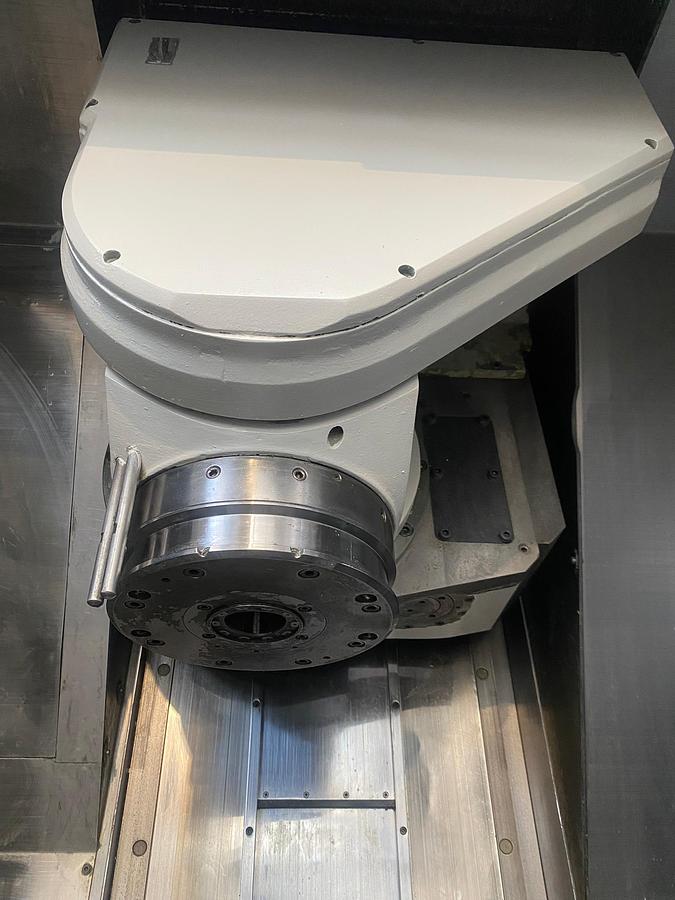

| Milling spindle nose type | CAPTO C6 |
| Milling spindle speed range | 15 - 12.000 Rpm |
| Milling spindle motor power (cont./30 min.) | 5,5 / 15 kW |

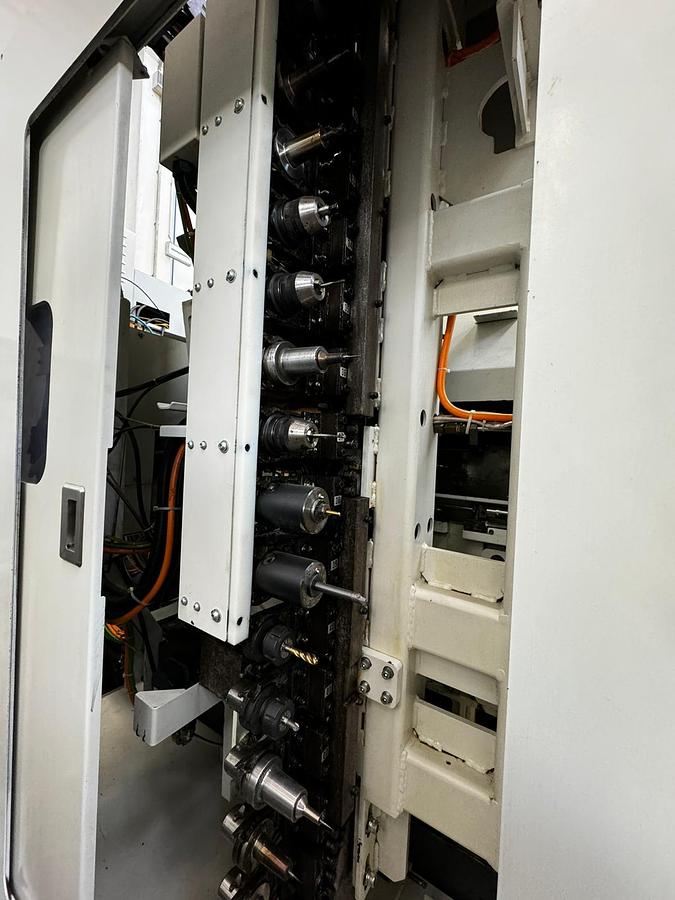

| Milling tool magazine capacity | 40 stations |
| Milling tool max diameter | Ø 125 mm |
| Milling tool max length | 300 mm |
| Tool dimensions / boring bar diameter | 25x25 mm / Ø 32 mm |

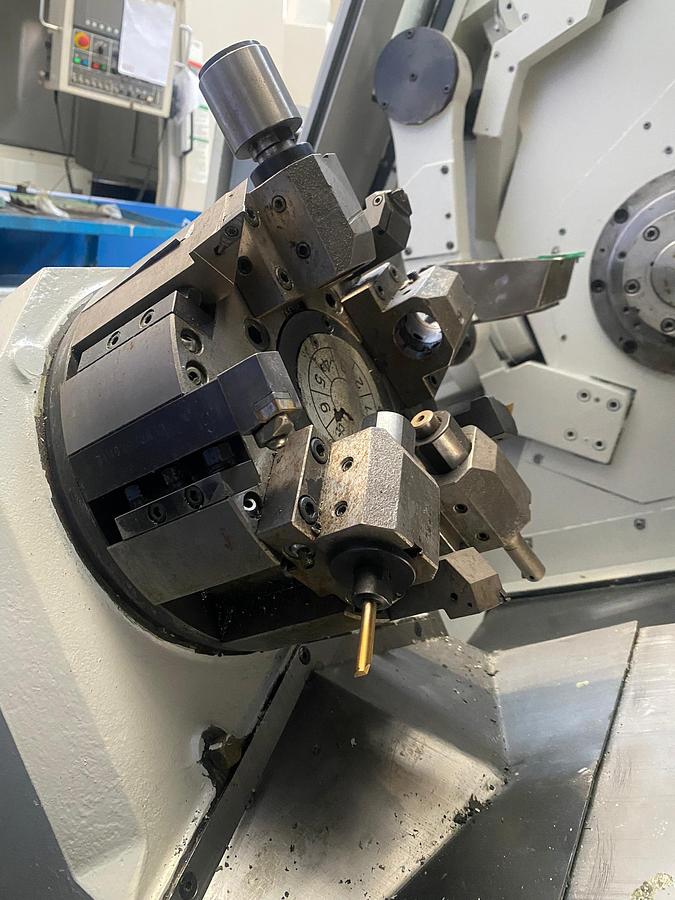

| Lower turret positions | 9 positions |
| Lower turret tool dimensions / boring diameter | 25x25 mm / Ø 32 mm |
| Rapid feed X1/X2/Z1/Z2 Axes | 38.000 mm/min |
| Rapid feed Y Axis | 26.000 mm/min |
| Rapid feed W Axis | 30.000 mm/min |

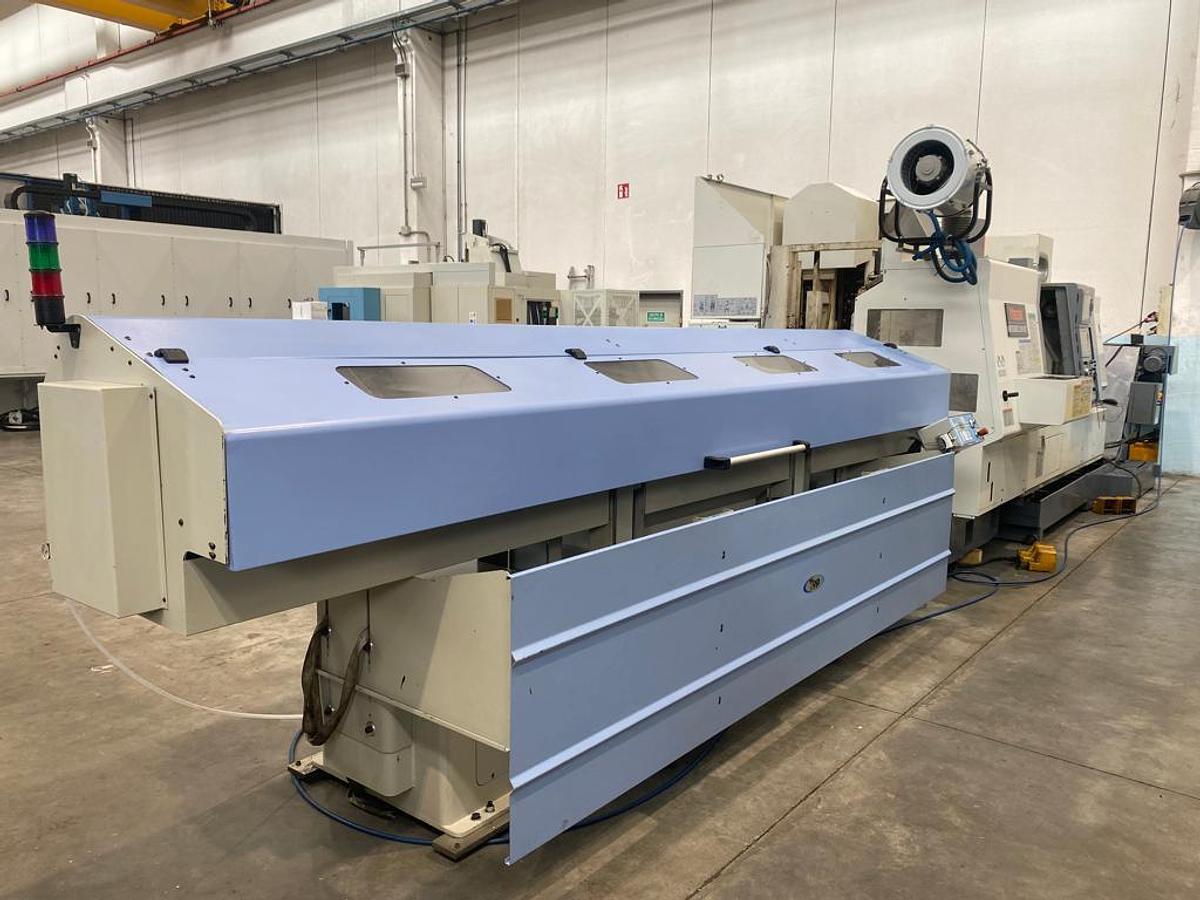

| Accessories & Others | Bar feeder make TOP AUTOMAZIONI model XF-365 - Tool presetting automatic descent and ascent (with button and M code) - Chip conveyor - Coolant tank and pumps - Various tool holders - Manuals - Electrical Diagrams - EU/EC Declaration |
