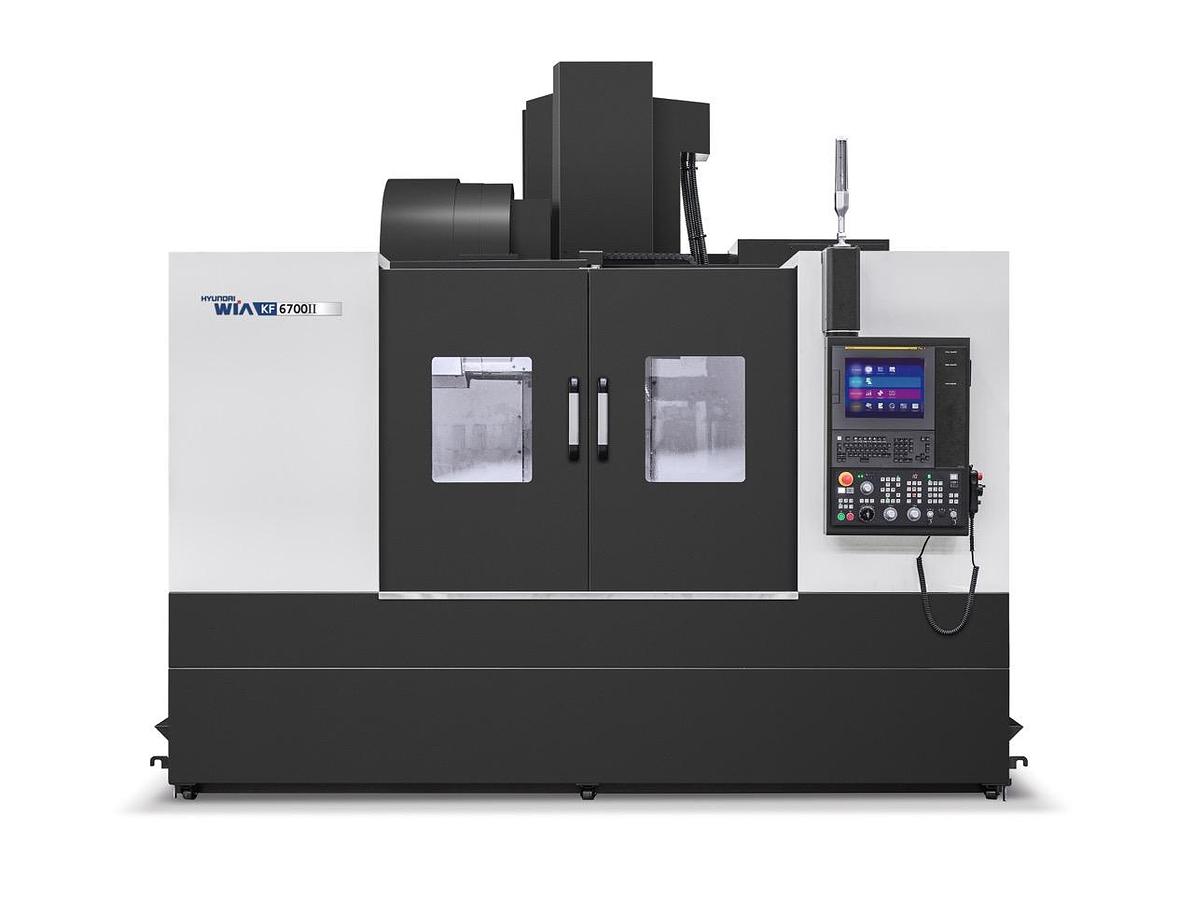

Hyundai WIA KF-6700II
Hyundai WIA KF-6700II
Location:Calerno, Italy
Specifications
| Manufacturer | Hyundai WIA |
| Model | KF-6700II |
| Condition | New |
| Stock Number | R2025056 |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/78ade321b4d5454cf5fed8248d7df8df/KF4600II%20Standard%28en%29.pdf |

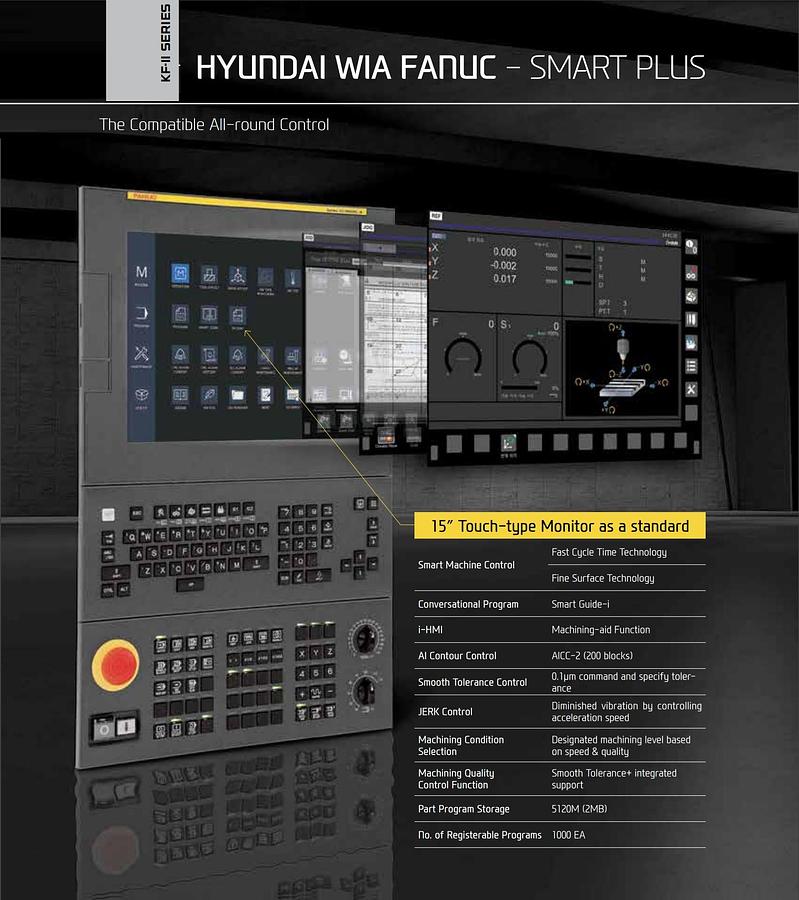

| CNC Control | FANUC 0i-MF PLUS |
| Spindle tool size | ISO-40 |
| X / Y / Z axis rapid feedrates | 36.000 / 36.000 / 30.000 mm/min |
| Tool type | BBT-40 (opt. HSK-A63) |
| Tool pull stud type | BT-40 |

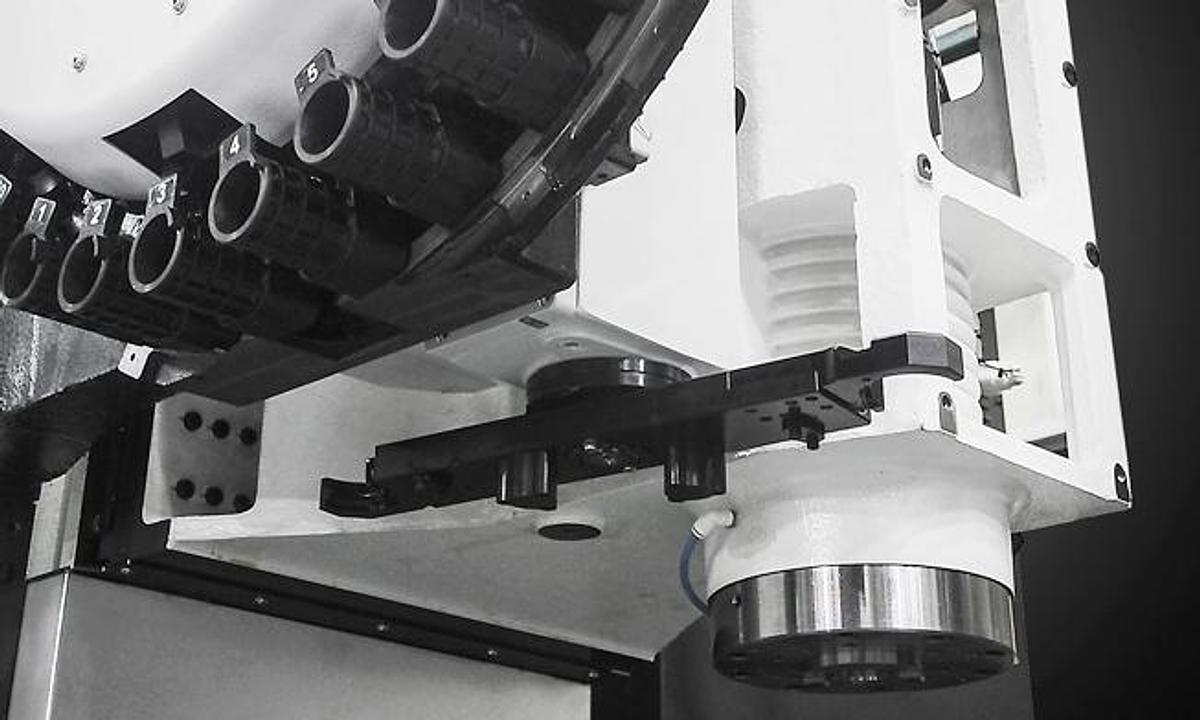

| ATC capicity | 30 positions (opt. 40 / 60) |
| Max tool lenght | 300 mm |
| Max tool weight | 8 Kg |

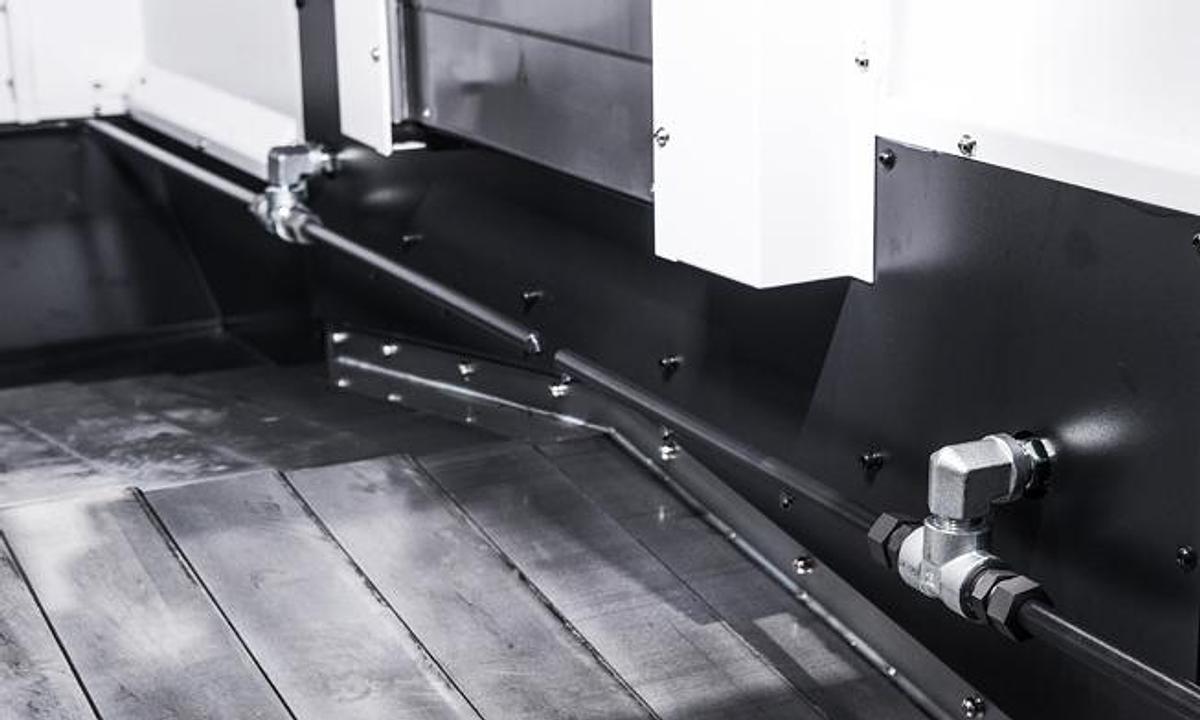

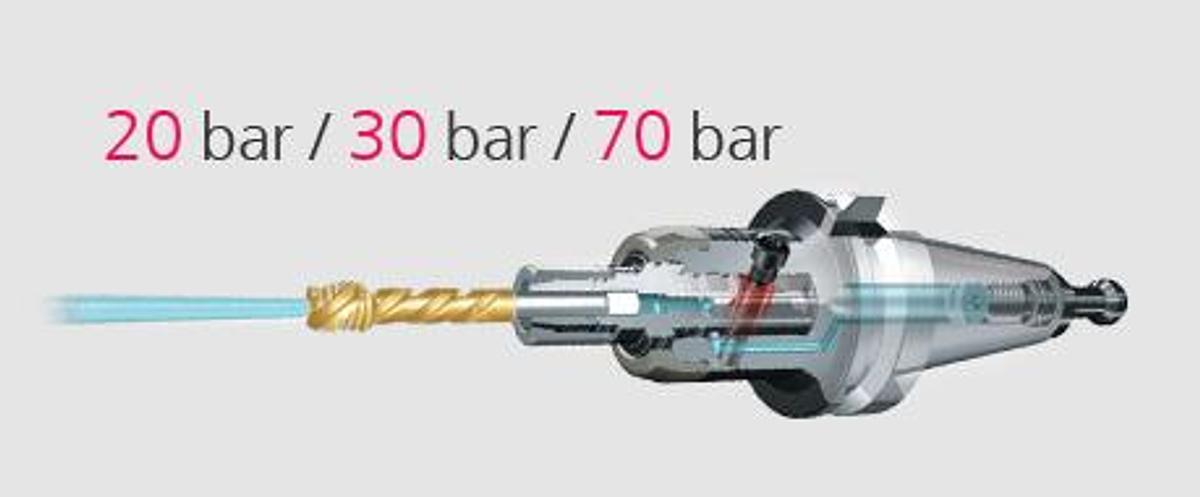

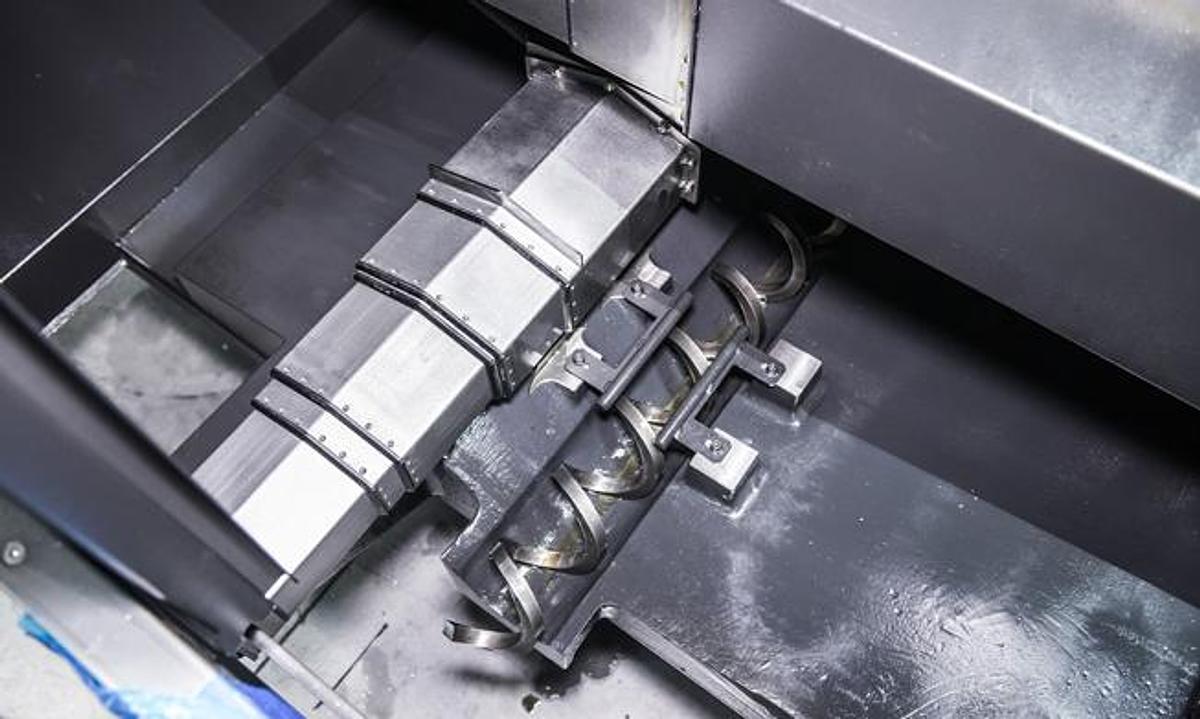

| Accessories | Chip-conveyor, coolant tank with 20 bar pressure pump for CTS, Manuals, Electrical diagrams and CE Declaration |
| X axis | 1.300 mm |
| Y axis | 670 mm |
| Z axis | 635 mm |
| Table dimensions | 1.500 x 670 mm |
| Max load allowed on table | 1.300 Kg |
| Machine's net weight | 3.196 Kg |

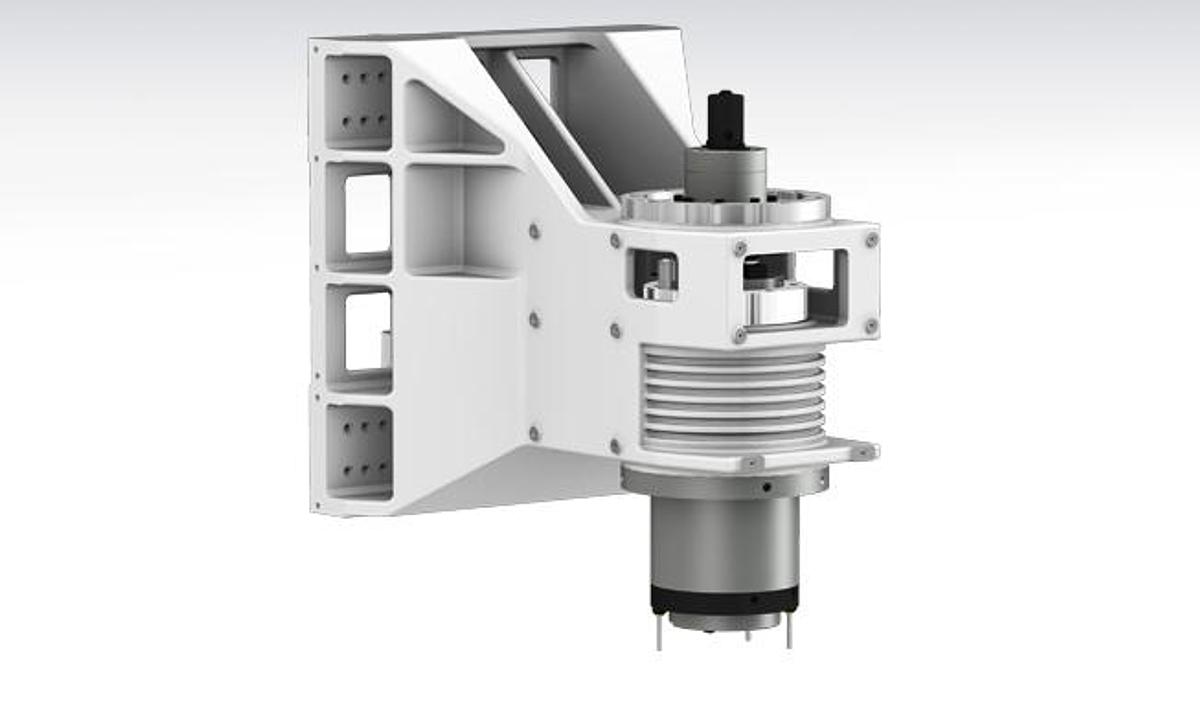

| Spindle speed | 8.000 High-torque RPM (opt. 10.000/12.000 / 15.000) |
| Spindle motor power (cont/30 min) | 15/11 (opt. 18.5/11) kW |
| Max tool diameter | Ø 80 / 125 (opt. Ø76/Ø125) mm |
