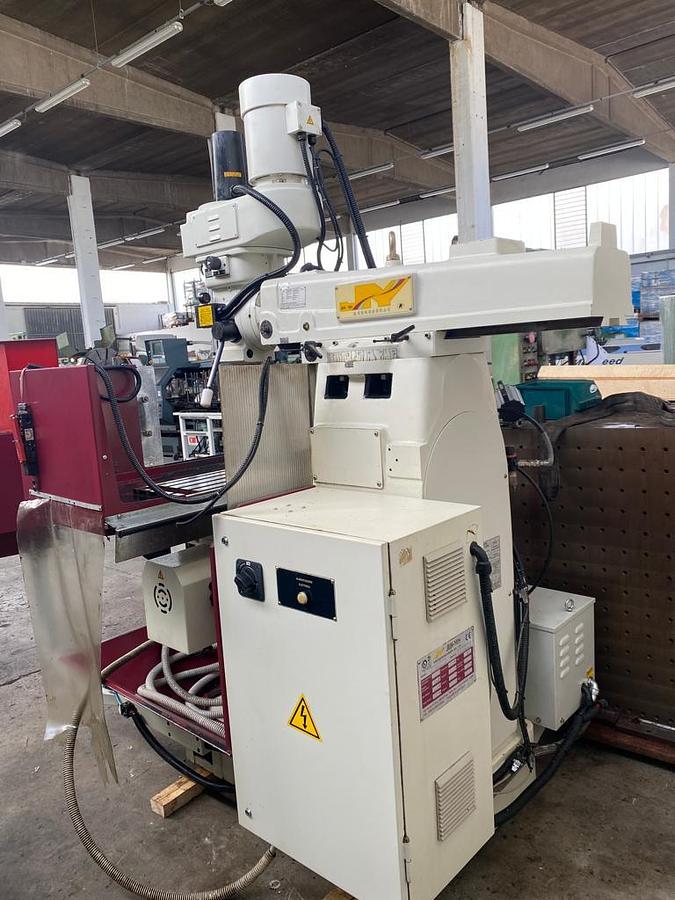

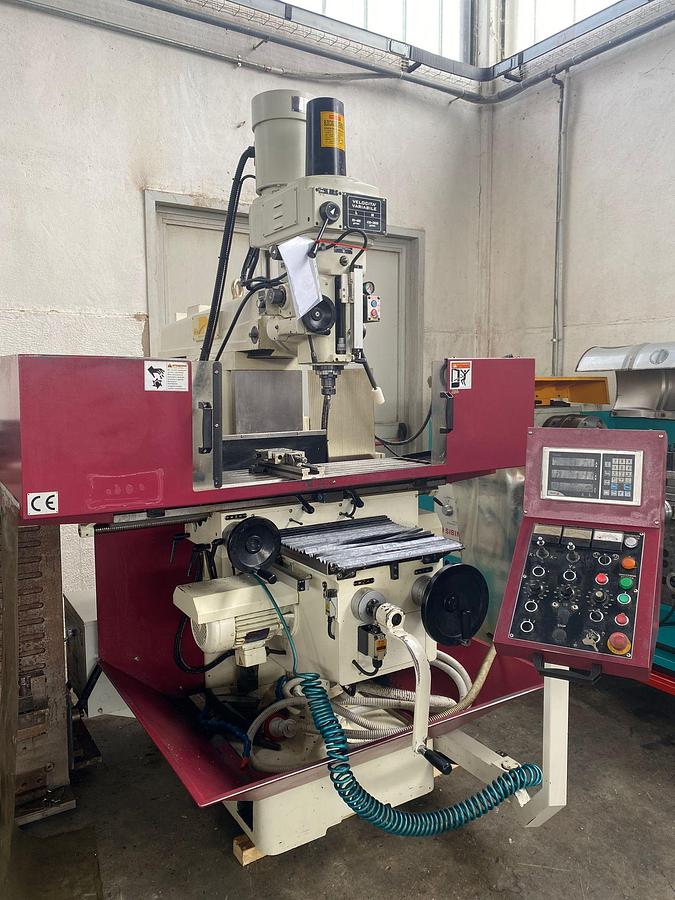

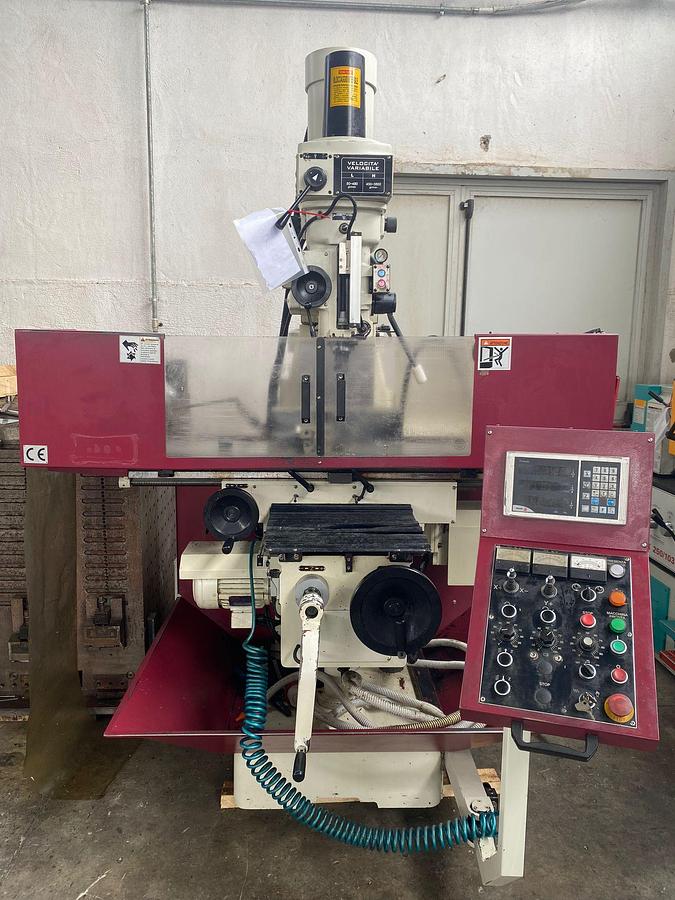

2014 Jiuh-Yeh JY-2T

2014 Jiuh-Yeh JY-2T

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerJiuh-Yeh
ModelJY-2T
Year2014
ConditionUsed
Stock NumberR2024191
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/9dd6037ebd41a40be08a81bd85322823/Jiuh%20Yeh%20JY-2T.pdf
Cone dimensionsISO-40
Spindle motor power3,75 kW
Travel Axis X (Longitudinal)1.000 mm
Travel Axis Y (Cross)360 mm
Travel Axis Z (Vertical)450 mm
RAM Travel600 mm
Quill vertical travel140 mm
Distance between spindle nose – table surface (Vertical head)0 ÷ 386 mm
Distance between spindle center - column (Vertical head)369 mm
Distance between spindle nose – table surface (Horizontal head)0 ÷ 450 mm
Distance between spindle center - column (Horizontal head)369 mm
Table dimensions1.300 x 300 mm
"T" Slot dimensions (Width - Number - Depth)16 mm - 3 - 63 mm
Rapid feed axes X/Y2.500 mm/min
Rapid feed axis Z750 mm/min

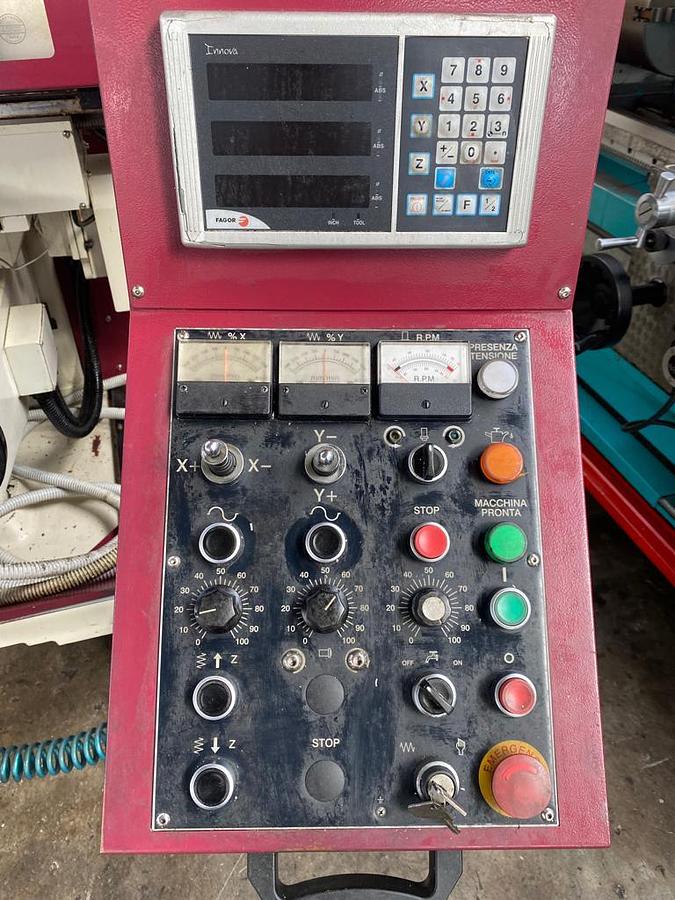

Accessories & OthersDigital Read Out (D.R.O.) for the 3 axes (X/Y/Z) make FAGOR with Control Panel - Various Manuals
Spindle speed75 ÷ 3.600 Rpm
