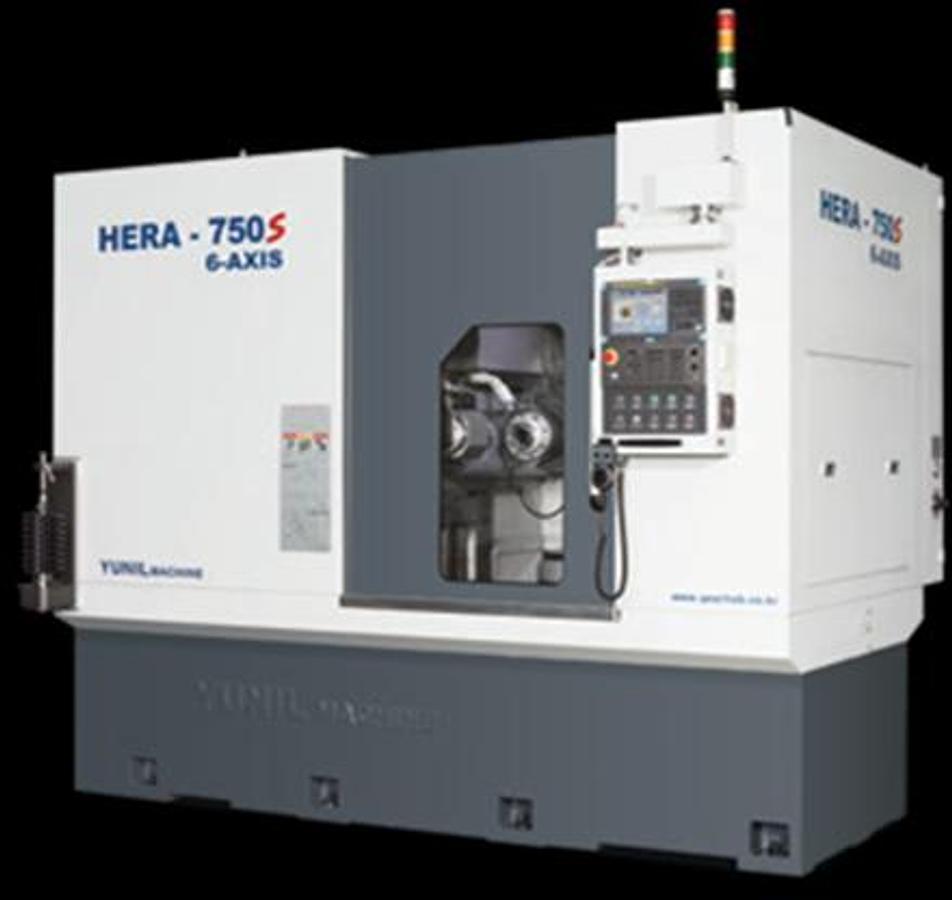

YG-TECH HERA-750

YG-TECH HERA-750

Location:Calerno, Italy

or
Call 00971-50-1515369

Description

Hob cutter spindle torque:
Show All

Specifications

ManufacturerYG-TECH
ModelHERA-750
ConditionNew
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/74a4e83c79d335ec93309973254960b1/HERA%20catalogo%20generale.pdf
Max module pitchModule 16
Table hole Diameter / DepthØ 250 / 300 mm
Machine's net weight20 Tons
Max diameter of the workpiece (manual)Ø 780 mm
Max diameter of the workpiece (auto)Do be defined
X axis radial travel550 (80-630) mm
A axis maximum inclination Hob cutter+35° / - 45°
B axis Hob cutter spindle speed450 RPM

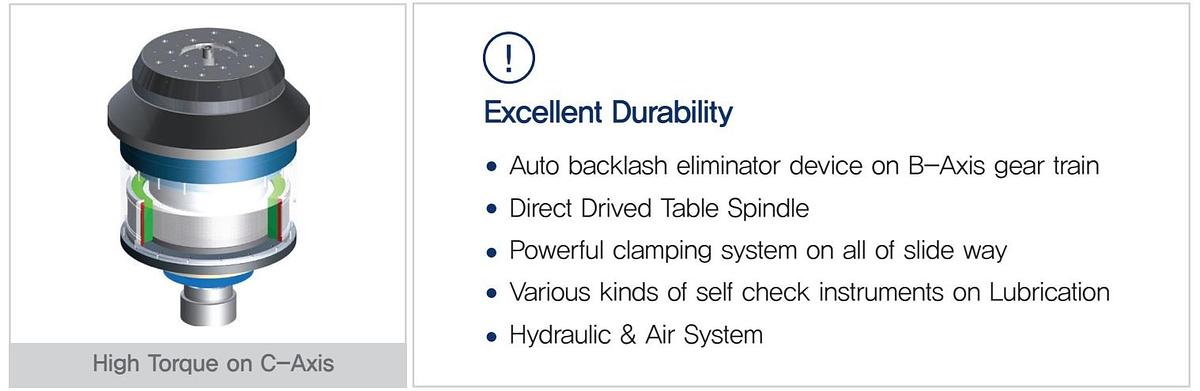

C axis rotary table speed50 RPM
Z axis working axial range (vertical)480 (230-710) mm

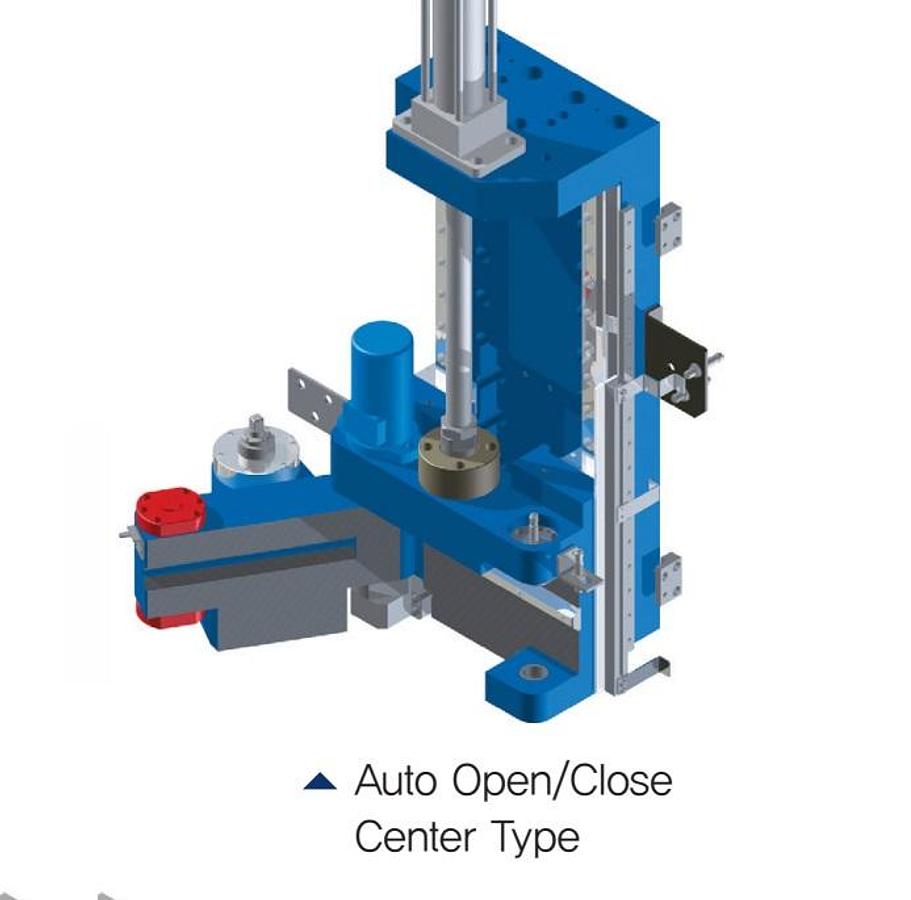

Tailstock travel600 (400-1.000) mm
Table diameterØ 720 mm
CNC ControlFANUC 0i-MF PLUS / Siemens 828D
Tool typeHSK-100
Control systems for Table and Hob cutterInline FANUC Encoders
Dimensions machine only4.500 x 3.200 x height 3.200 mm
Accesories and othersCoolant tank and qt.y 2 pumps, magnetic chip-conveyor scraping type, chiller for torque motor of rotary table and hydraulic unit
Hob cutter dimensionsØ 300 x 300 mm
Y axis tangential travel (shifting)280 mm
