KAFO BMC-2012

KAFO BMC-2012

Location:Calerno, Italy

or
Call 00971-50-1515369

Description

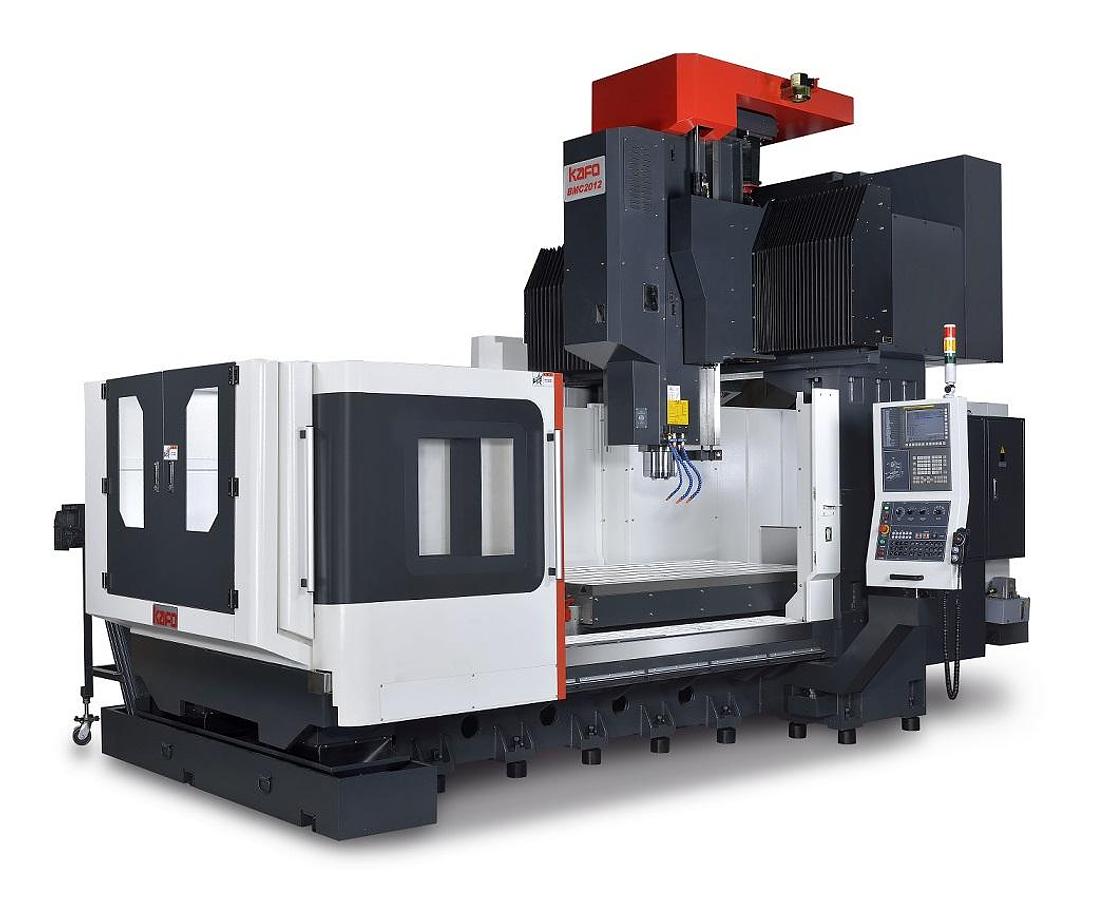

Double collumn machining center
Show All

Specifications

ManufacturerKAFO
ModelBMC-2012
ConditionNew
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/64a8f127845f2f5ccf863e380120a558/Centri%20di%20lavoro%20a%20portale%20KAFO.pdf
CNC ControlFANUC 0i-MF PLUS
Spindle speed6.000 RPM
Spindle steps2 steps
Tool typeBBT-50 / DIN-69871-A50 (opt. BBT-40 / DIN-69871-A40)
ATC capicityStandard 30 (opt. 40/60)
AccessoriesCoolant tank and chip-conveyor, high pressure pump for CTS (20 bar), Manuals, Electrical Diagrams e EC CE Declaration
Spindle tool sizeISO-50 (opt. ISO-40)
Spindle motor power (cont/30 min)15/18.5 kW
X axis2.100 mm
Y axis1.200 mm
Z axis800 mm
Table dimensions2.000 x 1.100 mm
Max load allowed on table4 Ton
X / Y / Z axis rapid feedrates20.000 / 20.000 / 15.000 mm/min
X / Y / Z axis working feedrates in linear interpolation (max)10.000 m/min
