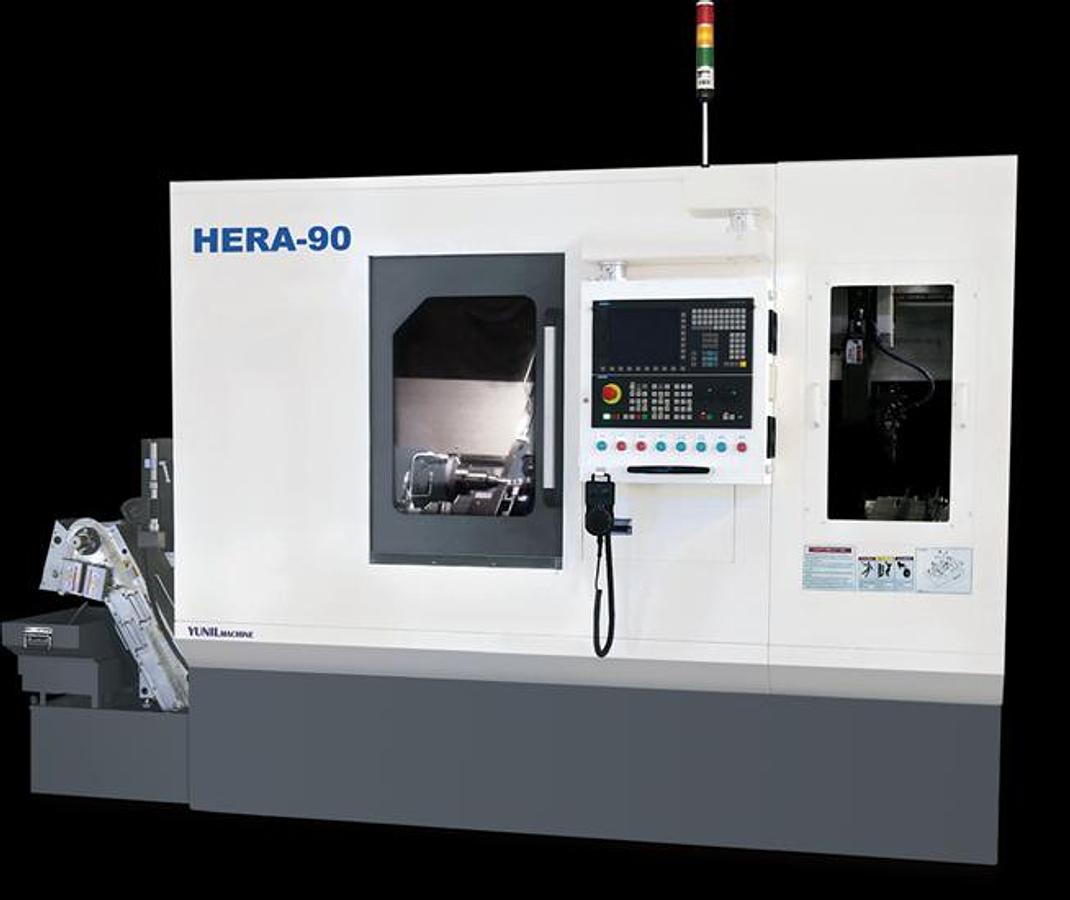

YG-TECH HERA-90H

YG-TECH HERA-90H

Location:Calerno, Italy

or
Call 00971-50-1515369

Description

Z axis feedrates:
Show All

Specifications

ManufacturerYG-TECH
ModelHERA-90H
ConditionNew
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/74a4e83c79d335ec93309973254960b1/HERA%20catalogo%20generale.pdf https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/9583be3c34b6651f26543df3a8fd2898/HERA%2090.pdf
Max diameter of the workpiece (manual)Ø 90 mm

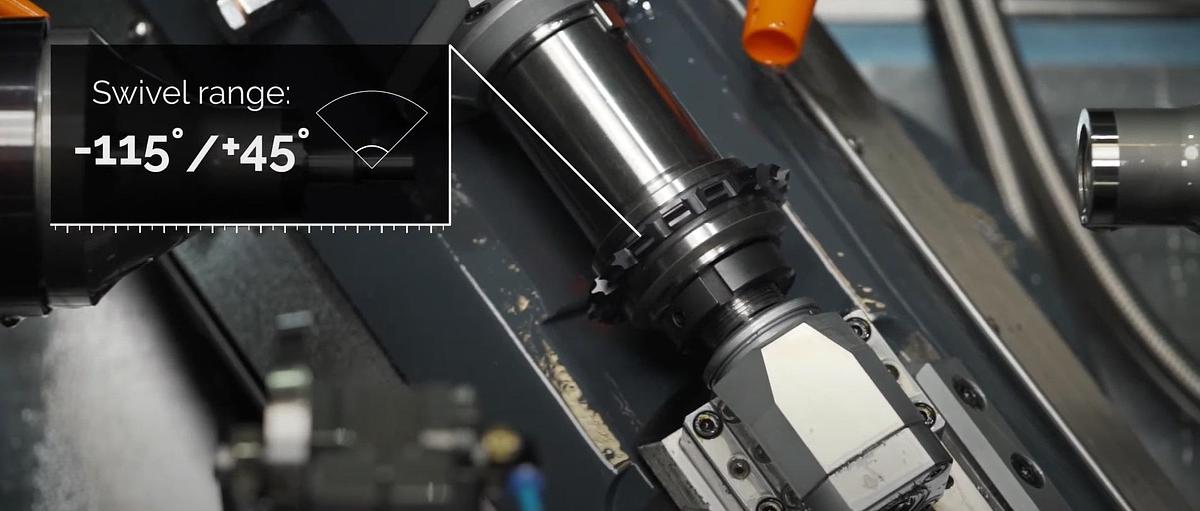

A axis maximum inclination Hob cutter+45° / -115°
B axis Hob cutter spindle speed6.000 RPM
Z axis working axial range (vertical)200 (80 - 280) mm
Support travel250 mm
Tool typeBT-30
CNC ControlFANUC 0i-MF PLUS / Siemens 828D
Max diameter of the workpiece (auto)Do be defined
Max module pitchModule 3

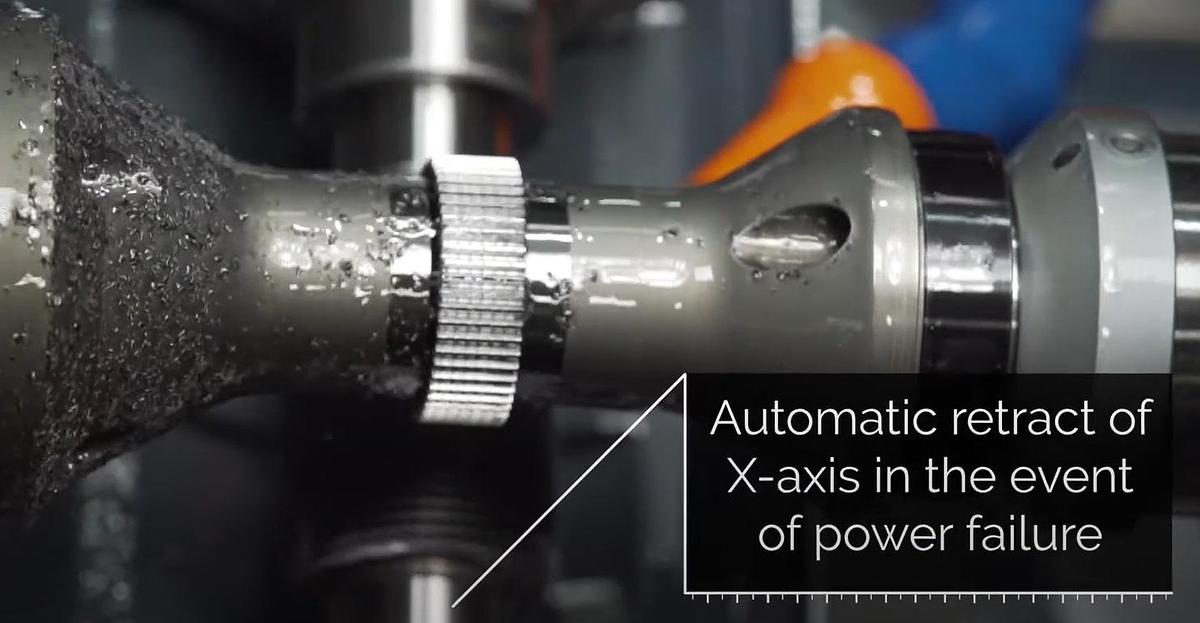

X axis radial travel90 (10-100) mm
C axis rotary table speed1.000 RPM
Y axis tangential travel (shifting)180 mm
Dimensions machine only2.480 x 2.550 x height 2.050 mm
Machine's net weight5 Tons

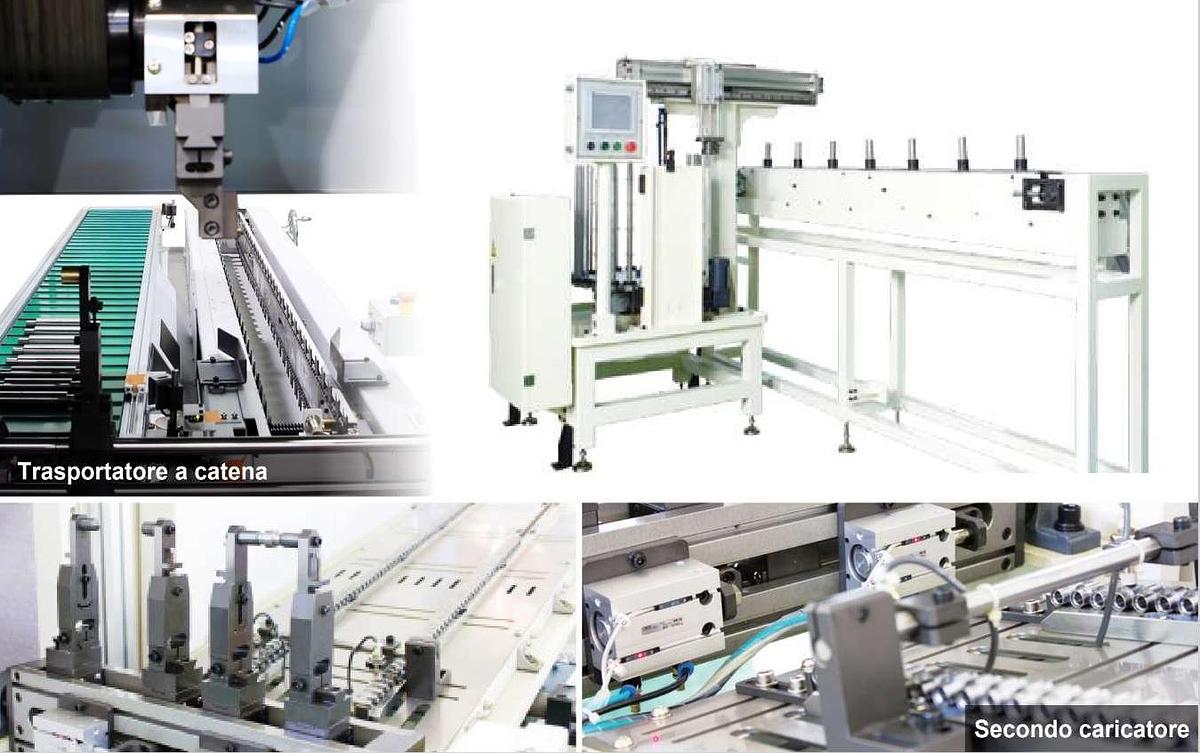

Accesories and othersCoolant tank and qt.y 2 pumps, magnetic chip-conveyor scraping type, chiller for torque motor of rotary table and hydraulic unit
Hob / cutter diameterØ 65 / 100 mm
Hob max length100 mm
