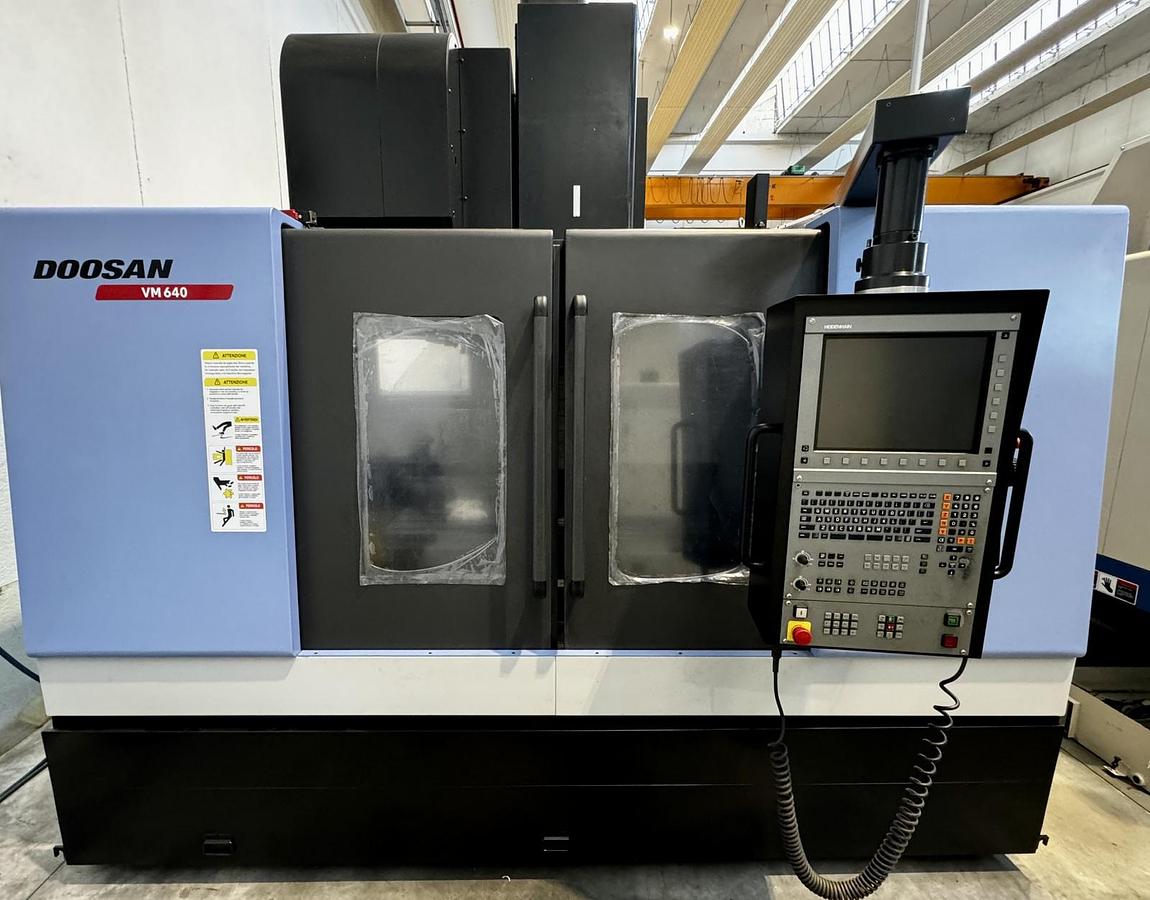

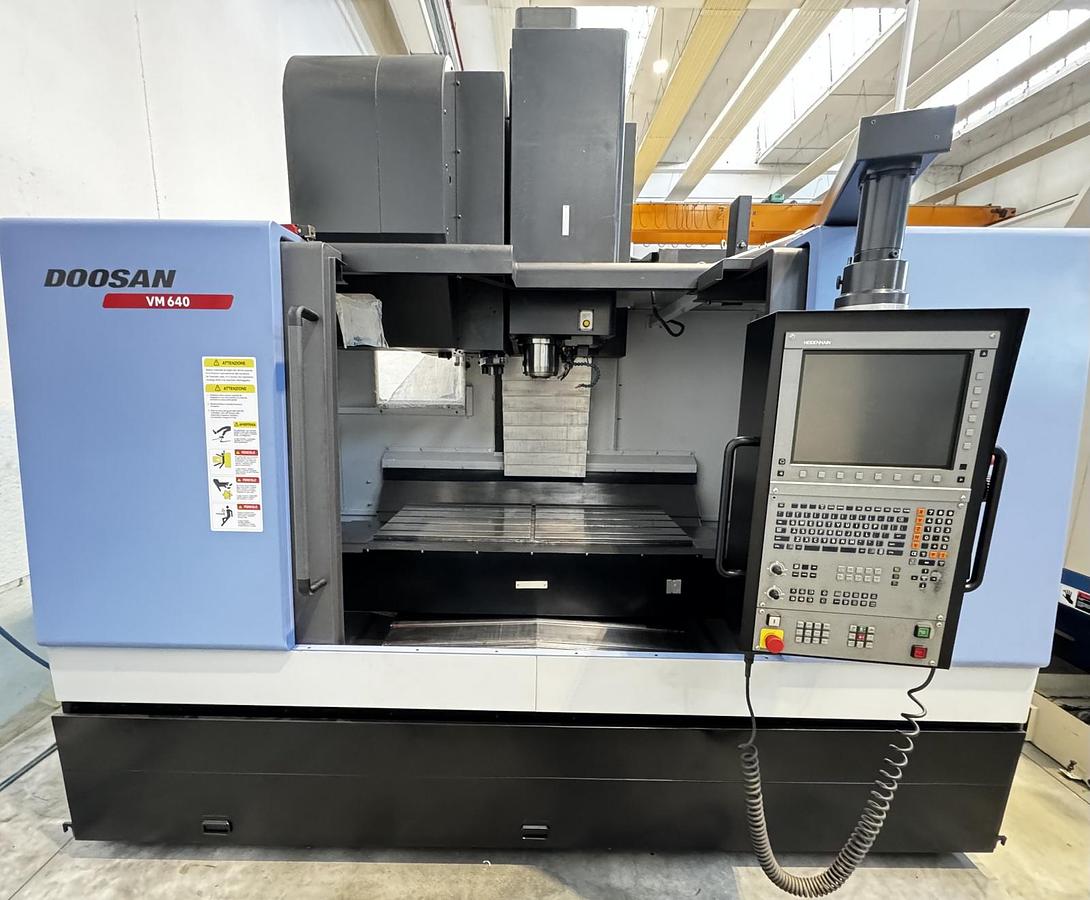

2010 Doosan VM-640
2010 Doosan VM-640
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | Doosan |
| Model | VM-640 |
| Year | 2010 |
| Condition | Used |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/ec1578e8db67d065a779c0de8712539b/Doosan%20VM-640.pdf |

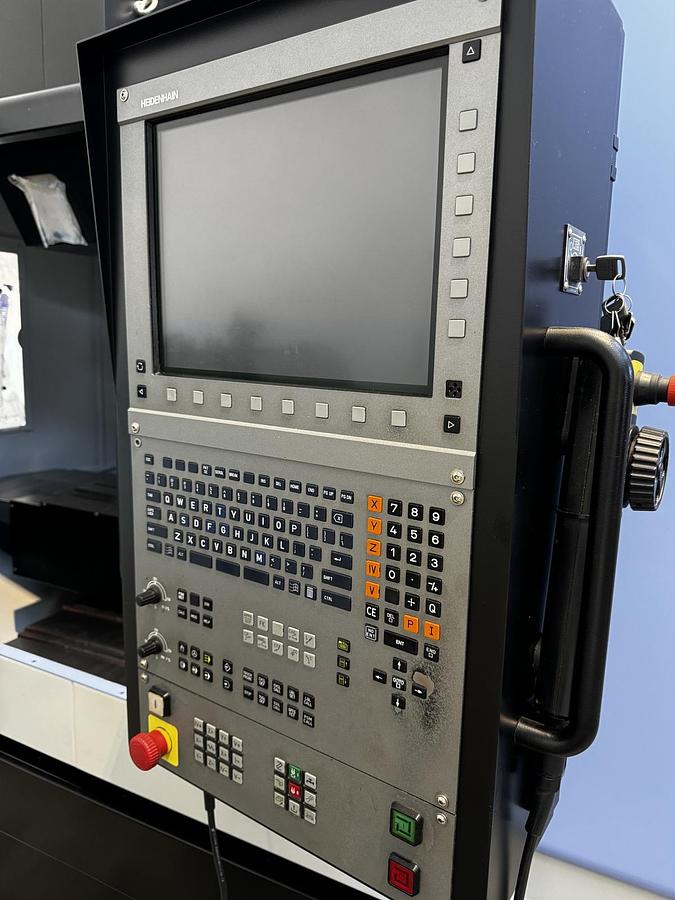

| CNC Control | HEIDENHAIN iTNC-530 |
| Spindle tool size | ISO-40 |
| Spindle motor power (cont/30 min) | 18,5/22 kW |
| X axis | 1.300 mm |
| Y axis | 650 mm |
| Z axis | 625 mm |
| Distance between spindle nose - table surface | 150 ÷ 775 mm |

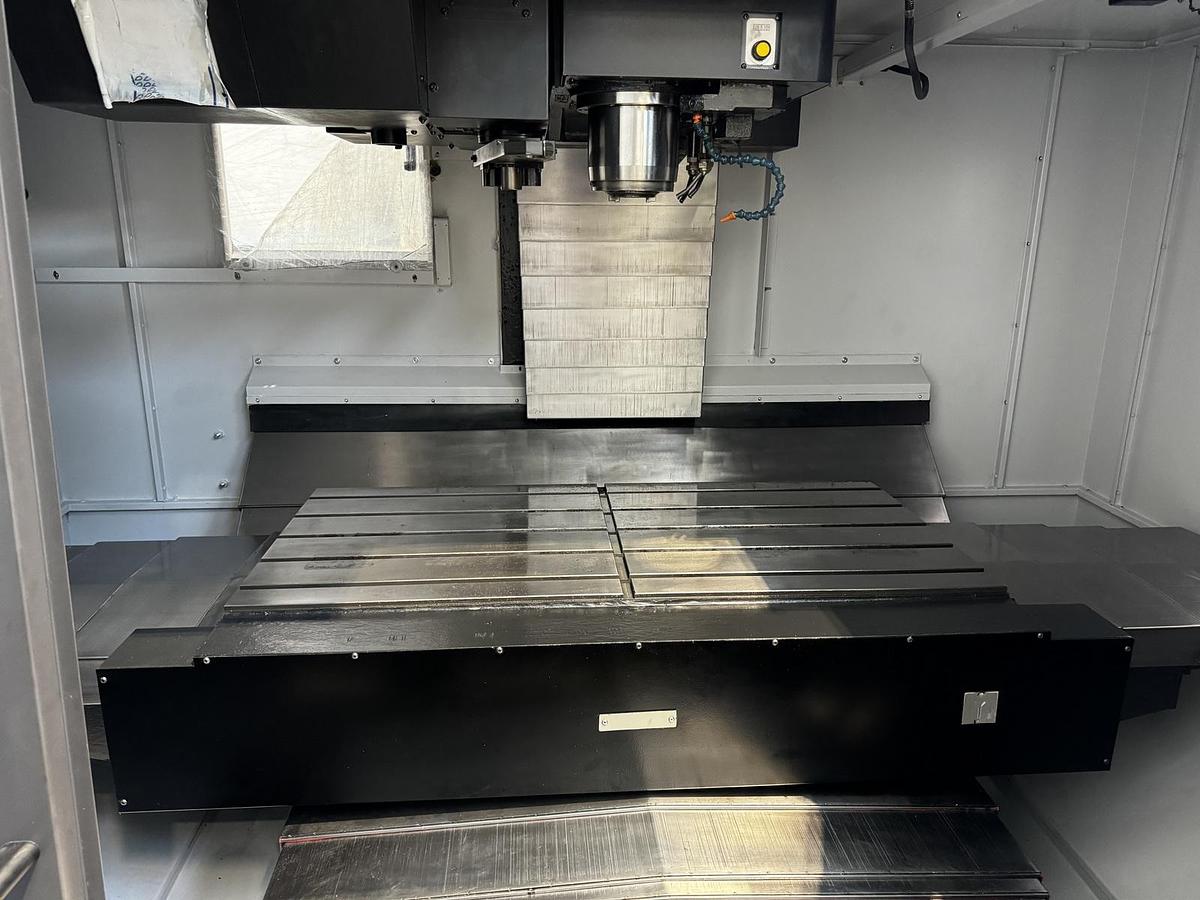

| Table dimensions | 1.400 x 650 mm |
| Max load allowed on table | 1.000 Kg |
| X / Y axes rapid feedrates | 36.000 mm/min |
| Z axis rapid feedrates | 30.000 mm/min |
| X / Y / Z axis working feedrates in linear interpolation (max) | 1 ÷ 15.000 mm/min |
| Tool type | DIN 69871-A40 |
| Tool pull stud type | DIN 69872-A40 |
| ATC capicity | 30 Stations |
| Max tool diameter | Ø90 / Ø150 mm |
| Max tool lenght | 300 mm |
| Max tool weight | 8 Kg |

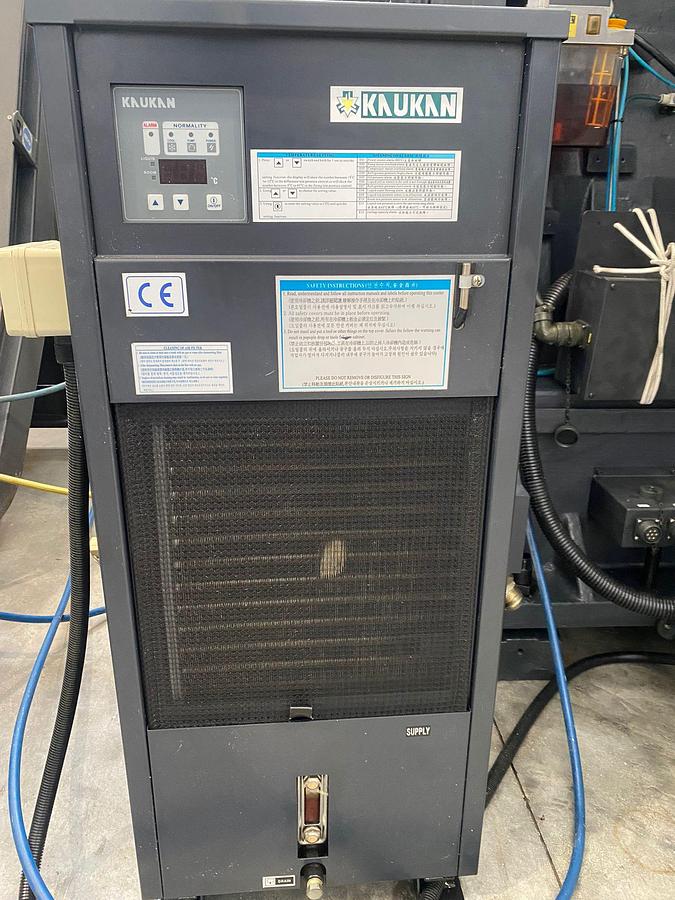

| Accessories | Chips conveyor - Coolant tank with pumps - High pressure pump for coolant through spindle - Chiller for spindle head - Transformer - Manuals - Electrical Diagrams - CE Declaration |
| Spindle speed | 10.000 Rpm |
