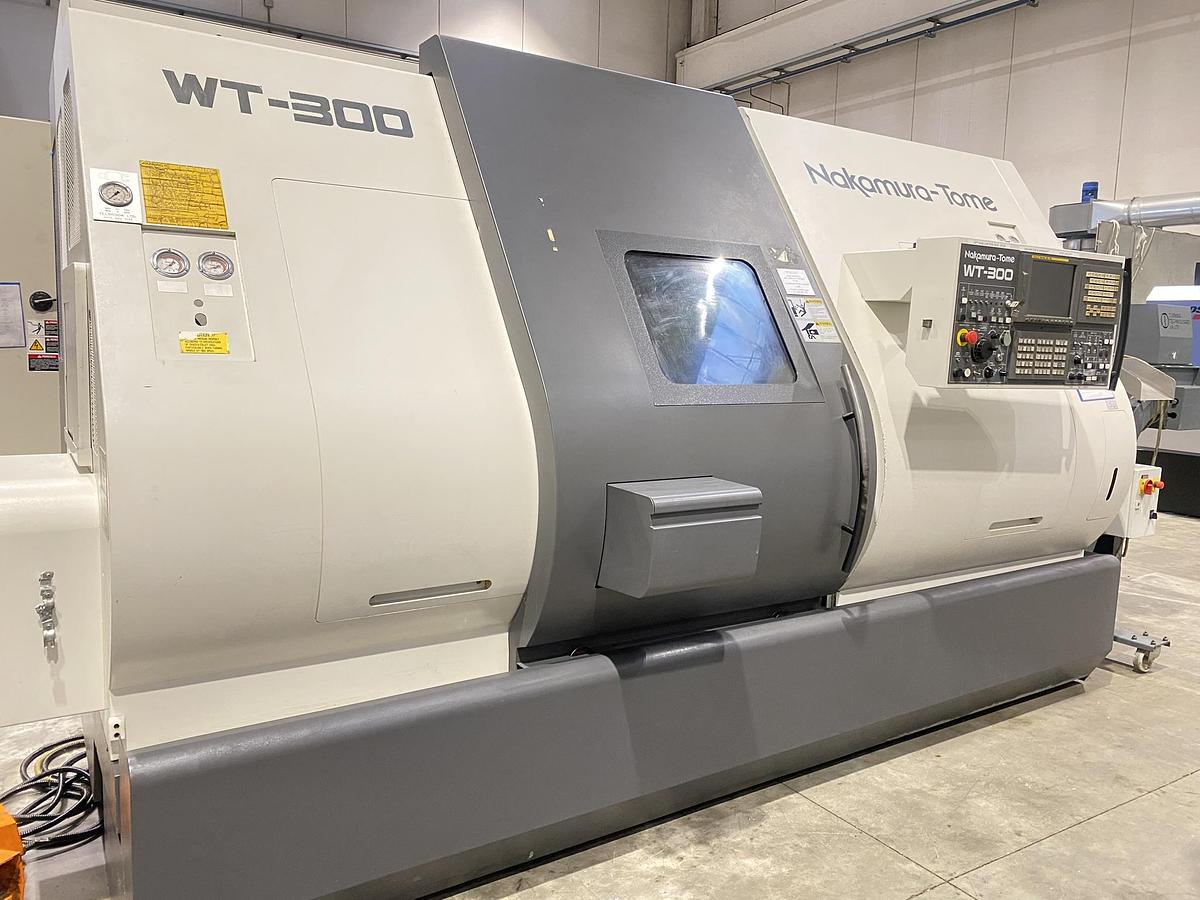

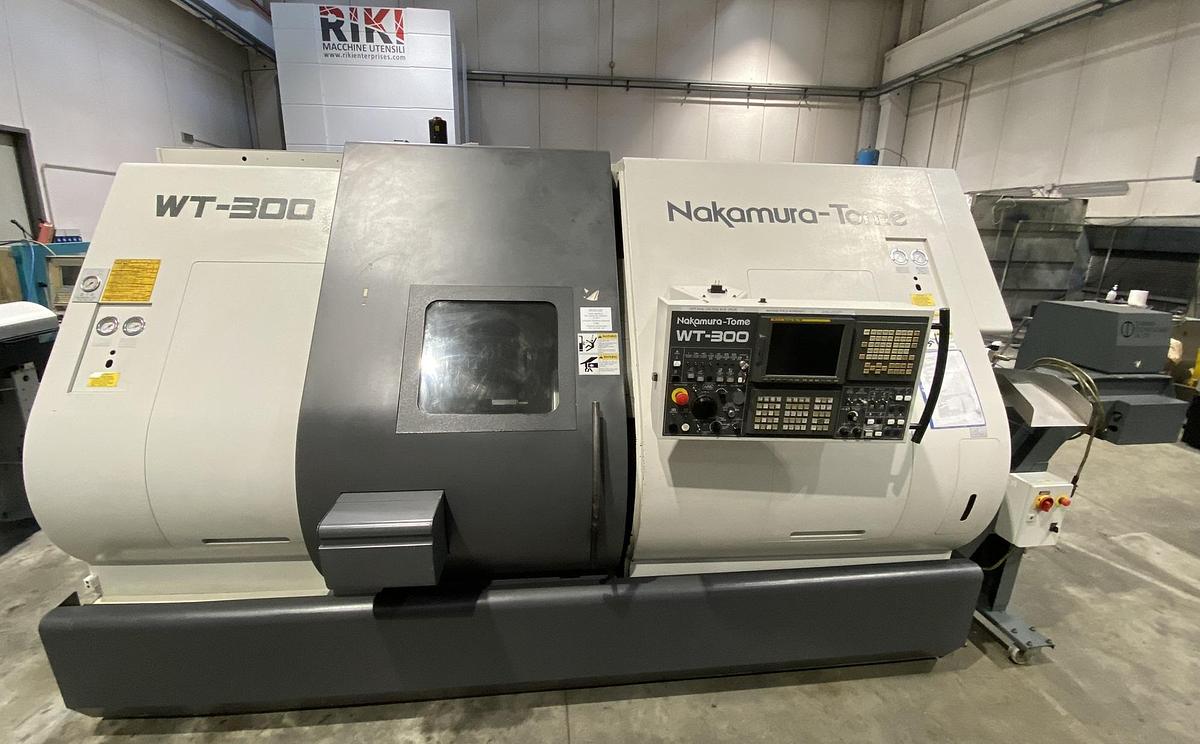

2006 Nakamura Tome WT-300 MMSY
2006 Nakamura Tome WT-300 MMSY
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | Nakamura Tome |
| Model | WT-300 MMSY |
| Year | 2006 |
| Condition | Used |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/c8a82b9f743e125c517a778ead2559ed/Nakamura-Tome%20WT-300MMSY.pdf |

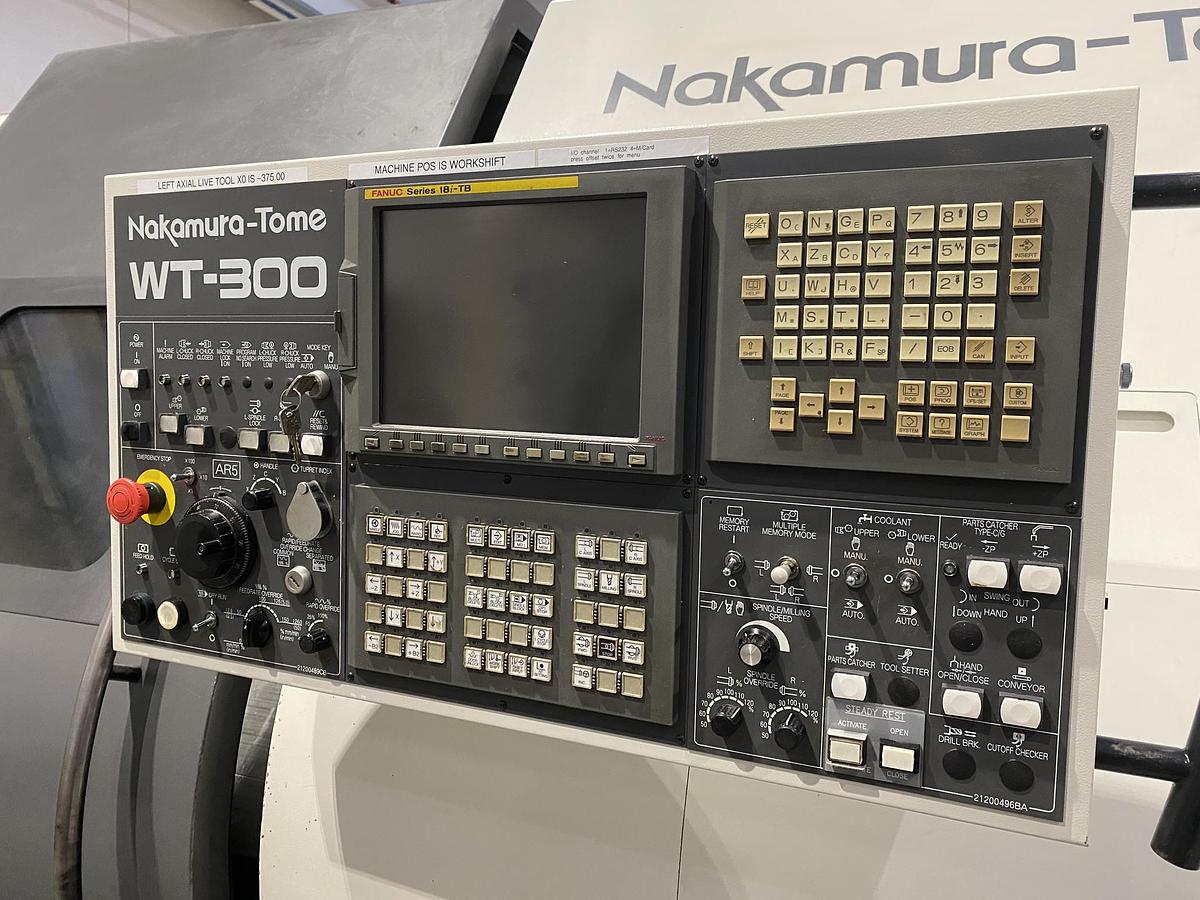

| CNC Control | FANUC 18i-TB |
| Max swing over the bench | Ø 310 mm |
| Max turning diameter | Ø 270 mm |
| Max turning length | 780 mm |
| Bar diameter capacity through the spindles | Ø 65 / Ø 65 mm |
| X1 / X2 axis travel | 195 / 195 mm |
| Y axis travel | 120 mm (+/- 60) |
| Z1 / Z2 axis travel | 780 / 780 mm |
| B axis travel | 850 mm |
| A / C axis minimum controlled angle | 0.001° |
| Spindle chuck diameter | Ø 225 mm |
| Spindle speed | 4.500 RPM |
| Spindle nose size | ASA-6 |
| Spindle motor power (cont/30 min) | 11 / 15 kW |
| Sub-spindle chuck diameter | Ø 215 mm |
| Sub-spindle speed | 4.500 RPM |
| Sub-spindle nose | ASA-6 |
| Sub-spindle motor power (cont/30 min) | 11 / 15 kW |

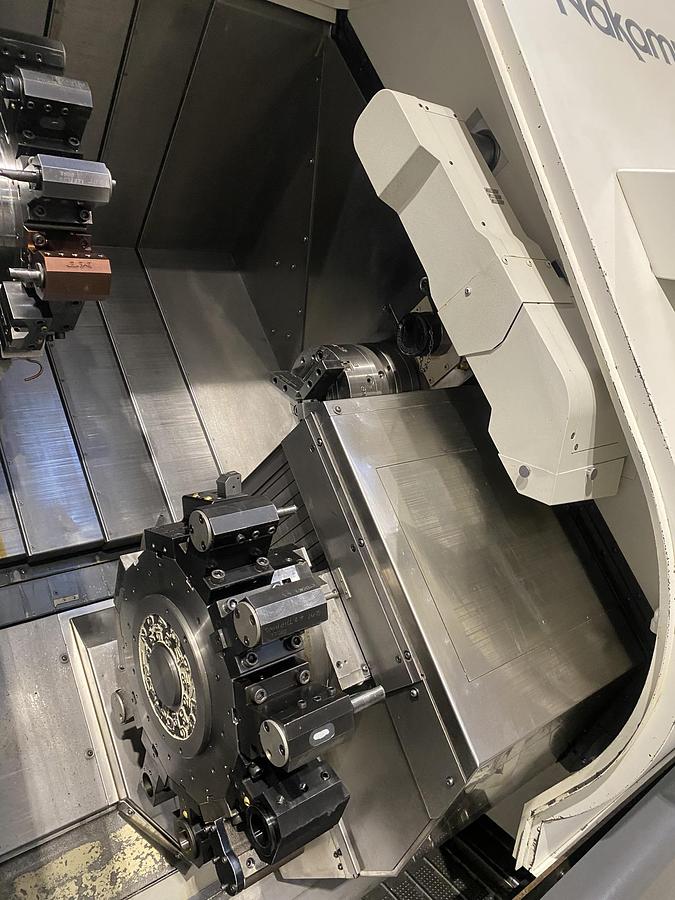

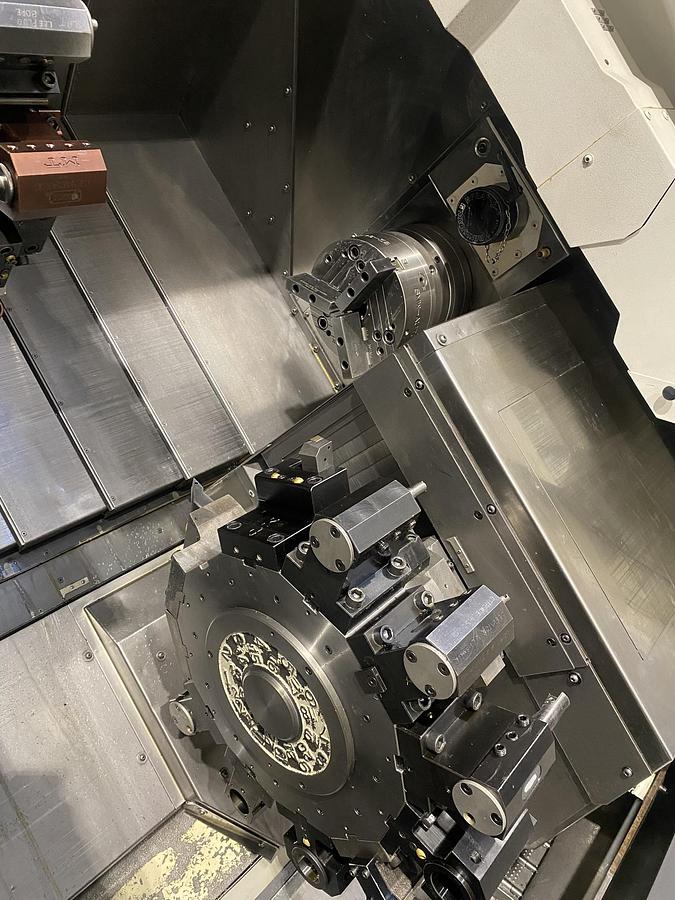

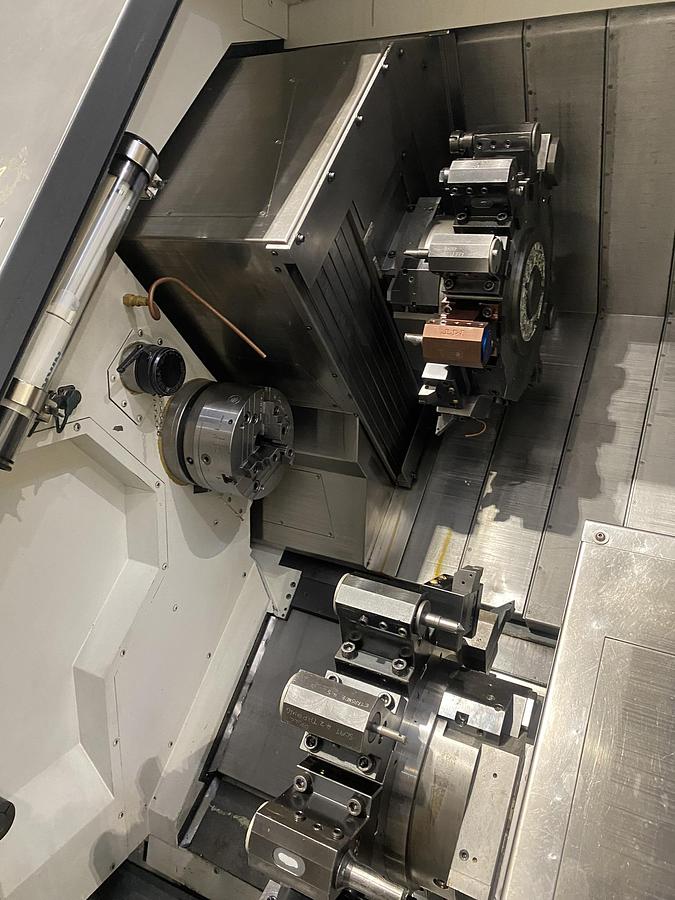

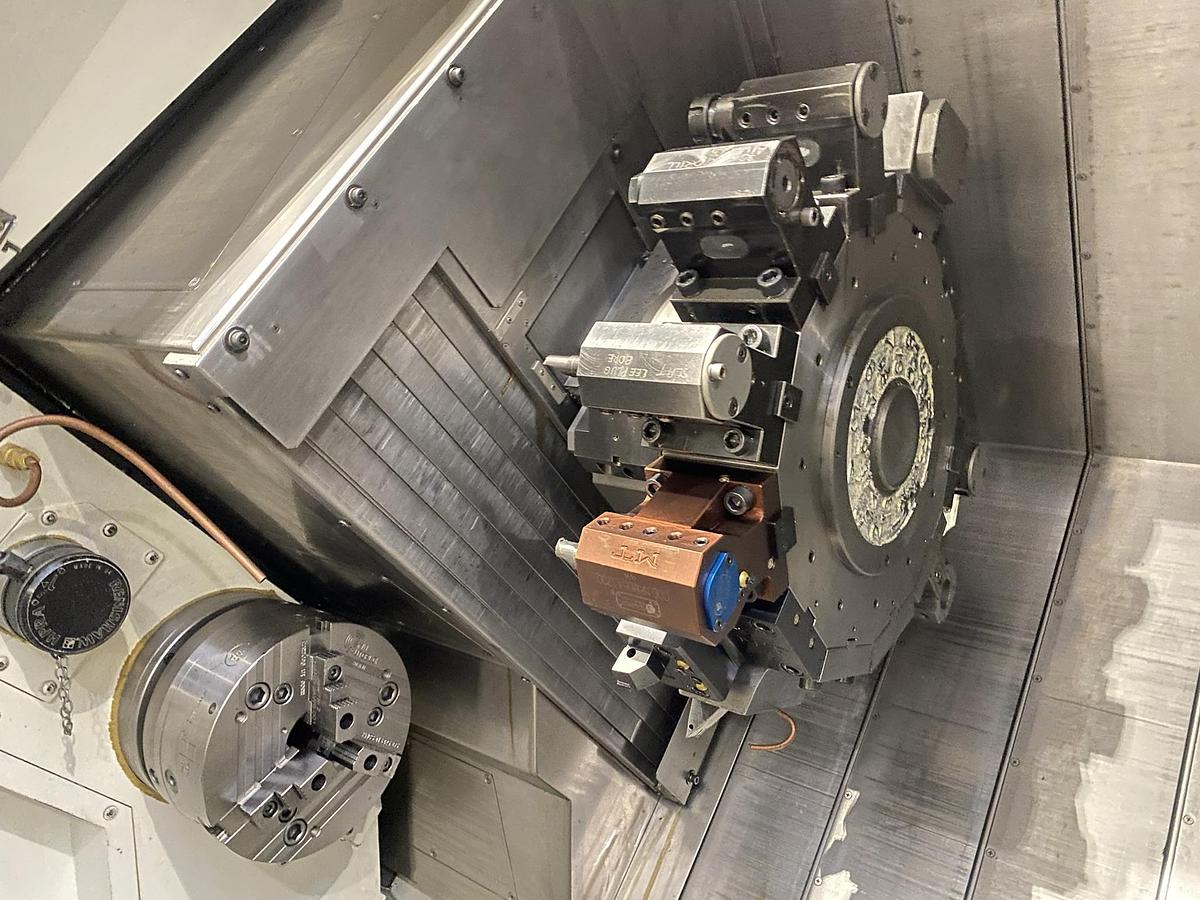

| Turrets type | With livetool both at 12 positions |
| Turret positions | 24 positions each |
| Live-tools speed | 3.600 RPM |
| Live-tools motor power (cont/30 min) | 5.5 kW |
| Turning / boring tool dimensions | 25x25 / Ø 32 mm |
| X1 / X2 axis feedrate | 16.000 mm/min |
| Y axis feedrate | 6.000 mm/min |
| Z1 / Z2 axis feedrates | 27.000 mm/min |
| B axis feedrate | 27.000 mm/min |

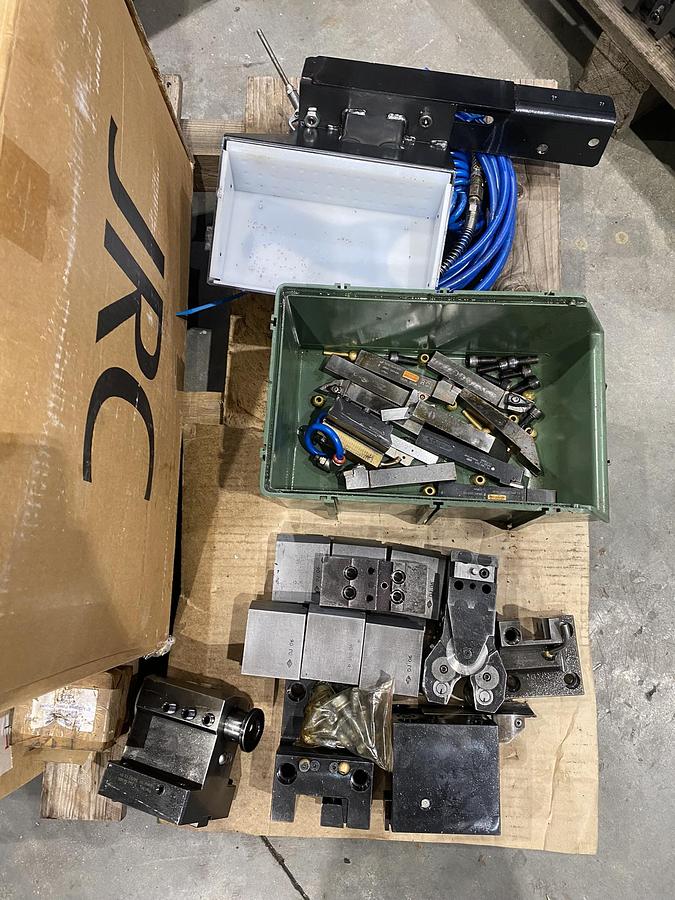

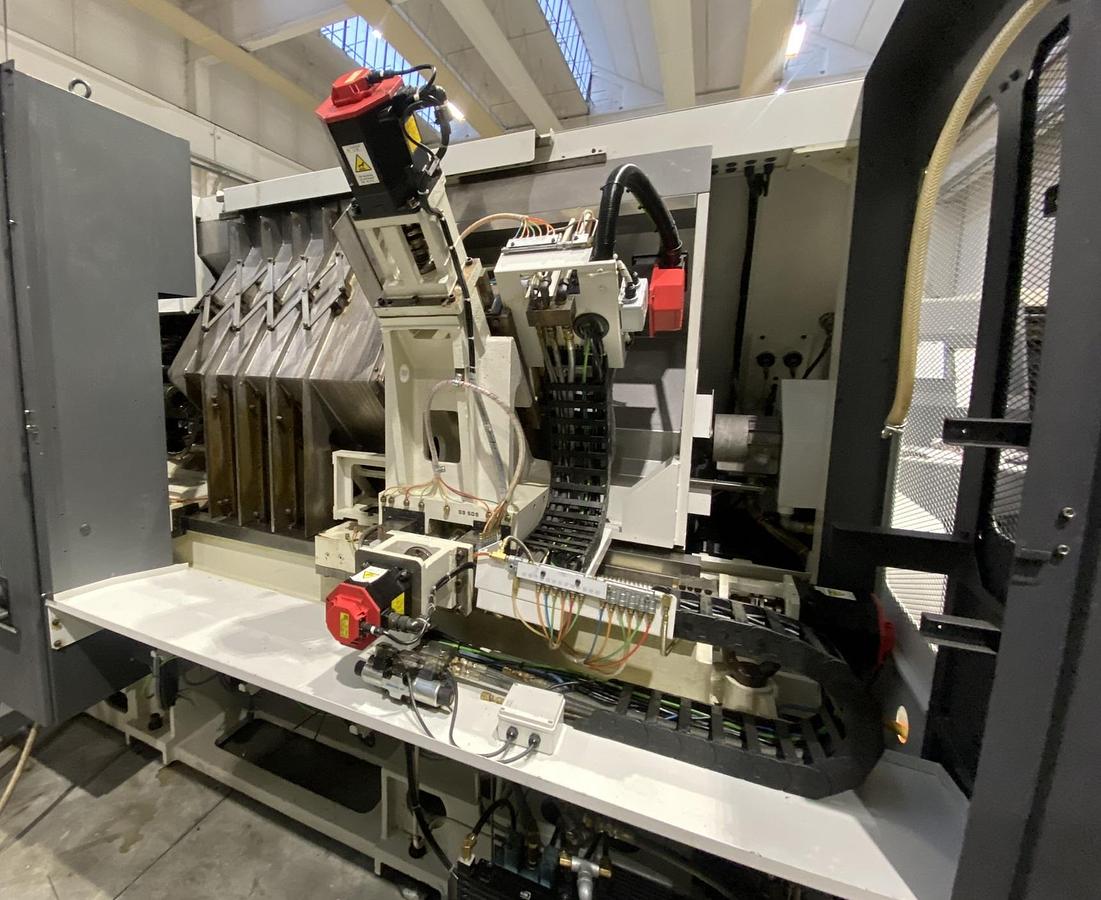

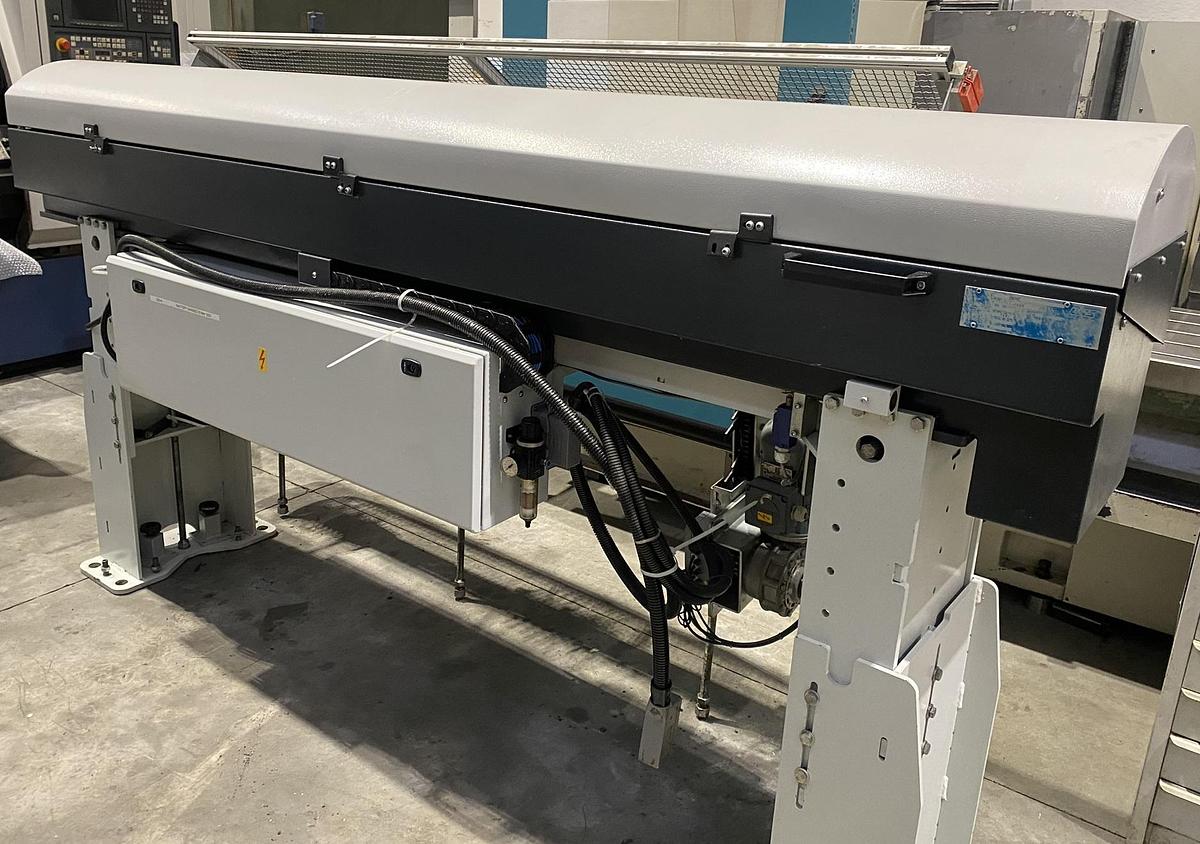

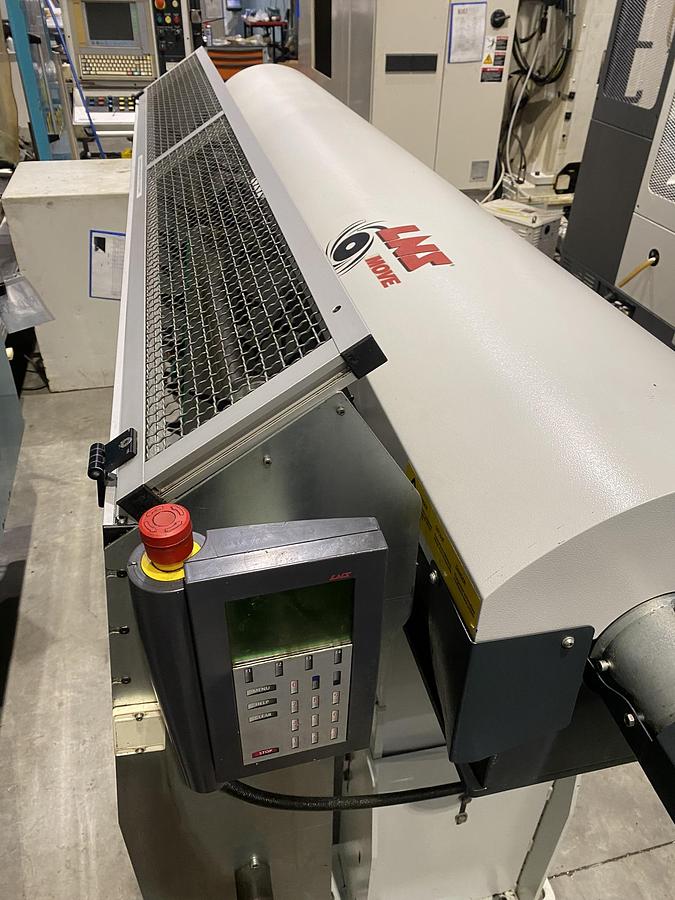

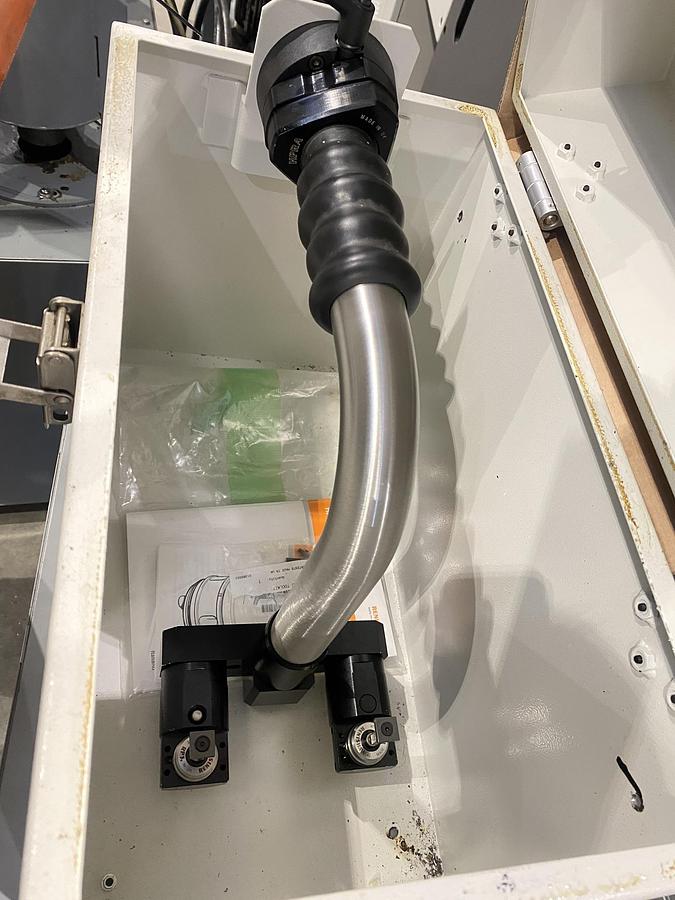

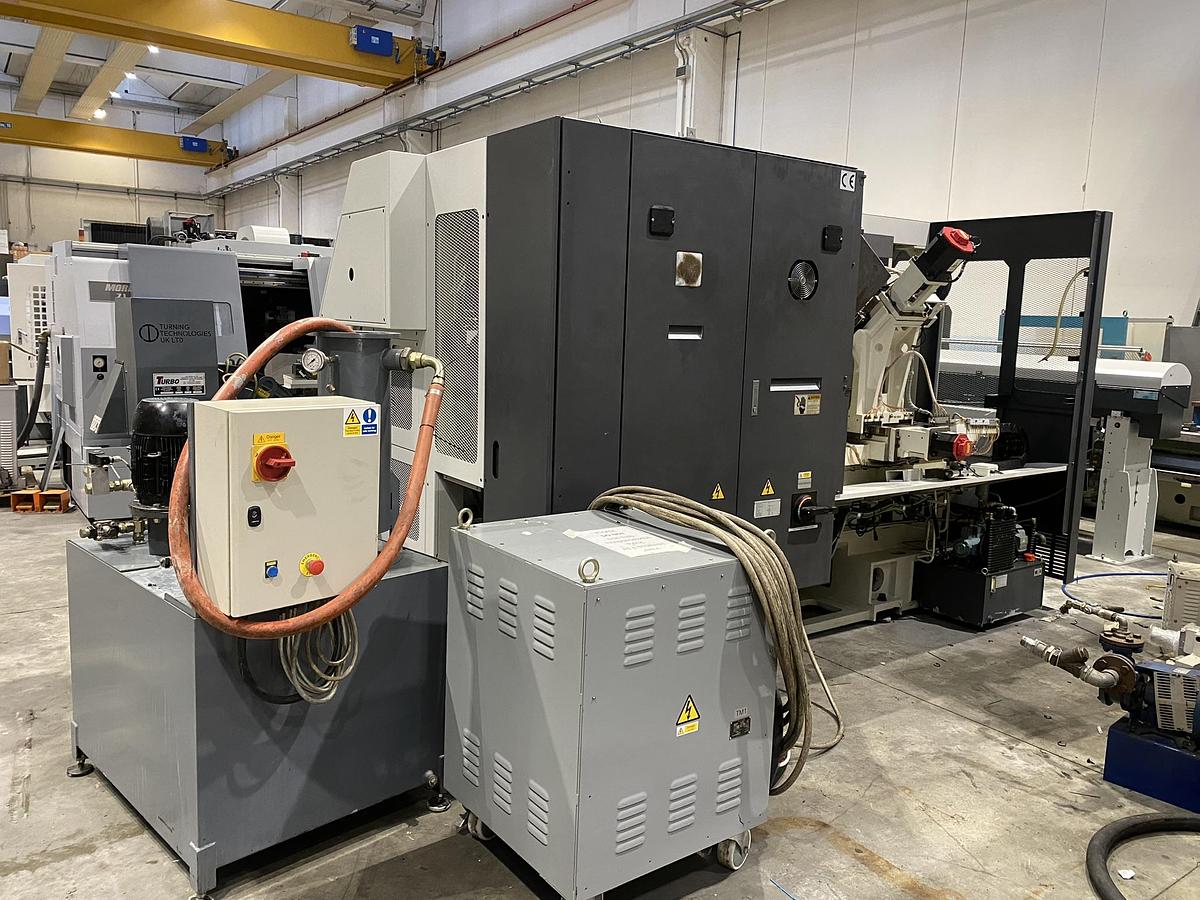

| Accessories | Barfeeder LNS mod. MOVE, Chip-conveyor, coolant tank with pump + external high pressure q.ty 2 pumps + filter, various fix toolholder and livetools, Double headed RENISHAW tools presetting arm, main spindle unloading arm, sub -spindle arm unloader + conveyor, Manuals, electrical diagrams and CE Declaration |
