KAFO CV-16
Featured
KAFO CV-16
Location:Calerno, Italy
or
Call 00971-50-1515369
Description

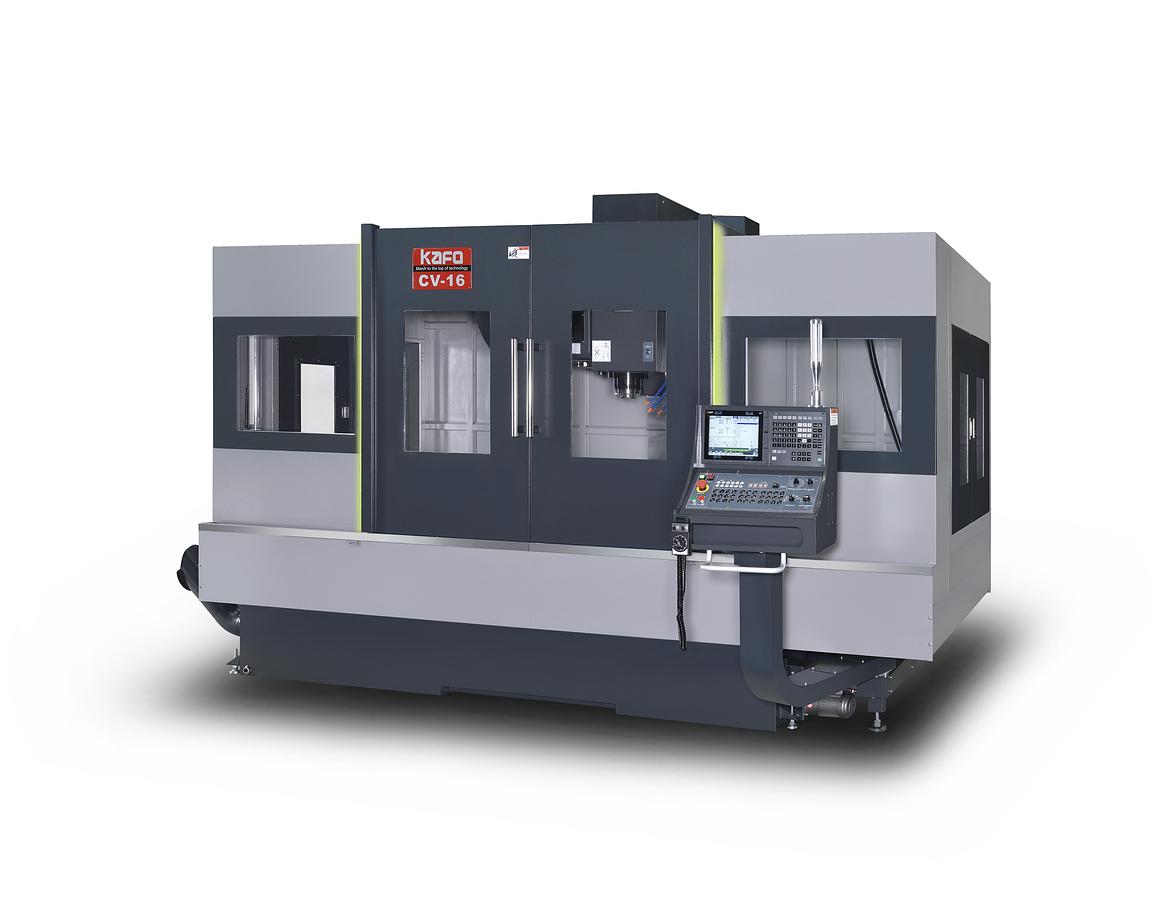

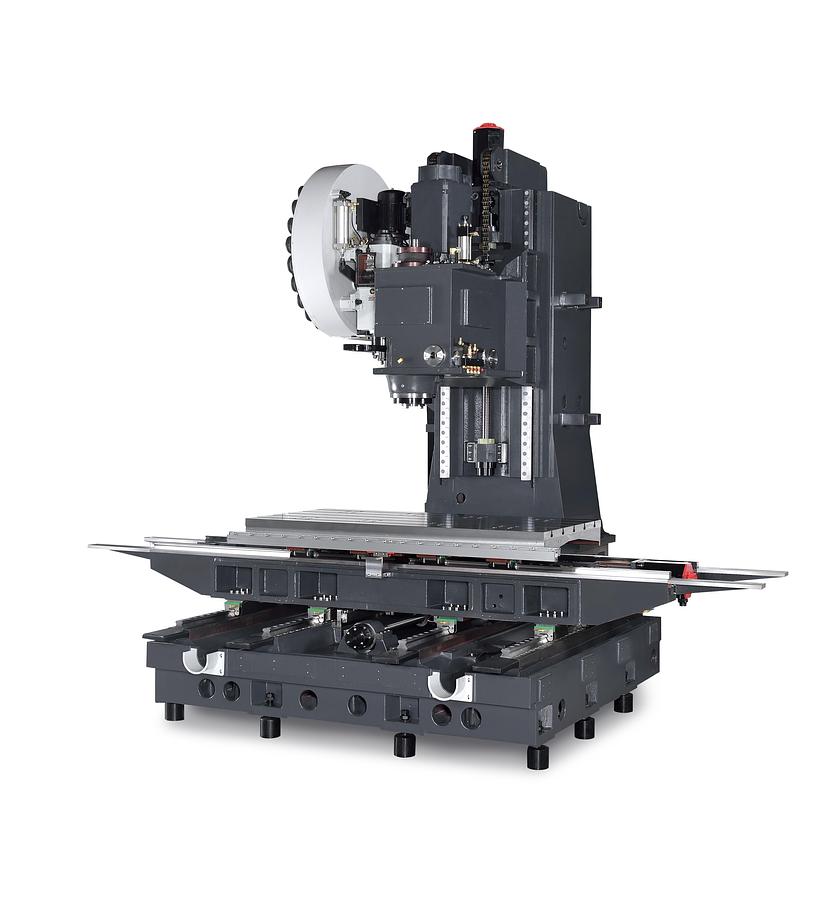

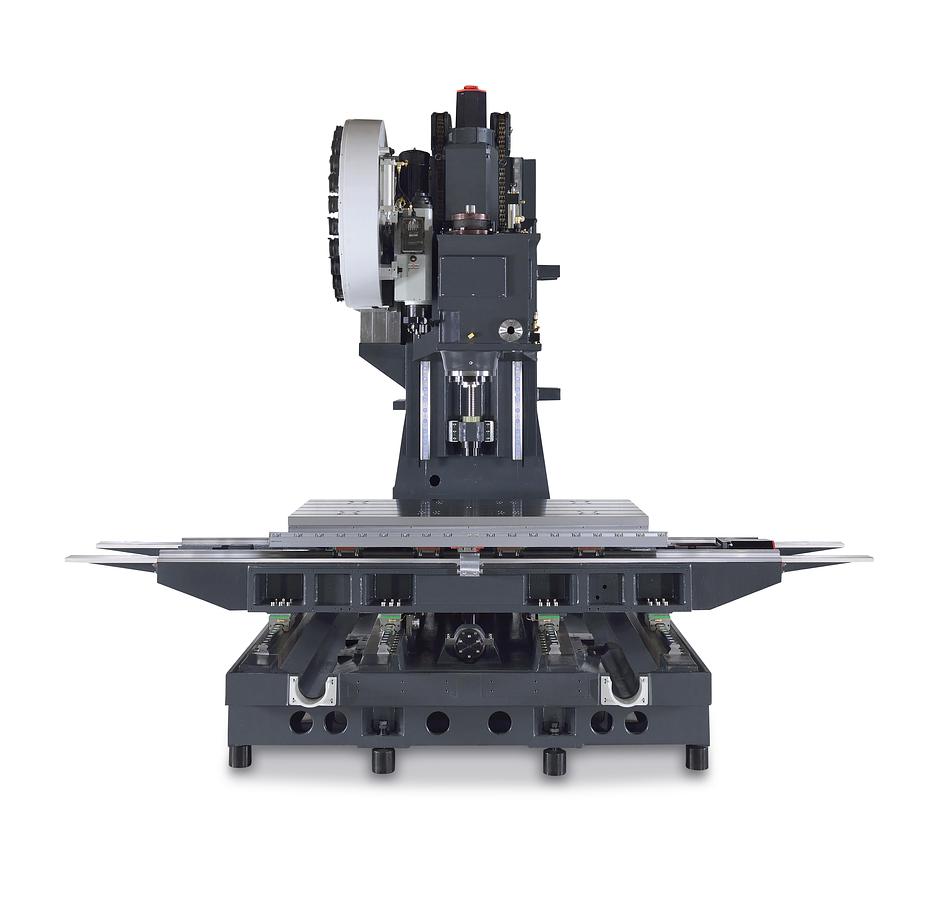

Vertical machining center on LM roller guides
Specifications
| Manufacturer | KAFO |
| Model | CV-16 |
| Condition | New |
| Stock Number | R2025087 |

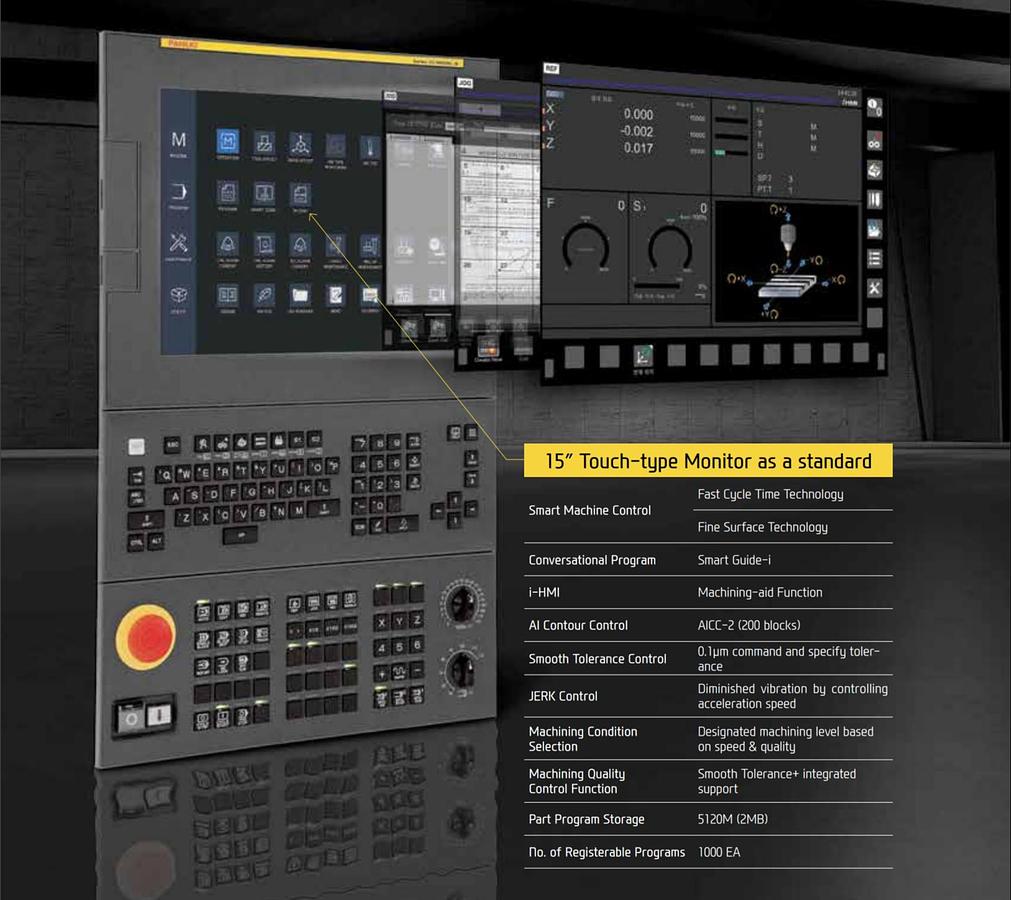

| CNC Control | FANUC 0i-MF PLUS |
| Spindle tool size | ISO-40 (opt. ISO-50) |
| Y axis | 700 mm |
| Z axis | 700 mm |
| X / Y / Z axis working feedrates in linear interpolation (max) | 10.000 mm/min |
| ATC capicity | 30 stations ISO-40 (opt. 40 for ISO-40 / 32 for ISO-50) |
| Max tool diameter | Ø 75 / 150 mm |
| Max tool lenght | 300 mm |
| Max tool weight | 15 Kg |
| Accessories | Chip-conveyor, coolant tank with 20 bar pressure pump for CTS, double screw type chip-conveyors, extra pump coolant gun, Manuals, Electrical diagrams and CE Declaration |
| Spindle speed | 10.000 RPM (opt. 12.000rpm-ISO-40 / 10.000rpm-ISO-50) |
| Spindle motor power (cont/30 min) | 18.5 / 22 kW (opt. 15/18.5 kW-ISO-40 / 22/26 kW ISO-50) |
| X axis | 1.600 mm |
| Table dimensions | 1.750 x 700 mm |
| Max load allowed on table | 1.000 Kg |
| X / Y / Z axis rapid feedrates | 36.000 / 36.000 / 30.000 mm/min (opt. 40 / 40 / 36 m/min) |
| Tool type | BBT-40 (opt. BBT-50 / DIN69871-A40 / DIN69871-A50) |
| Tool pull stud type | BT-40 (opt. BT-50 / DIN69872-A40 / DIN69872-A50) |
