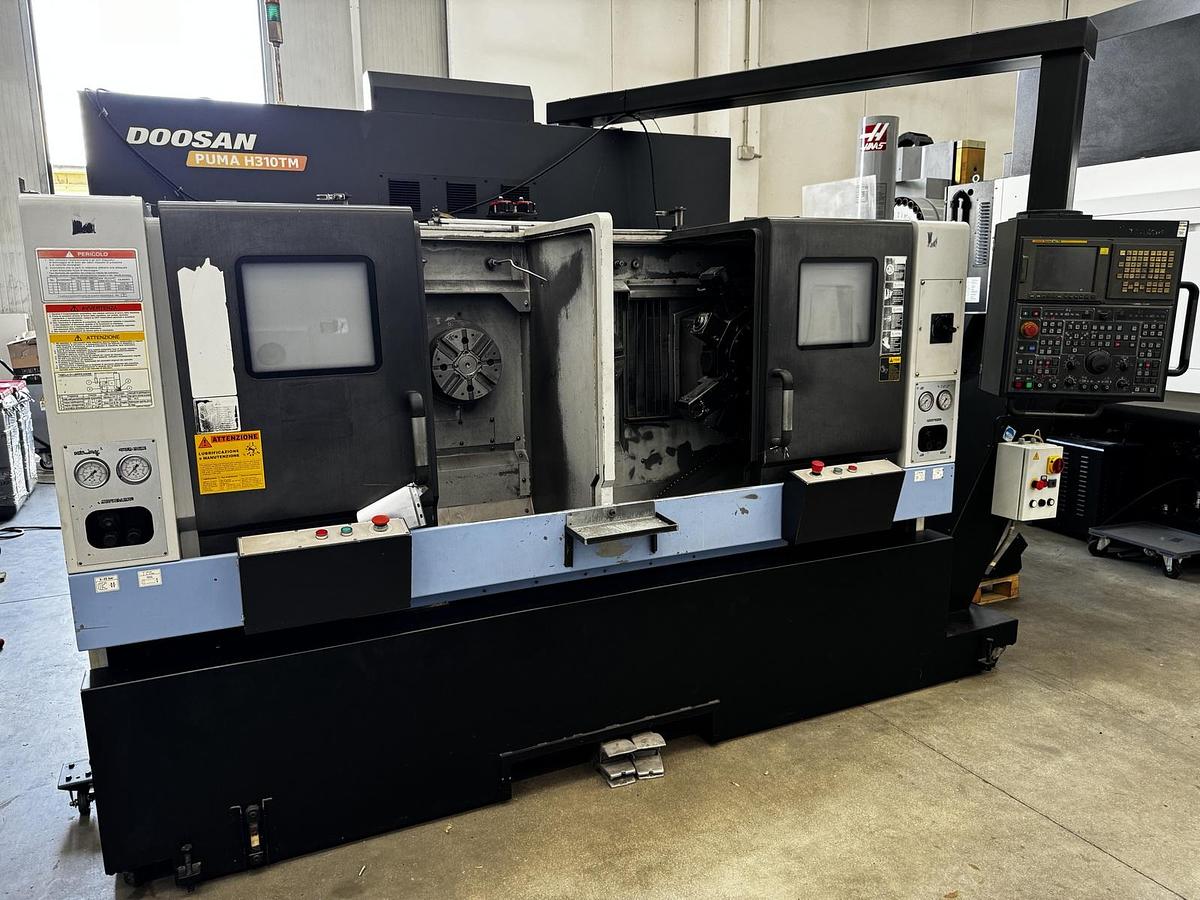

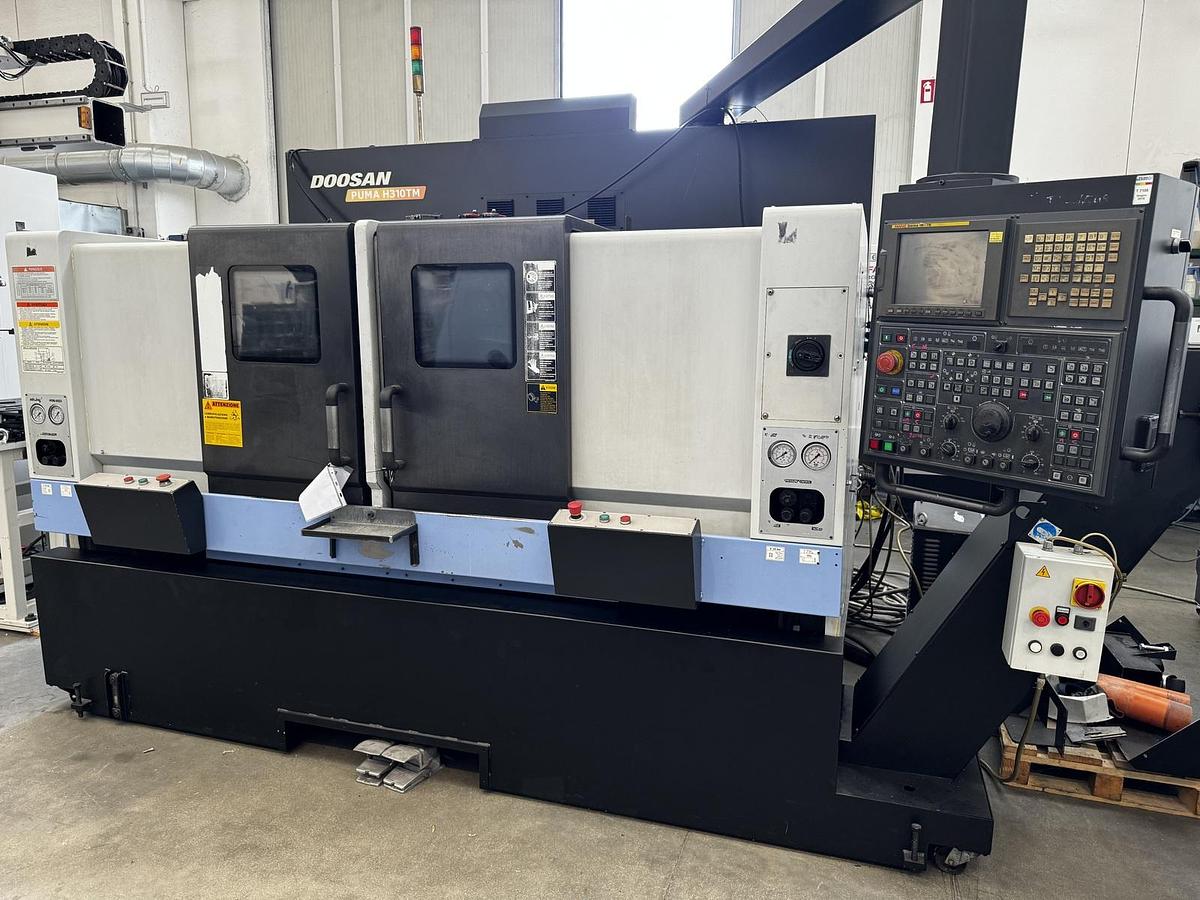

FRONT TWO SPINDLES CNC LATHES DOOSAN

FRONT TWO SPINDLES CNC LATHES DOOSAN

Location:Calerno, Italy

or
Call 00971-50-1515369

Description

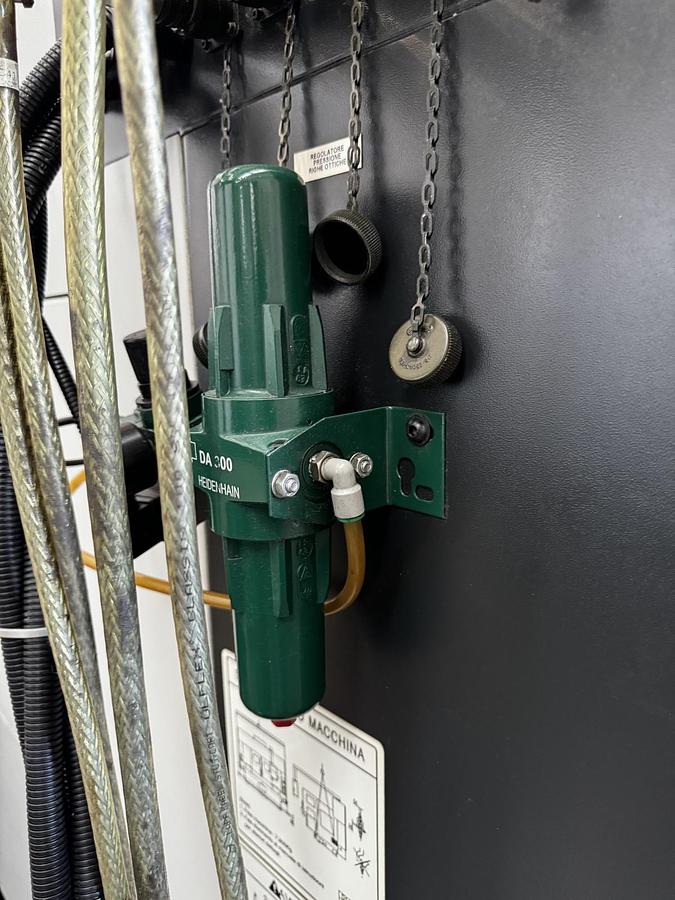

MACHINE WITH OPTICAL SCALE MAKE HEIDENHAIN FOR THE AXES X1/X2/Z1/Z2
Show All

Specifications

ManufacturerDoosan
ModelPUMA H-310/TM
Year2008
ConditionUsed
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/334ecc08fda1cc2c01c58425af9e8255/Doosan%20PUMA%20H-310%20TM.pdf
MakeDOOSAN
CategoryFRONT TWO SPINDLES CNC LATHES
Y.O.M2008

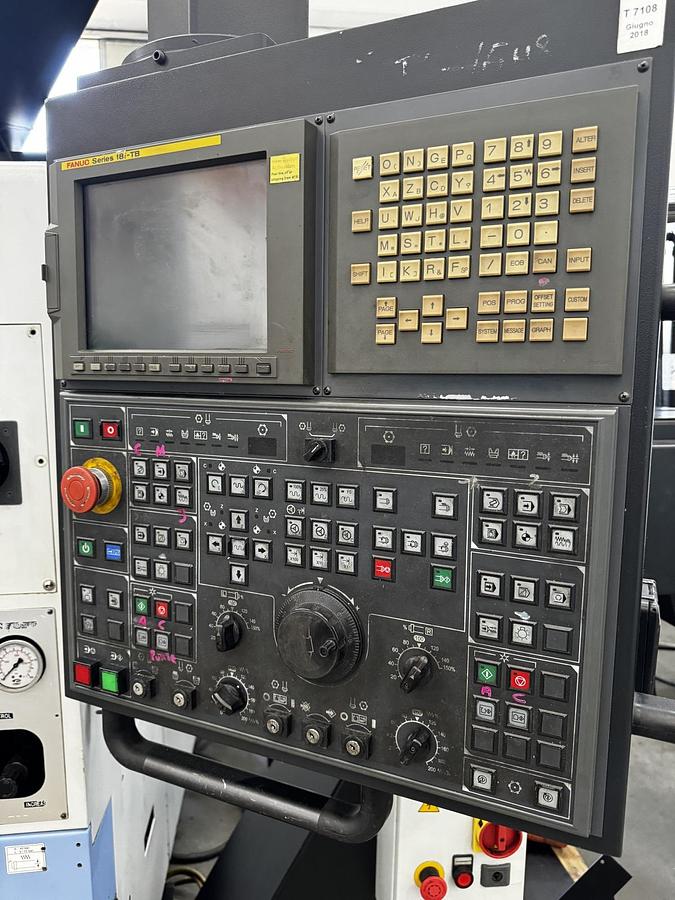

CNC ControlFANUC Series 18i-TB
Max turning diameterØ 410 mm
Racommended turning diameterØ 255 mm
Max turning lenght230 mm
Distance between spindle centers500 mm

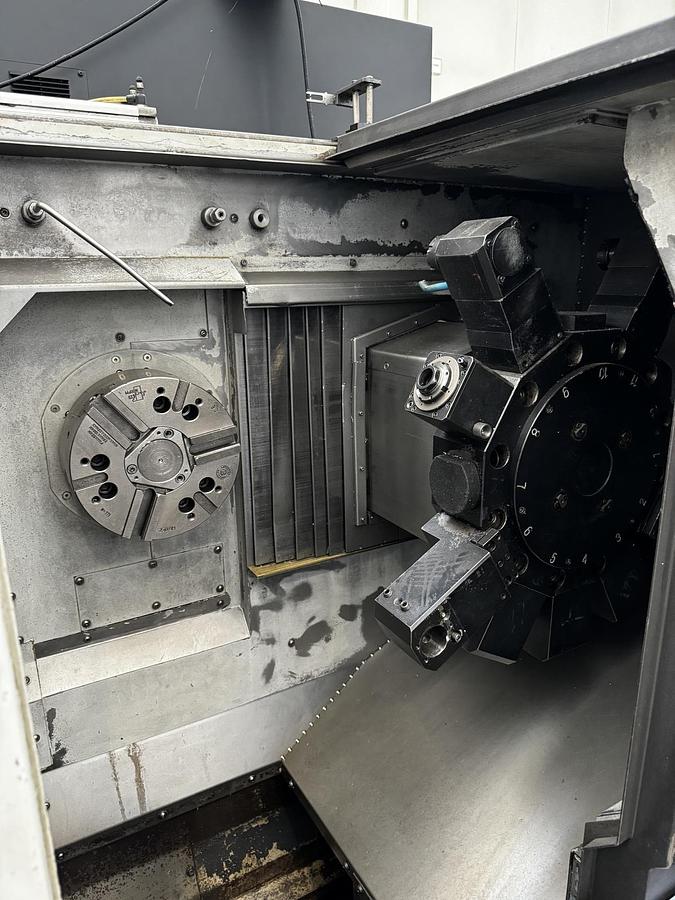

Chuck diameterØ 250 mm
Spindle noseASA A2-8
Spindle speed3.500 Rpm
Spindle motor power (cont / 30 min)15/ 18,5 Kw
X axis travel210 mm
Z axis travel230 mm
Station for each turret12 Stations
Live-tools speed3.000 Rpm
Live-tools motor power (cont/30 min)4 Kw
Accessories & OthersChip conveyor - Coolant tank with pumps - High pressure external pump - Various live and fix tool holders - Manuals - Electrical diagrams - EC CE Declaration
Tools dimensions / boring bar diameter25x25 / Ø40 mm
Rapid feed axis X24.000 mm/min
Rapid feed axis Z24.000 mm/min
