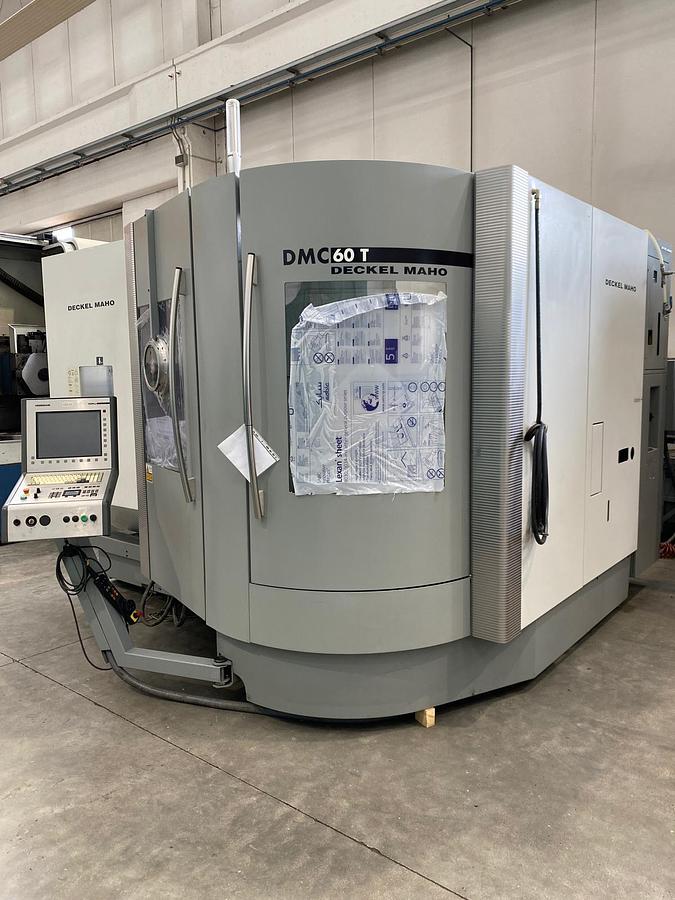

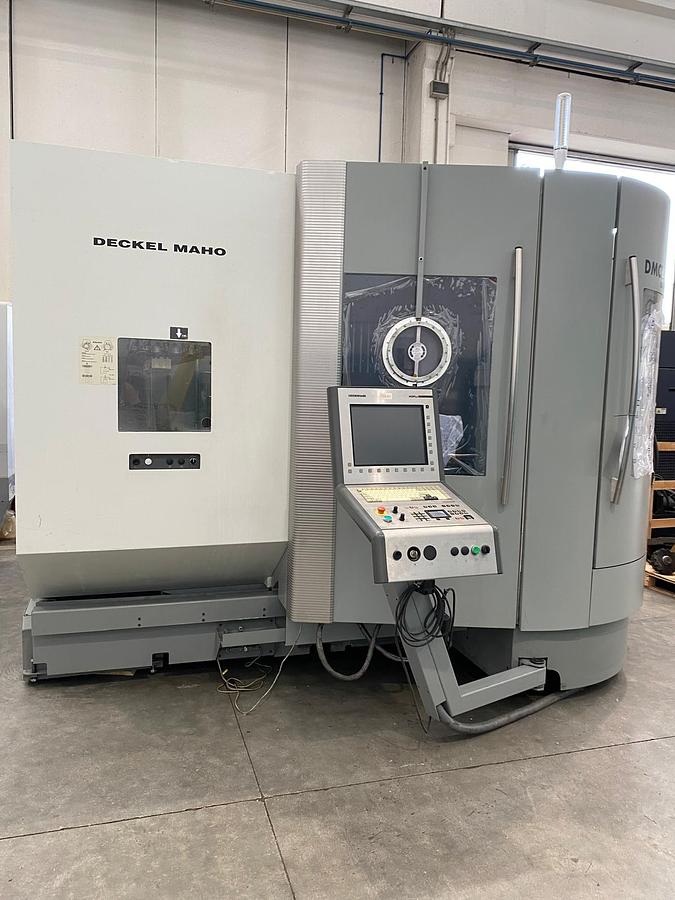

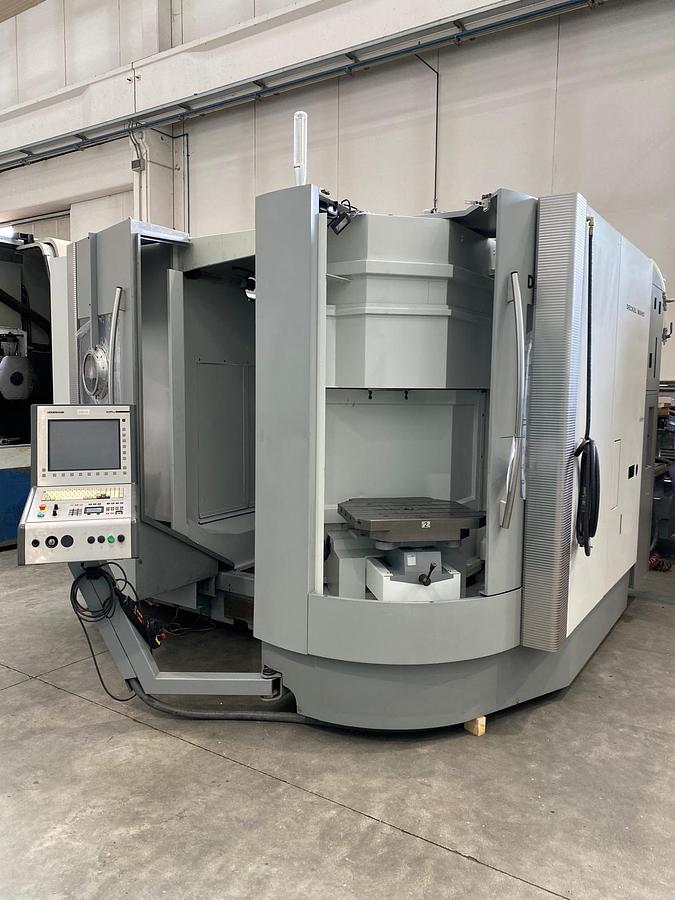

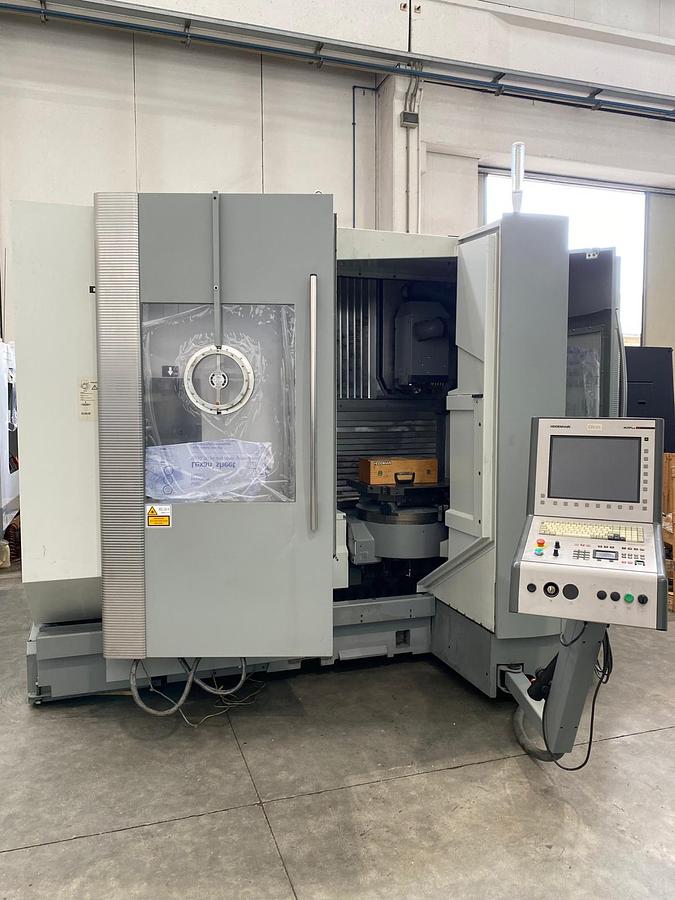

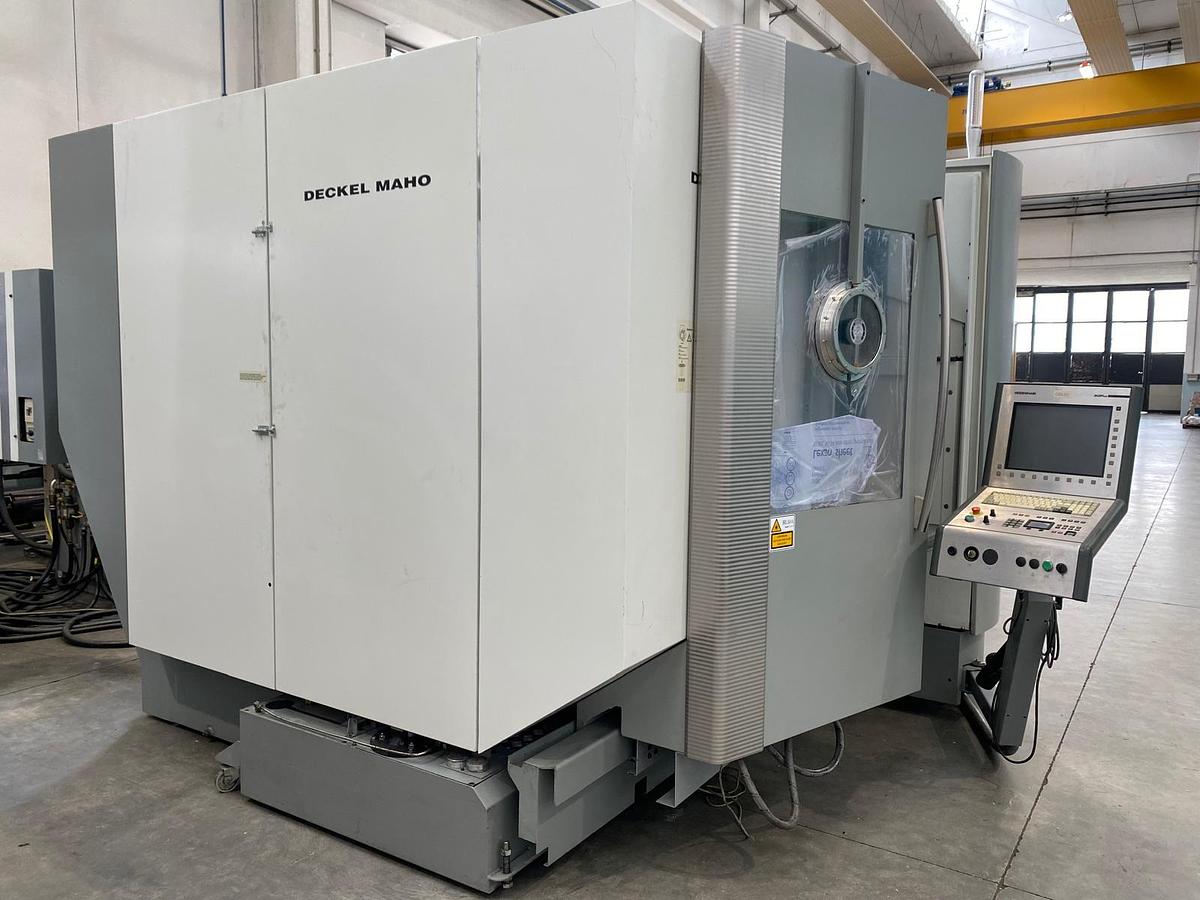

2004 DECKEL MAHO DMC-60T

2004 DECKEL MAHO DMC-60T

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerDECKEL MAHO
ModelDMC-60T
Year2004
ConditionUsed
Stock NumberR2025041
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/9016044f0069a142a7f712480652ea63/Deckel%20Maho%20DMC-60T.pdf

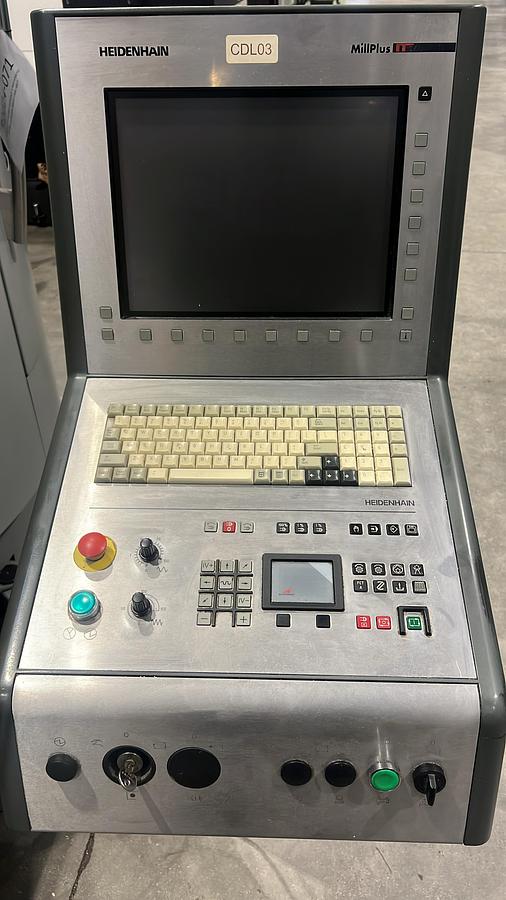

CNC ControlHEIDENHAIN iTNC-530
Spindle tool sizeISO 40
Spindle speed18.000 Rpm
Spindle motor power (cont/30 min)19/28 kW
X axis780 mm
Y axis560 mm
Z axis560 mm

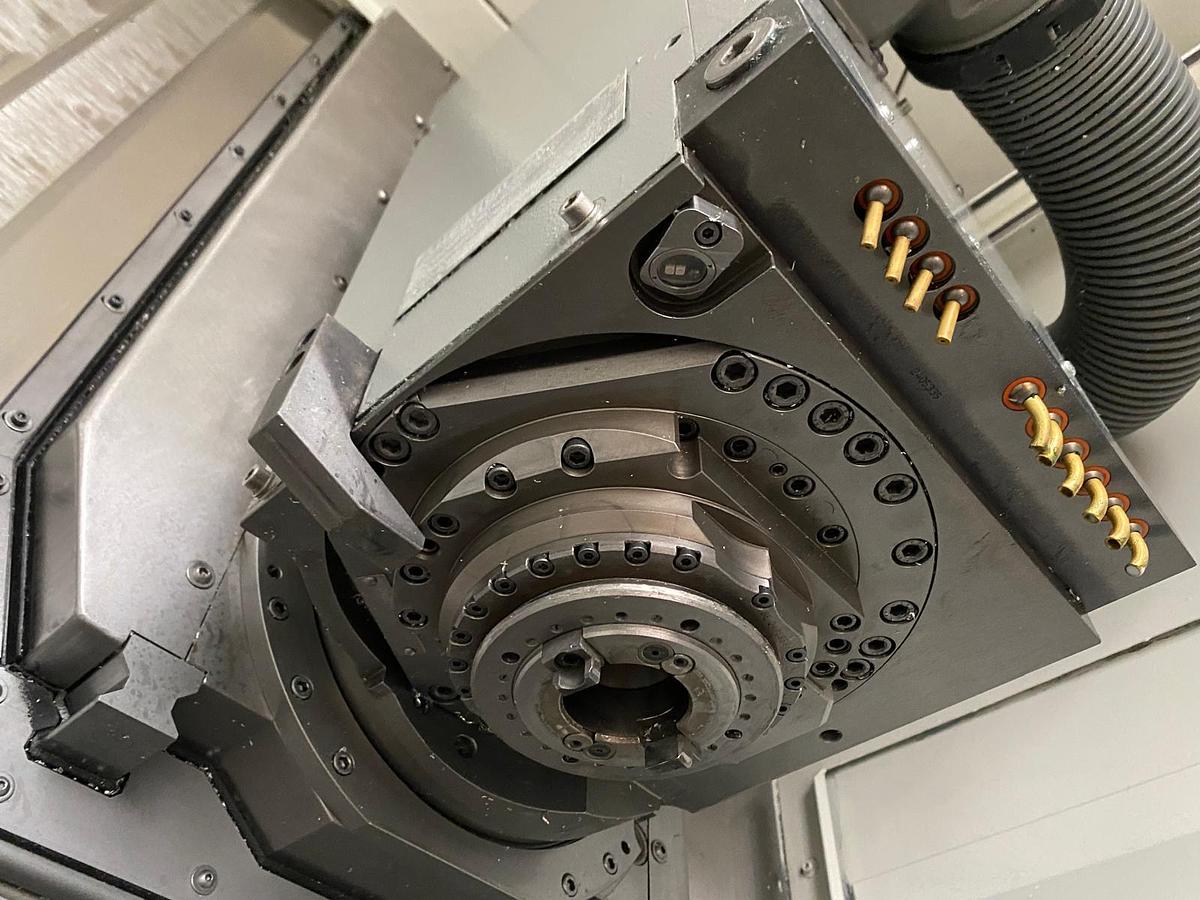

A Axis (Head rotation in CONTINUOUS)150° (+30° / -120°) [Min. Angle 0,001°]

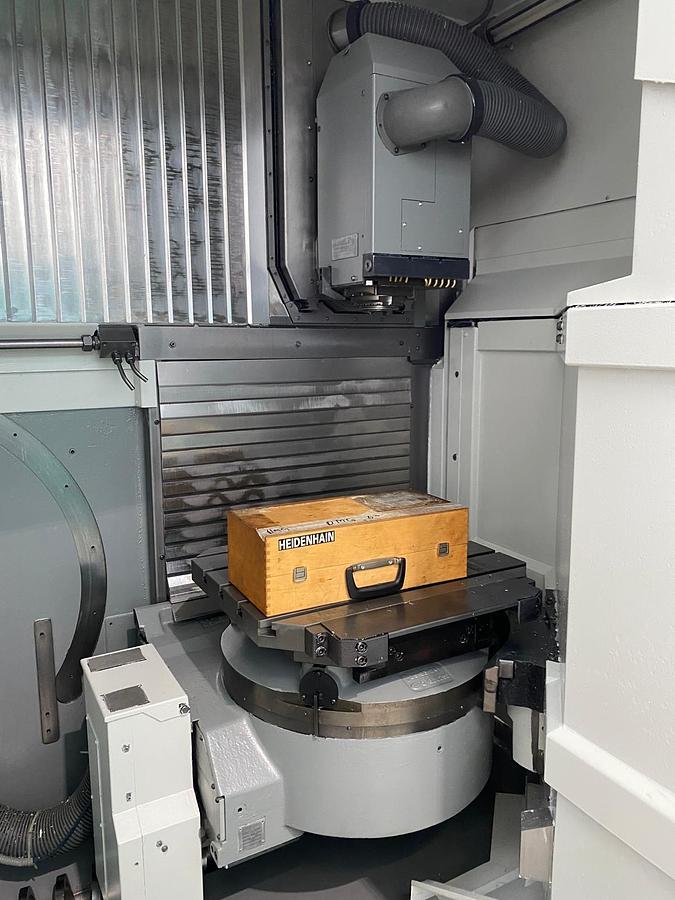

B Axis (Table rotation in CONTINUOUS)360° [Min. Angle 0,001°]
Table dimensions630 x 500 mm
Max load allowed on table500 Kg
X / Y / Z axis rapid feedrates50.000 mm/min
X / Y / Z axis working feedrates in linear interpolation (max)20 ÷ 15.000 mm/min
Tool typeSK40 DIN69871
Tool pull stud typeDIN69872

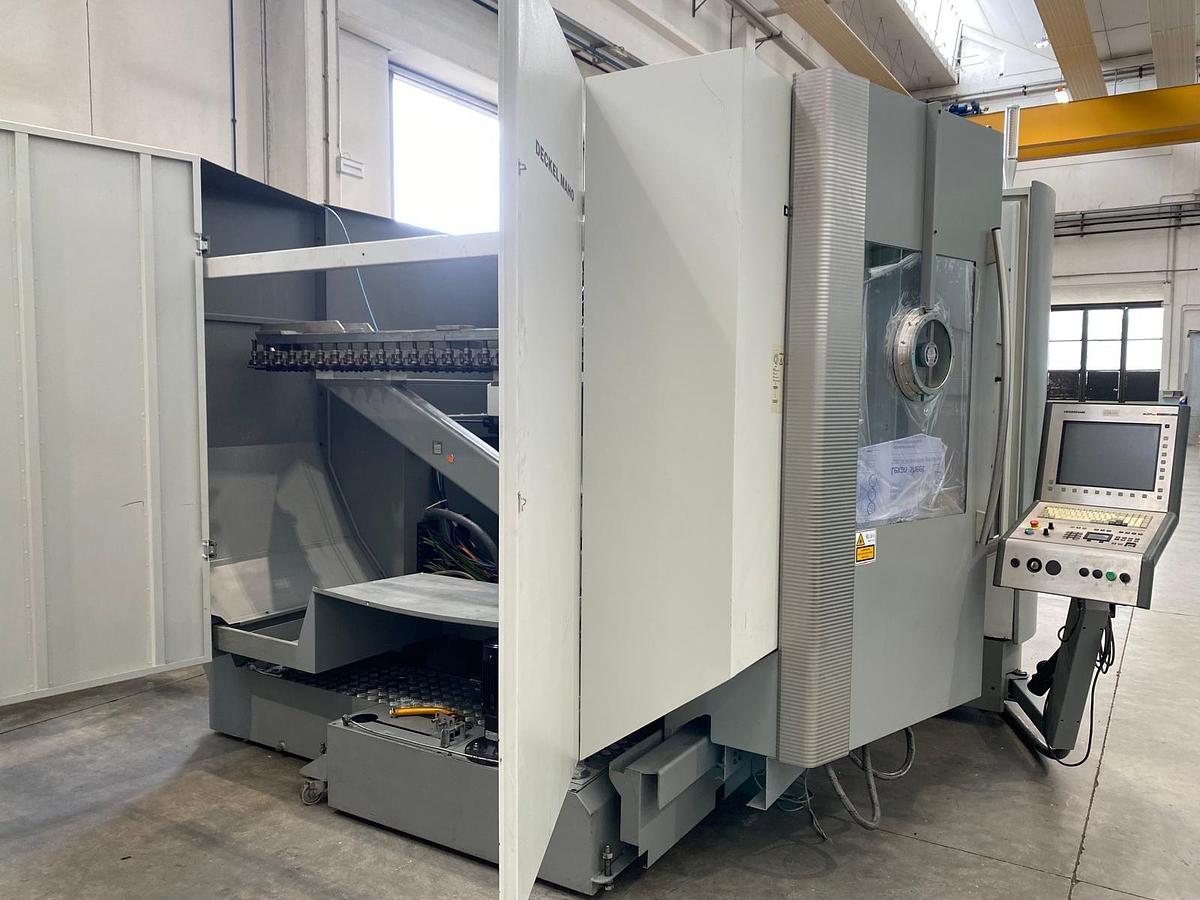

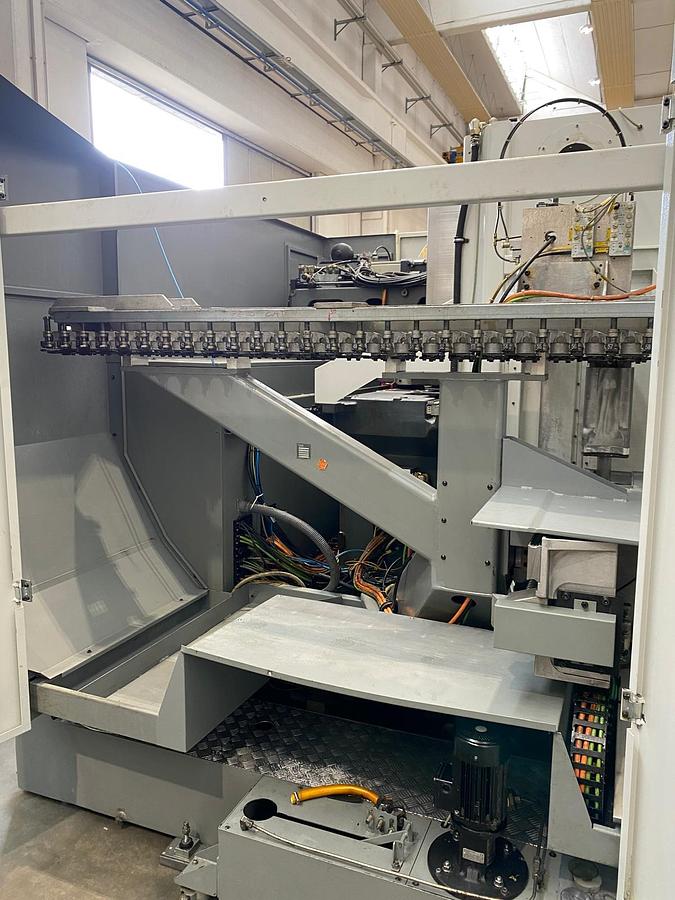

ATC capicity60 Stations
Max tool diameterØ 80 / Ø 160 mm
Max tool lenght315 mm
Max tool weight8 Kg

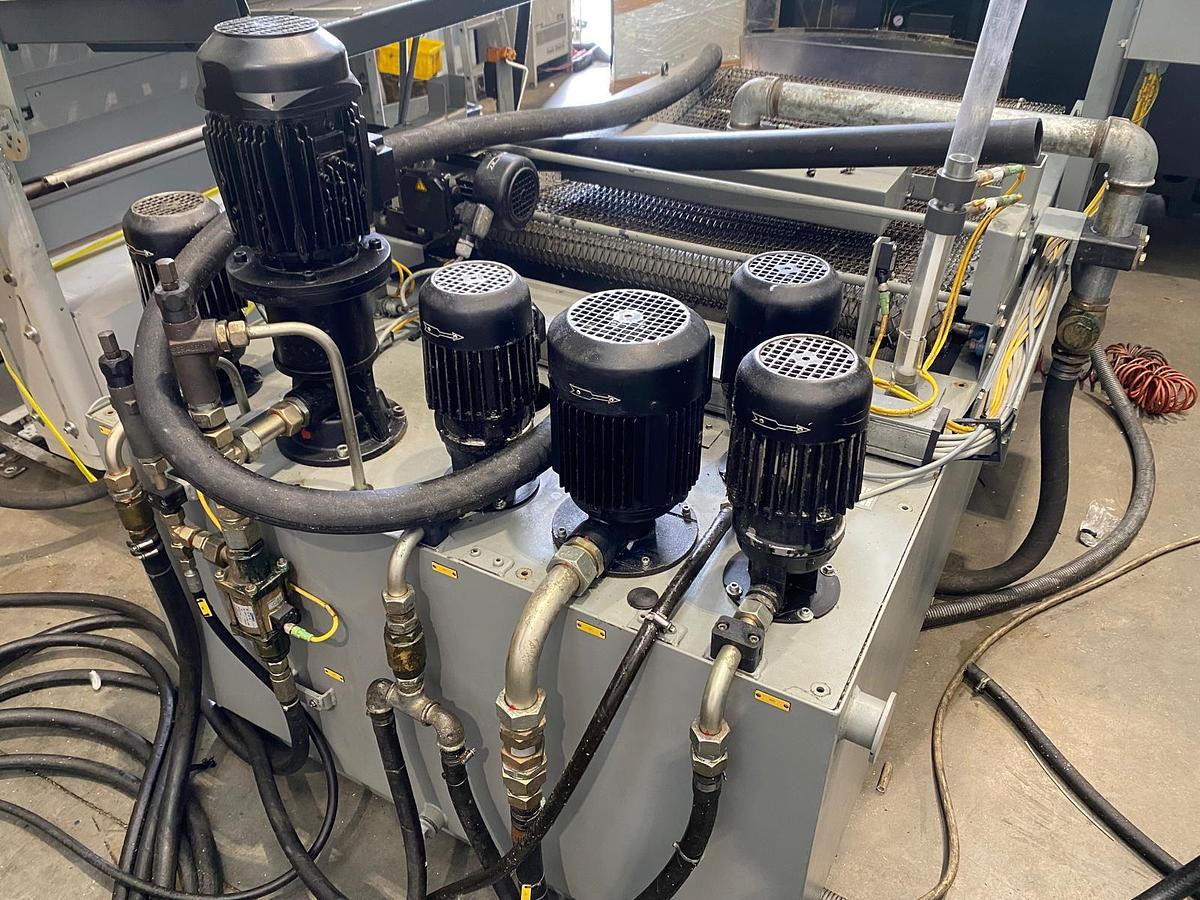

AccessoriesProbe for piece checking Chip conveyor - Coolant tank with pumps - High pressure pump for coolant through spindle - Chiller for spindle head - Transformer - Manuals - Electrical Diagrams - CE Declaration
