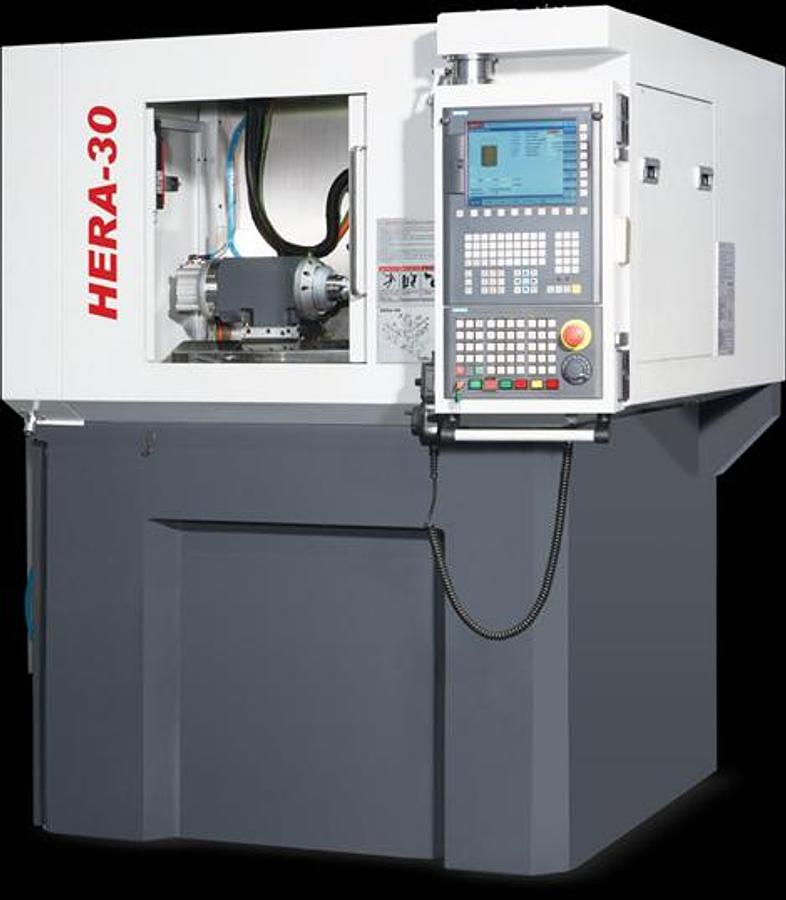

YG-TECH HERA-30H
YG-TECH HERA-30H
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | YG-TECH |
| Model | HERA-30H |
| Condition | New |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/74a4e83c79d335ec93309973254960b1/HERA%20catalogo%20generale.pdf |
| Max diameter of the workpiece (manual) | Ø 40 mm |
| Max diameter of the workpiece (auto) | Do be defined |
| Max module pitch | Module 1.25 |
| X axis radial travel | 75 (5 - 80) mm |
| A axis maximum inclination Hob cutter | +30º / -30º |
| B axis Hob cutter spindle speed | 10,000 RPM |
| C axis rotary table speed | 6.000 RPM |
| Z axis working axial range (vertical) | 90 (65 - 155) mm |
| Hob / cutter diameter | Ø 38 mm |
| Hob max length | 80 mm |
| Y axis tangential travel (shifting) | 70 mm |
| Dimensions machine only | 1.000 x 1.100 x 1.800 mm |
| Machine's net weight | 1.2 Tons |
| Installed power | 20 kVA |
| Accesories and others | Coolant tank and qt.y 2 pumps, magnetic chip-conveyor scraping type, chiller for torque motor of rotary table and hydraulic unit |
| Support travel | 75 (5 - 80) mm |
| CNC Control | FANUC 0i-MF PLUS / Siemens 828D |
