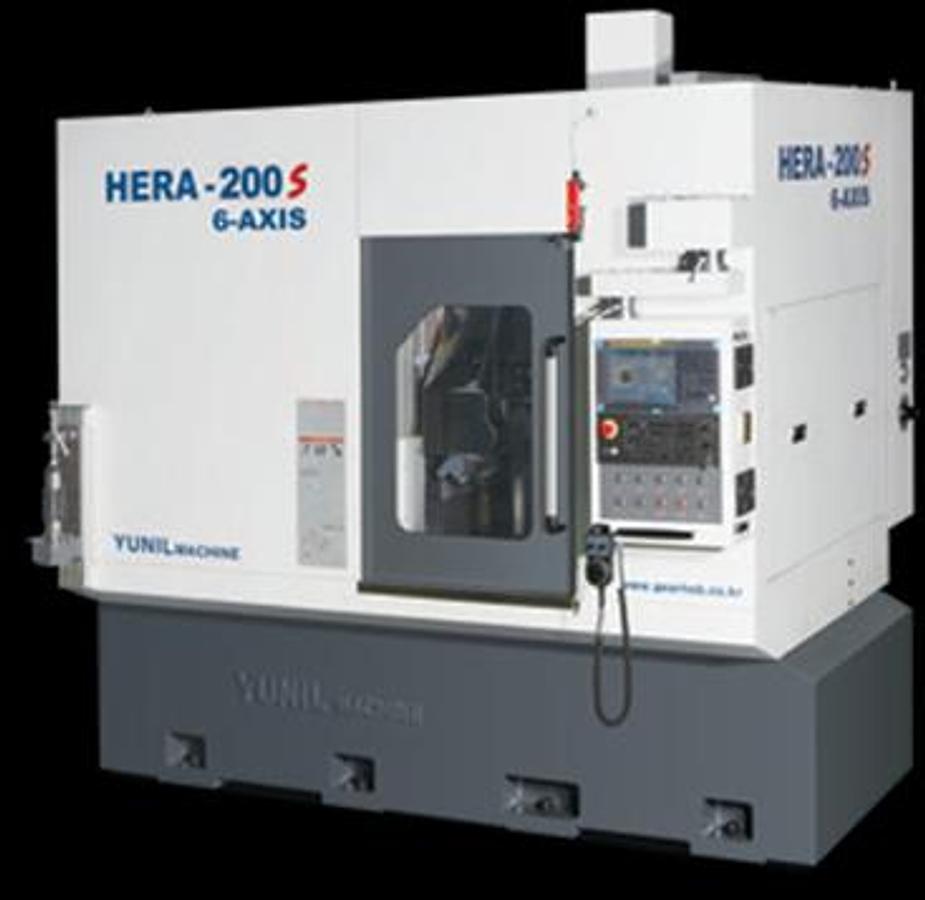

YG-TECH HERA-200S

YG-TECH HERA-200S

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerYG-TECH
ModelHERA-200
ConditionNew
CNC ControlFANUC 0i-MF PLUS / Siemens 828D
Max diameter of the workpiece (manual)Ø 200 mm
Max module pitchModule 4
X axis radial travel250 (180 - 430) mm
A axis maximum inclination Hob cutter+45º / -45º
Tool typeNT - 40
Control systems for Table and Hob cutterInline FANUC Encoders
Installed power30 kVA
Accesories and othersCoolant tank, magnetic chip-conveyor scraping type, chiller for torque motor of rotary table, hydraulic cylinder for table workpiece holding, Hob cutter presetting, disk type deburring attachment, automation system with 2 stations + 2 hands set for workpiece clamping
B axis Hob cutter spindle speed1.500 RPM
C axis rotary table speed125 RPM
Z axis working axial range (vertical)250 (180-430) mm
Tailstock travel300 (340-640) mm
Table diameterØ 208 mm
Hob cutter dimensionsØ 150 x 200 mm
Y axis tangential travel (shifting)180 mm
Dimensions machine only2.780 x 2.375 x 2.450 mm
Machine's net weight9.0 Ton
