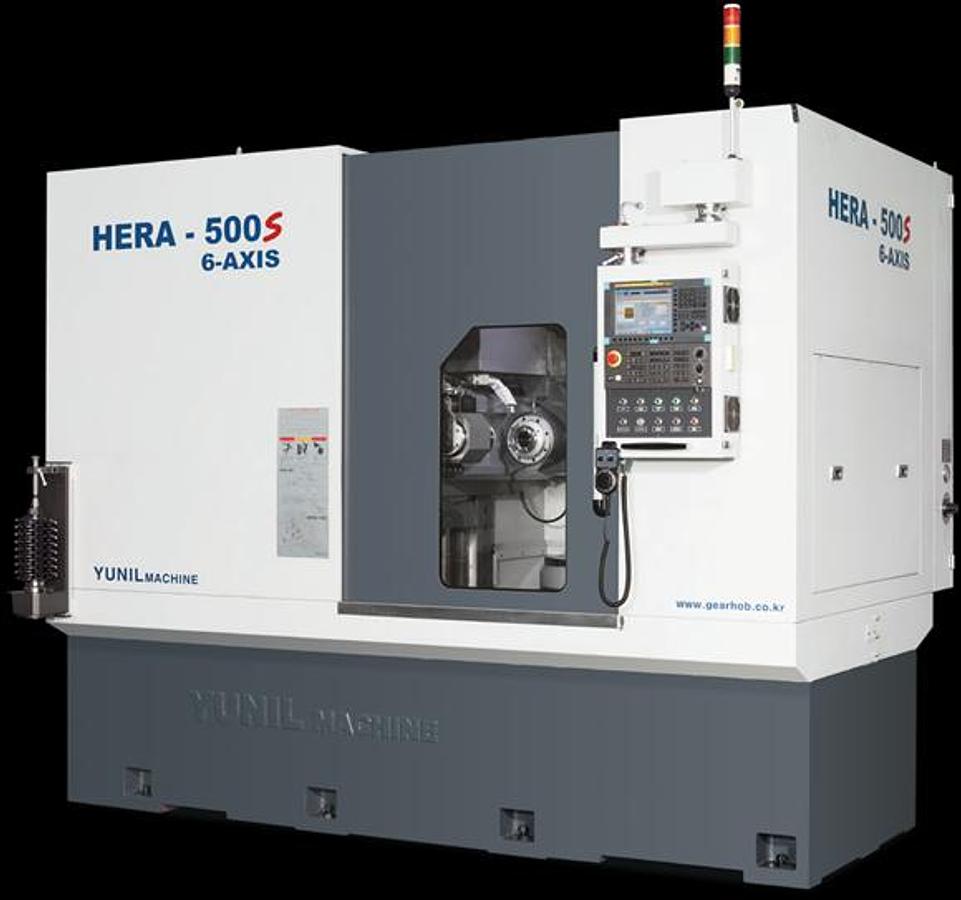

YG-TECH HERA-500S
YG-TECH HERA-500S
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | YG-TECH |
| Model | HERA-500S |
| Condition | New |
| CNC Control | FANUC 0i-MF PLUS / Siemens 828D |
| Max diameter of the workpiece (manual) | Ø 600 mm |
| Max module pitch | Module 12.0 |
| X axis radial travel | 360 (60-420) mm |
| A axis maximum inclination Hob cutter | + 35º / - 45º |
| B axis Hob cutter spindle speed | 500 RPM |
| C axis rotary table speed | 100 RPM |
| Z axis working axial range (vertical) | 360 (230 - 590) mm |
| Tailstock travel | 420 (400 -820) mm |
| Table diameter | Ø 480 mm |
| Table hole diameter /depth | Ø 180 / 250 mm |
| Tool type | BT-50 |
| Hob cutter dimensions | Ø 280 x 280 mm |
| Y axis tangential travel (shifting) | 250 mm |
| Control systems for Table and Hob cutter | Inline FANUC Encoders |
| Dimensions machine only | 3.500 x 2.800 x 2.900 mm |
| Machine's net weight | 14.0 Ton |
| Accesories and others | Coolant tank, magnetic chip-conveyor scraping type, chiller for torque motor of rotary table, hydraulic cylinder for table workpiece holding, Hob cutter presetting, disk type deburring attachment, automation system with 2 stations + 2 hands set for workpiece clamping |
