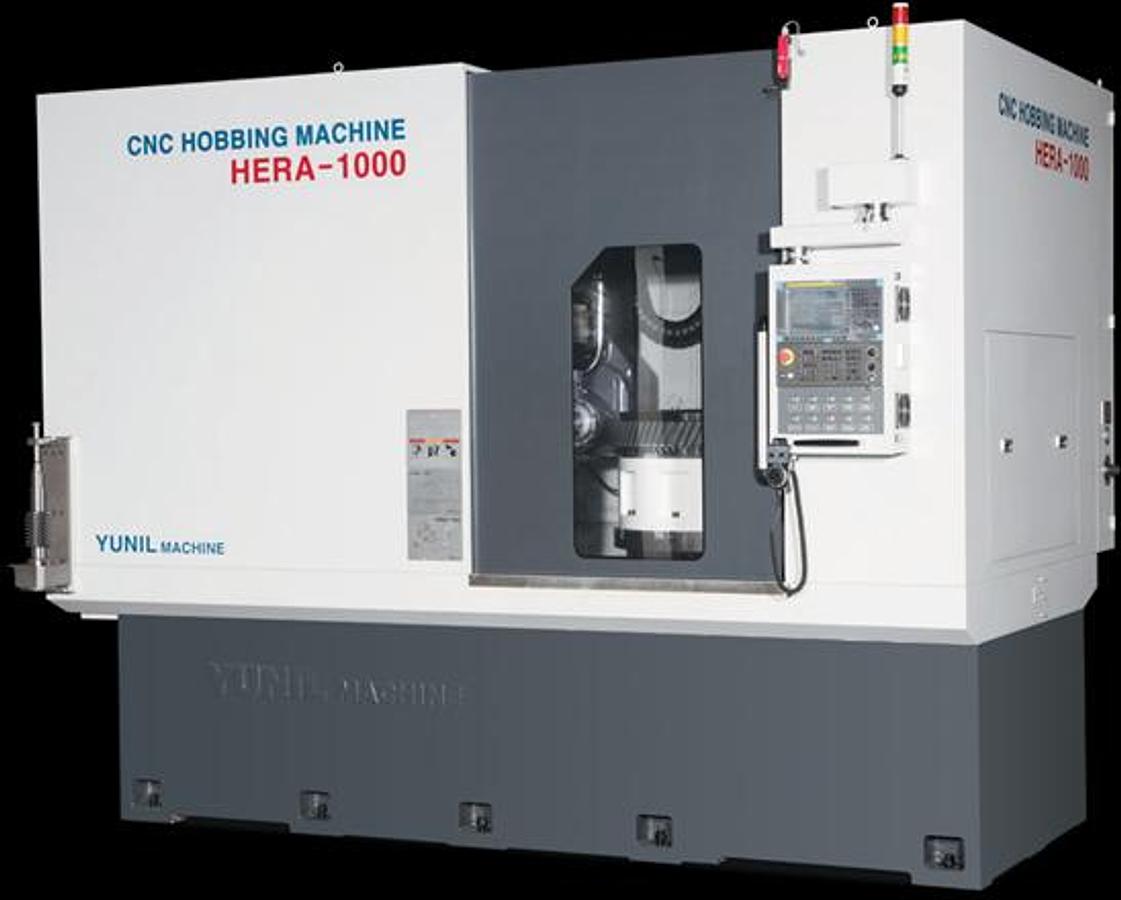

YG-TECH HERA-1000

YG-TECH HERA-1000

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerYG-TECH
ModelHERA-1000
ConditionNew
CNC ControlFANUC 0i-MF PLUS / Siemens 828D
Max diameter of the workpiece (manual)Ø 1.050 mm
Max module pitchModule 16.0
X axis radial travel650 (80 - 750) mm
A axis maximum inclination Hob cutter+ 35º / - 45º
B axis Hob cutter spindle speed400 RPM
C axis rotary table speed50 RPM
Z axis working axial range (vertical)500 (250 - 750) mm
Tailstock travel600 (400 - 1.000) mm
Table diameterØ 950 mm
Table hole diameter / depthØ 250 / 300 mm
Tool typeHSK-100
Hob cutter dimensionsØ 320 x 340 mm
Y axis tangential travel (shifting)280 mm
Control systems for Table and Hob cutterInline FANUC Encoders
Dimensions machine only5.200 x 3.200 x 3.800 mm
Machine's net weight23.0 Ton
Accesories and othersCoolant tank, magnetic chip-conveyor scraping type, chiller for torque motor of rotary table, hydraulic cylinder for table workpiece holding, Hob cutter presetting, disk type deburring attachment, automation system with 2 stations + 2 hands set for workpiece clamping
