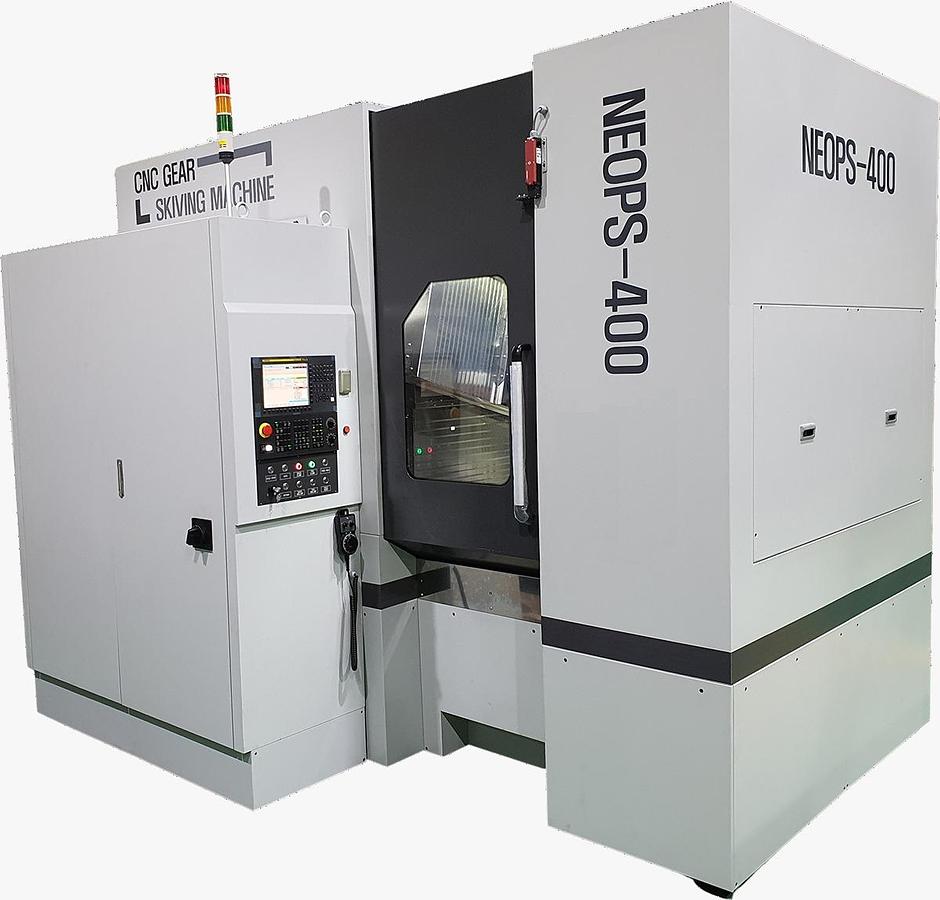

YUNIL NEOPS-400
YUNIL NEOPS-400
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | YUNIL |
| Model | NEOPS-400 |
| Condition | New |
| Max. Workpiece Diameter (Internal) | 400 mm |
| Max. Workpiece Diameter (External) | 420 mm |
| Max. Workpiece Height | 380 mm |
| Max. Module | Module 4.0 |
| Radial Travel (X-Axis) | 370 mm (-350 mm~+20 mm) |
| Tool Shift Travel (Y-Axis) | 500 mm (±250 mm) |
| Z-Axis Work Range | 440 mm (+240 mm~+680 mm) |
| Max. Helix Angel (A-Axis) | ±30° |
| Table Diameter | Ø 390 mm |
| Taper of Spindle Nose | HSK A100 |
| B-Axis Spindle Motor | 33 KW |
| B-Axis Max. RPM | 6.000 RPM |
| C-Axis Spindle Motor | 529 Nm (31 Kw) |
| C-Axis Max. RPM | 3.000 RPM |
| Control System | FANUC 0i-MF PLUS / Siemens 828D |
| Floor Space (L x W x H) w/o Auto | 4.800 x 3.800 x 3.550 mm |
| Weight (Approx.) w/o Auto. | 15.5 TON |
