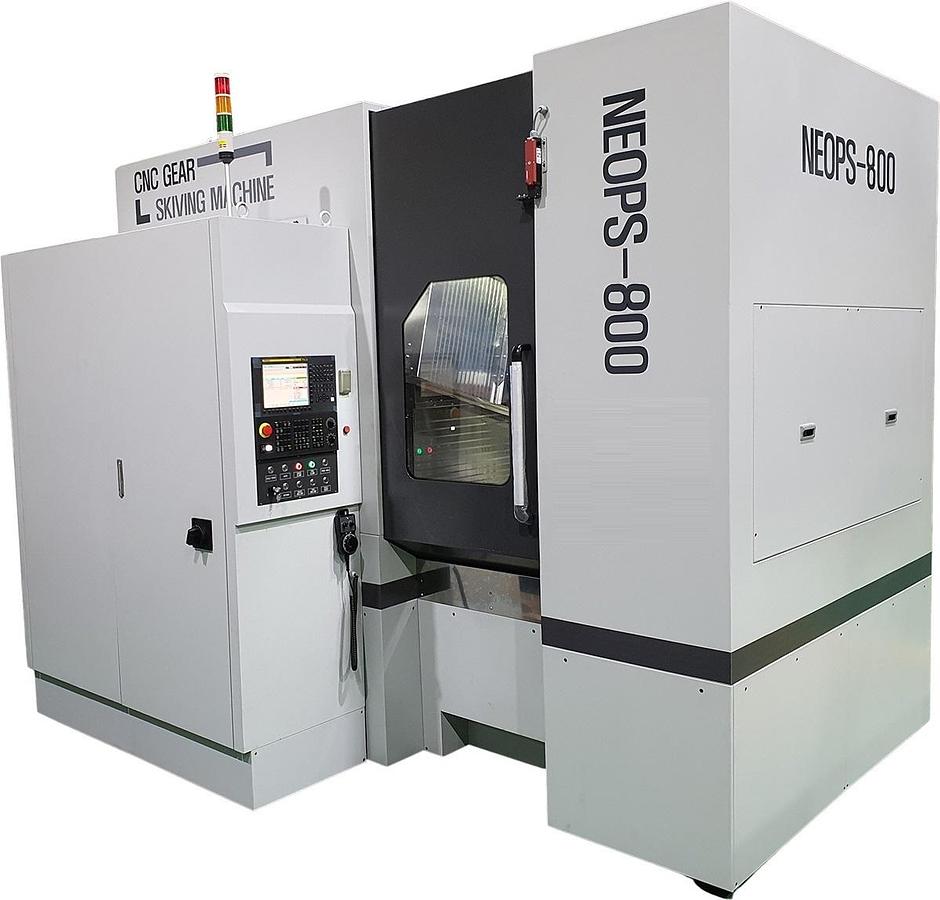

YUNIL NEOPS-800
YUNIL NEOPS-800
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | YUNIL |
| Model | NEOPS-800 |
| Condition | New |
| Max. Workpiece Diameter (Internal) | 800 mm |
| Max. Workpiece Diameter (External) | 900 mm |
| Max. Workpiece Height | 450 mm |
| Max. Module | Module 8.0 |
| Radial Travel (X-Axis) | 620 mm (-600 mm~+20 mm) |
| Z-Axis Work Range | 430 mm (+310 mm~+740 mm) |
| Max. Helix Angel (A-Axis) | ±30° |
| Table Diameter | Ø 800 mm |
| Taper of Spindle Nose | HSK A125 |
| B-Axis Spindle Motor | 33 KW |
| B-Axis Max. RPM | 6.000 RPM |
| C-Axis Spindle Motor | 800 Nm (30 kw) |
| C-Axis Max. RPM | 3.000 RPM |
| Control System | FANUC 0i-MF PLUS / Siemens 828D |
| Floor Space (L x W x H) w/o Auto | 5.400 x 4.500 x 3.750 mm |
| Weight (Approx.) w/o Auto. | 21 TON |
| Tool Shift Travel (Y-Axis) | 500 mm (±250 mm) |
