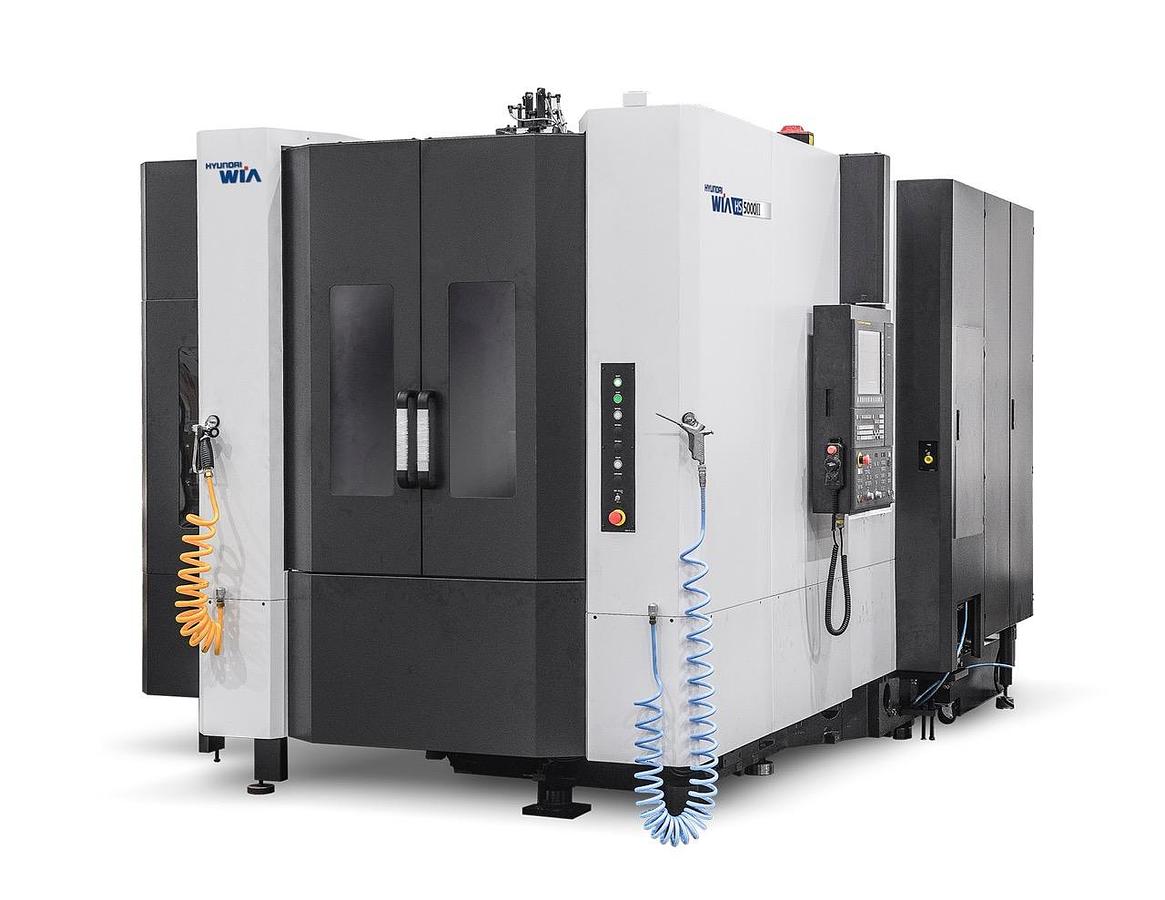

Hyundai WIA HS5000/50 II
Hyundai WIA HS5000/50 II
Location:Calerno, Italy
Specifications
| Manufacturer | Hyundai WIA |
| Model | HS5000/50 II |
| Condition | New |
| Stock Number | R2025055 |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/87c522ec0b62a948767414b61cdee28a/HS5000II%28en%29.pdf |

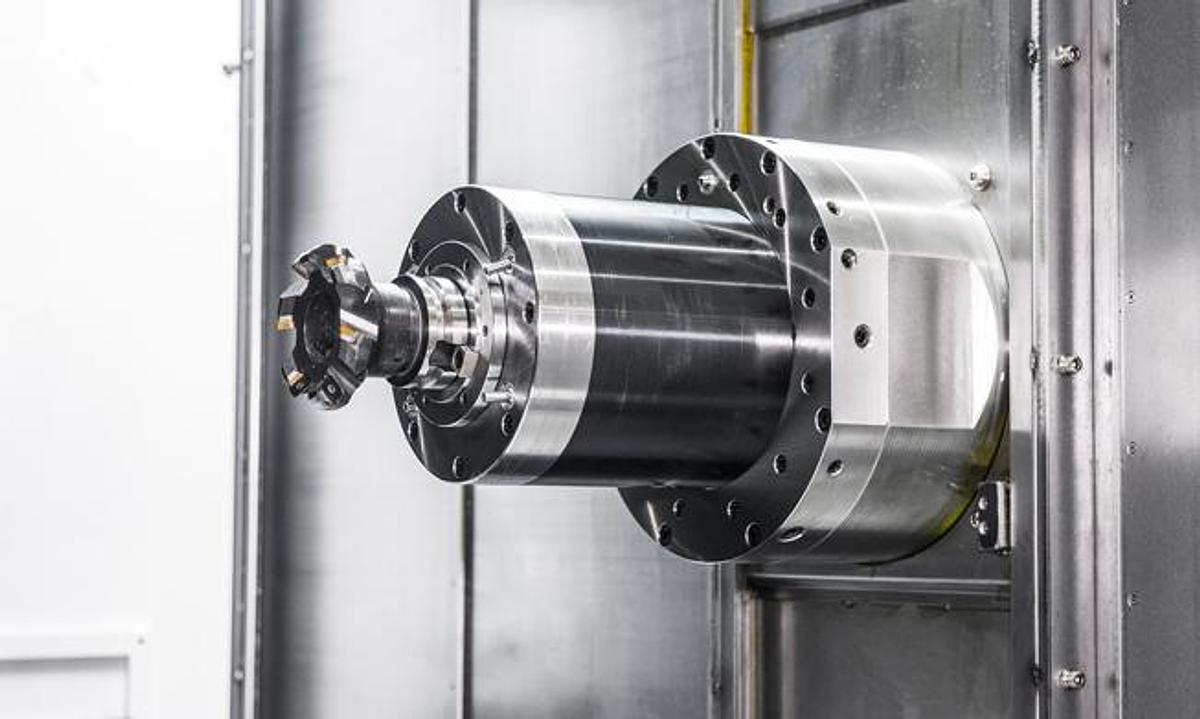

| Spindle speed | 10.000 RPM (opt. 15.000 RPM) |
| Spindle motor power (cont/30 min | 45/25 (Opt. 37/30) kW |
| X axis | 800 mm |
| Y Axis | 800 mm |
| Z Axis | 880 mm |
| Table rotation | Indexata (opt. continuous) |
| Max workpiece dimensions | Ø 900 × H 1.100 mm |

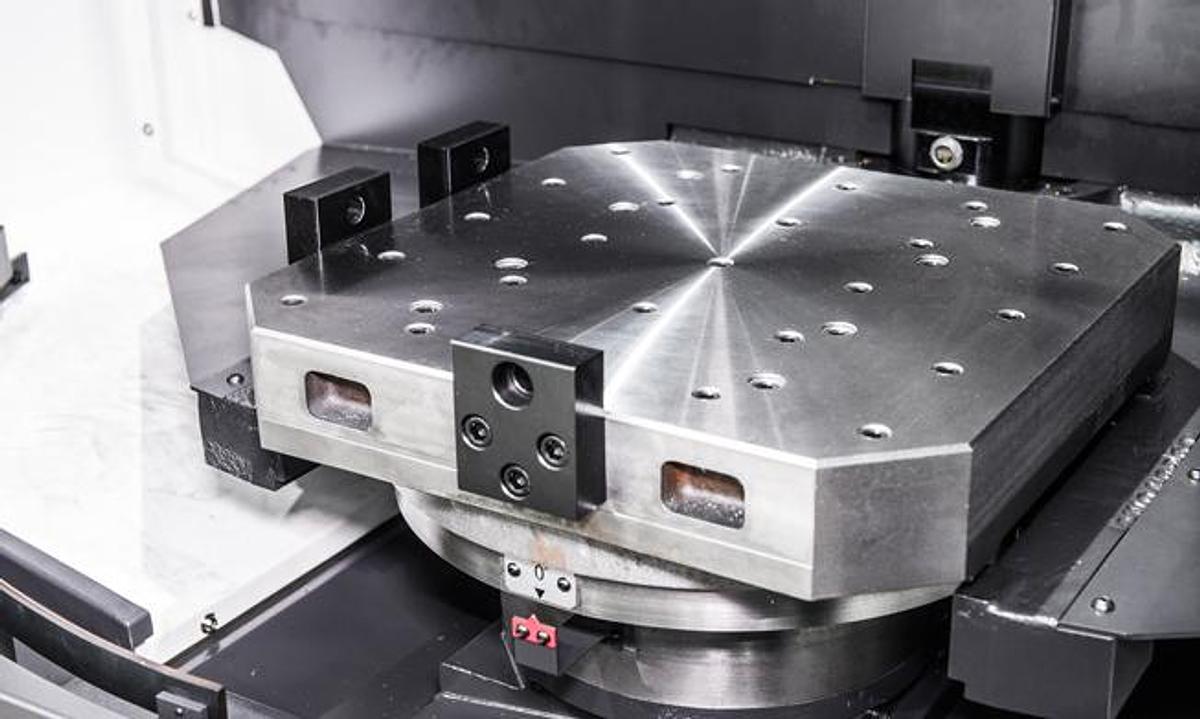

| Table dimensions | 2 - 500 × 500 mm |
| Nr. of table pallets | 2 standard (opt. multipallet) |
| Max table capacity | 500 Kg/each pallet |
| Rapid feedrates X / Y / Z | 60.000 mm/min |

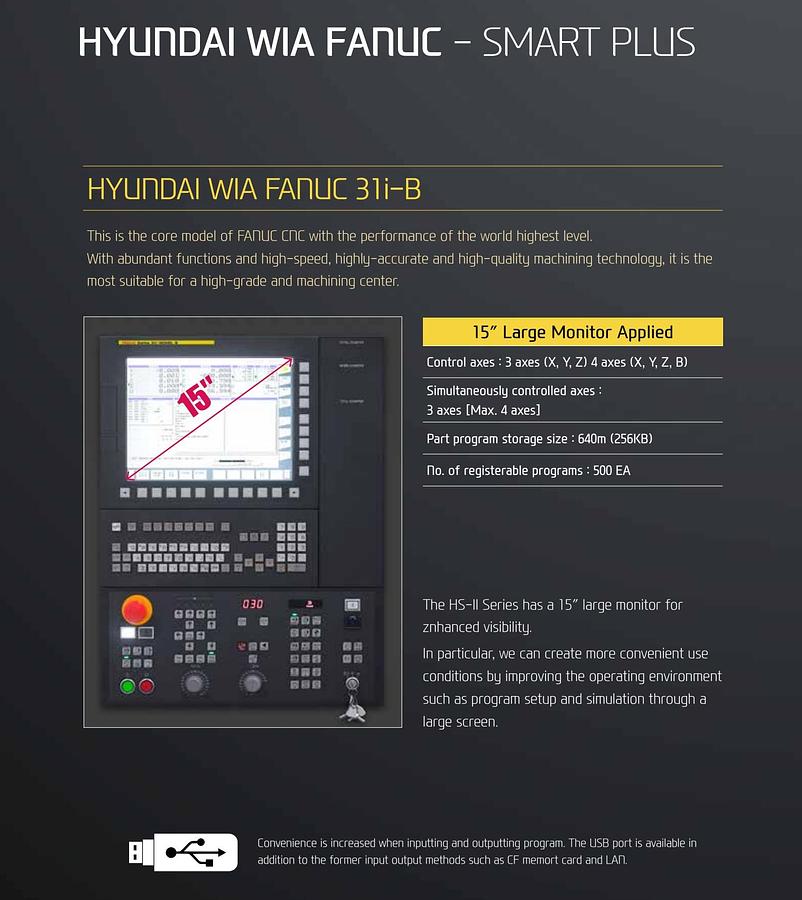

| CNC Control | FANUC 31i-Model B PLUS |
| Spindle size | ISO-50 |
| Tool type | BBT- 50 (opt. HSK-A100) |
| Pull stud type | BT-50 |

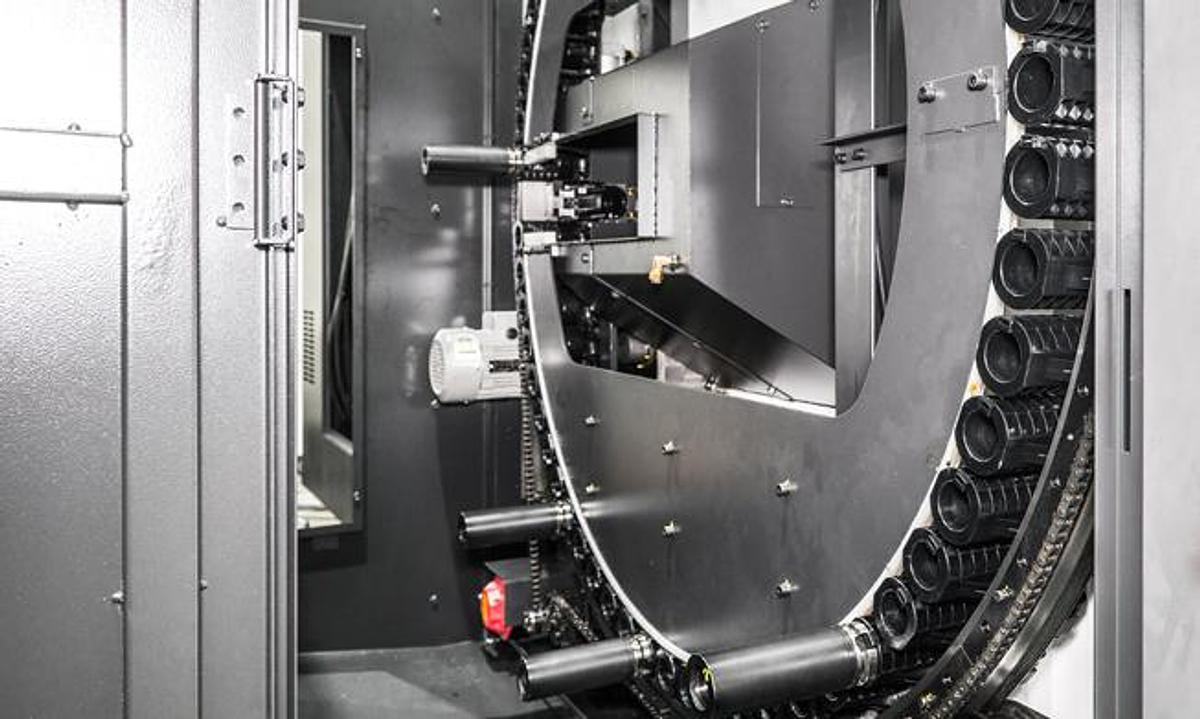

| ATC positions | Standard 40 (opt. 60/90/120) |
| Tools diameter | Ø 125/320 mm |
| Tools max lenght | 530 mm |
| Tools max weight | 25 Kg |
| Machine's net weight | 16.000 Kg |
| Accessories & Others | Chip-conveyor, coolant tank with high pressure pump for CTS at 20 Bar, Manuals, Electrical Diagrams and CE Declaration |
