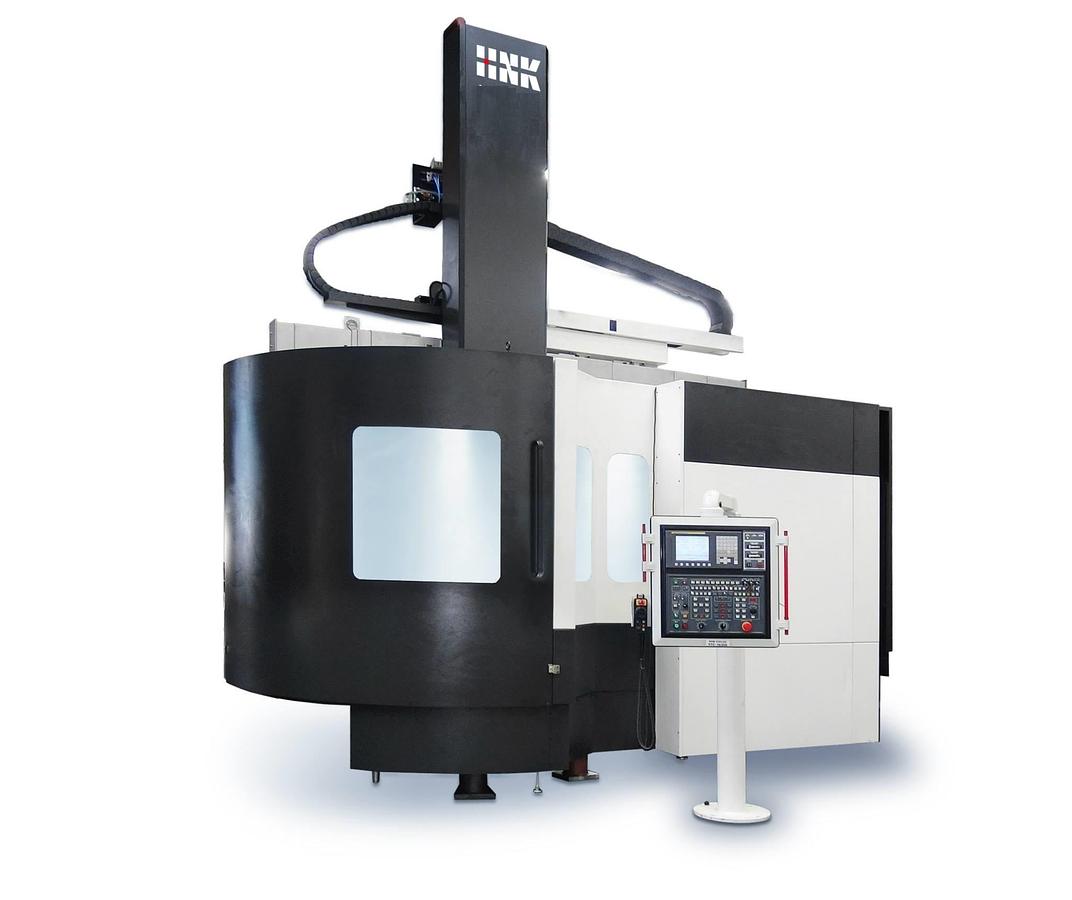

HNK VTC-12/16
HNK VTC-12/16
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | HNK Machine Tools |
| Model | VTC-12/16 |
| Condition | New |
| Stock Number | R2024154 |
| CNC Control | FANUC 31i-B Plus |
| Table Diameter | Ø 1.250 mm |
| Chuck type STD | 4-Jaw Independent manual Chuck |
| Max Swing / Turning diameter | Ø 1.600 mm |
| Max turning height | 1.300 mm |
| Max weight allowed | 8.000 kg |
| Spindle speed | 360 RPM |
| Spindle motor power (cont/30 min) | 45 / 37 kW |
| Max Torque | 21.010 Nm |
| X axis travel | -200 / +970 mm |
| Z axis travel | 900 mm |
| W-axis travel of Cross Rail (3 Steps) | 750 mm (3 x 250 mm) |
| Rapid feedrates X Axis | 12.000 mm/min |
| Rapid feedrates Z Axis | 10.000 mm/min |
| Feedrates RAM Axis | 3.000 mm/min |
| RAM Dimensions | 240 x 240 mm |
| Type of tool holder supported | T-Slot type |
| ATC positions | 24 positions |
| Tool shank size | 40 x 40 mm |
| Complete Dimensions machine | 7.760 x 5.150 mm |
| Machine height | 5.760 mm |
| Machine's net weight | 23.000 Kg |
| Installed power | 60 kVA |
| Coolant tank capacity | 300 Lt |
| Accessories | Qt.y 6 fix tool-holders, Oil chiller for spindle, X / Z axes scales, Chip-conveyor backside exit, coolant tank with 300 Lt capacity and pump, Manuals, Electrical Diagrams, CE Declaration |
