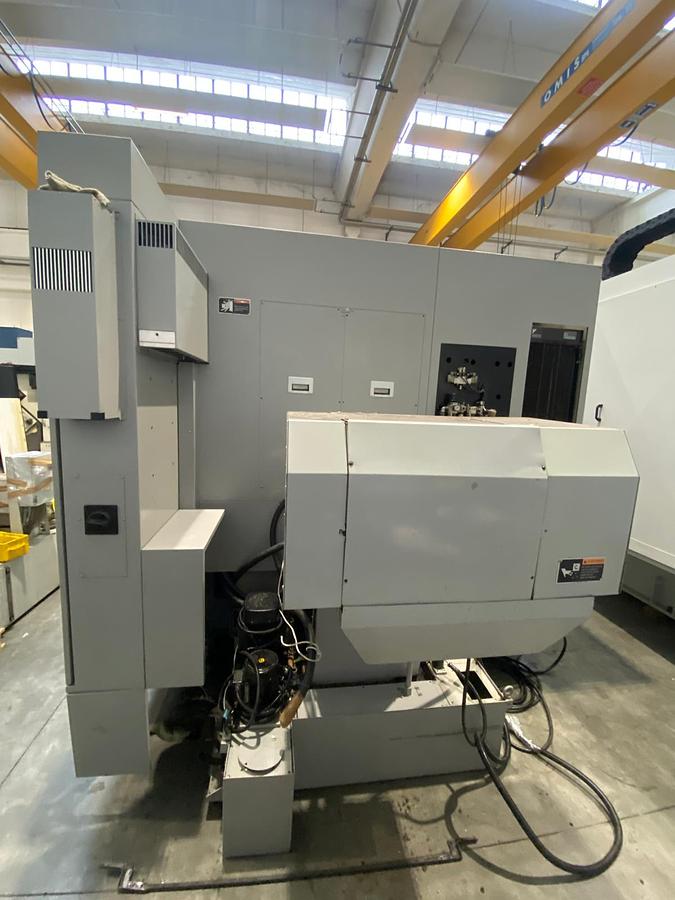

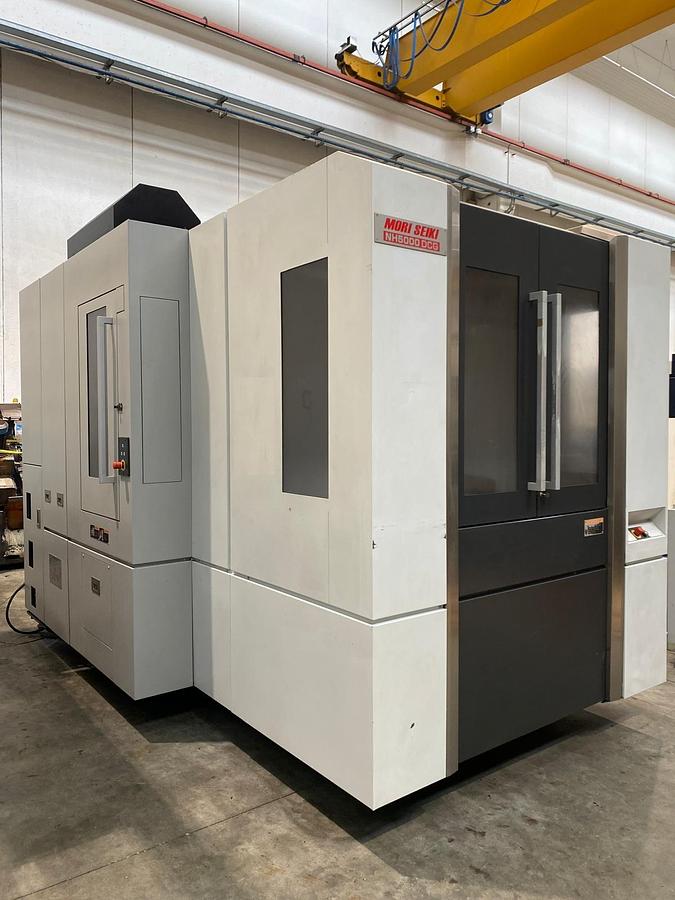

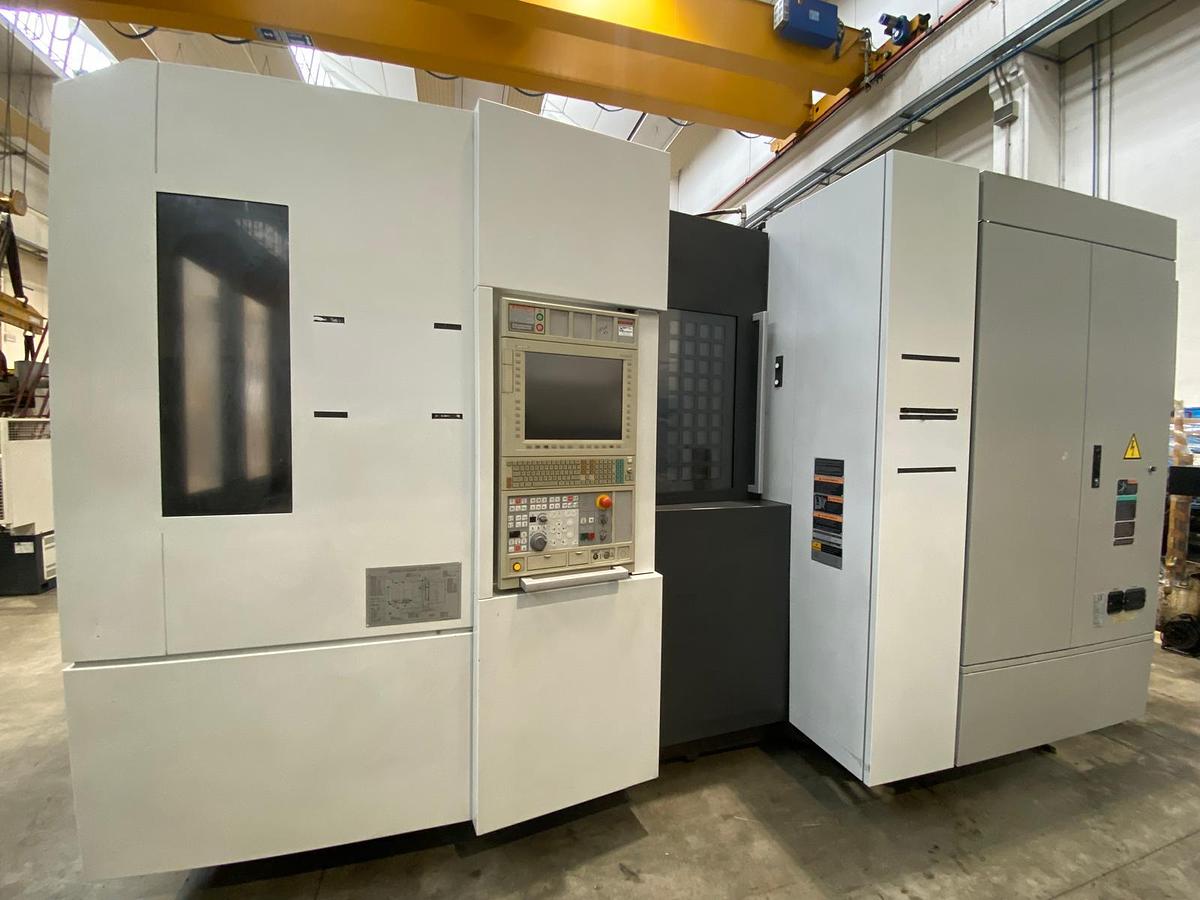

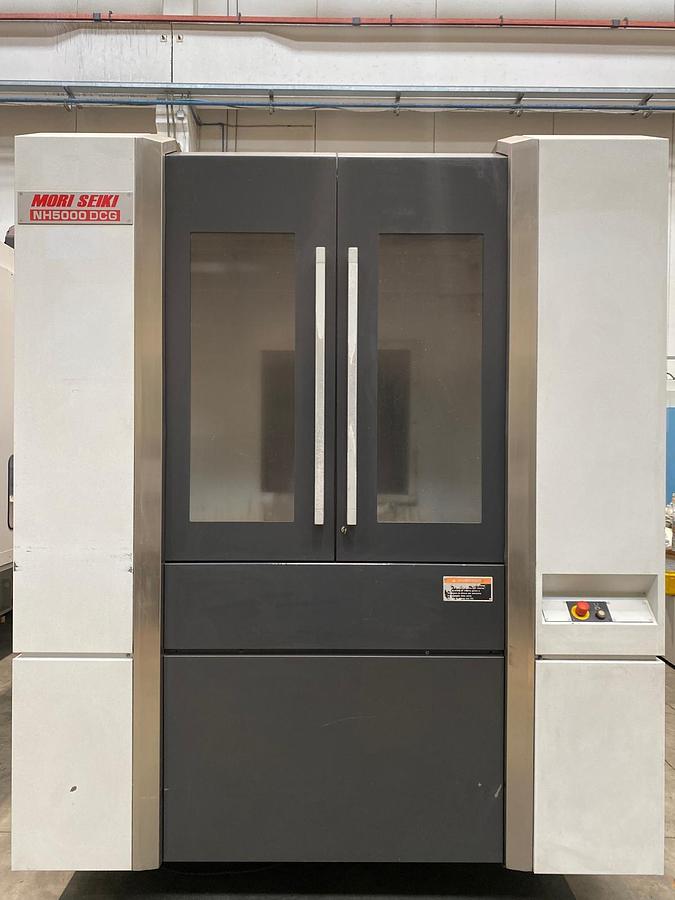

2010 Mori Seiki NH-5000 DCG/40
2010 Mori Seiki NH-5000 DCG/40
Location:San Martino In Rio, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | Mori Seiki |
| Model | NH-5000 DCG/40 |
| Year | 2010 |
| Condition | Used |
| Stock Number | R2024-129 |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/e5be1279dba92d1224b704863e7a9a02/Mori%20Seiki%20NH5000%20DCG40.pdf |

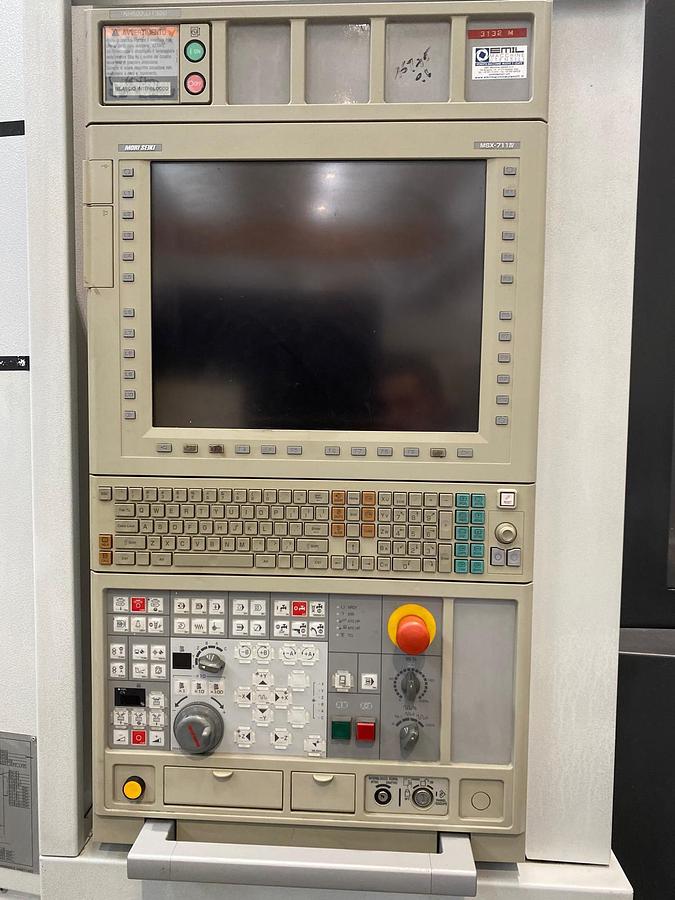

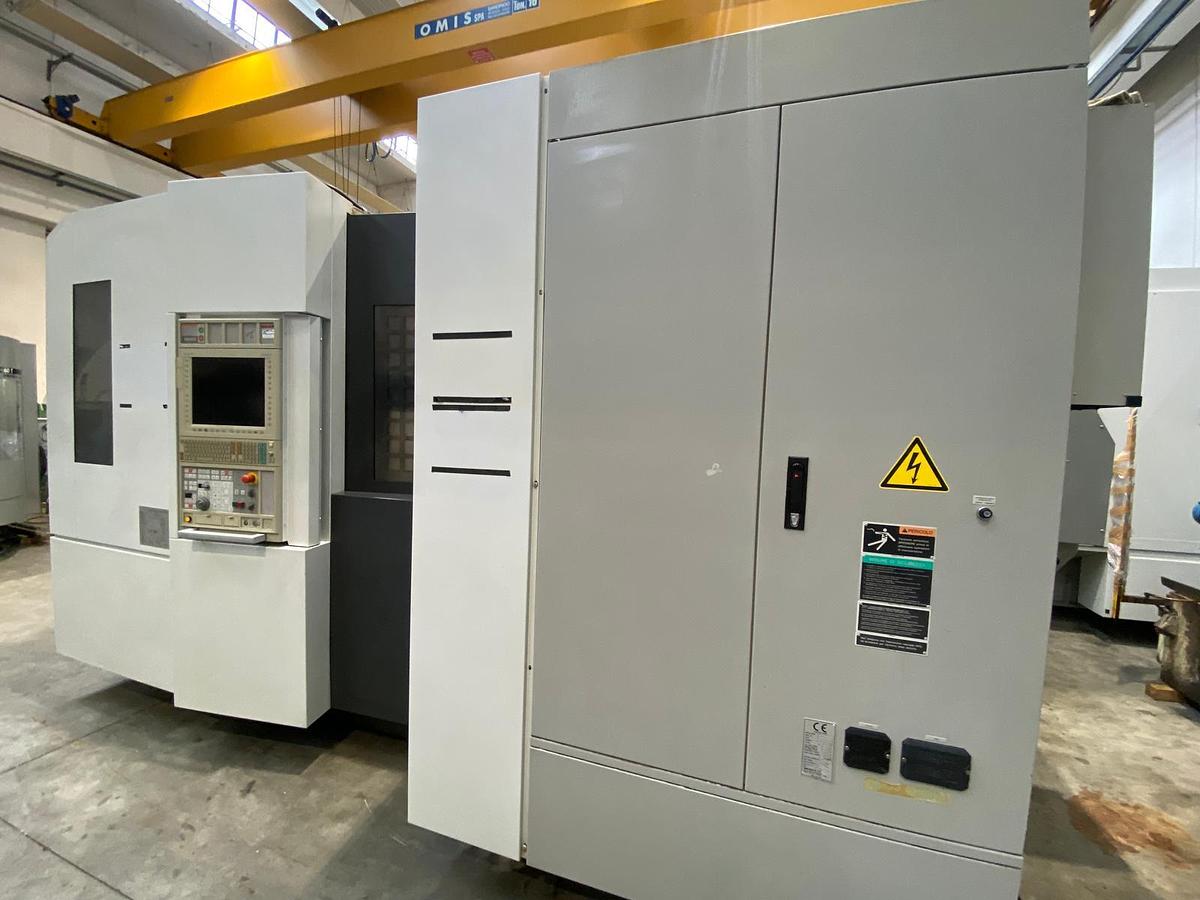

| CNC Control | MORI SEIKI MSX-711 IV |
| Spindle size | ISO 40 |
| Spindle speed | 14.000 Rpm |
| Spindle motor power (cont/30 min | 18.5 / 22 kW |
| X axis | 730 mm |
| Y Axis | 730 mm |
| Z Axis | 850 mm |
| Distance between spindle center - table surface | 100 ÷ 830 mm |
| Distance between spindle nose - table center | 100 ÷ 950 mm |
| Max workpiece dimensions (Diameter x Height) | Ø800 x 1.000 mm |

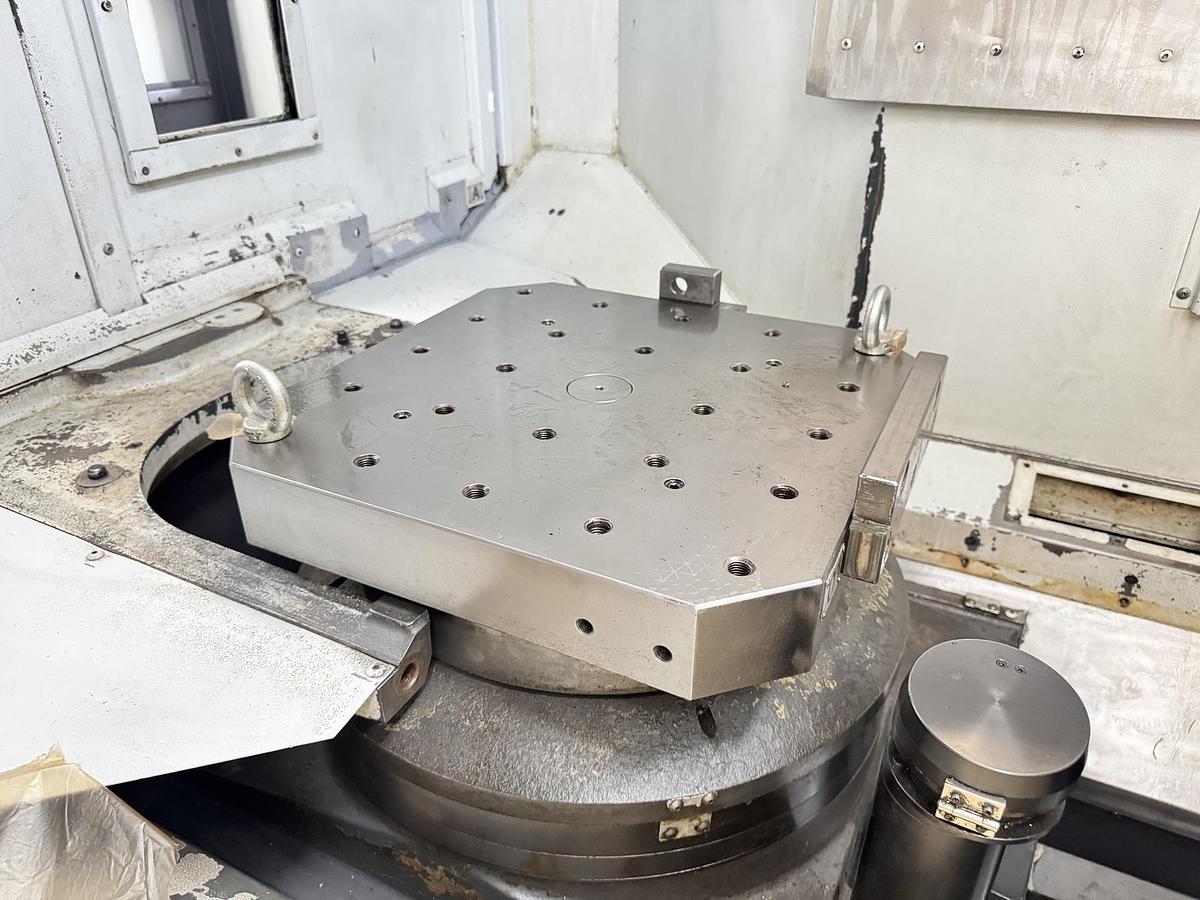

| Table dimensions | 500 x 500 mm |
| Max table load capacity | 500 Kg |
| Table rotation continous | 360.000 positions |

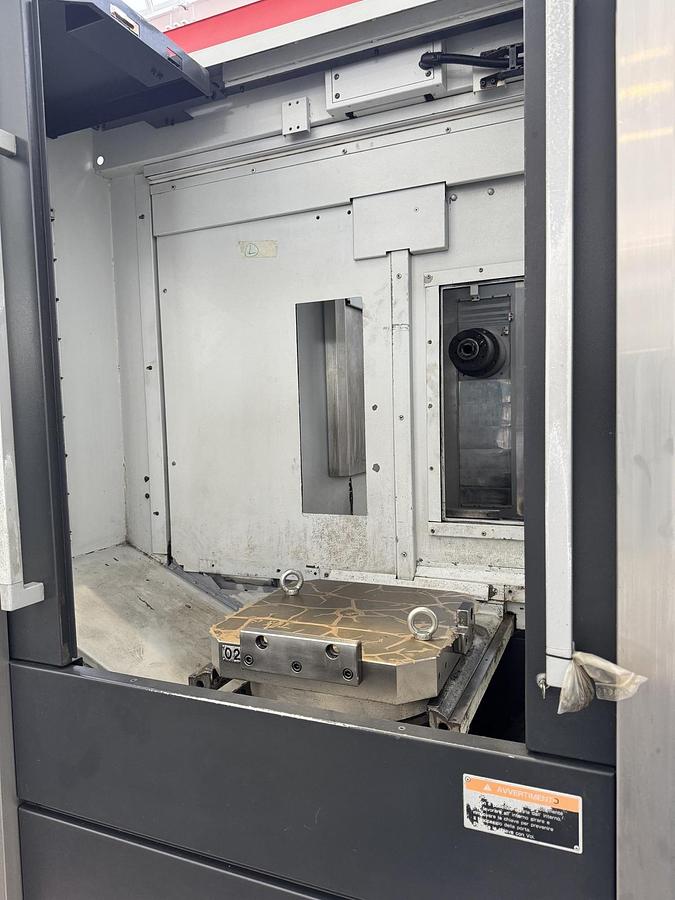

| Nr. of table pallets | 2 |
| Rapid feedrates X / Y / Z | 50.000 mm/min |
| Working feedrates X / Y / Z | 1 ÷ 50.000 mm/min |
| Tool type | MAS BT-40 |
| Pull stud type | Type 90° Mori Seiki |
| ATC positions | 60 Stations |
| Tools diameter | Ø140 / Ø70 mm |
| Machine dimensions | 4.628 mm x 4.952 mm x 3.012 mm |
| Machine weight | 12.700 Kg |
| Tools max lenght | 500 mm |
| Tools max weight | 12 Kg |

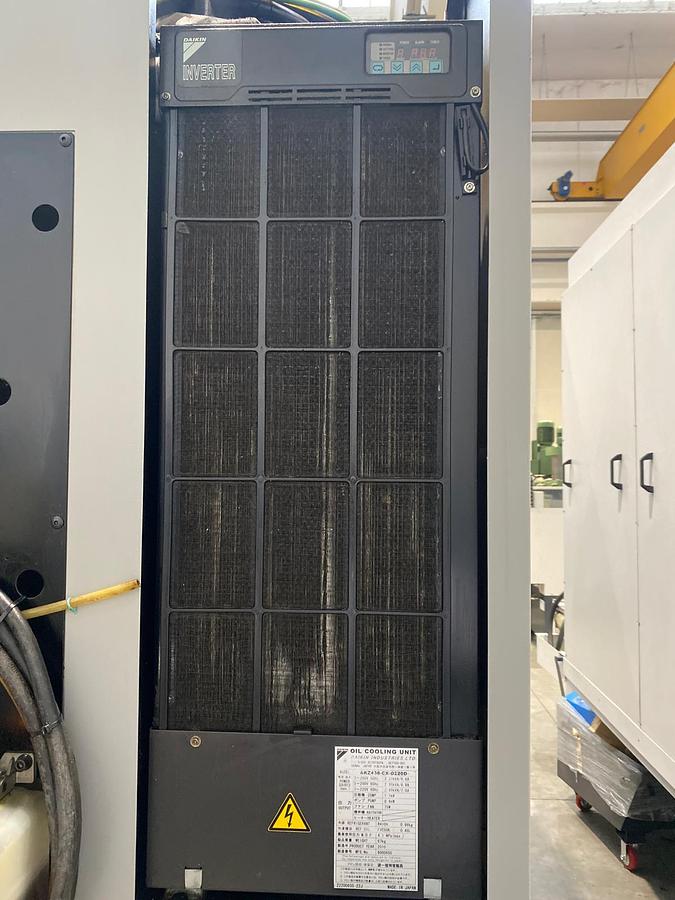

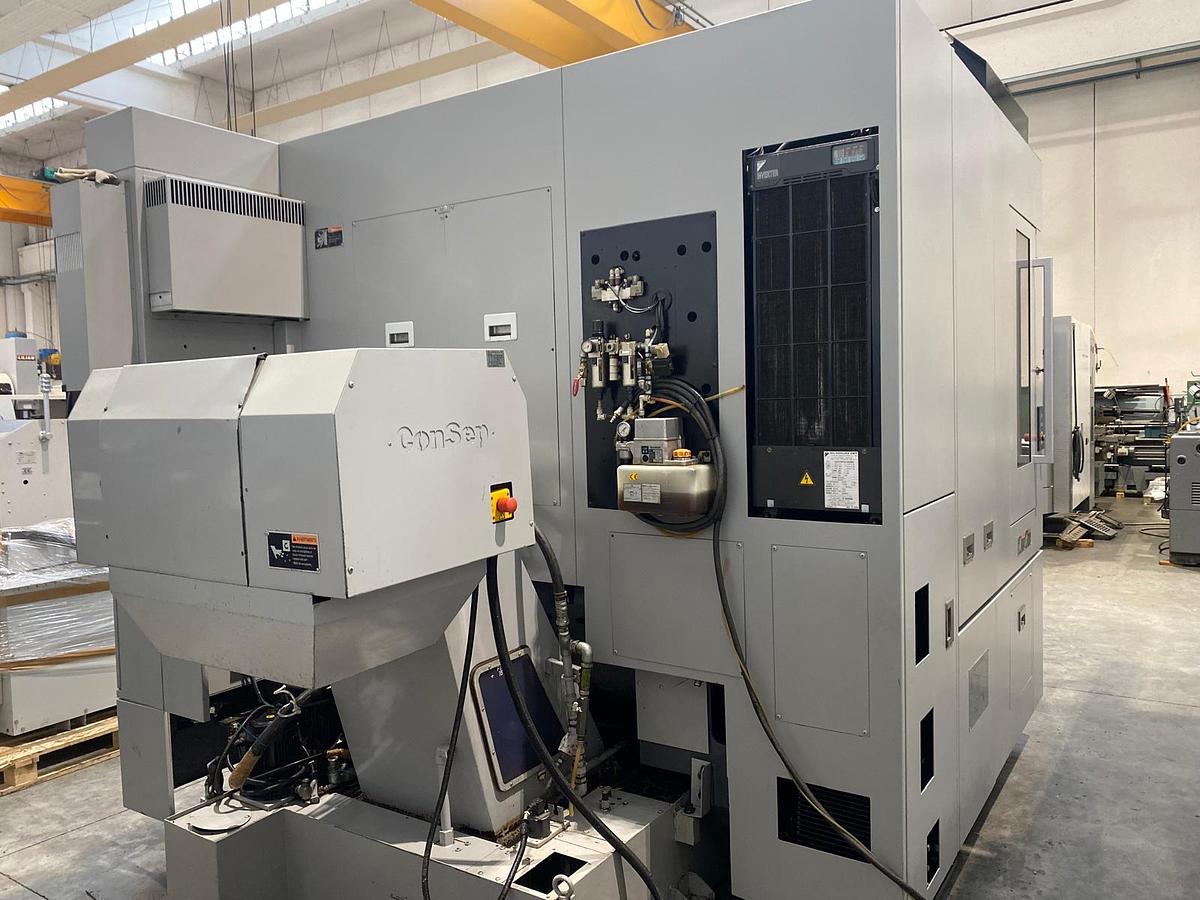

| Accessories | Coolant tank with high pressure pump + Paper filter system - Chip conveyor - Chiller for spindle head - Transformer - Manuals - Electric diagrams - EC CE Decleration |
