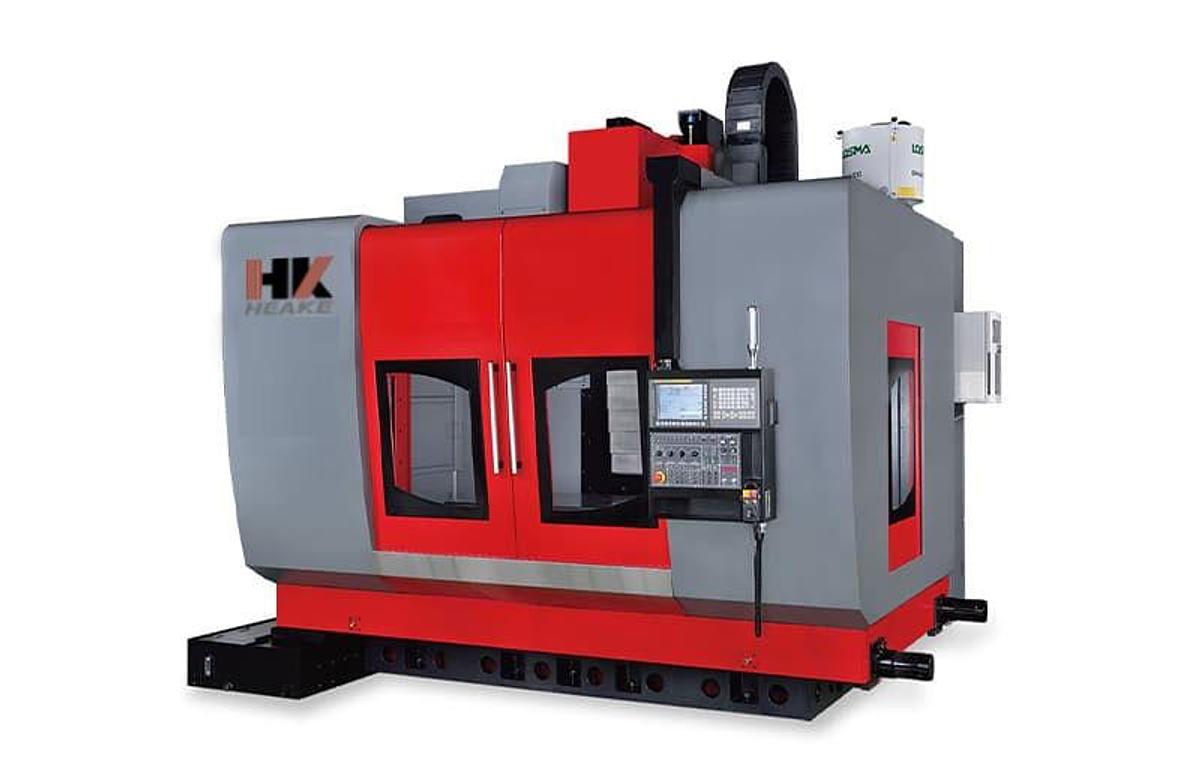

HEAKE HK-LV1888

HEAKE HK-LV1888

Location:Calerno, Italy

or
Call 00971-50-1515369

Description

Accessories:
Show All

Specifications

ManufacturerHEAKE
ModelHK-LV1888
ConditionNew
Stock NumberR2024142
CNC ControlFANUC 0i-MF PLUS
Spindle tool sizeISO-50
Spindle speed10.000 RPM
Spindle motor power (cont/30 min)15/18.5 kw
X axis1.800 mm
Y axis880 mm
Z axis850 mm
Table dimensions1900 x 950 mm
Max load allowed on table3.300 kg
X / Y / Z axis rapid feedrates15.000 / 15.000 / 15.000 m/mim
X / Y / Z axis working feedrates in linear interpolation (max)15.000 / 15.000 / 15.000 m/mim
Tool typeBBT-50
Tool pull stud typeBT-50
ATC capicity40 positions (opt. 60)
Max tool diameter75 mm
Max tool weight7 kg
