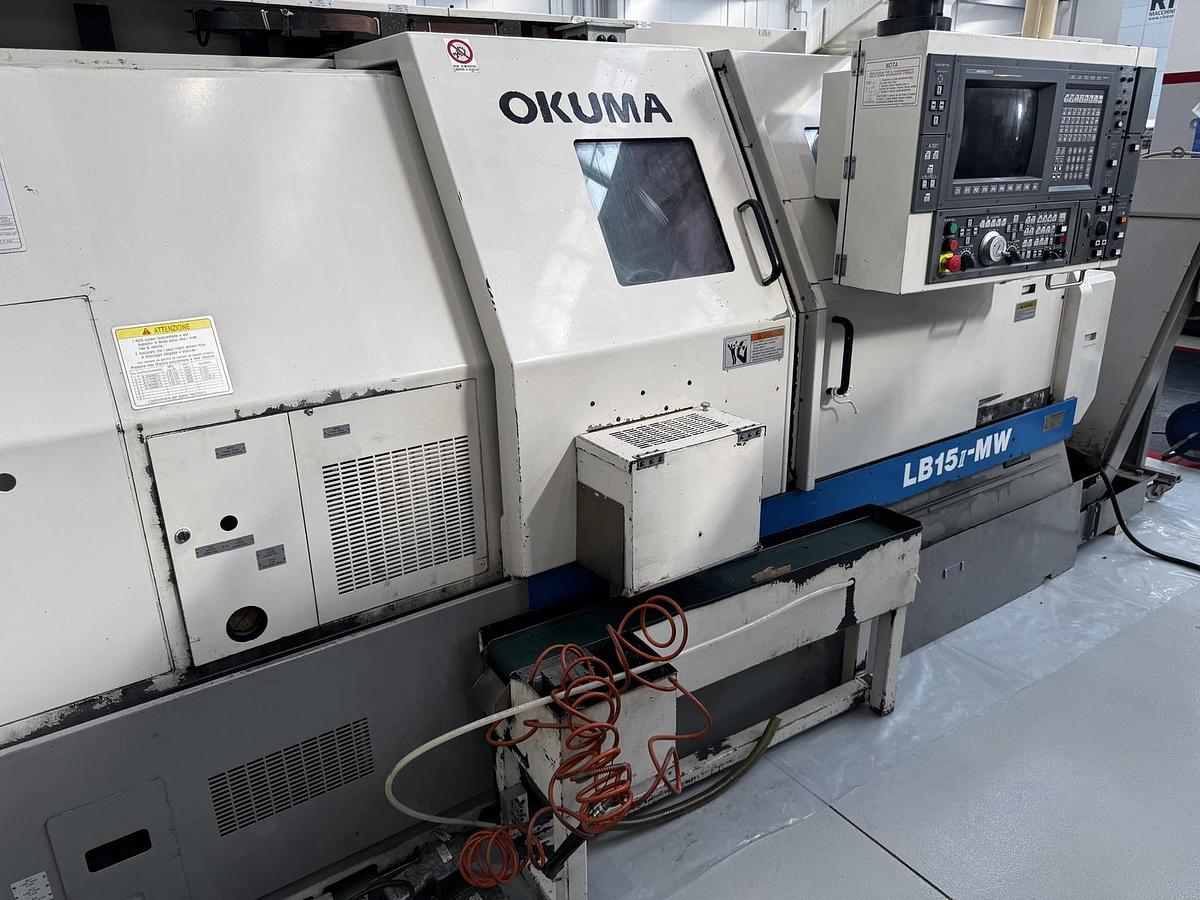

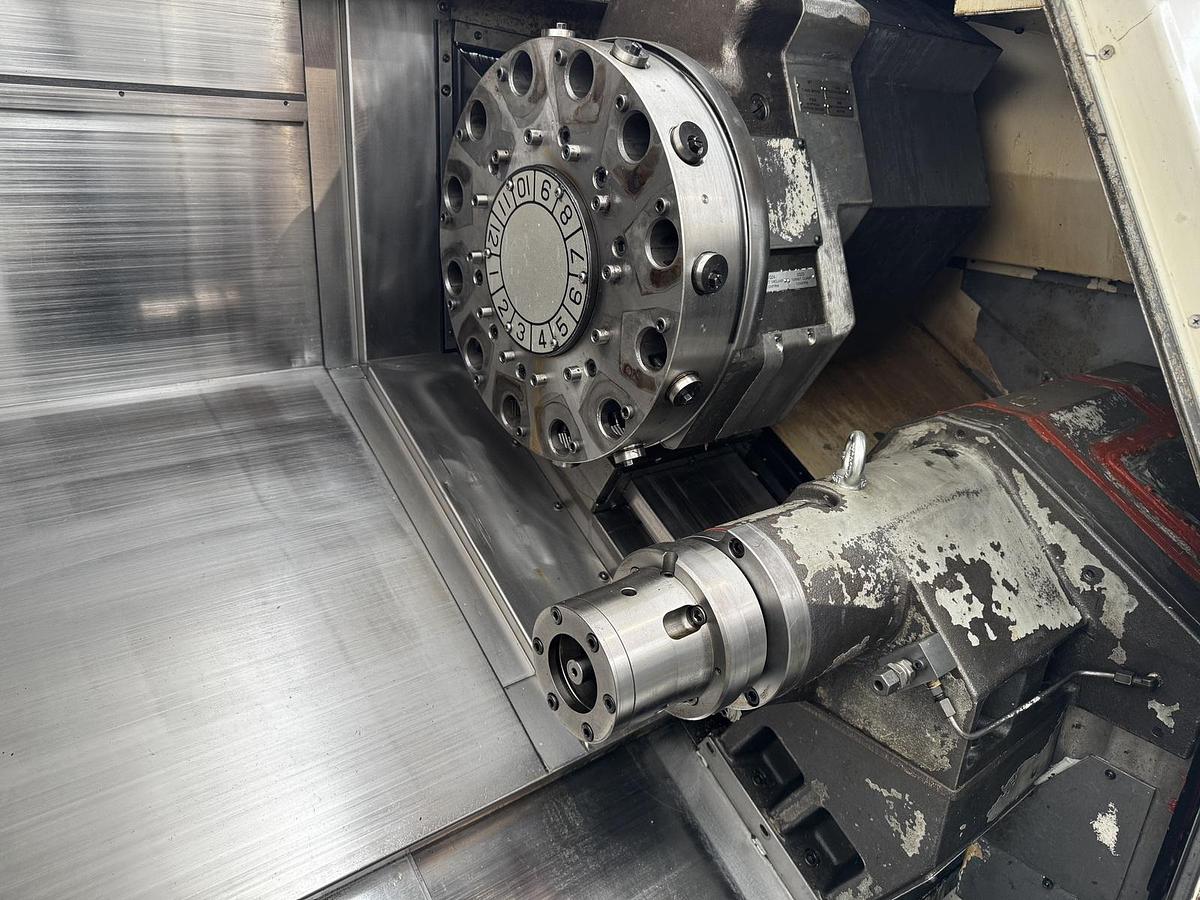

OKUMA LB15II-MW
OKUMA LB15II-MW
Location:Calerno, Italy
or
Call 00971-50-1515369
Description
Dimensions machine : Length: 3.315 mm Width: 1.895 mm Height: 1.905 mm
Specifications

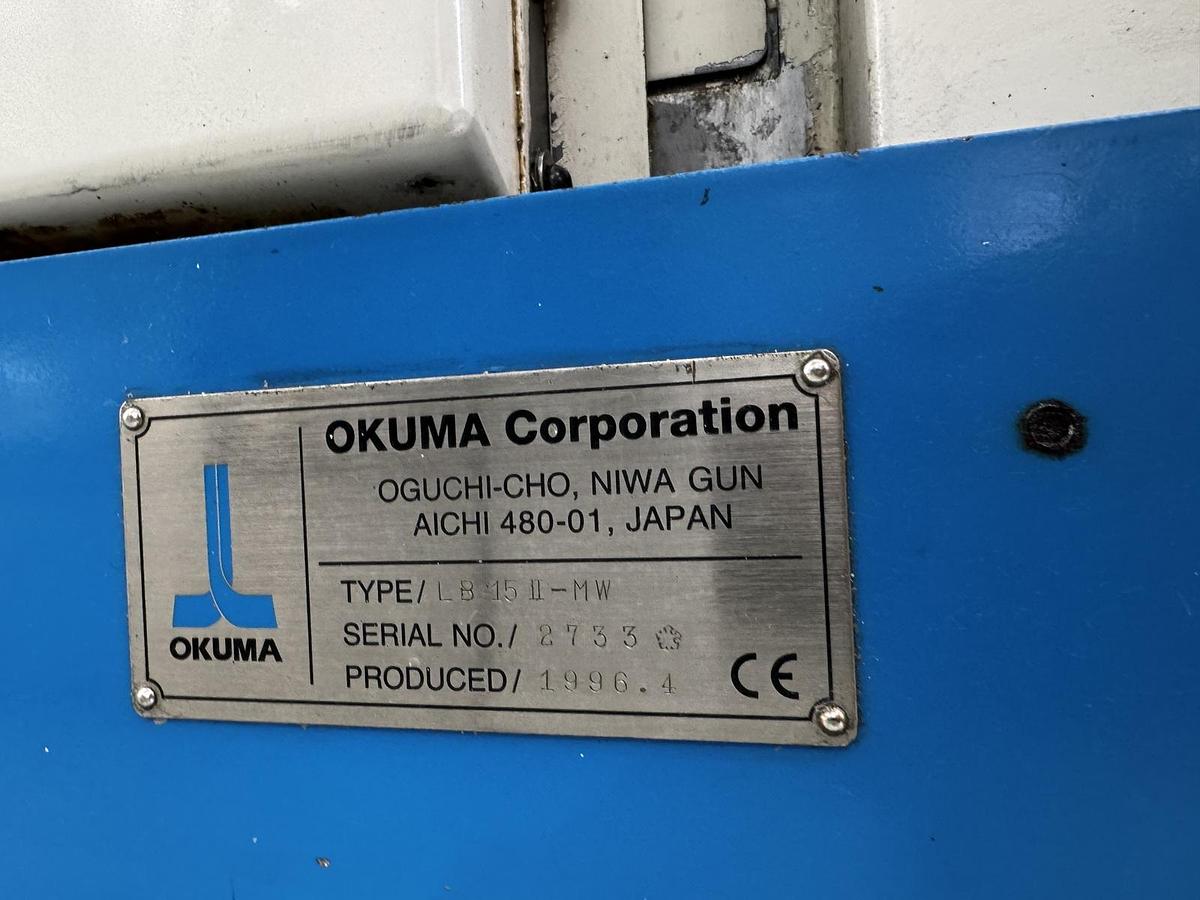

| Manufacturer | OKUMA |
| Year | 1996 |
| Condition | Used |
| Stock Number | R2024132 |

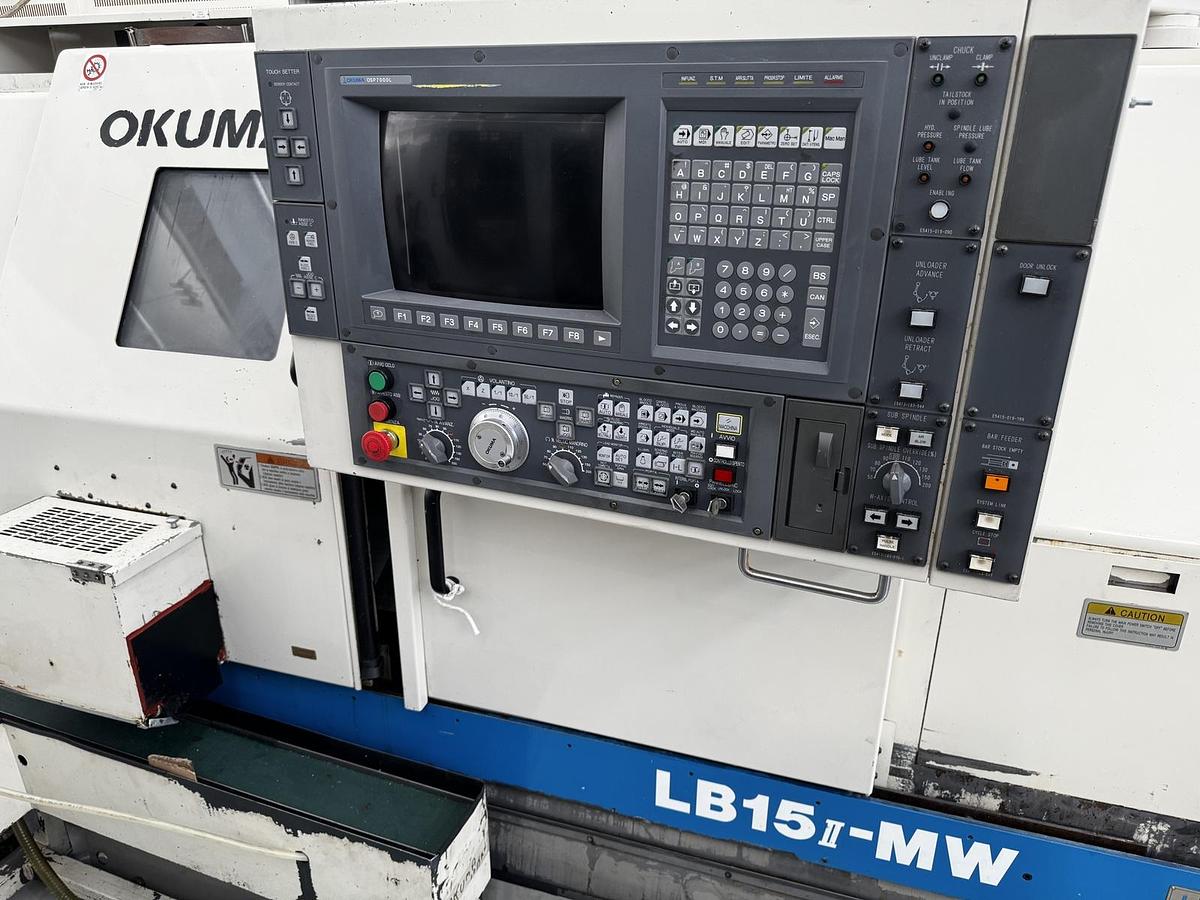

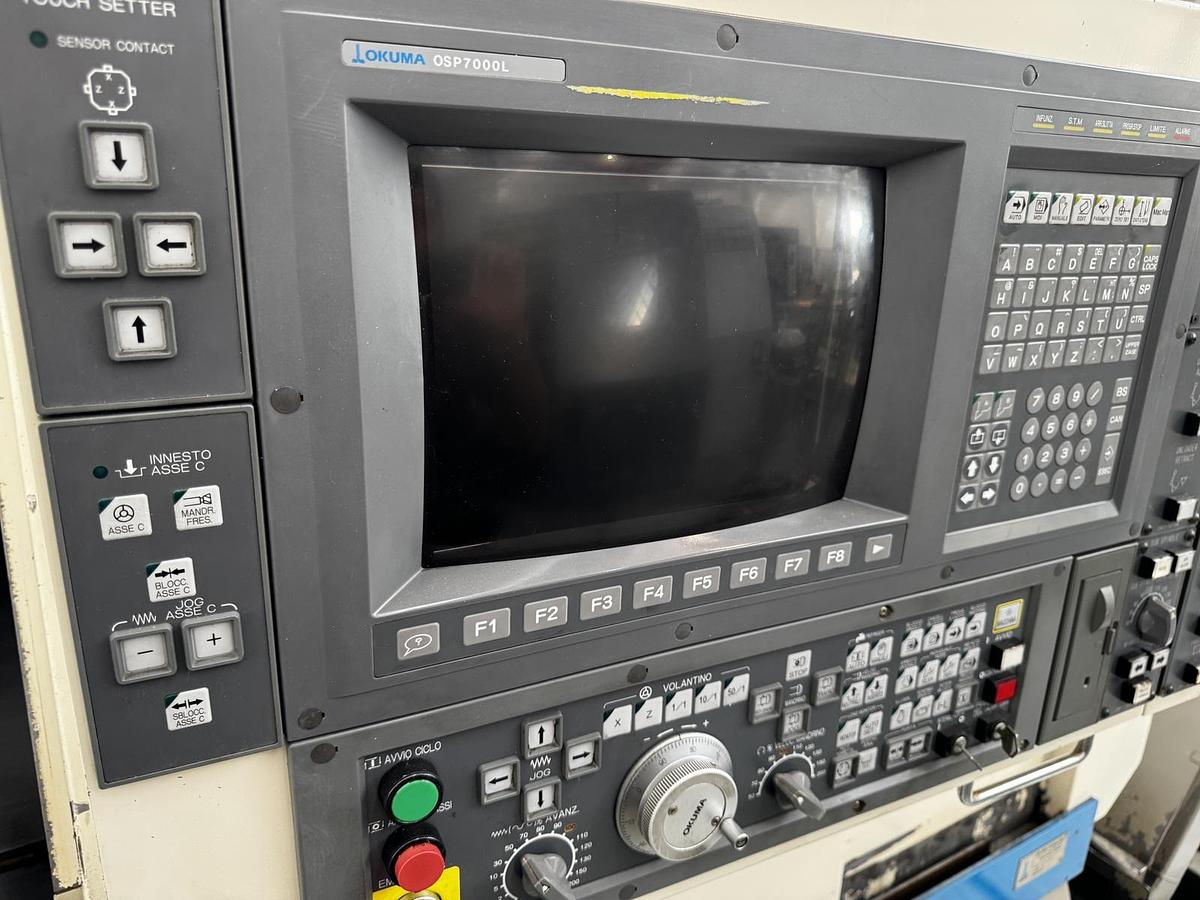

| CNC Control | OKUMA OSP7000L |
| Max swing over carriage | Ø 530 mm |
| Distance between centers | 1.020 mm |
| Max turning diameter main spindle / sub-sppindle | Ø 340 mm |
| Max turning lenght | 1000 mm |
| Draw bar diameter main spindle | Ø 62 mm |
| X Axis | 260 mm |
| Z Axis | 1020 mm |
| C Axis | 0,001° (360°) |
| Speed range | 45 ÷ 4.500 Rpm |
| Spindle nose | ASA A2-6 |
| Spindle motor power (cont./20 min) | 11/15 kW |
| Sub-spindle speed | 45 ÷ 4.500 Rpm |
| Sub-spindle nose | ASA A2-5 |
| Sub-spindle motor power (cont/20 min) | 7,5/11 kW |
| Turret stations | 12 positions |
| Tools dimensions | 25x25 mm / Ø 40 mm |
| Motorized speed | 3.000 giri/min |
| Rapid feed axis X | 15.000 mm/min |
| Rapid feed axis Z | 20.000 mm/min |
| Machine weight | 5.900 Kg |

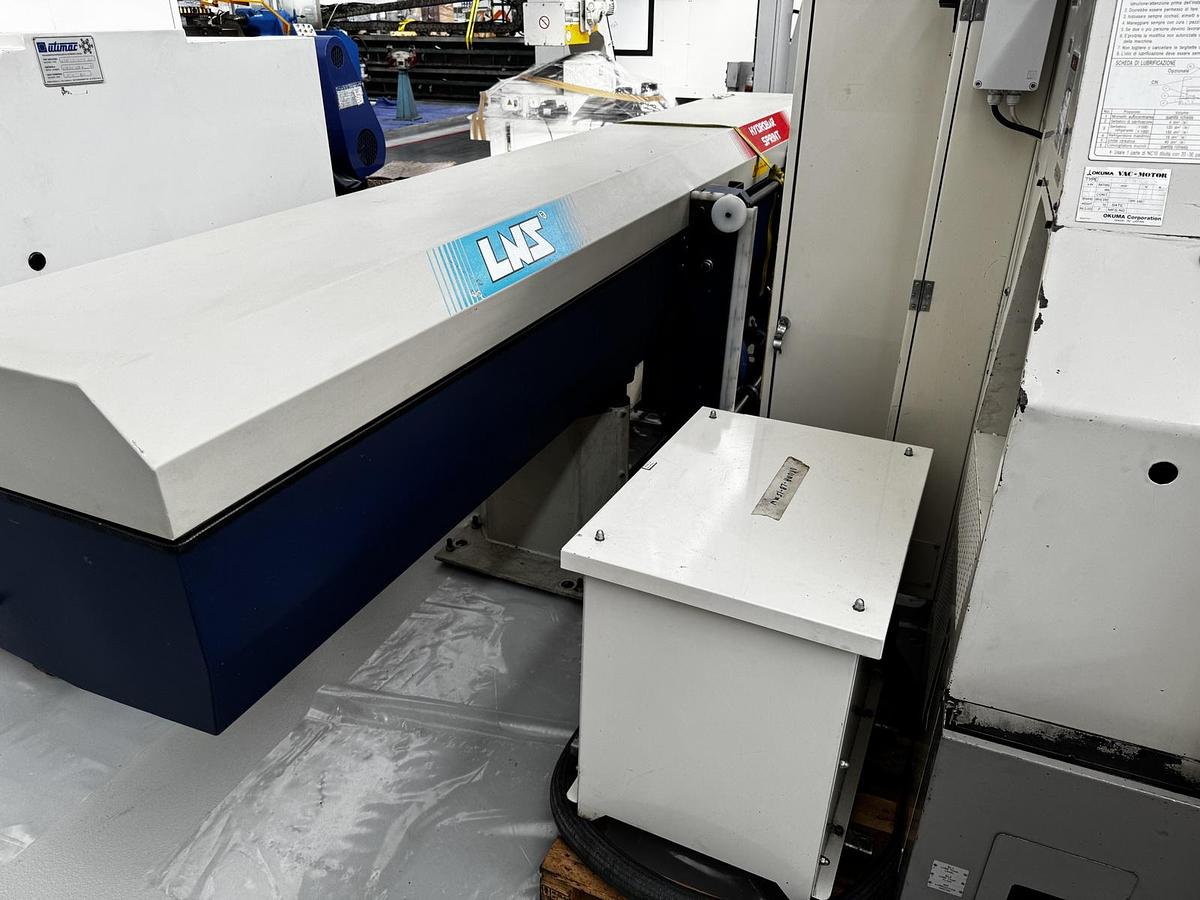

| Accessories | Bar Feeder LNS model MOVE with workable length capacity of 2.300 mm, Chip-conveyor Mayfran, Coolant tank with pumps, High pressure pump with external tank, Toor presetting arm with 2 tool contact probe + Automatic hand for piece collection, 17 fixed tools (10 boring bar holder +7 External turning), 6 Motorized tools (3 tiltable + 2 double axial + 1 axial), Manuals, Electrical Diagrams and EC CE Declaration |
