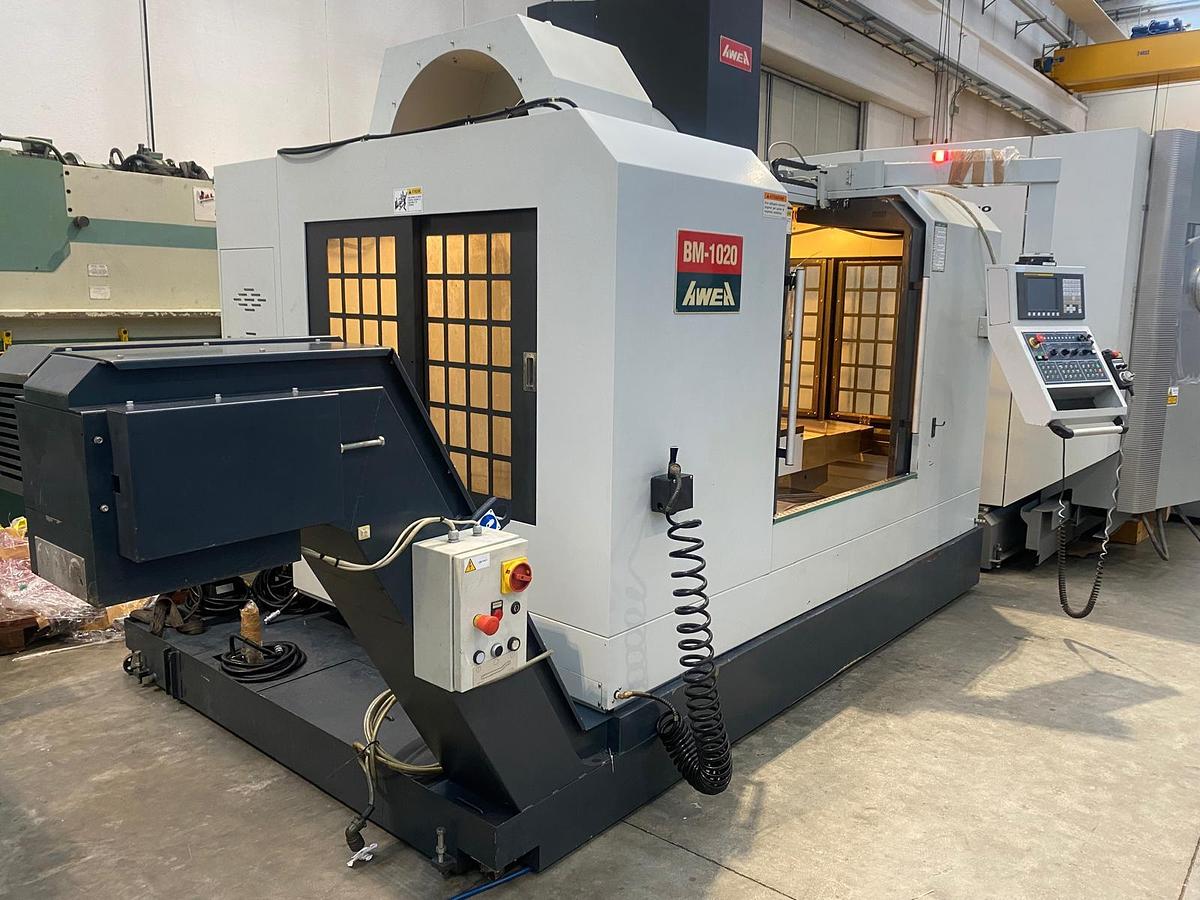

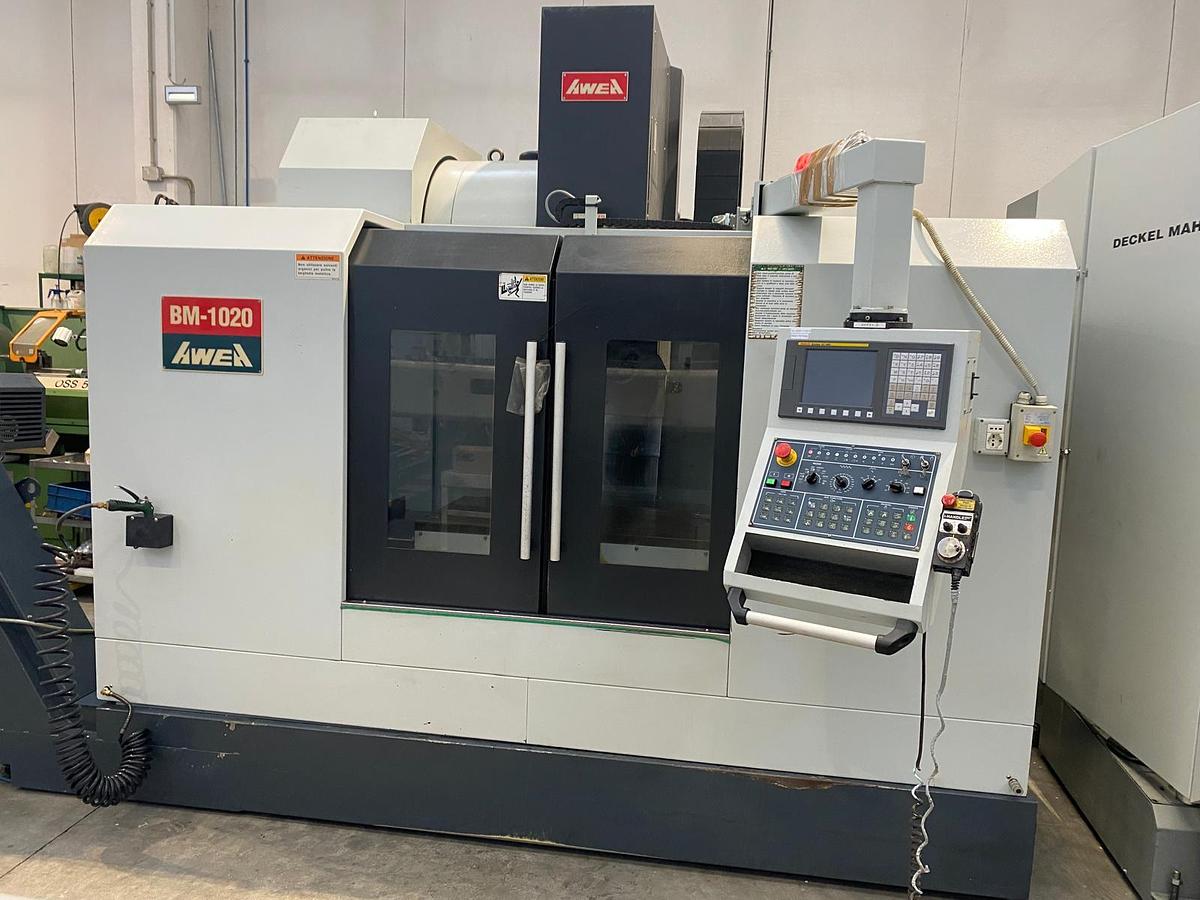

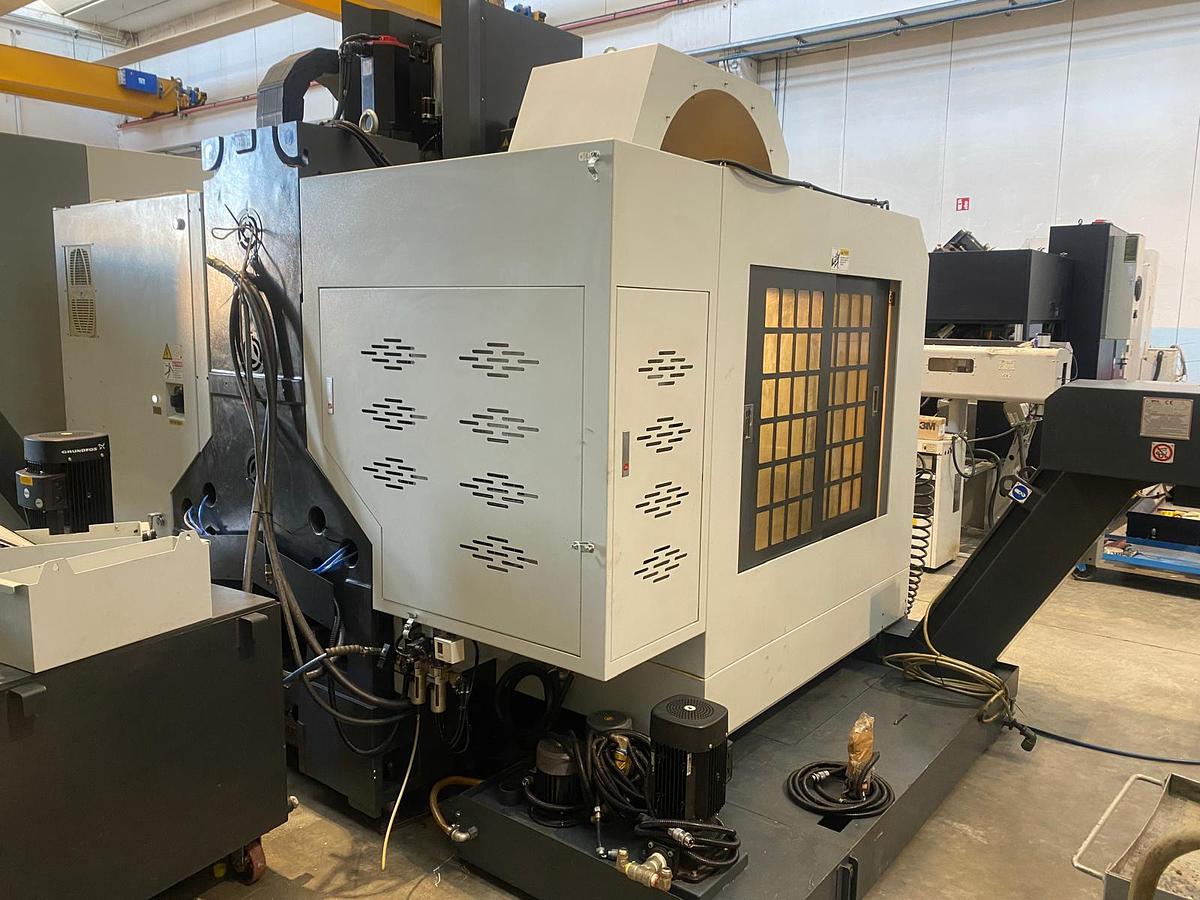

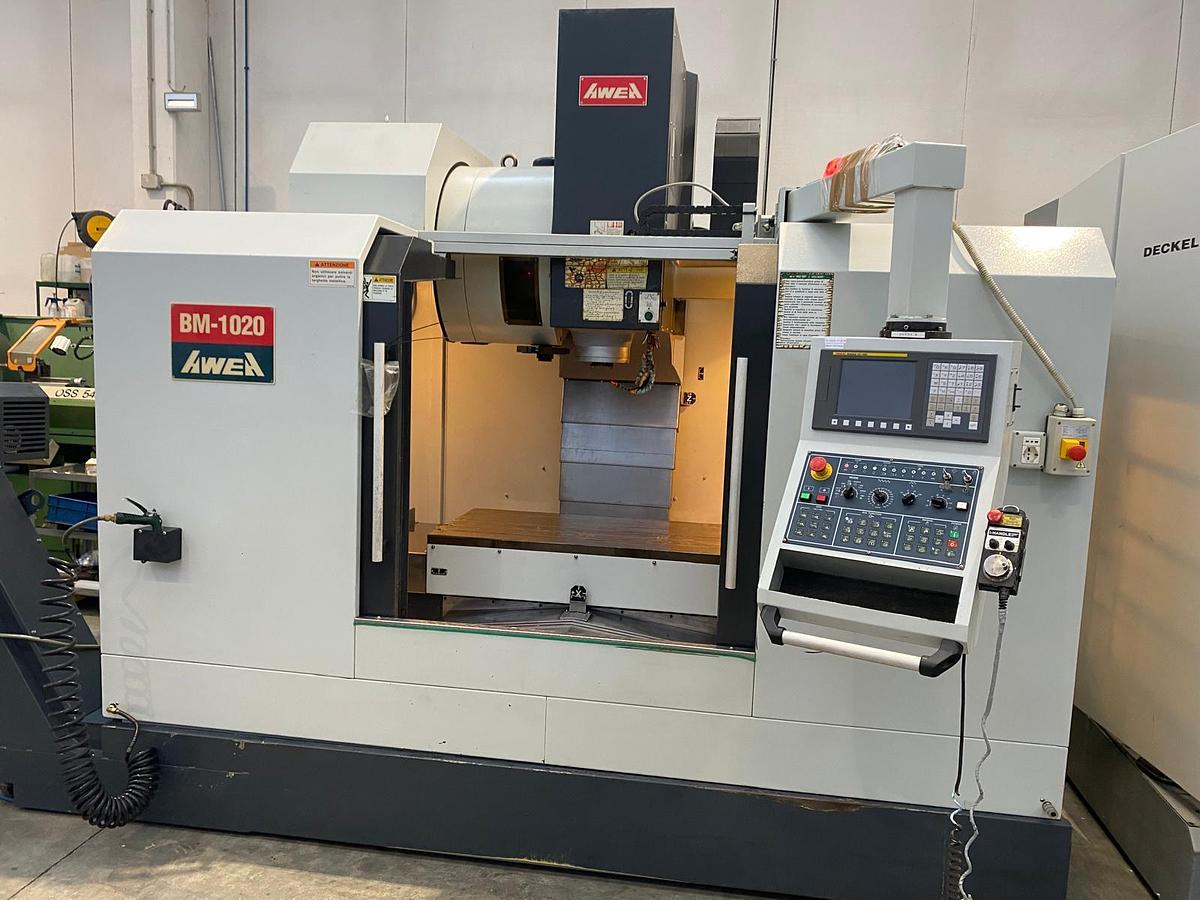

Awea BM-1020

Awea BM-1020

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerAwea
ModelBM-1020
Year2011
ConditionUsed
Stock NumberR2024131

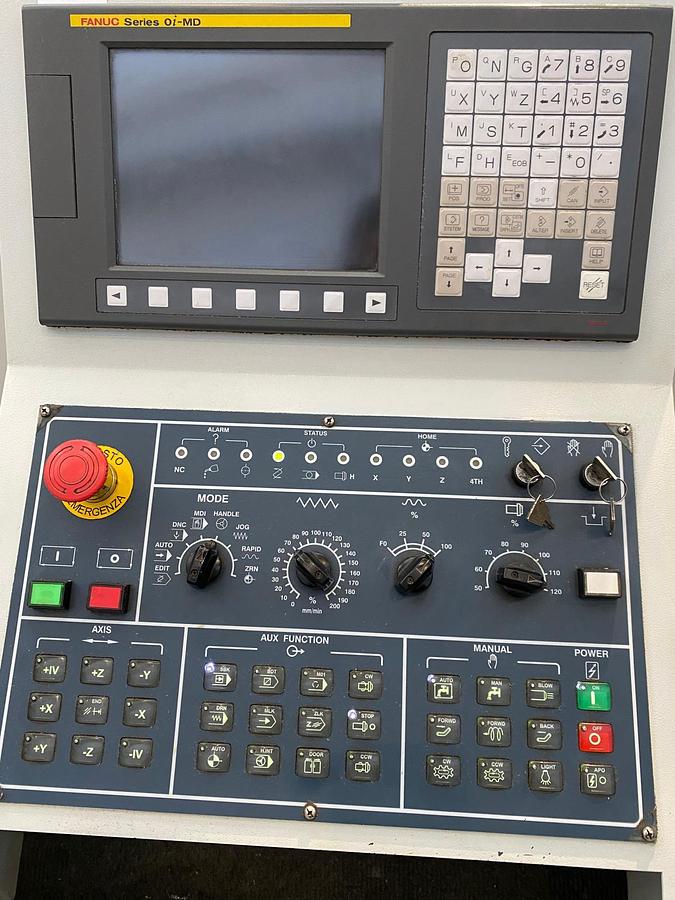

CNC controlFANUC 0i-MC
Cone dimensionsISO 40
Machine weight6.800 kg
ATC Capacity24 positions
Spindle speed8.000 RPM
X axis1.020 mm
Y axis600 mm
Tool typeDIN 69871 – A40
Tool shankDIN 69872 – A40
Z Axis600 mm
Distance between spindle center to column640 mm

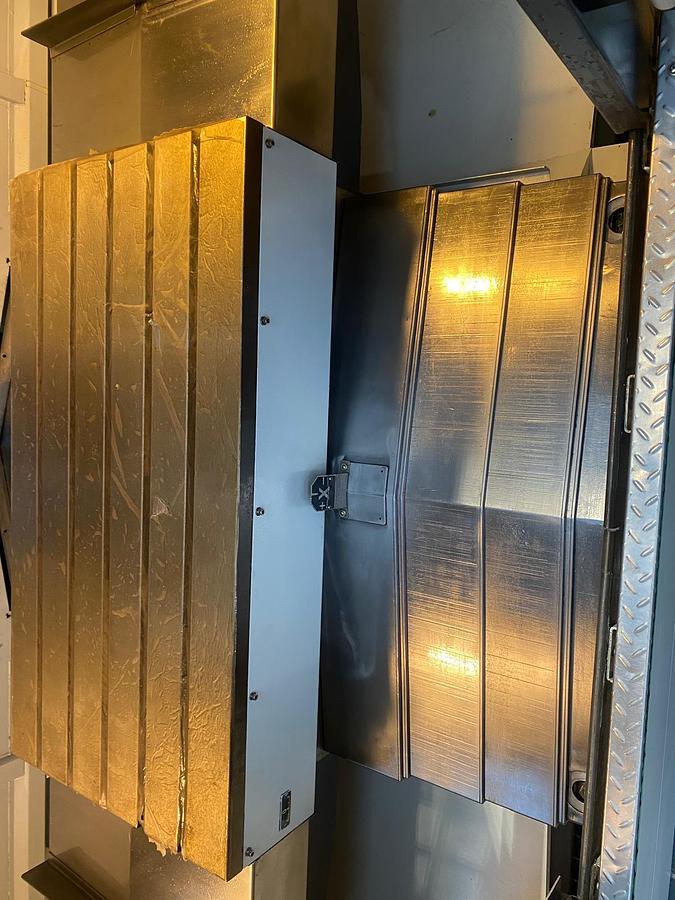

Table dimensions1.120 x 600 mm
Table load capacity1.000 Kg
Rapid feed axes X / Y / Z24000 mm / min
Working feed axes X / Y / Z10.000 mm / min
Maximum tool length250 mm
Maximum tool weight8 Kg
Spindle motor power7.5/11 kW
Distance between spindle nose - table surface125 - 725 mm

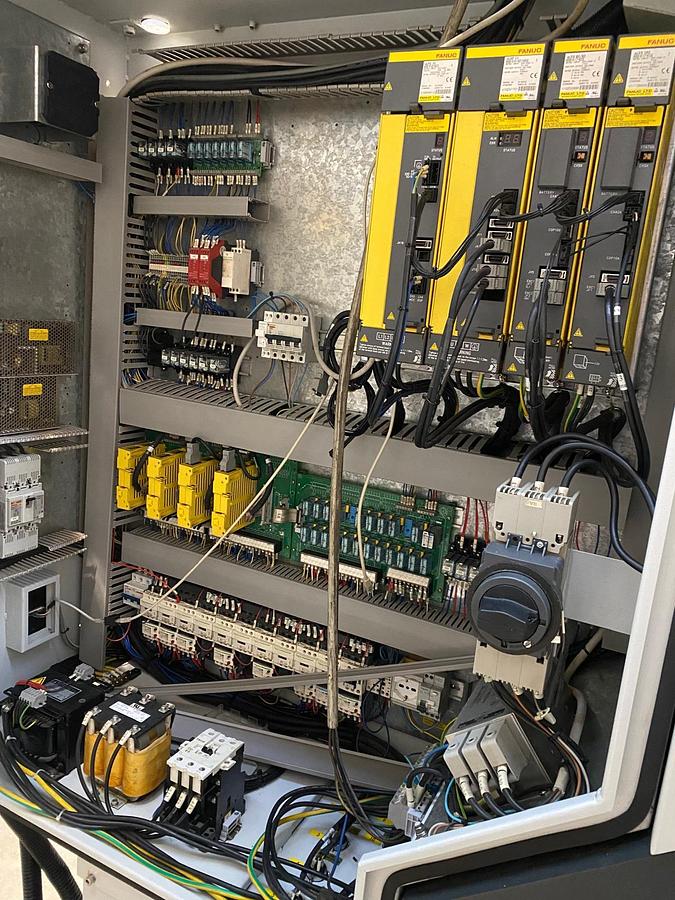

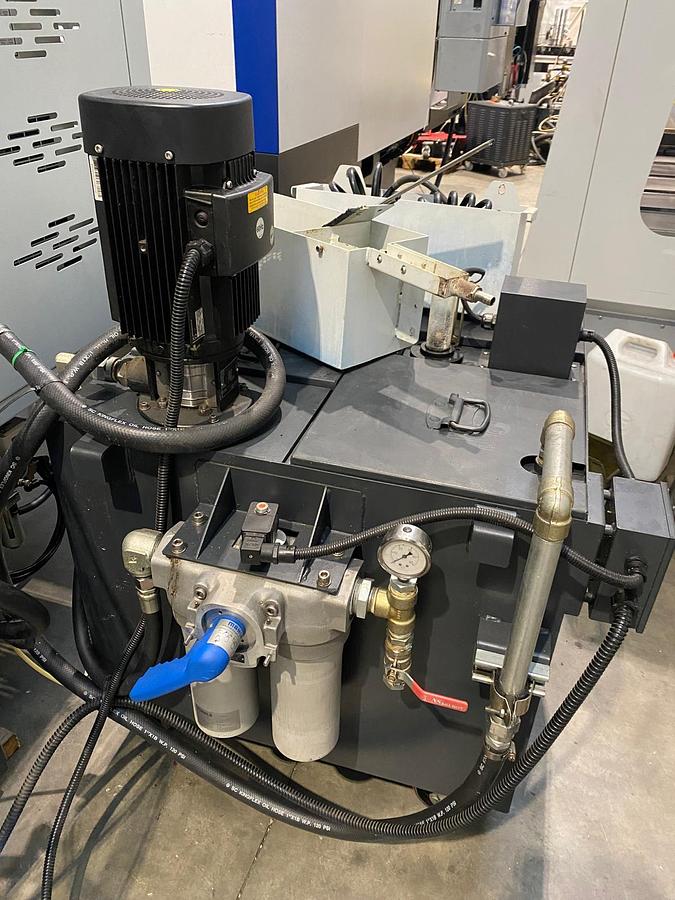

AccessoriesChip conveyor, Coolant tank with pumps, High pressure pump (15 bar) with external tank, Chiller for spindle head, Manuals, Electrical Diagrams and CE Declaration
