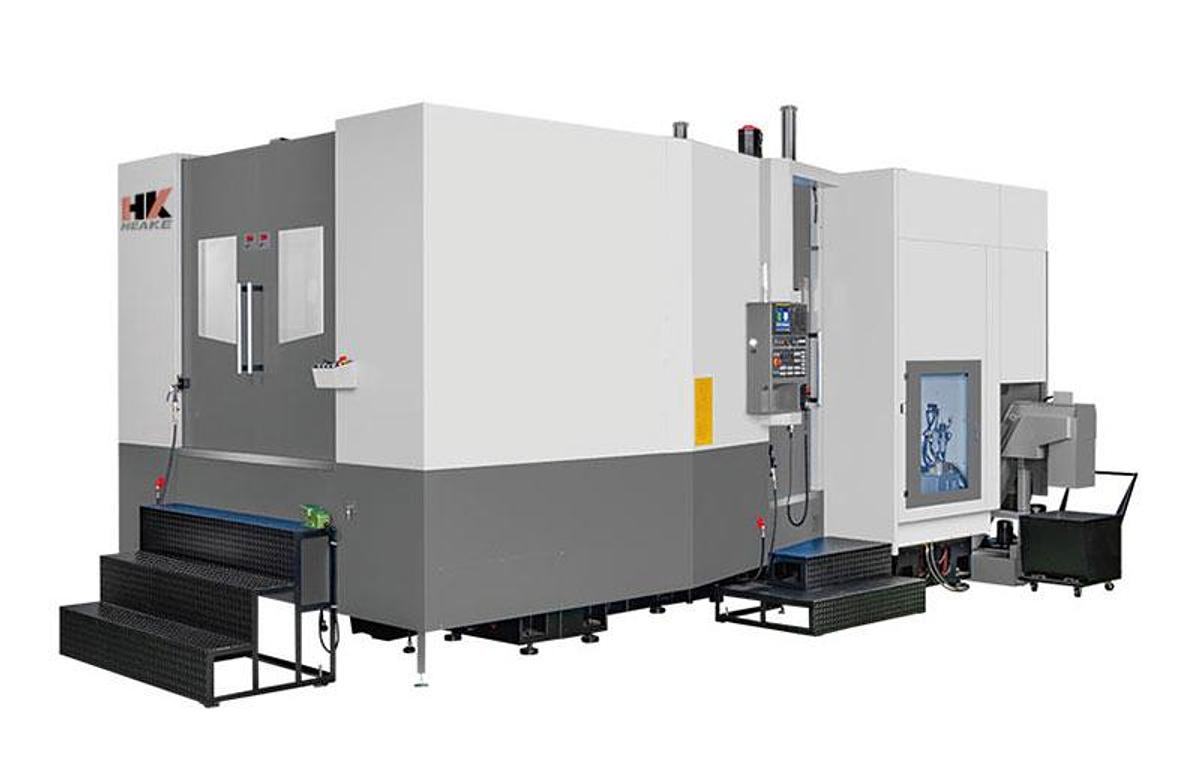

HEAKE HK-LH800(A)
HEAKE HK-LH800(A)
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | HEAKE |
| Model | HK-LH800(A) |
| Condition | New |
| Stock Number | R2025051 |
| CNC Control | FANUC 0i-MF PLUS / FANUC 31i-B Plus |
| Table size | 800 × 800 mm |
| Max. table load | 2000 × 2 Kg |
| Table height from floor | 1300 mm |
| Max. workpiece size (dia. × height) | Ø1600 × H1450 mm |
| Spindle nose taper | 7/24 Taper No. 50 |
| Max. spindle speed – direct drive / built-in | 8.000 (10.000) rpm |
| Max. spindle speed – gear drive | 4.000 / 6.000 rpm |
| X axis | 1.500 mm |
| Y axis | 1.100 mm |
| Z axis | 1.100 mm |
| Distance from spindle center to table surface | 50–1150 mm |
| Distance from spindle nose to table surface | 250 (150)–1350 (1250) mm |
| Rapid traverse rates on X, Y, Z axes | 24 / 24 / 30 (30 / 30) m/min |
| Cutting feed rate | 1–20000 mm/min |
| Tool shank type | BT-50 (BBT-50) |
| Tool loading capacity | 40(60)(90)(120) mm |
| Max. tool diameter | Ø125 mm |
| Max. tool diameter (without adjacent tool) | Ø250 (Ø450) mm |
| Max. tool length | 550 mm |
| Max. tool weight | 25 kg |
| Spindle motor | 15 / 18.5 (18.5/22)(22/26) kW |
| Servo motors on X, Y, Z axes | 6 / 6 / 6 kW |
| Dimensions machine only | 5465 × 7930 × 3960 mm |
| Weight (with single pallet) | 21.800 kg |
| Weight (with twin pallets) | 25.200 kg |
