CLC-200 C.L.C

CLC-200 C.L.C

Location:Calerno, Italy

or
Call 00971-50-1515369

Description

MACHINE DIMENSIONS: Length: 3.500 mm Width: 2.500 mm Height: 2.700 mm Distance between hob cutter axis and table axis: Minimum: 10 mm Maximum: 270 mm
Show All

Specifications

ManufacturerC.L.C.
Year2013
ConditionUsed
Stock NumberR2024134
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/32b697be592236cae7c626875ee6d89d/CLC%20200.pdf

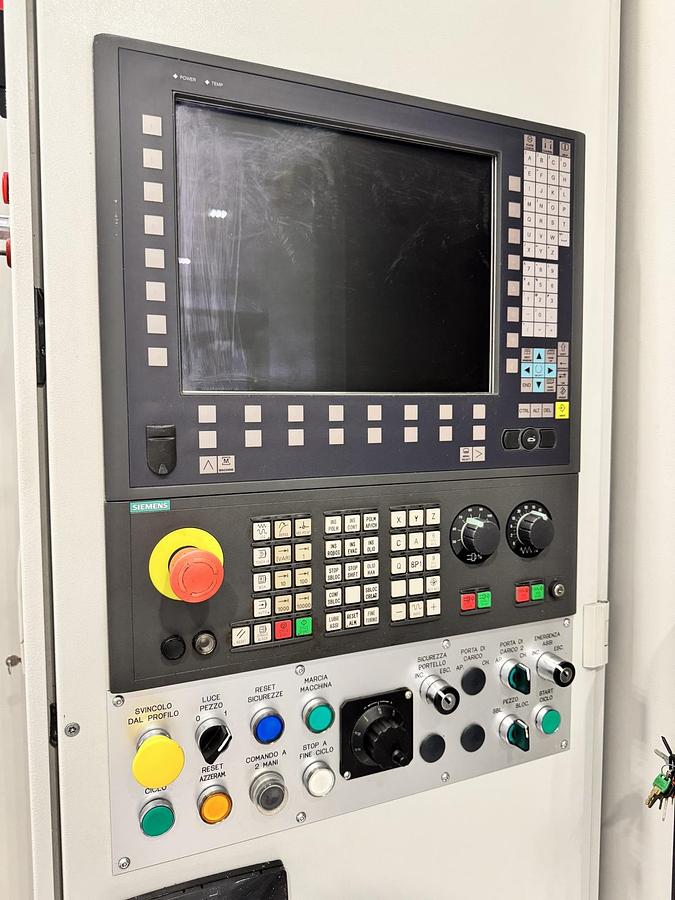

CNC CONTROLSIEMENS 840D
TOTAL POWER REQUIRED41 kW
Spindle typeISO-40
Max workable diameterØ 200 mm
Max module6
Max vertical travel300 mm
Table diameterØ 210 mm
Table rotational speed240 Rpm
Max head inclination± 45°
Tangential head travel205 mm
Max diameter of hob cutterØ 135 mm
Axial rapid feed4.000 mm/min
Radial rapid feed4.000 mm/min
Tangential rapid feed6.000 mm/min
Spindle motor power12 kW

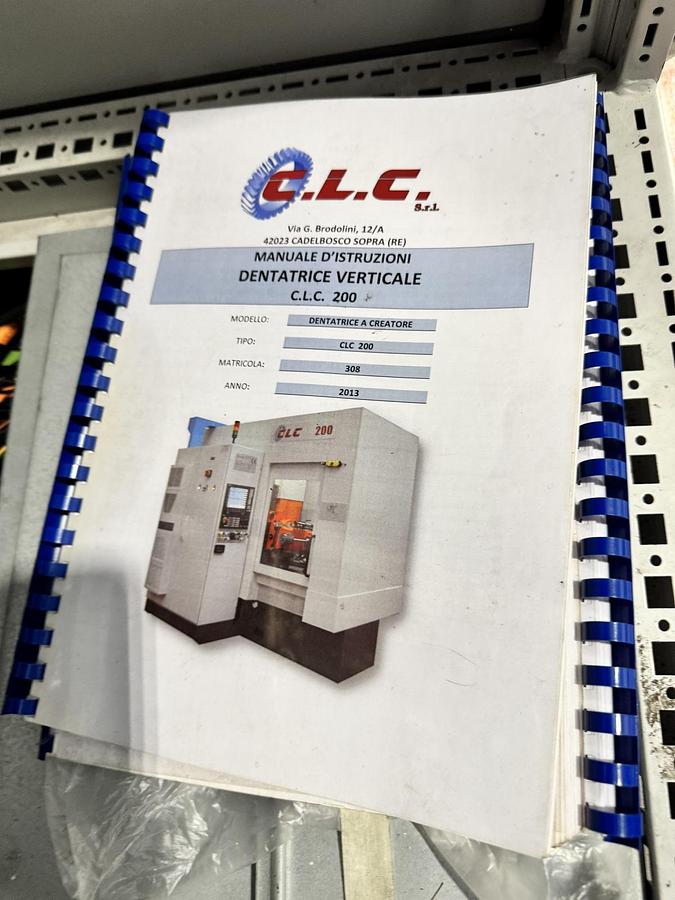

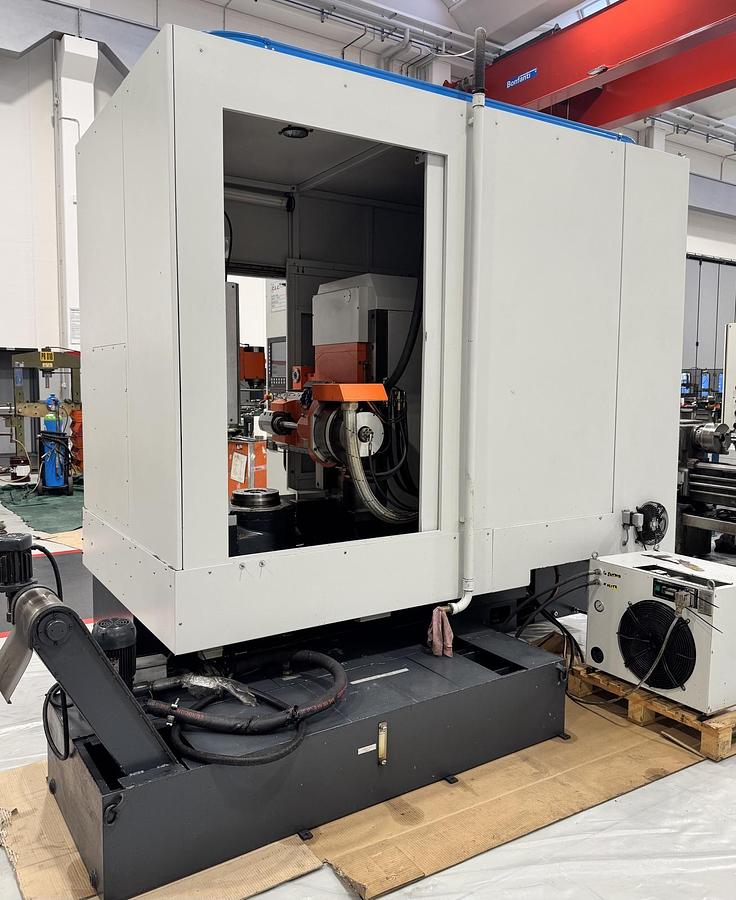

AccessoriesMagnetic chip conveyor, Coolant tank with pumps Manuals, Electrical diagrams and EC CE Declaration
