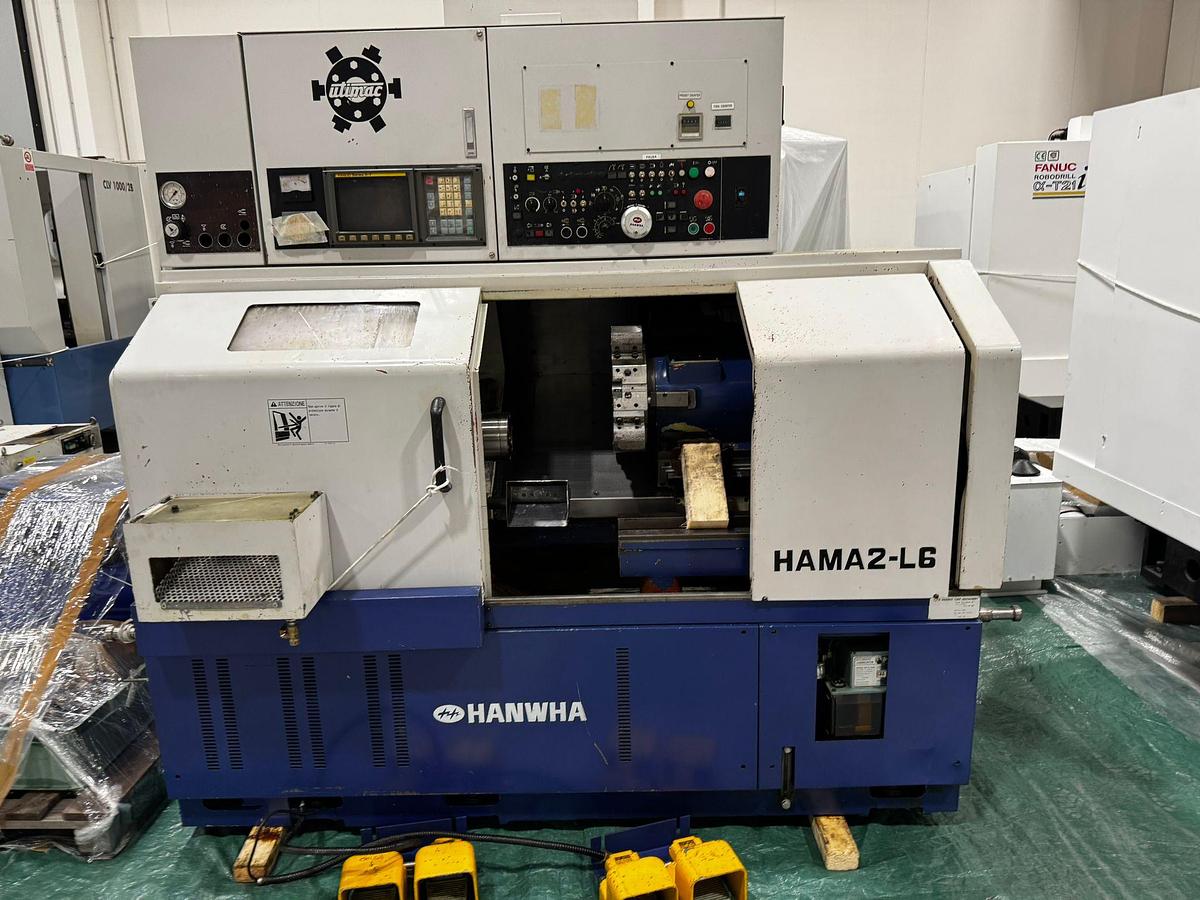

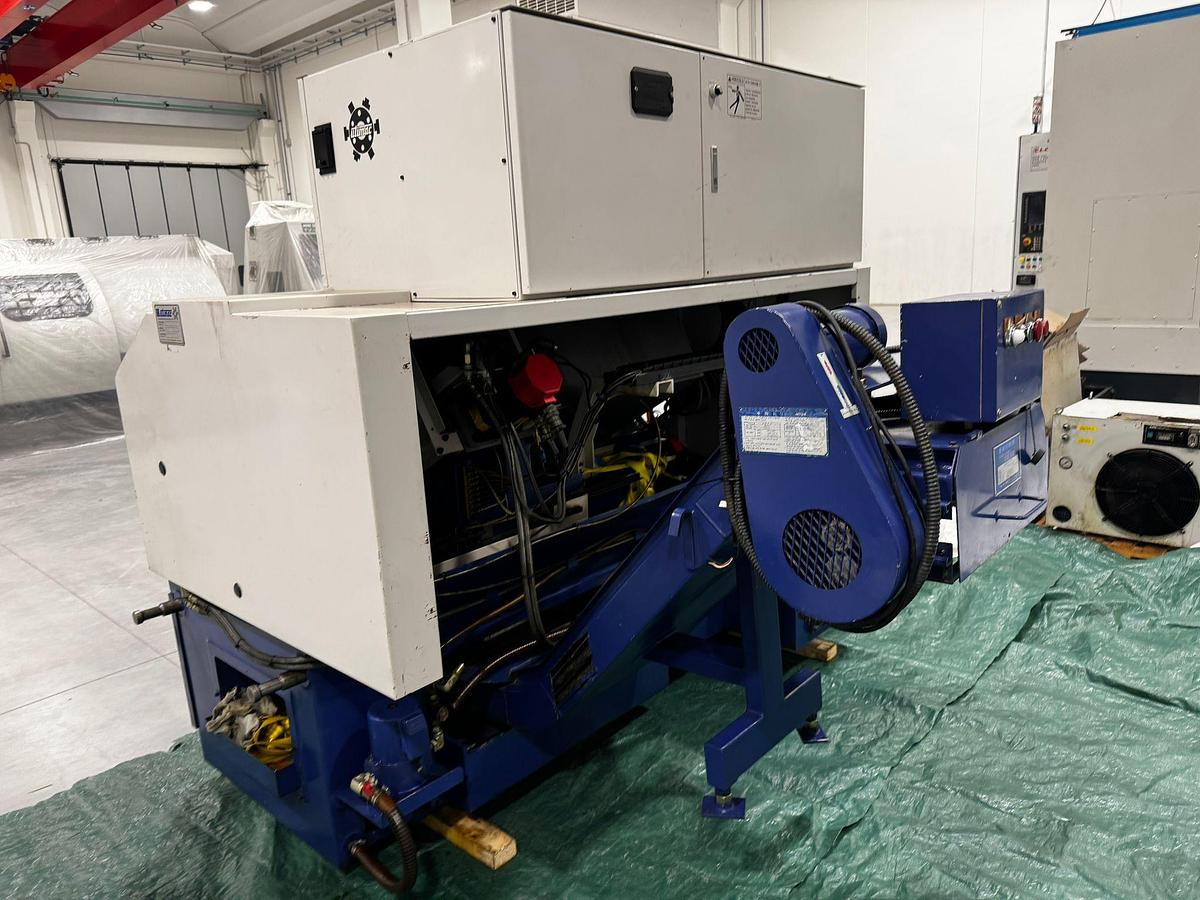

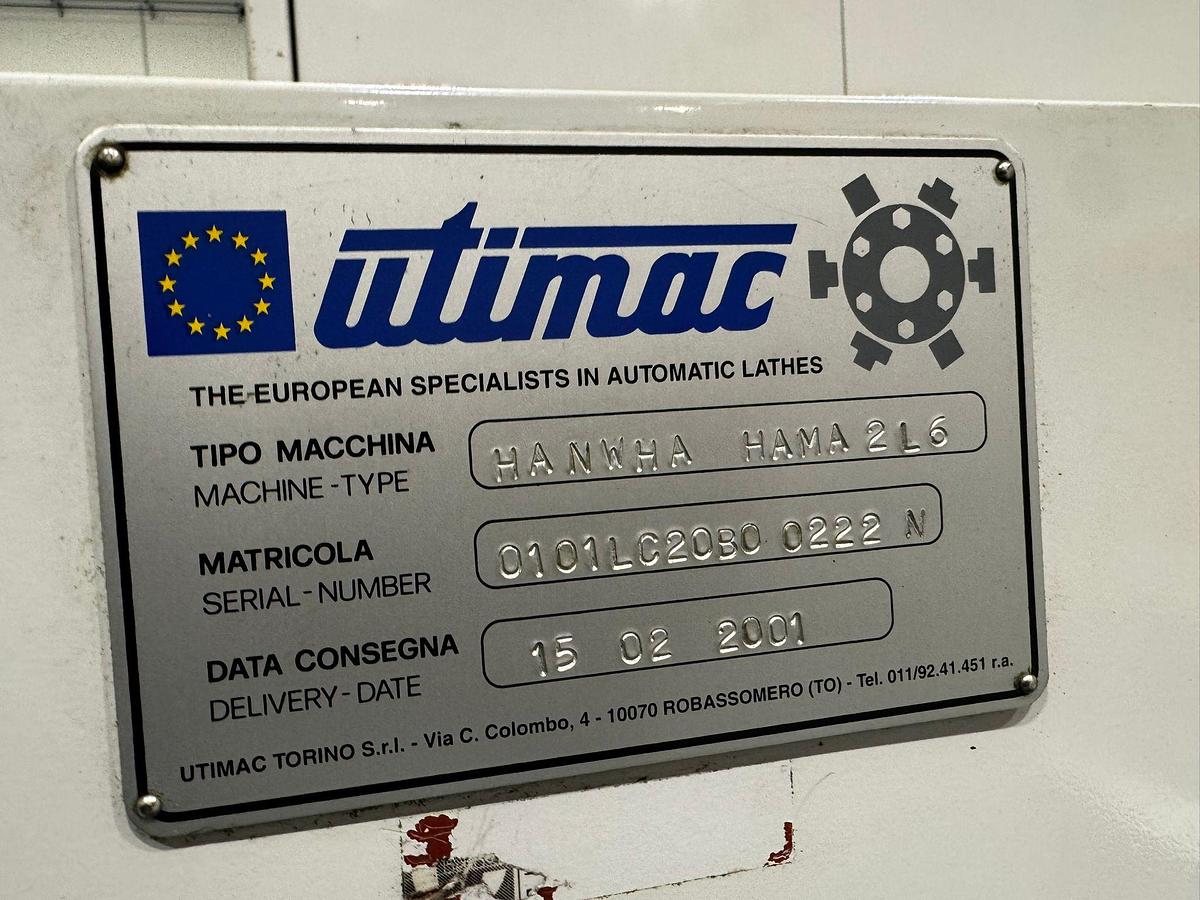

HANWHA HAMA 2-L6

HANWHA HAMA 2-L6

Location:Calerno, Italy

or
Call 00971-50-1515369

Specifications

ManufacturerHANWHA
ModelHAMA 2-L6
ConditionRefurbished
Stock NumberR2024-163
Documentshttps://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/faaafd7041c896a01b4e7d8a14bb51c8/Hanwha%20HAMA2-L6.pdf

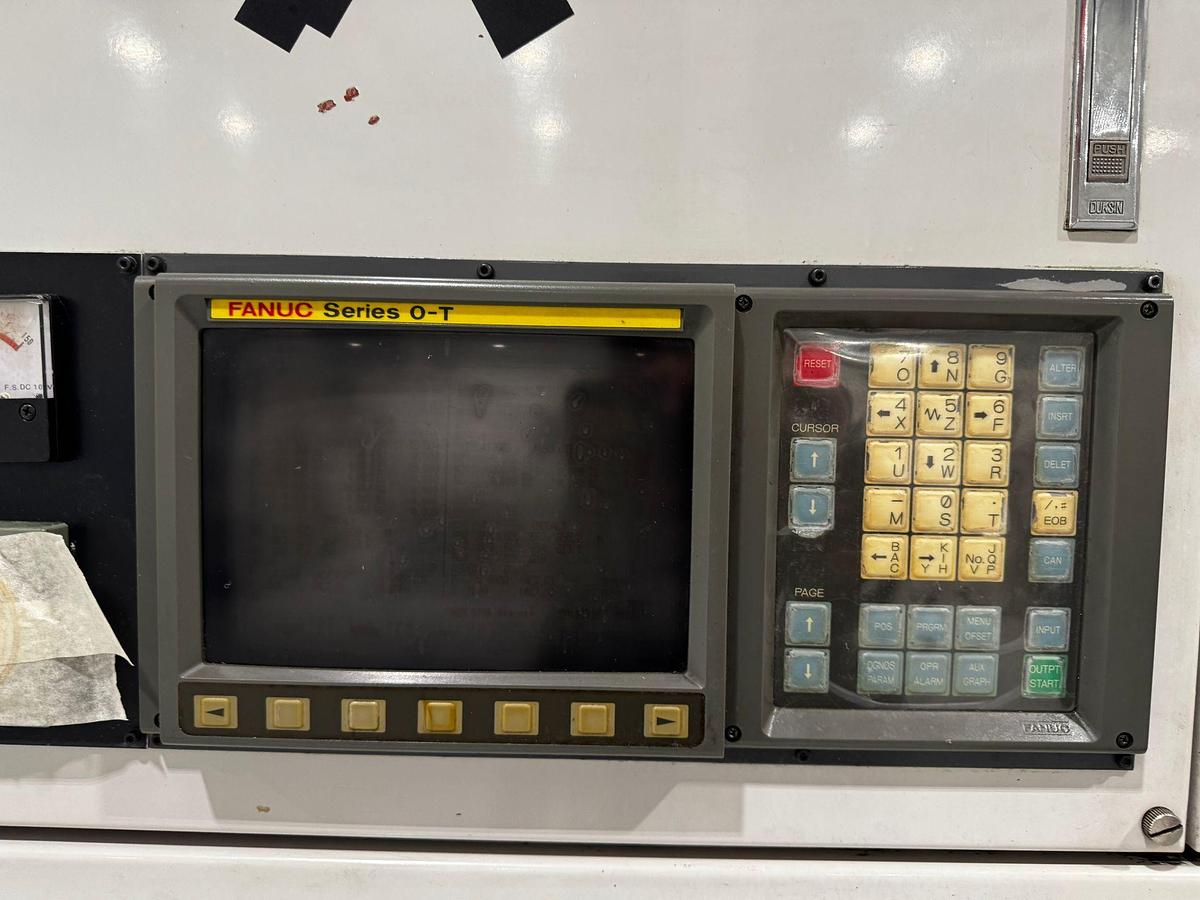

CNC ControlFANUC Series 0-T
Max swing over the benchØ 420 mm
Max turning diameterØ 240 mm
Max turning length600 mm
Bar diameter capacity through the spindleØ 51 mm
X axis travel140 mm
Z axis travel610 mm
Spindle chuck diameterØ 210 mm
Spindle speed4.000 Rpm
Spindle nose sizeASA A2-6
Turret positions8 stations
Turning / boring tool dimensions25x25 mm / Ø40 mm
X axis feedrate17.000 mm/min
Z axis feedrates20.000 mm/min
Tailstock quill diameterØ 60 mm
Tailstock taper sizeMT 4
Tailstock quill travel100 mm

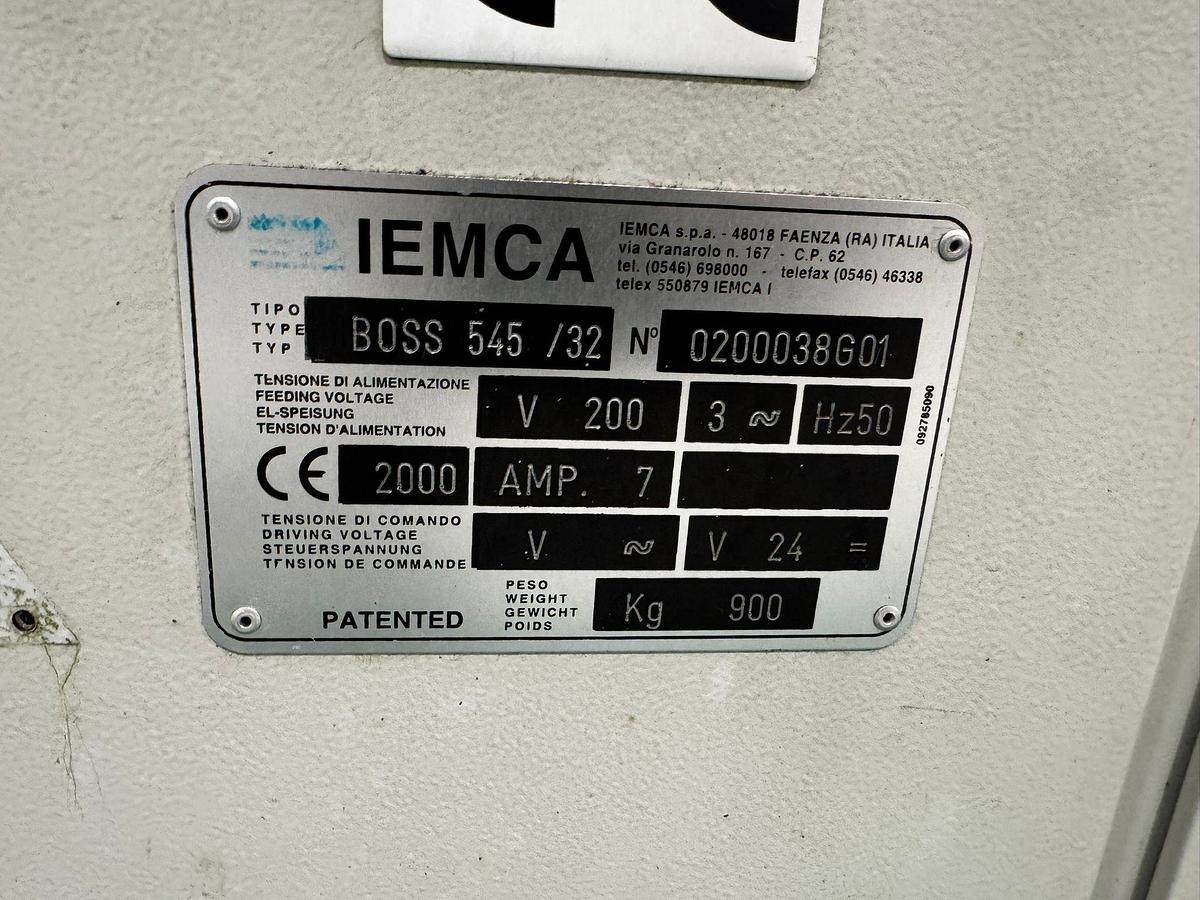

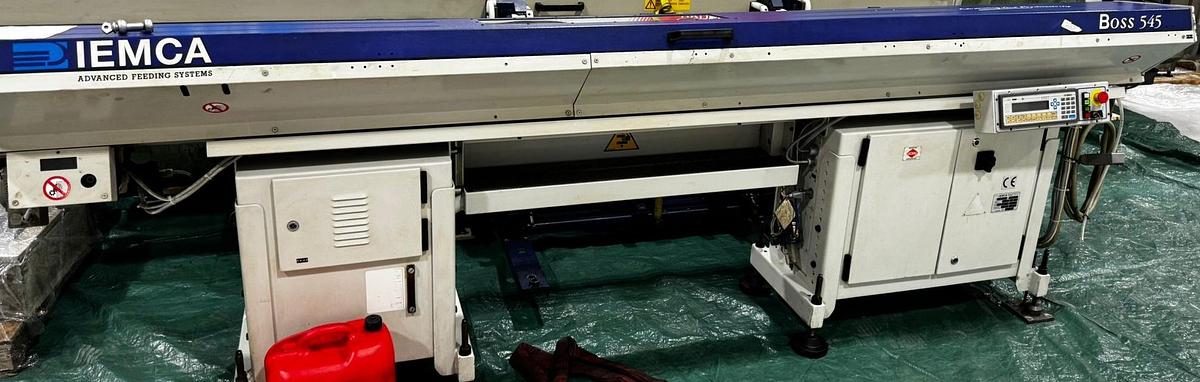

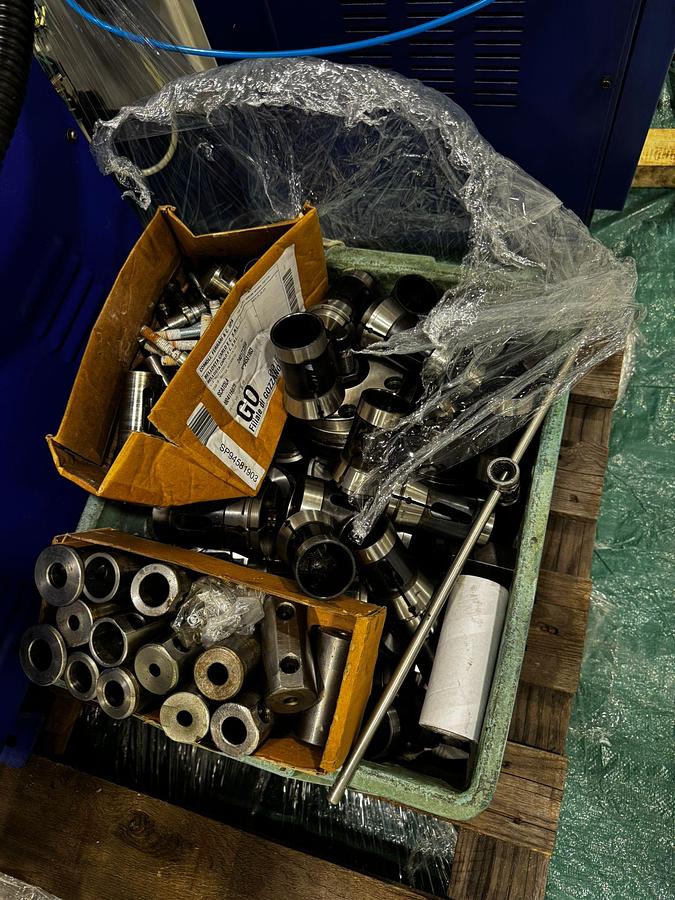

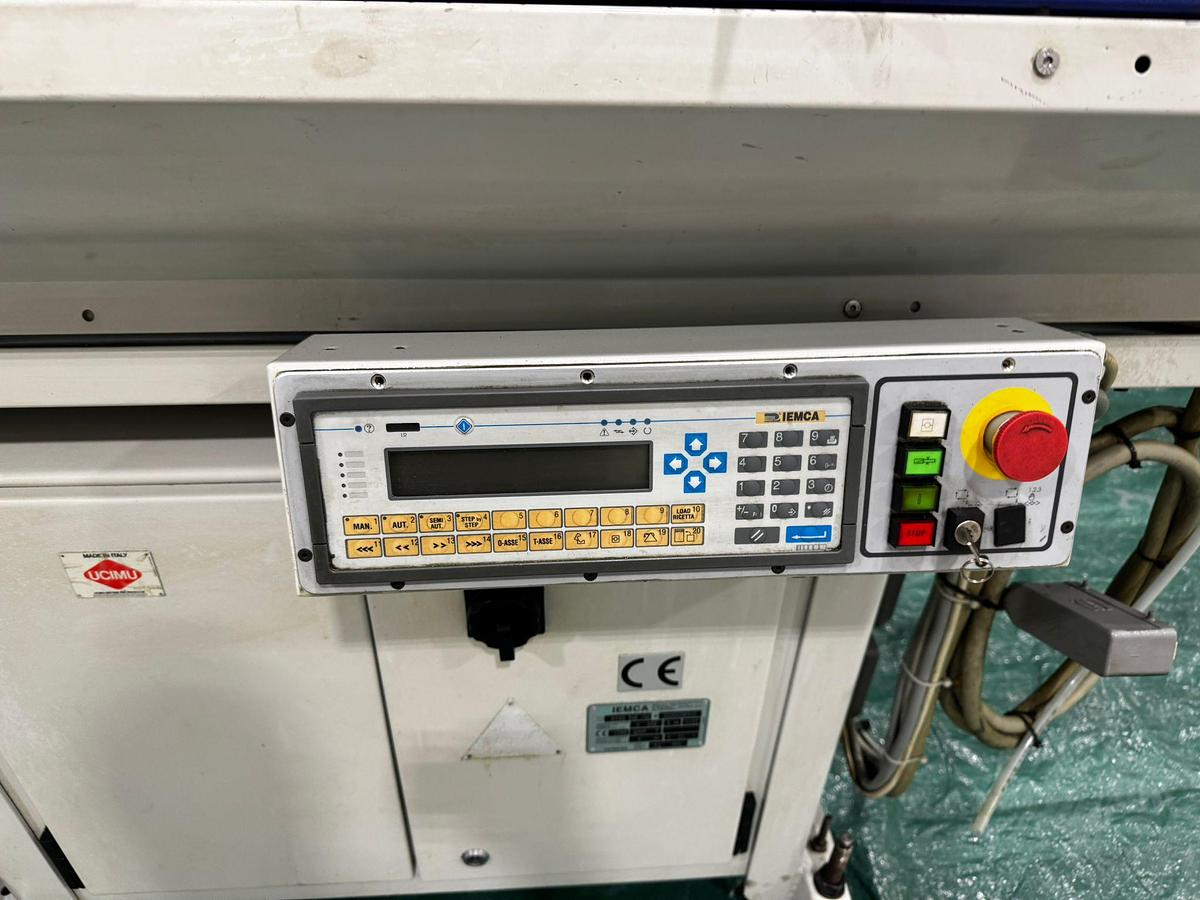

AccessoriesBAR FEEDER Make IEMCA model BOSS 545 - Chip conveyor - Coolant tank with pumps - Various fix tool holders - Piece collect arm - Manuals - Electric diagrams - EC CE Decleration
