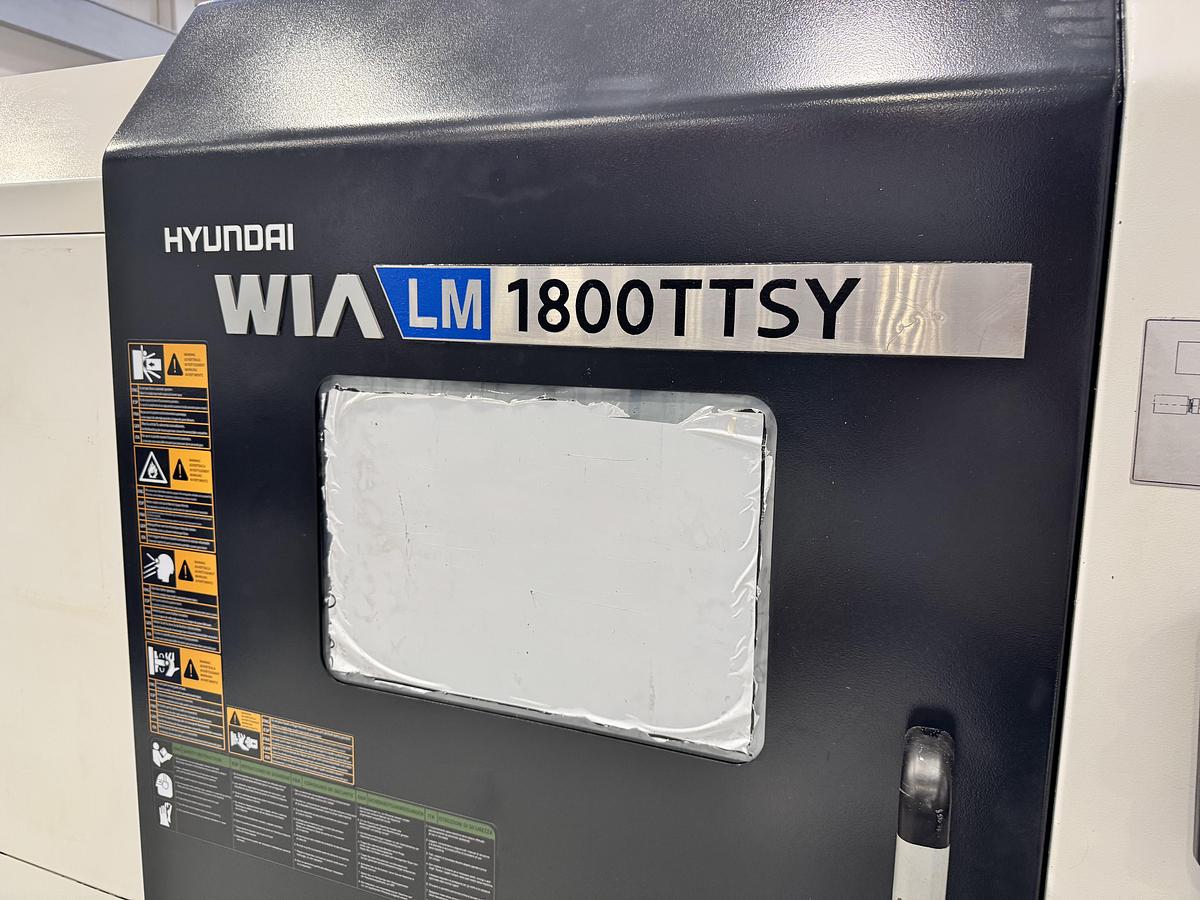

Hyundai WIA LM-1800/TTSY
Hyundai WIA LM-1800/TTSY
Location:.
or
Call 00971-50-1515369
Description

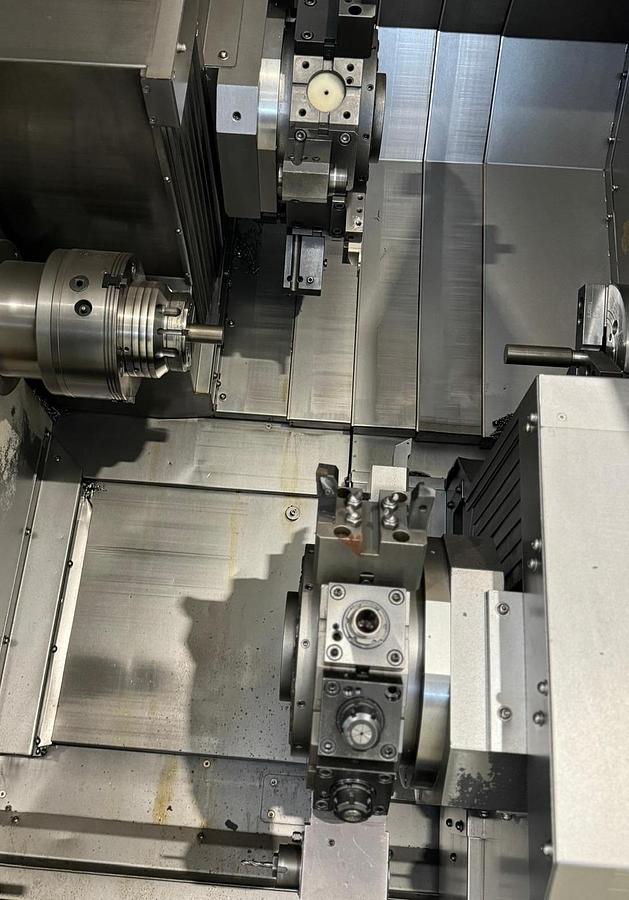

Dimensions machine : Length: 4.600 mm Width: 2.100 mm Height: 2.050 mm Max swing over carriage (upper / lower): N°1: Ø 290 mm / N°2: Ø 290 mm Max turning diameter main spindle / sub-sppindle: N°1: Ø 230 mm / N°2: Ø 230 mm Draw bar diameter main spindle / sub-spindle: N°1: Ø 76 mm / N°2: Ø 76 mm X1 / X2 Axis: N°1: 165 mm / N°2: 195 mm Z1 / Z2 Axis: N°1: 700 mm / N°2: 720 mm
Specifications
| Manufacturer | Hyundai WIA |
| Model | M-1800/TTSY |
| Year | 2014 |
| Condition | Used |
| Stock Number | R2025047 |

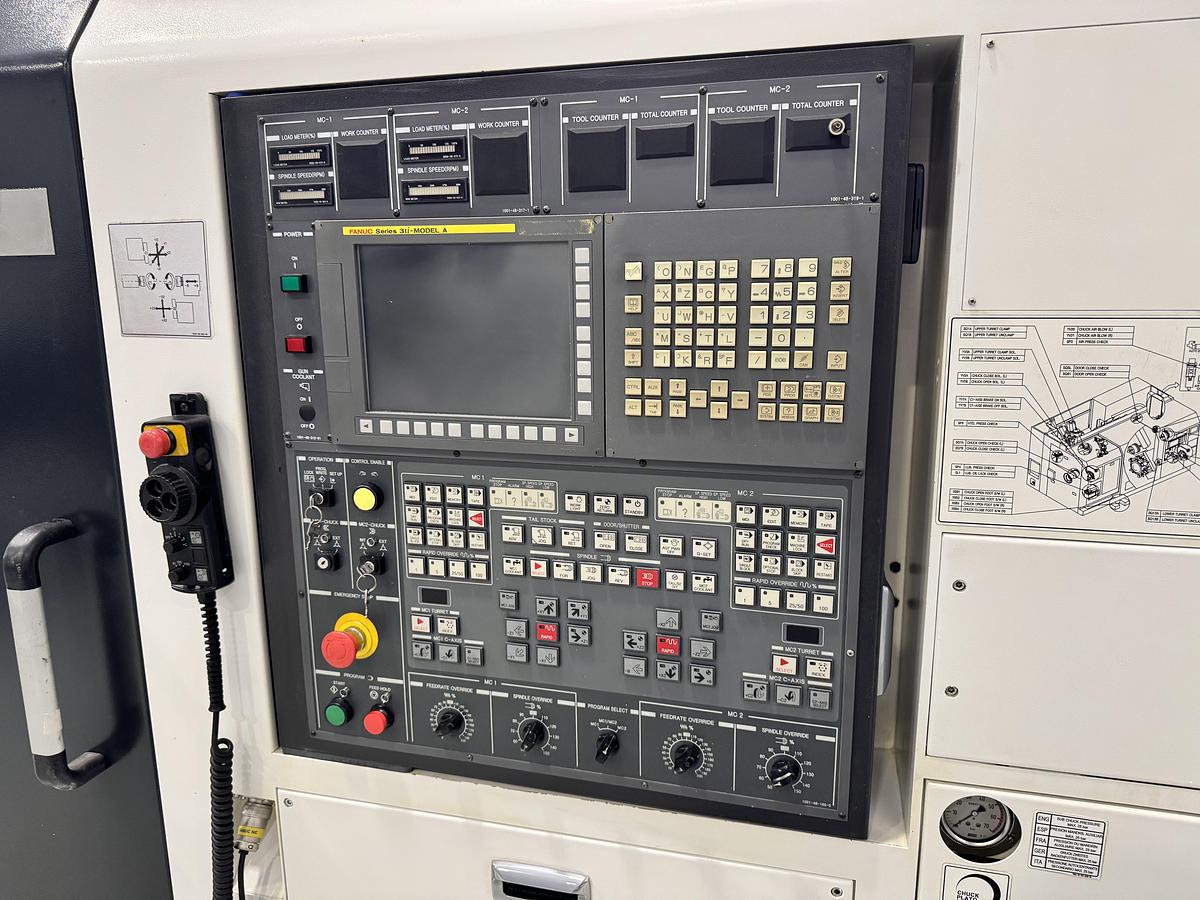

| CNC Control | FANUC Series 31i-MODEL A |
| Max turning lenght | 673 mm |
| Y Axis (Upper turret) | 100 mm ( ± 50 mm) |
| ZB Axis | 668 mm |
| C Axis (main spindle / sub-spindle) | 360° (Min. angle. 0,001°) |
| Speed range | 50 ÷ 5.000 Rpm |
| Spindle nose | ASA A2-6 |
| Chuck diameter | Ø 210 mm |
| C Axis angolar positioning | 0.001° |
| Spindle motor power (Max/cont.) | 22/11 kW |
| Turret stations with live-tools also | 12 positions |
| Live-tools speed | 5.000 Rpm |
| Live-tool motor power | 5,5 kW |
| Tools dimensions | 20x20 mm / Ø 32 mm |
| Rapid feed axes X1 / X2 | 20.000 mm/min |
| Rapid feed axis Y | 7.500 mm/min |
| Rapid feed axes Z1 / Z2 / ZB | 40.000 mm/min |
| Accessories | Bar Feeder make TOP AUTOMAZIONI model FUSION, Chip-conveyor, Coolant tank with pumps, Various fix and live tool holders, Automatic tool presetting arm with M code, Manuals, Electrical Diagrams and EC CE Declaration |
