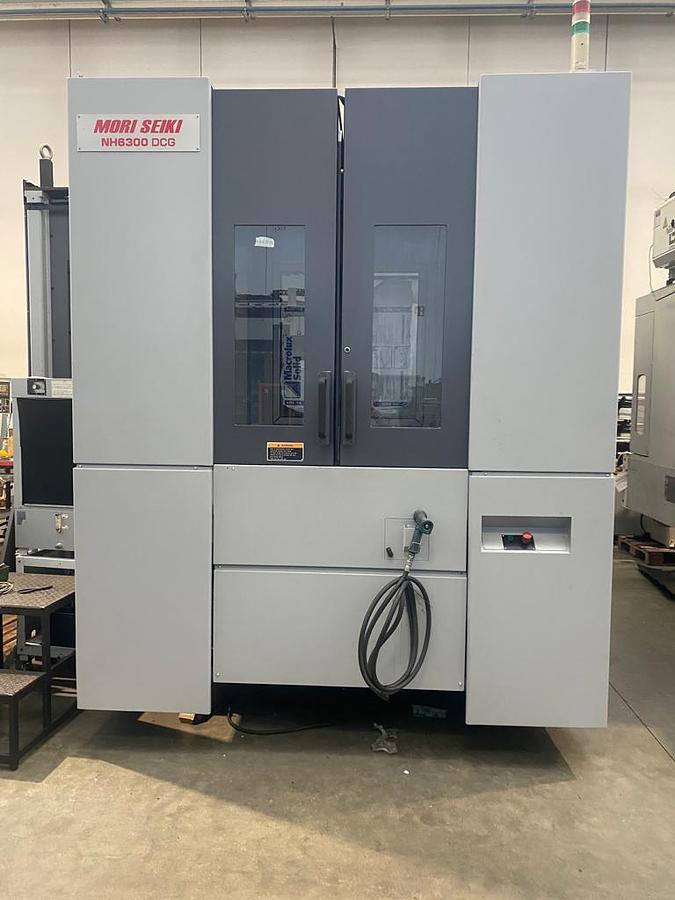

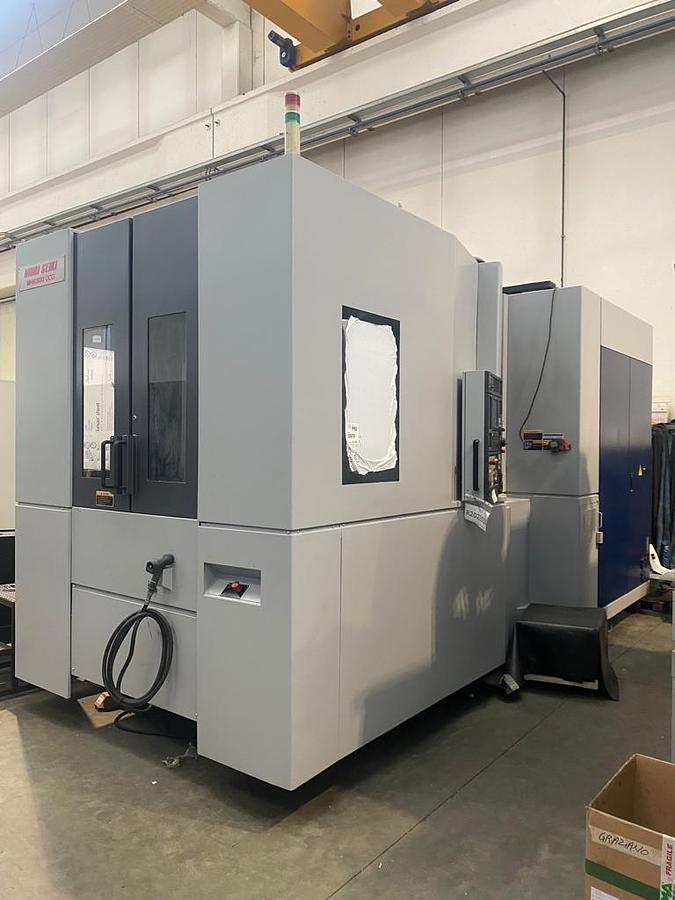

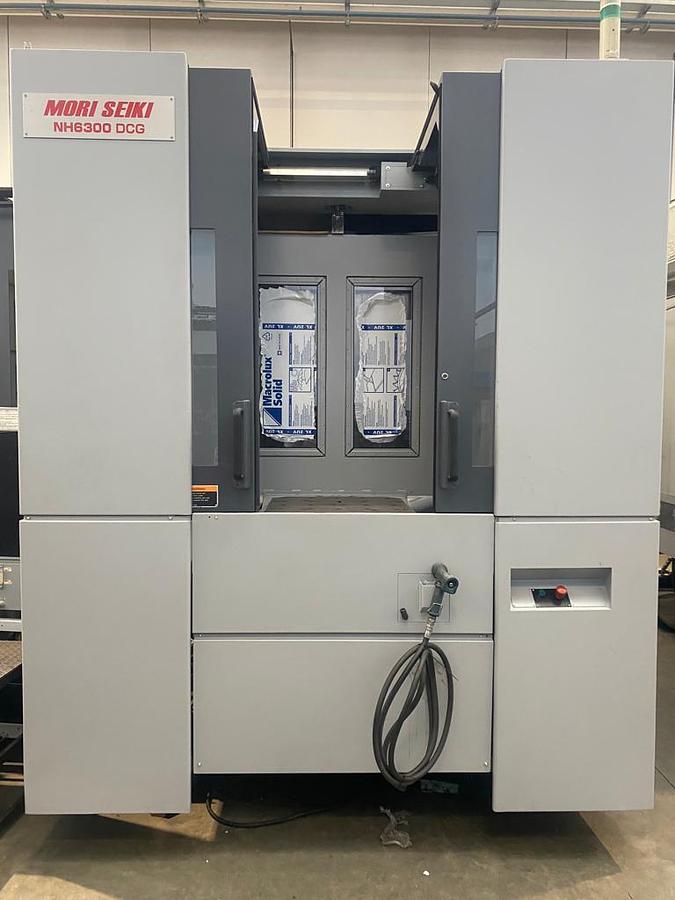

2004 Mori Seiki NH-6300 DCG
2004 Mori Seiki NH-6300 DCG
Location:Calerno, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | Mori Seiki |
| Model | NH-6300 DCG |
| Year | 2004 |
| Condition | Used |
| Stock Number | R2025046 |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/72e939a1108f8ab8e1738f9b41de867d/Mori%20Seiki%20NH6300%20DCG.pdf |

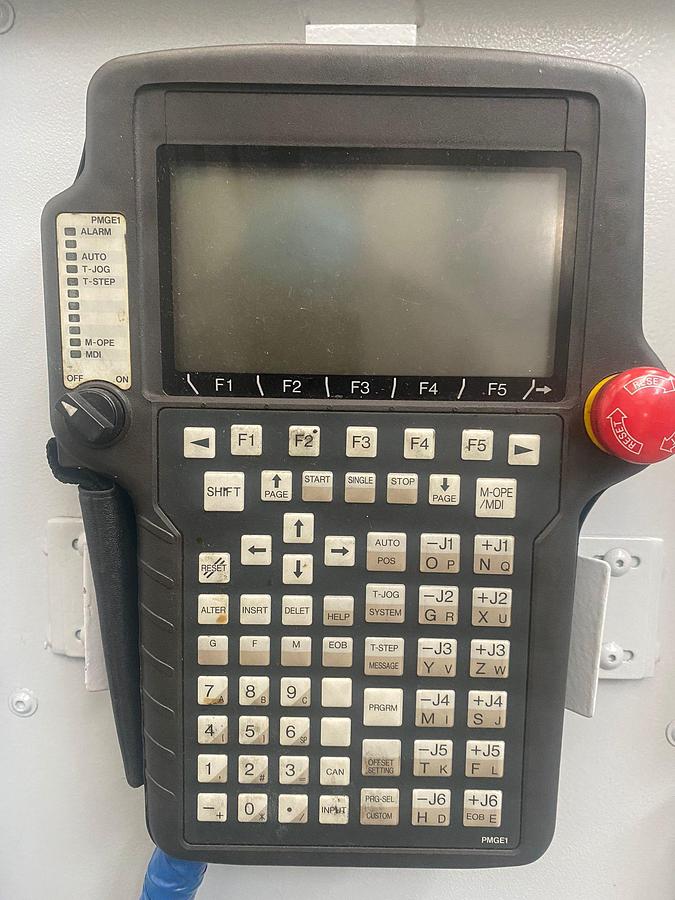

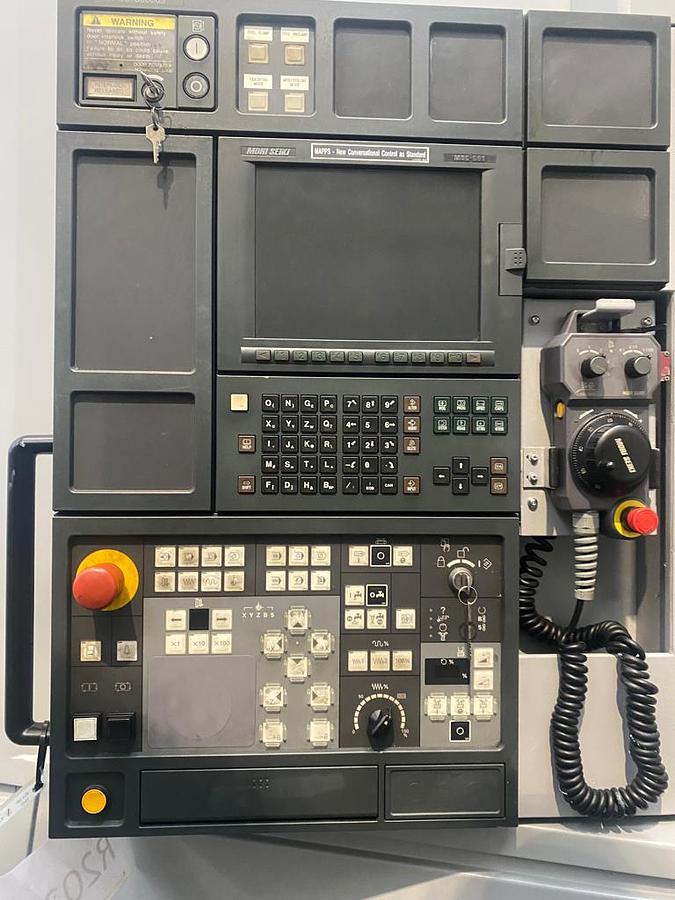

| CNC Control | MORI SEIKI MSF-501 |
| Spindle size | ISO 50 |
| Spindle speed | 10.000 Rpm |
| Spindle motor power (cont/30 min | 25 / 30 kW |
| X axis | 900 mm |
| Y Axis | 800 mm |
| Z Axis | 980 mm |
| Distance between spindle center - table surface | 100 ÷ 900 mm |
| Distance between spindle nose - table center | 100 ÷ 1.080 mm |
| Max workpiece dimensions (Diameter x Height) | Ø1.000 x 1.300 mm |

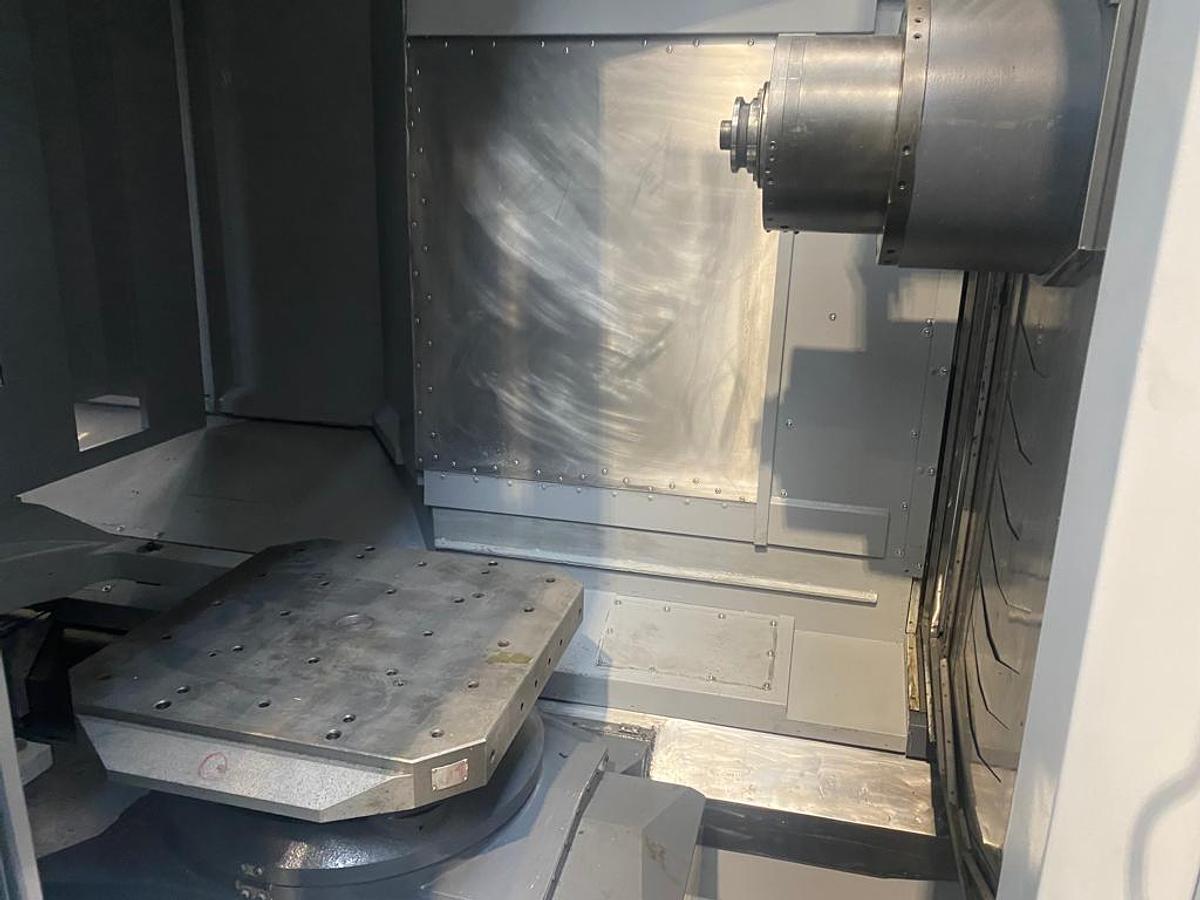

| Table dimensions | 630 x 630 mm |
| Max table load capacity | 1.200 Kg |
| Table rotation Indexed | 360 positions |
| Nr. of table pallets | 2 |
| Rapid feedrates X / Y / Z | 50.000 mm/min |
| Working feedrates X / Y / Z | 1 ÷ 50.000 mm/min |
| Tool type | MAS BT-50 |
| Pull stud type | Type 90° Mori Seiki |

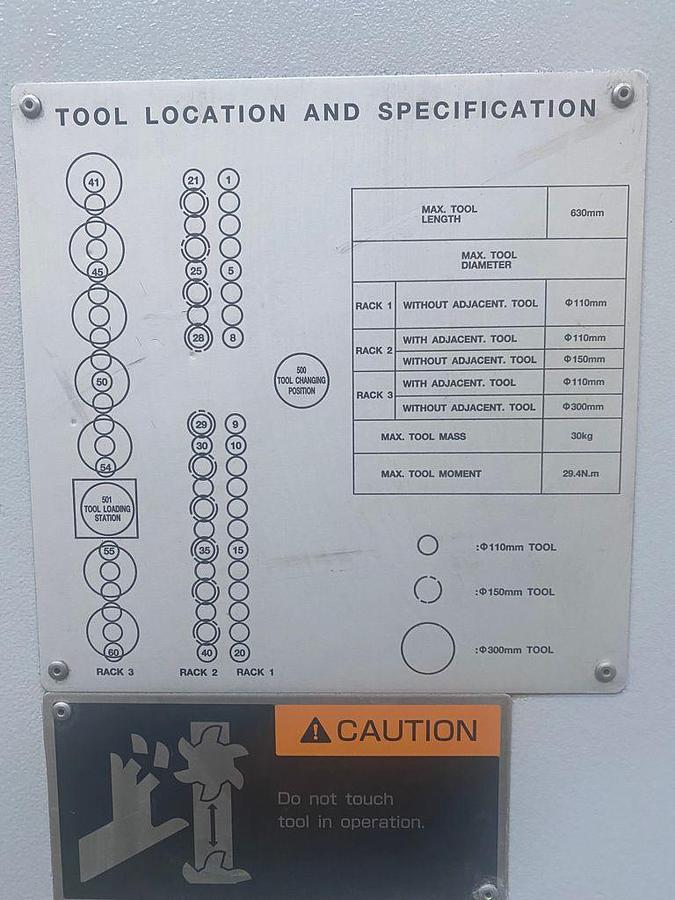

| ATC positions | 60 Stations |
| Tools diameter | Ø300 / Ø110 mm |
| Tools max lenght | 630 mm |
| Tools max weight | 30 Kg |

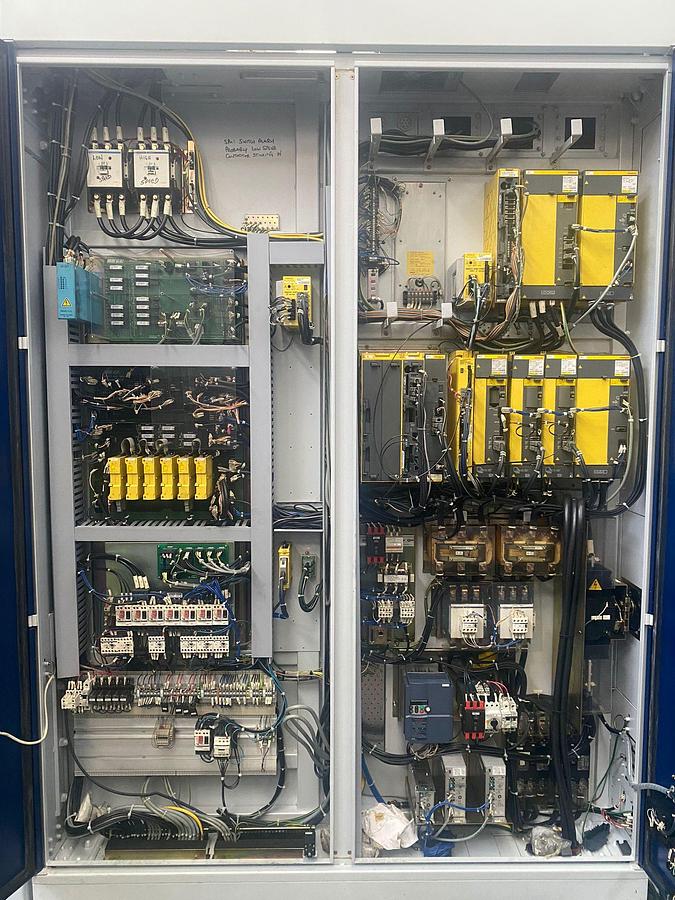

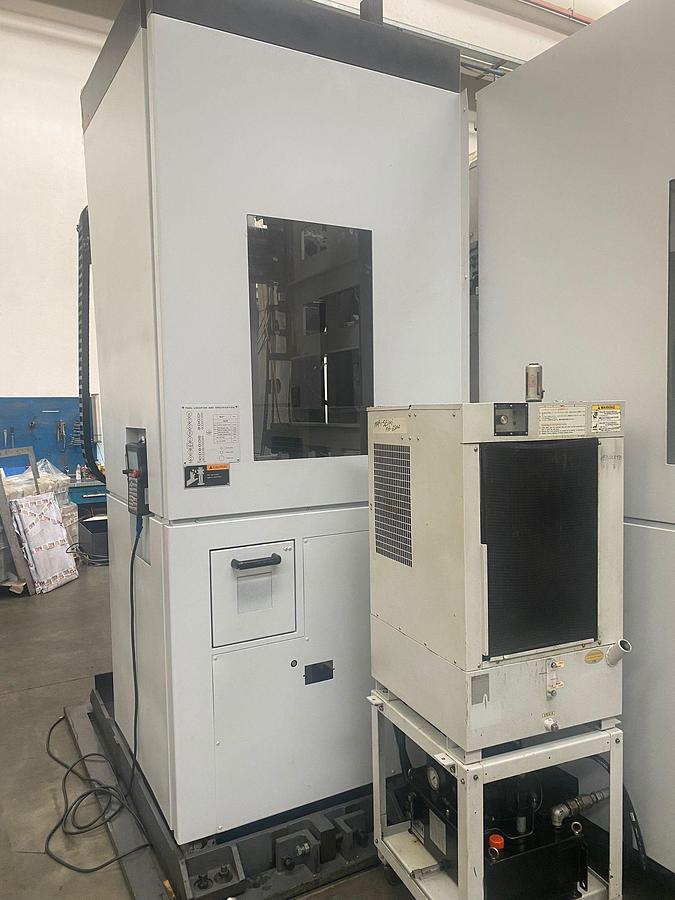

| Accessories | Coolant tank with high pressure pump - Chip conveyor - Chiller for spindle head - Transformer - Manuals - Electric diagrams - EC CE Decleration |
