2002 DECKEL MAHO DMC-100V hi-dyn
Sold

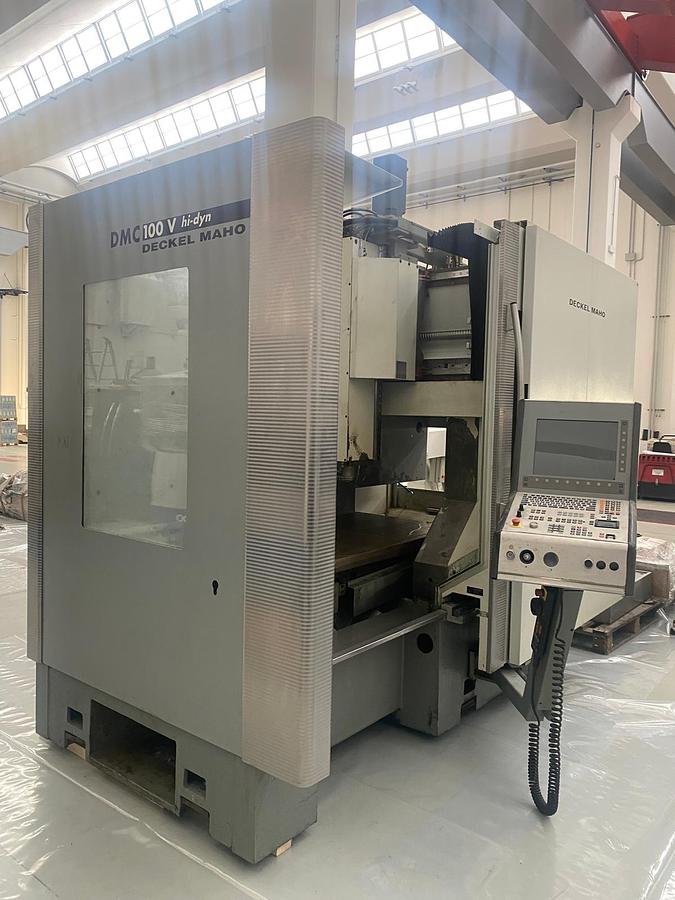

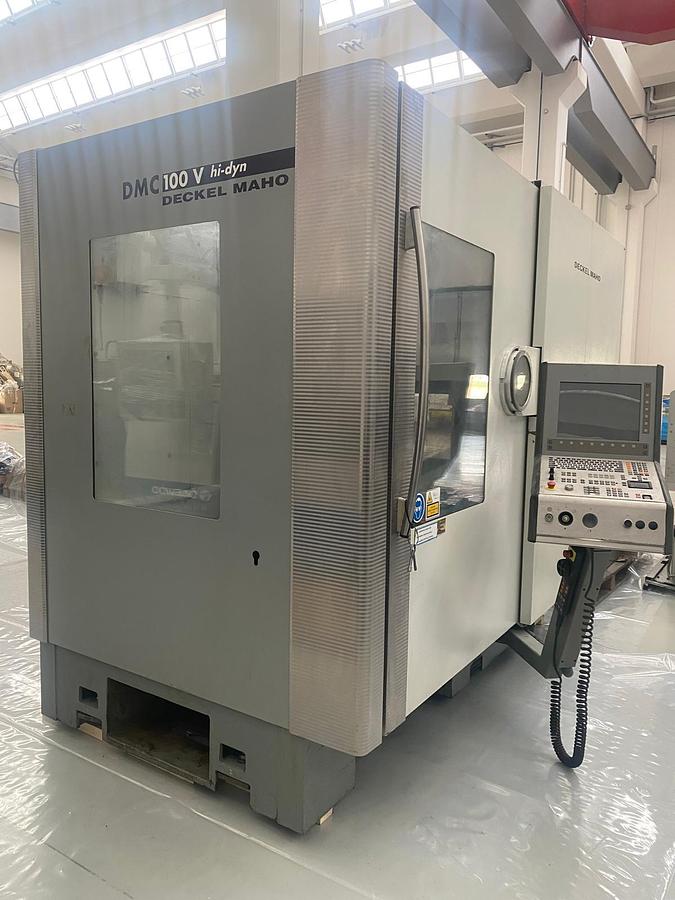

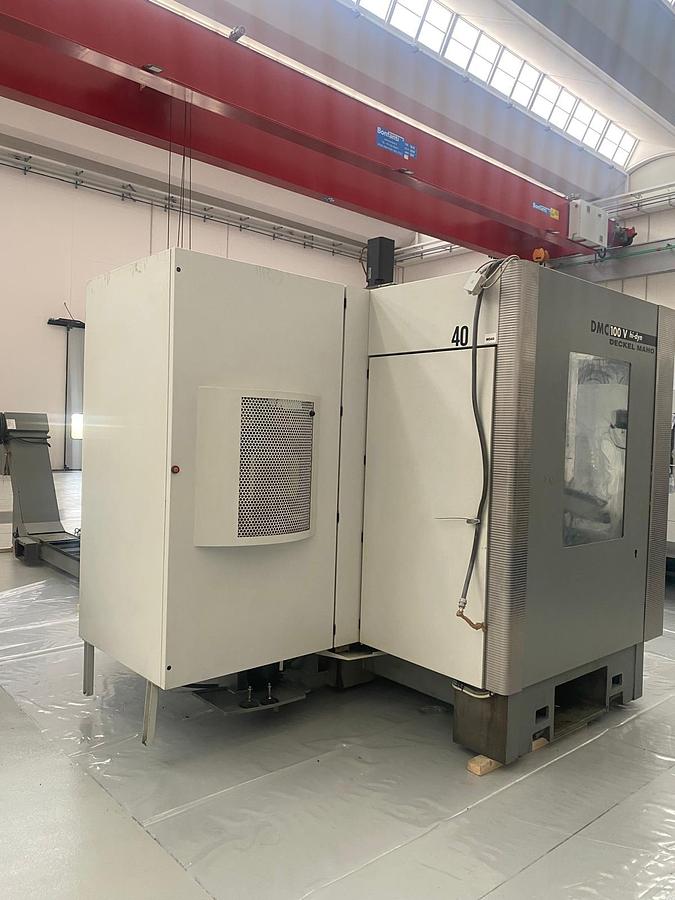

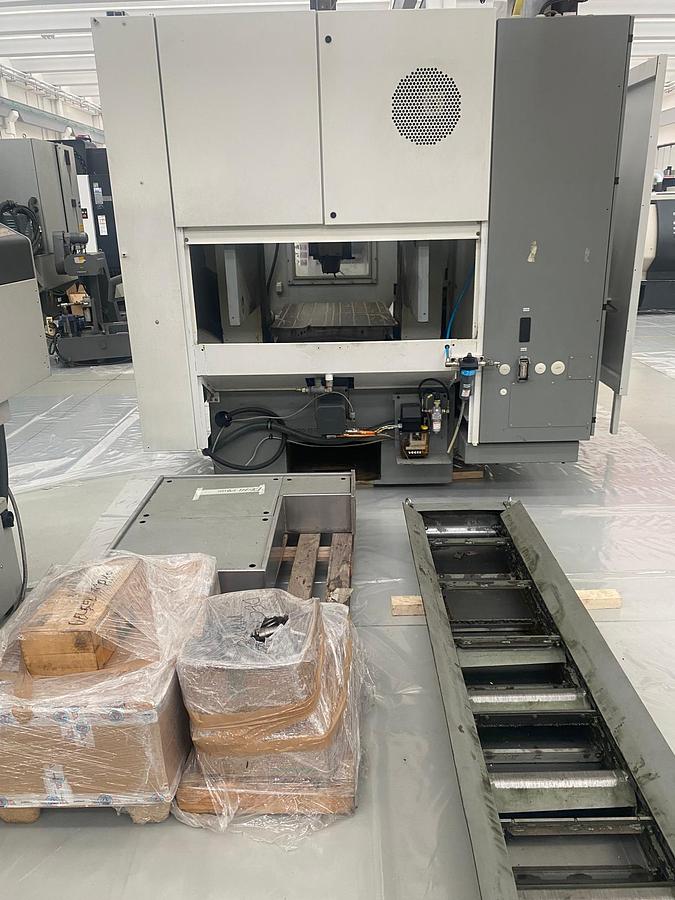

2002 DECKEL MAHO DMC-100V hi-dyn
Location:San Martino In Rio, Italy
Specifications
| Manufacturer | DECKEL MAHO |
| Model | DMC-100V hi-dyn |
| Year | 2002 |
| Condition | Used |
| Stock Number | R2024164 |
| Documents | https://f.machineryhost.com/335f5352088d7d9bf74191e006d8e24c/38a47424c4dfdd426fe3602da3bf697e/Deckel%20Maho%20DMC%20100V%20hi-dyn.pdf |

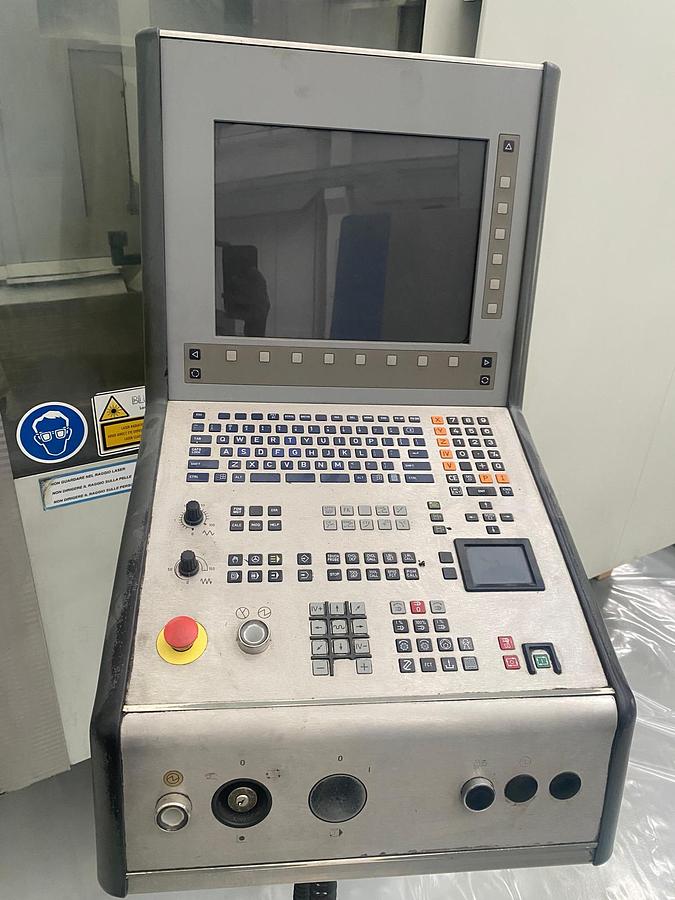

| CNC Control | HEIDENHAIN iTNC-530 |
| Spindle tool size | IOS - 40 |
| Spindle speed | 18.000 Rpm |

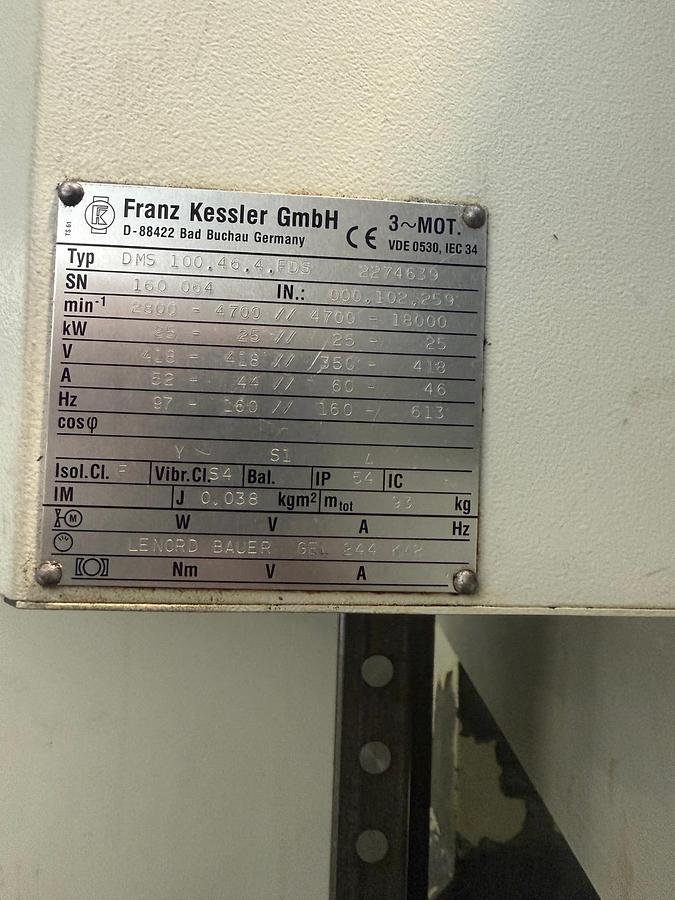

| Spindle motor power | 25 kW |
| X axis | 1.000 mm |
| Y axis | 800 mm |
| Z axis | 500 mm |
| Distance between spindle nose – table surface | 200 ÷ 700 mm |

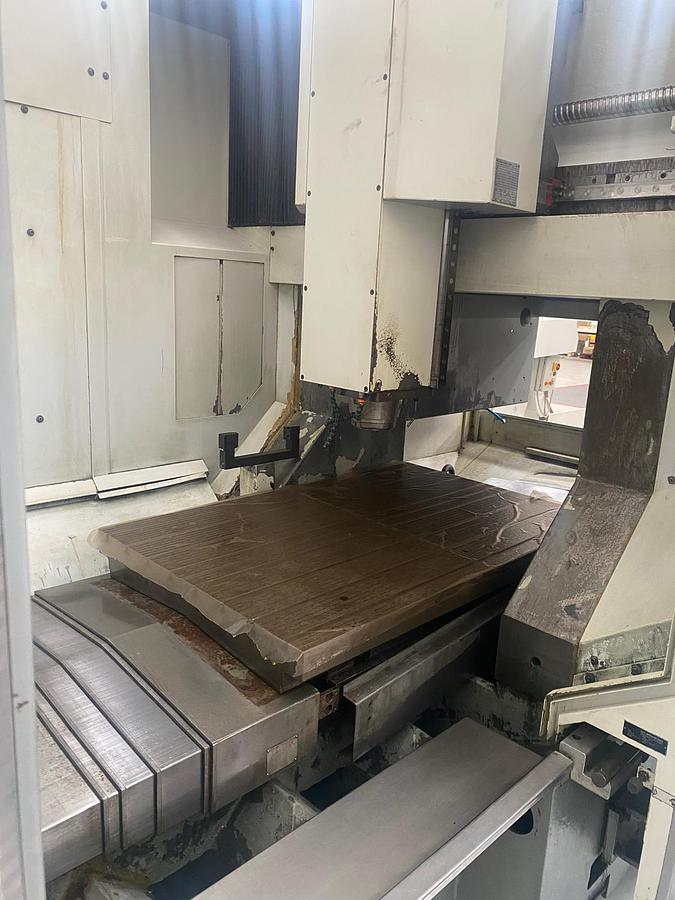

| Table dimensions | 1.250 X 800 mm |
| Max load allowed on table | 1.200 Kg |
| T-Slot dimensions (number X width) | Nr. 8 X 14mm (H12) |
| X / Y / Z axis rapid feedrates | 50.000 mm/min |
| X / Y / Z axis working feedrates in linear interpolation (max) | 50.000 mm/min |
| Tool type | SK-40 DIN-69871 |
| Tool pull stud type | DIN-69872 |

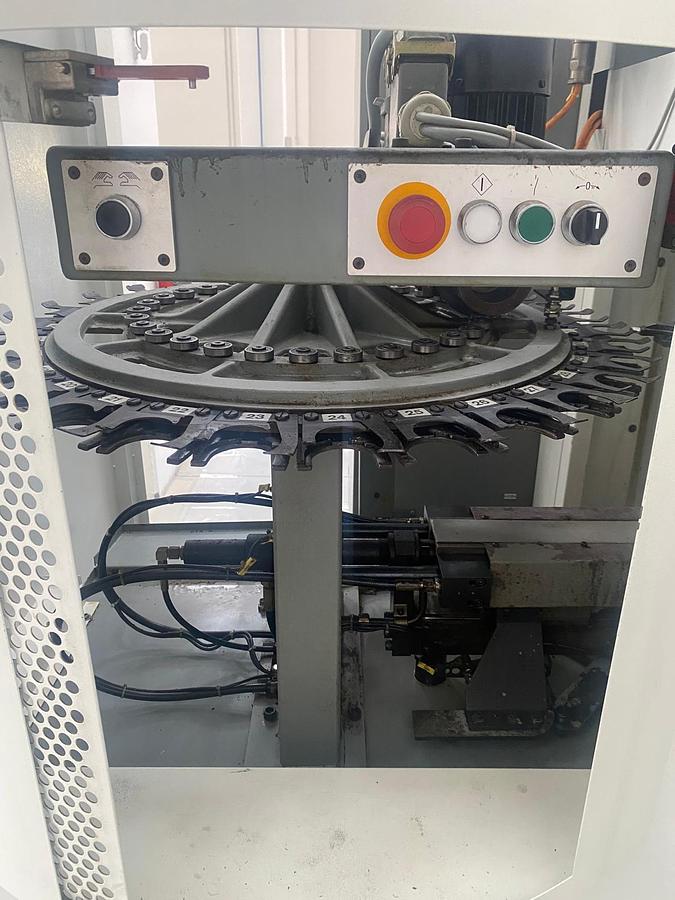

| ATC capicity | 30 stations |
| Max tool diameter with adjacent stations (full / empty) | Ø80 mm / Ø140 mm |
| Max tool lenght | 300 mm |
| Max tool weight | 12 Kg |

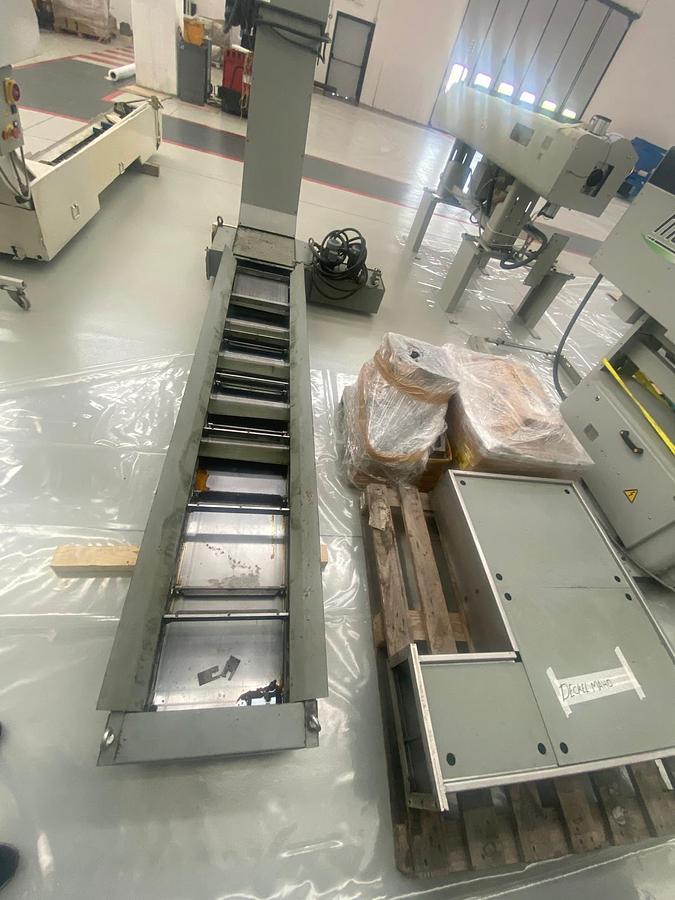

| Accessories | Probe for piece checking - Chip conveyor - Coolant tank with pumps - High pressure pump for coolant through spindle - Chiller for spindle head - Various tool holder cones - Transformer - Manuals - Electrical Diagrams - CE Declaration |
