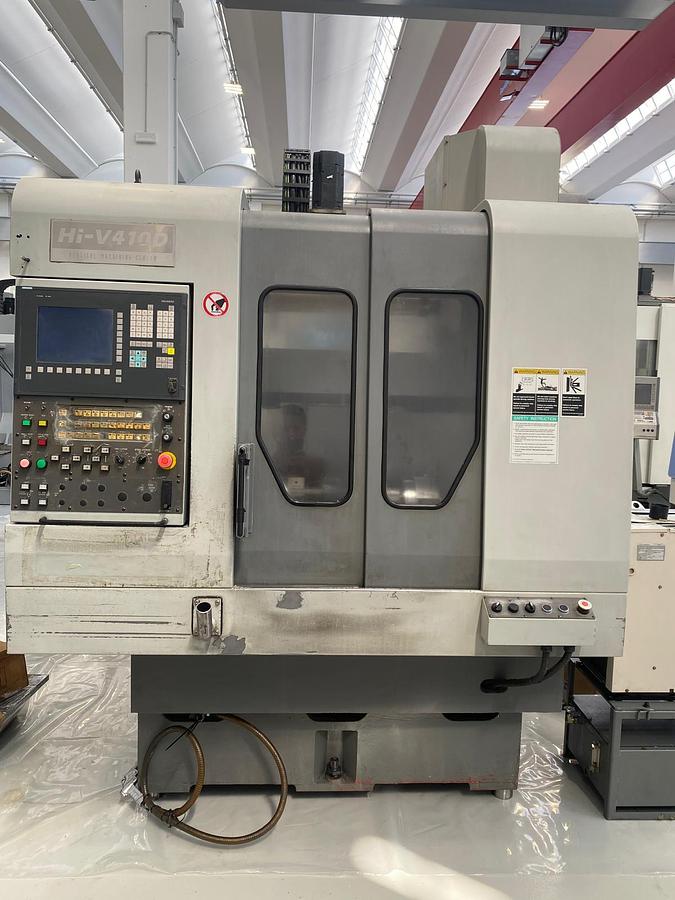

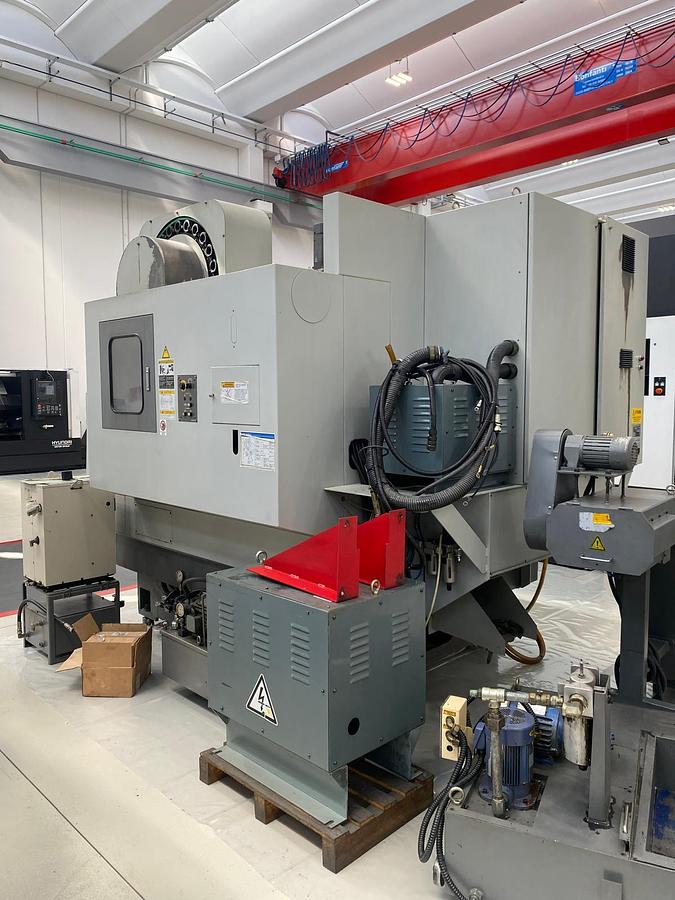

2005 Hyundai WIA HI-V410D
2005 Hyundai WIA HI-V410D
Location:San Martino In Rio, Italy
or
Call 00971-50-1515369
Specifications
| Manufacturer | Hyundai WIA |
| Model | HI-V410D |
| Year | 2005 |
| Condition | Used |
| Stock Number | R2025053 |

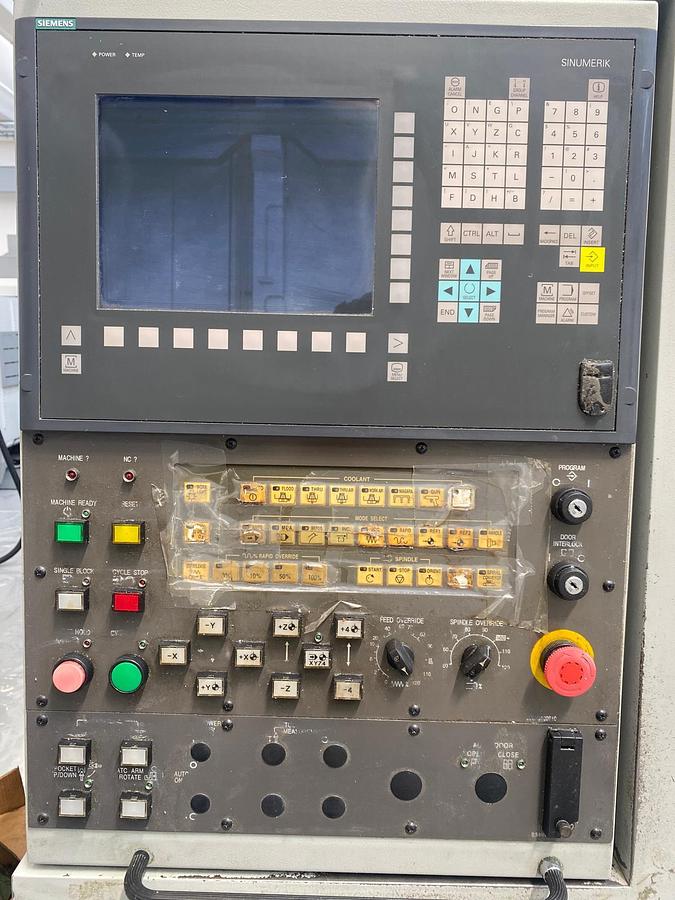

| CNC Control | SIEMENS 810D |
| Spindle nose | ISO 40 |
| Spindle speed | 10.000 Rpm |
| Spindle motor power (cont/30 min) | 12/16 kW |
| Axis X | 570 mm |
| Axis Y | 410 mm |
| Axis Z | 580 mm |
| Distance between spindle nose – table suface | 197 - 777 mm |
| Distance between column and spindle center | 495 mm |
| Table dimensions | 2 x (650 x 410 mm) |

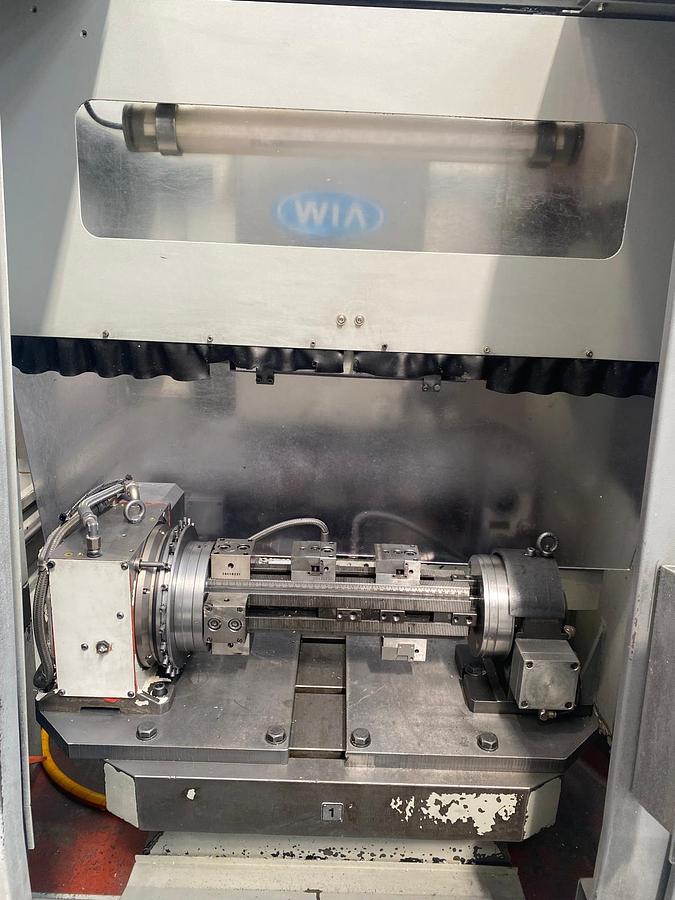

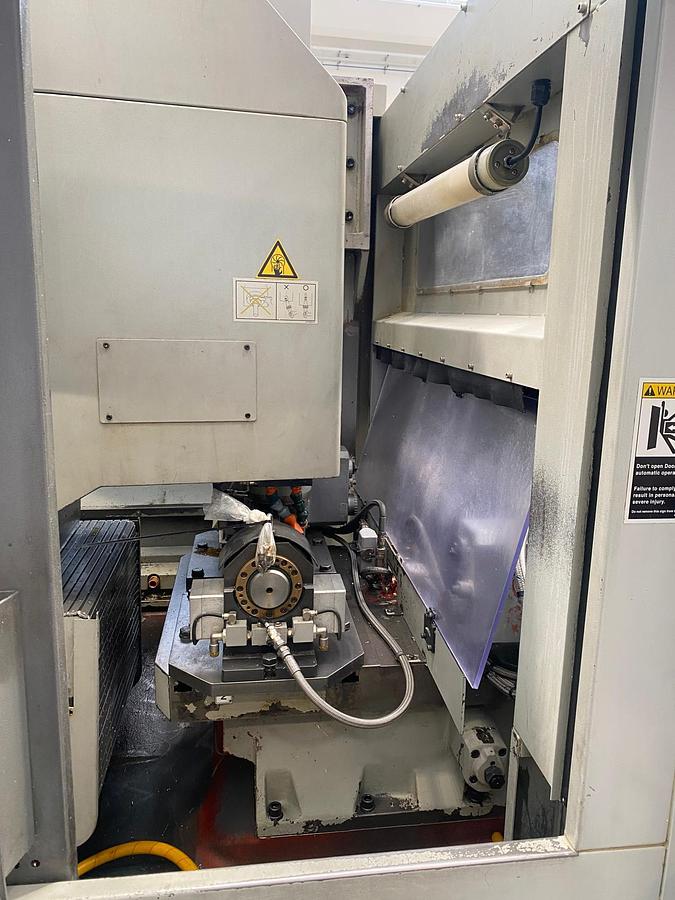

| Number of tables | Nr. 2 Rotary tables Ø160 mm with counter-support |
| Table load capacity | 2 x 200 Kg |
| Rapid feed axes X / Y | 36.000 mm/min |
| Rapid feed axis Z | 30.000 mm/min |
| Cutting feed axes X / Y / Z | 1 ÷ 10.000 mm/min |

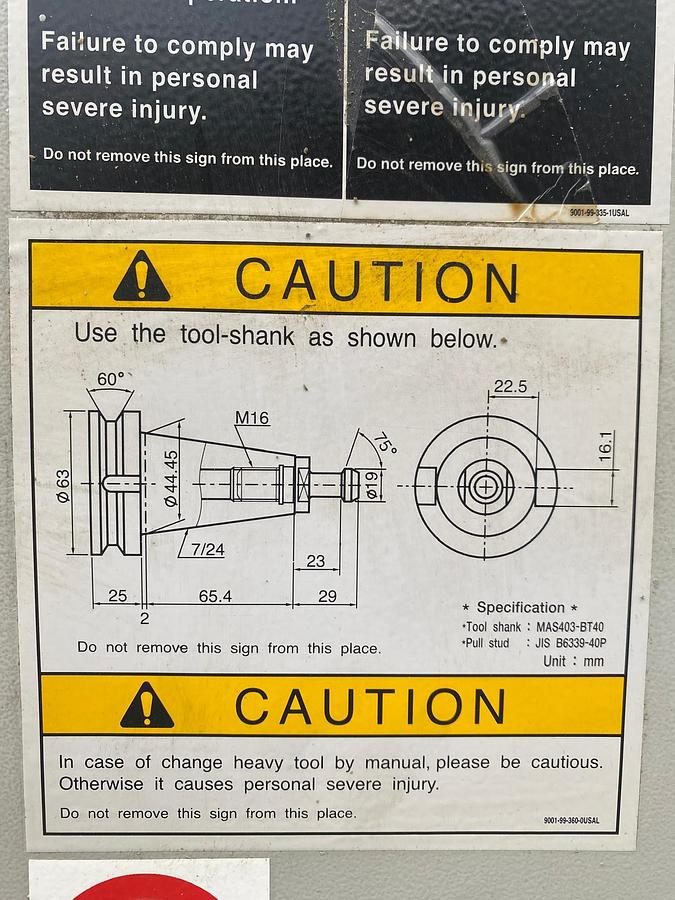

| Tool type | BT-40 |

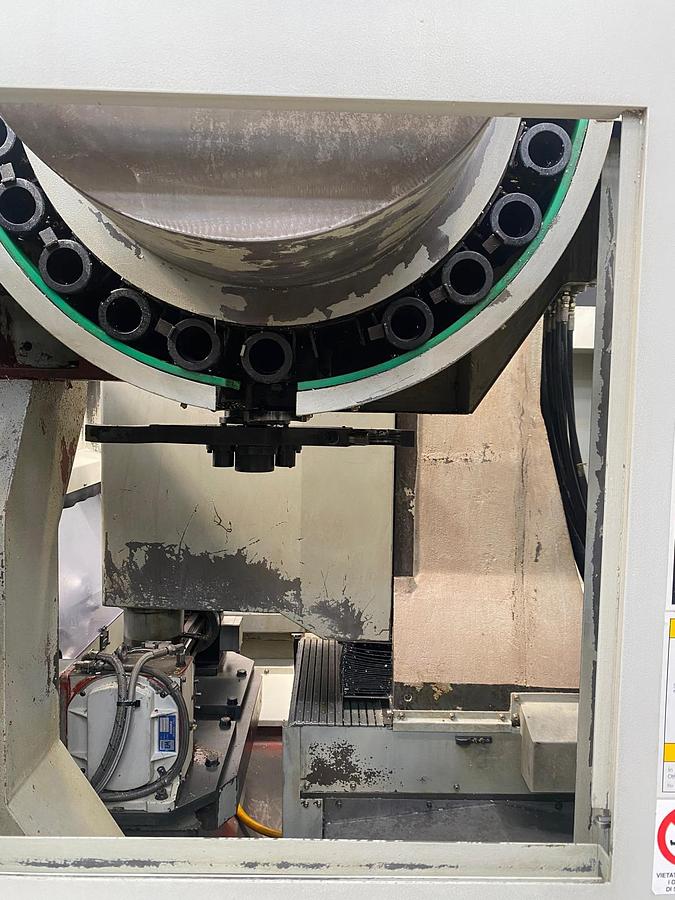

| ATC capacity | Nr. stations 24 |
| Max tool diameter (with adjacent full stations) | Ø90 / Ø150 mm |
| Max tool length | 300 mm |
| Max tool weight | 8 Kg |

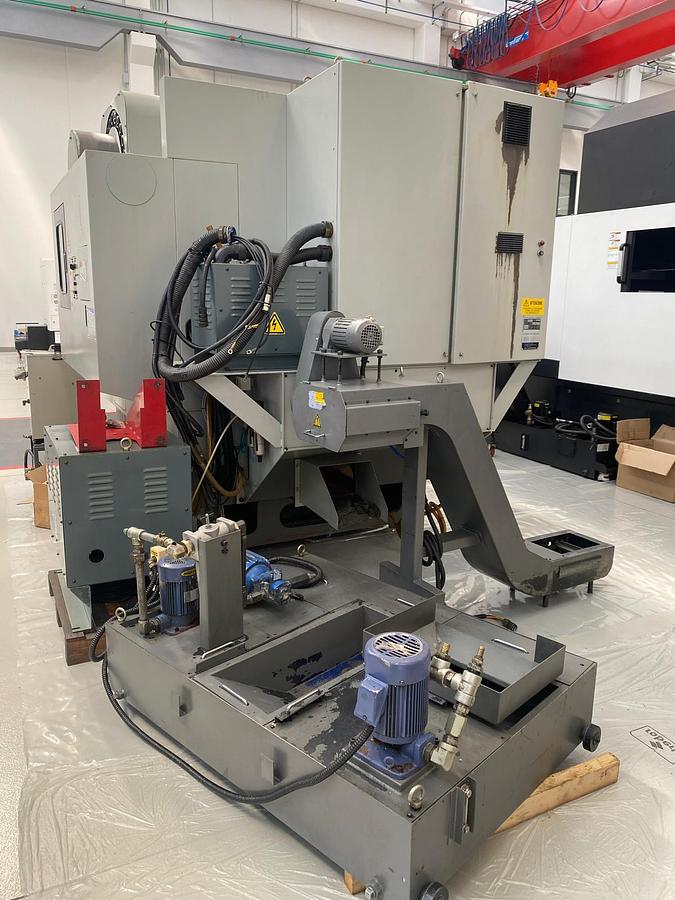

| Accessories | Chips conveyor Coolant tank with pumps Chiller for spindle head Transformer Manuals, Electric diagrams and CE/EU declaration |
